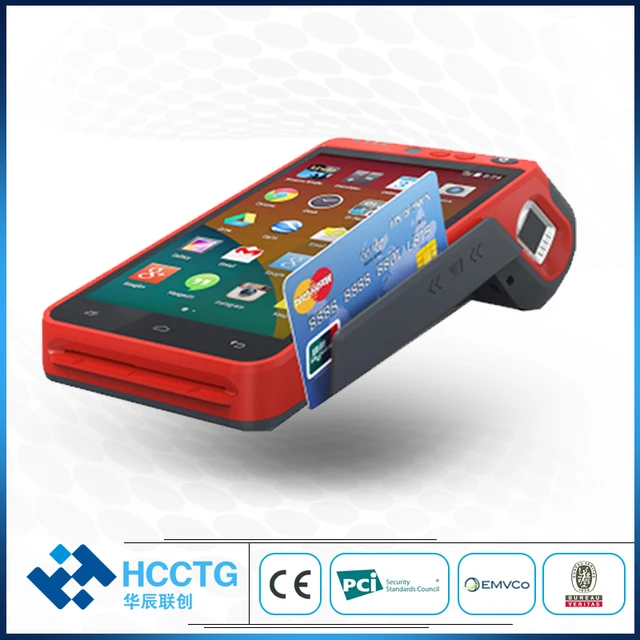

Z100 thermal Printer 4G Handheld Android 7.0 POS Terminal Touch Screen 2D Barcode Scanner Wireless Wifi Bluetooth GPRS Barcode
Brand Name:
HCCTG
Scan Speed:
100 scans/second
Type:
Barcode Scanner
Optical Resolution:
600*1200
Scan Element Type:
CMOS
Interface Type:
USB
Scan Breadth:
A8
Model Number:
HCC-Z100
Novelty:
New
Scanning Light Source:
Natural Light
Time to market:
Mar-13
Product Type:
Bar Code Scanner
RAM:
RAM: 1GB EMMC: 8GB
CPU:
Quad-Core 1.35GHZ
Camera:
5.5 inch TFT IPS LCD resolution 1280*720
Touch screen:
Capacitive touch screen
Printer:
58mm Paper roll: 58*40mm
Magnetic card reader:
Supports 1/2/3 magnetic card channels two-way card swiping
Micro SD Card Slot:
1PCS
SAM card holder:
2PCS
SIM card holder:
2PCS
Contactless reader:
Supports ISO/IEC 14443 Type A.B. Mifare cards
Communication method:
2G 3G and 4G WiFi hot spot Bluetooth GPS
Technical:
Provide SDK for free
Dimention:
206mmX84mmX32mm (max 56mm)
Package weight:
1.5KG
Battery:
Li-ion battery 7.2V /2600mAH
| Basic Characteristics | OS | Safedroid OS Android 7.0 (5.1 at optional) |
| CPU | Quad-Core 1.35GHZ | |
| ROM | 8GB ROM EMMC | |
| RAM | 1G RAM LPDDR3 | |
| Display | 5.5 inch TFT IPS LCD,resolution 1280*720 | |
| Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
| Dimensions | 206mmX84mmX32mm (max 56mm) | |
| Weight | 530g(Battery included) | |
| Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys:Menu,Home,Back | |
| Input | Chinese/English ,and supports handwriting and soft keyboard | |
| Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
| Bluetooth | BT 4.0 LE +EDR | |
| 4G | TD-LTE:Band38, Band39, Band40, Band41 FDD-LTE:Band1,Band3,Band7,Band8,Band20 | |
| 3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 CDMA EV-DO Rev.A:800MHZ TD-SCDMA:Band34,Band39 | |
| 2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |
| Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
| Smart Card reader | Supports ISO7816 standard | |
| Contactless Card reader | Supports 14443A / 14443B | |
| Expansion and peripherals | Printer | High-Speed Thermal Printer ; 58mm printing paper ; 40mm paper roll |
| Camera | 5MP camera with LED flash and auto-focus function | |
| Satellite Positioning | GPS, GLONASS, Bei-Dou satellite navigation system, Supports A-GPS | |
| Audio | Speaker ,Microphone,Earphone | |
| Interfaces | Micro SD Card Slot | 1 PCS |
| SIM Card Slot | 2 PCS MICRO SIM | |
| PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
| USB Port | 1PCS TYPE C USB | |
| Power | Battery | Li-ion battery ,7.2V /2600mAH |
| Charging Port | Type C USB Port ,5V DC,2A | |
| Environment | Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
| Certification | Electromagnetic | CE/ROHS/EMV L1/EMVL2/PCI |
Certificates-POS
Category-POS
Our Factory-POS
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 19cm x 11cm (7.87in x 7.48in x 4.33in)
