SM-E3000H Mini Portable Barcode Scan Engine USB RS232 TTL Kiosk Barcode Reader Module PDA Scanner Engine for Data Collector

Cheap SM-E3000H Mini Portable Barcode Scan Engine USB RS232 TTL Kiosk Barcode Reader Module PDA Scanner Engine for Data Collector
Cheap SM-E3000H Mini Portable Barcode Scan Engine USB RS232 TTL Kiosk Barcode Reader Module PDA Scanner Engine for Data Collector

Product ID : 32964842519
Price : $39.99 - 69
Discount Price : $32.39 - 55.89
* Price Update at : Jully, 25 2019 *



VISIT WEBSITE NOW








Item specifics




  • Product Type:
    Bar Code Scanner


  • Novelty:
    New


  • Scan Element Type:
    CMOS


  • Model Number:
    SM-E3000H


  • Scanning Light Source:
    LED


  • Time to market:
    Mar-13


  • Type:
    Barcode Scanner


  • Brand Name:
    SENMON


  • Scan Breadth:
    A4


  • Colour Depth:
    32 Bit


  • Scan Speed:
    350 times/s


  • Interface Type:
    USB/RS232/TTL


  • Optical Resolution:
    960 *640


  • Item:
    barcode scan engine


  • Interface:
    USB,RS232,TTL


  • Decode ability:
    2D QR codes


  • Scan speed:
    350 times per second


  • Dimention:
    21mm * 14mm * 8mm








Product Description



bluetooth 2d scanner

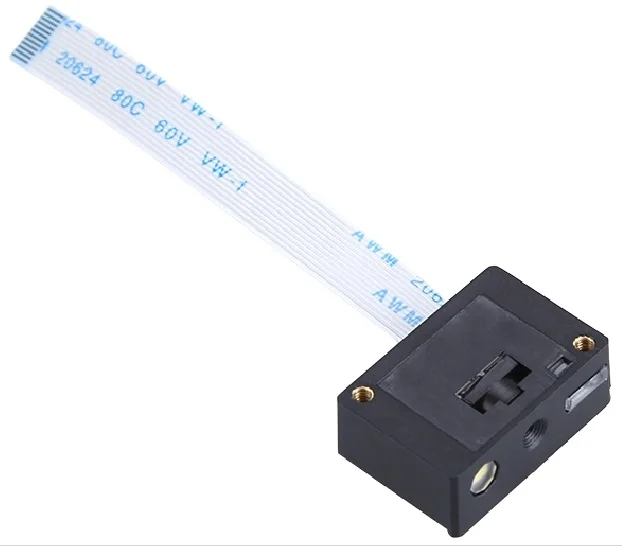

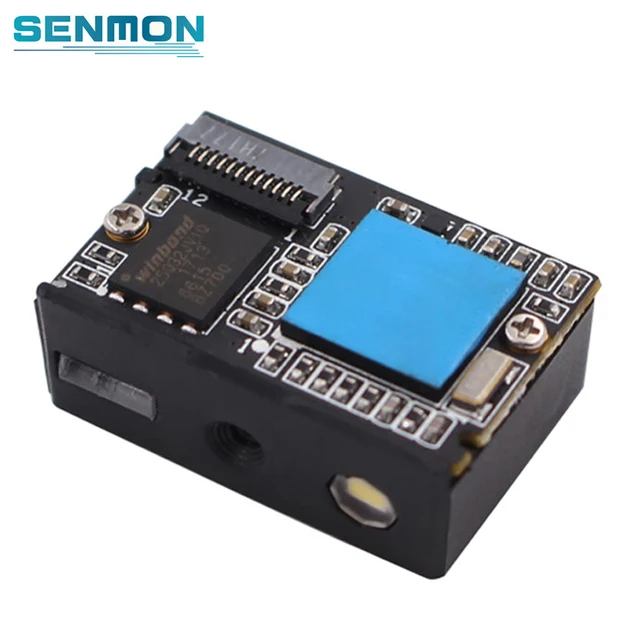

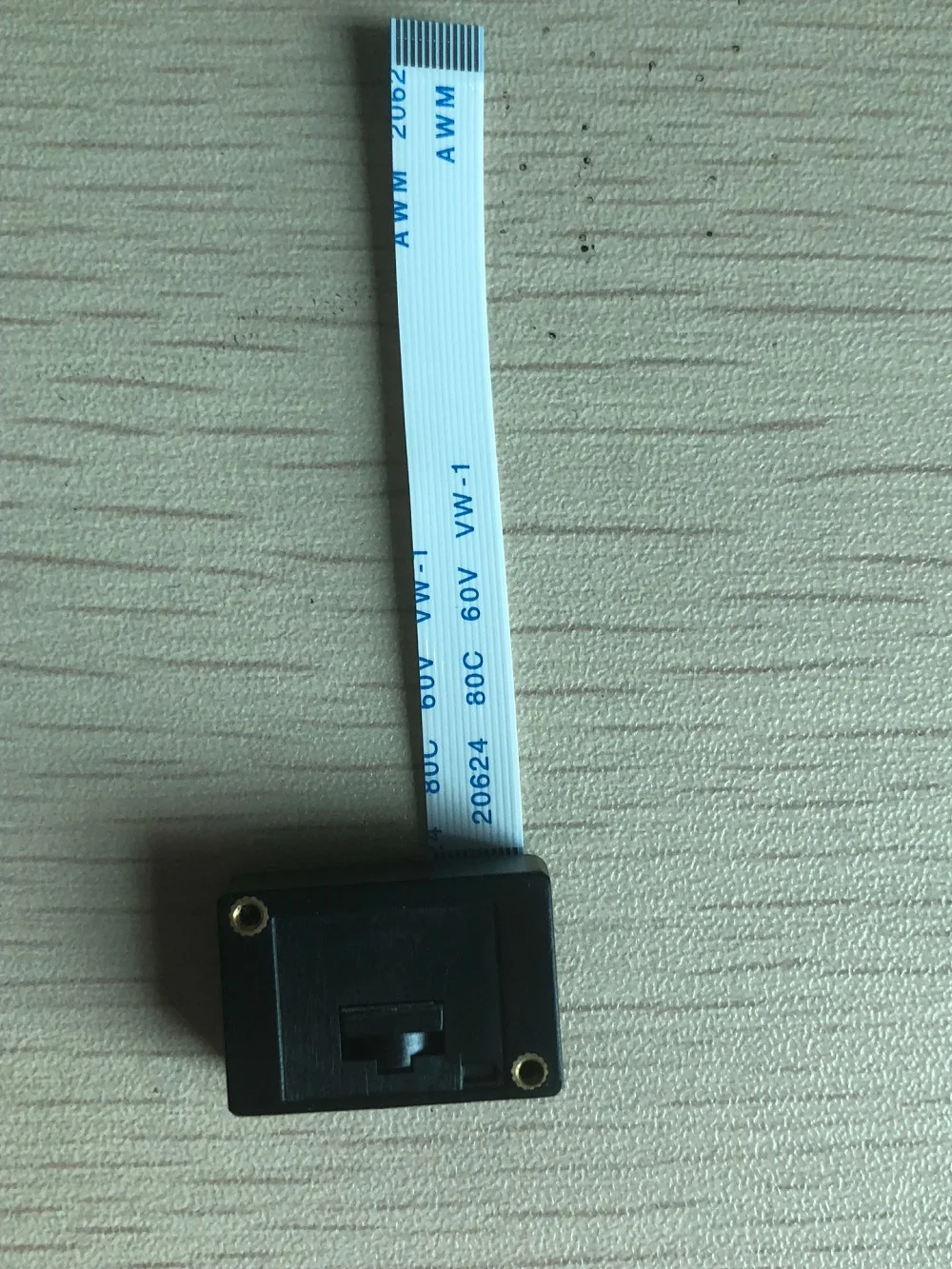

SM-E3000H Mini Portable Barcode Scan Engine USB RS232 TTL Kiosk Barcode Reader Module PDA Scanner Engine for Data Collector

If you want the development board, please order the module and board set .

Features

 1. CMOS image sensor.

2. No driver, plug and play.

3. Supporting the RS232,USB,TTL,Micro USB interface.

4. Wide angle lens design, scans a large area.

5. Super scanning and decoding ability, can read incomplete and fuzzy codes.

6. Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

7. Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing machines, vending machines, and many more.

8. Can be customized according to customer demand.



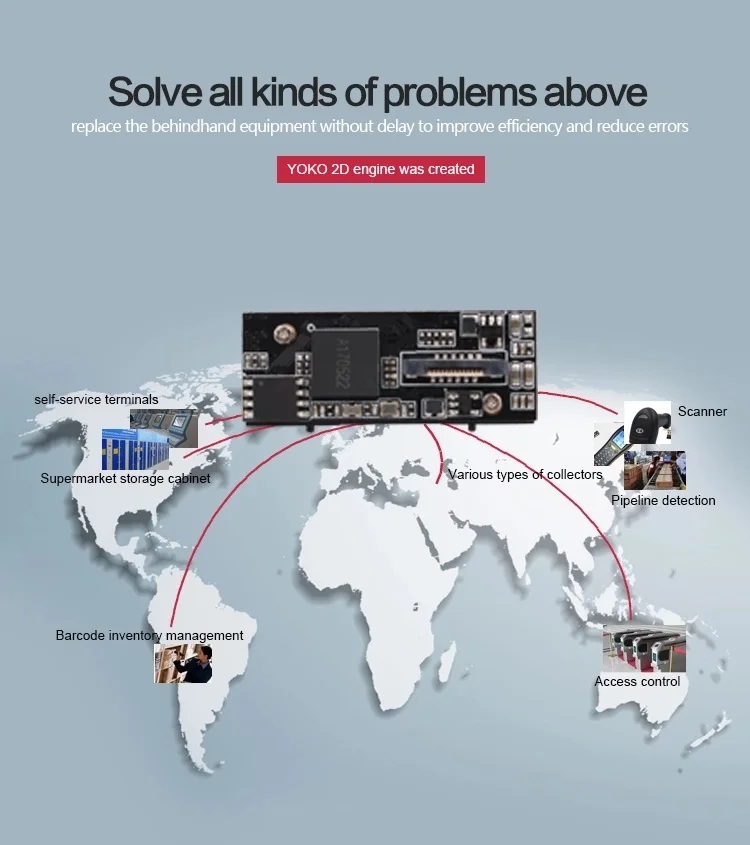

1.2.3.6.

7.8.

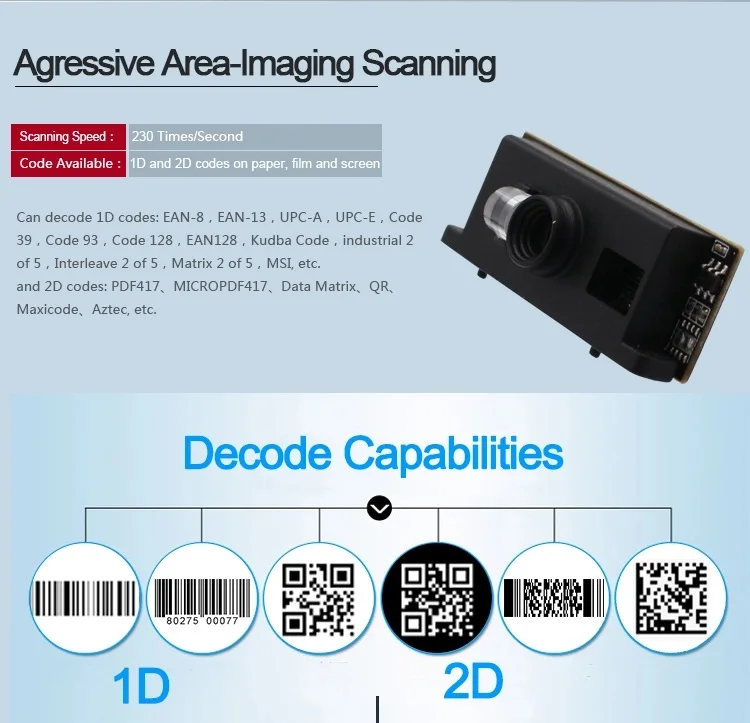

Specification:

   1D : EAN-8、EAN-13、 EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code 11、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、 MSI、GS1 DataBar(RSS14);

                              2D: PDF417、MIcroQR、Datamxtrix、QR、GS1、Aztec;

Interface :   USB / TTL232 / RS232  / USB-Virtual COM ;

Scan Speed : 30 fps/second;

Operating Volate :  3.3V

Dimension :  21mm*14mm*8mm



Chapter : Interface

  • Connector

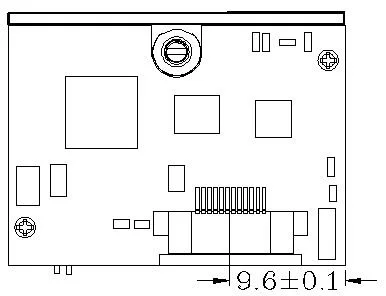

The figure below is a schematic of the E3000H connector. It uses a ZIF 12 PIN lower contact socket and is connected to the peripheral (host) with a flexible cable. The lower icon shows the size of the socket (unit: mm).

HTB1BeNBacfrK1Rjy0Fmq6xhEXXa8



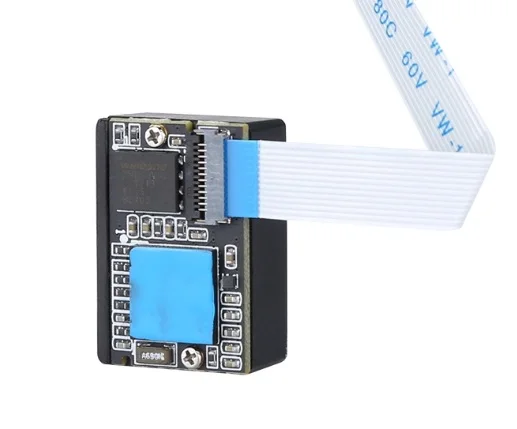

  • Flat Cable

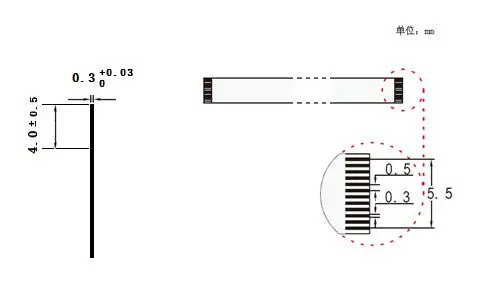

The 12PIN flexible cable used in the E3000H connector can be designed as the same or different-sided cable according to the application. The specifications must meet the following requirements. To ensure the reliability and stability of the connection, use a reinforcing material at the connection end of the cable and reduce the impedance on the wire.





HTB1CJxEajvuK1Rjy0Faq6x2aVXaw





The E3000H communicates with the host computer in the following ways:


TTL TTL level signal (TTL-232): This interface accommodates most system architectures. For some systems that require an RS-232 form factor, a TTL-232 to RS-232 conversion circuit is required.
 USB HID-KBW: A USB-based keyboard emulation device that can be directly connected to a PC without the need to install a driver.

The TTL-232 serial communication interface available on the E3000H supports speeds from 2400bps to 115200bps. The default configuration of the serial communication interface of the E3000H is 9600bps, 8 data bits, no parity, and 1 stop bit. The hardware flow control and software flow control functions of the serial communication interface are not provided on the E3000H.

HTB1MqRCaovrK1RjSszfq6xJNVXaE

Pin Definition

PIN#

Signal Name

I/O

  Definition

1

NC

NC

-

2

VDD

-

3.3V  power input

3

GND

-

GND

4

RX

input

TTL-232  input

5

TX

output

TTL-232 output

6

USB_D-

input /output

USB_D-signal

7

USB_D+

input/output

USB_D+signal

8

NG

-

Null

9

Buzz

output



10

LED

output



11

NG

-



12

nTrig

input

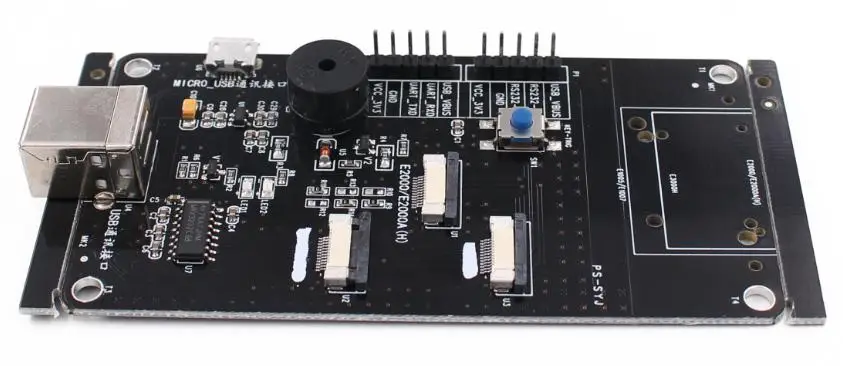

Development Board For E3000H:

​If you need to use the E3000H with USB cable, you could buy it with our development borad to make the test easily.

HTB1oZbsXPLuK1Rjy0Fhq6xpdFXax



5.

6.7.

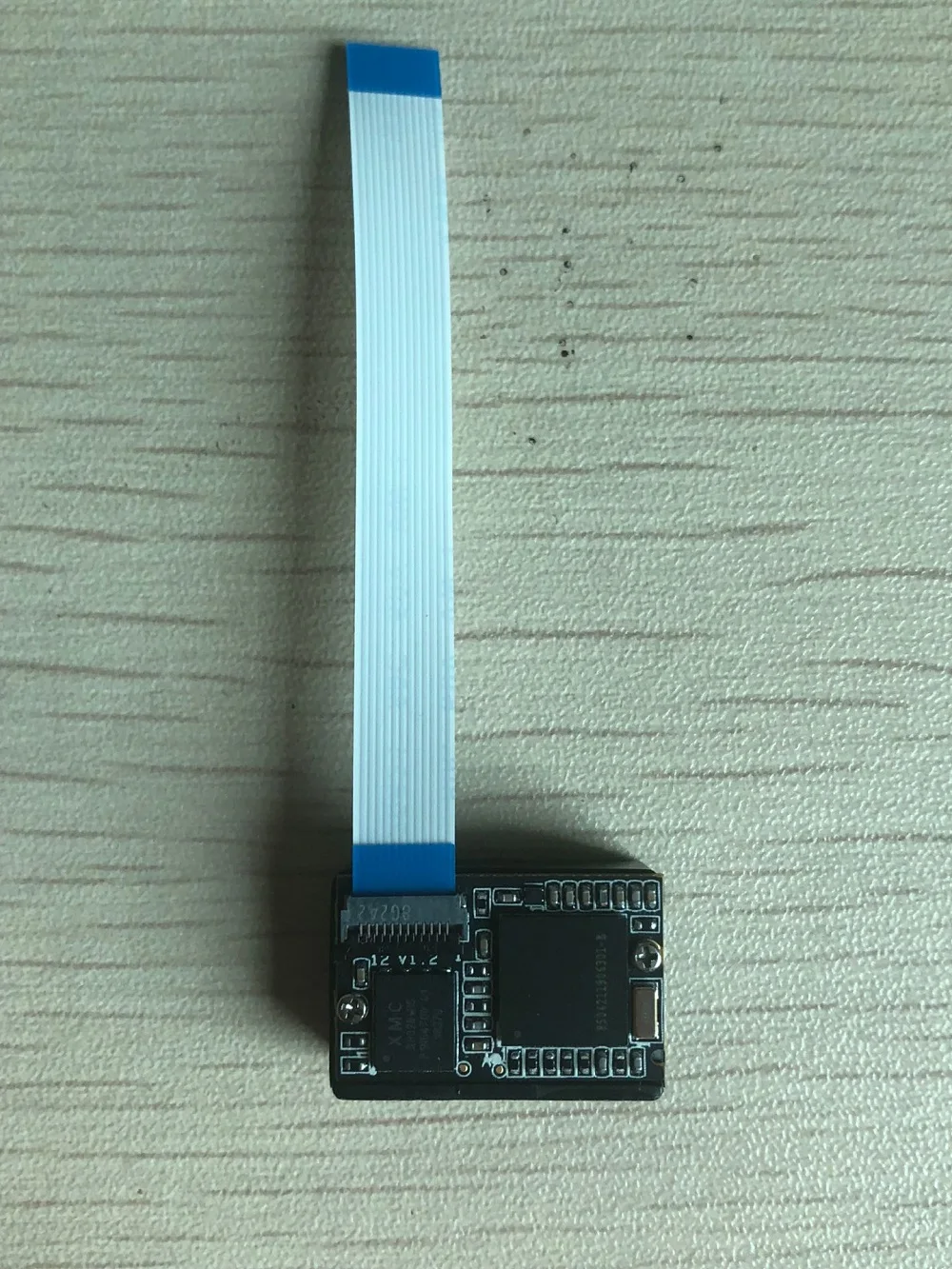

1



2

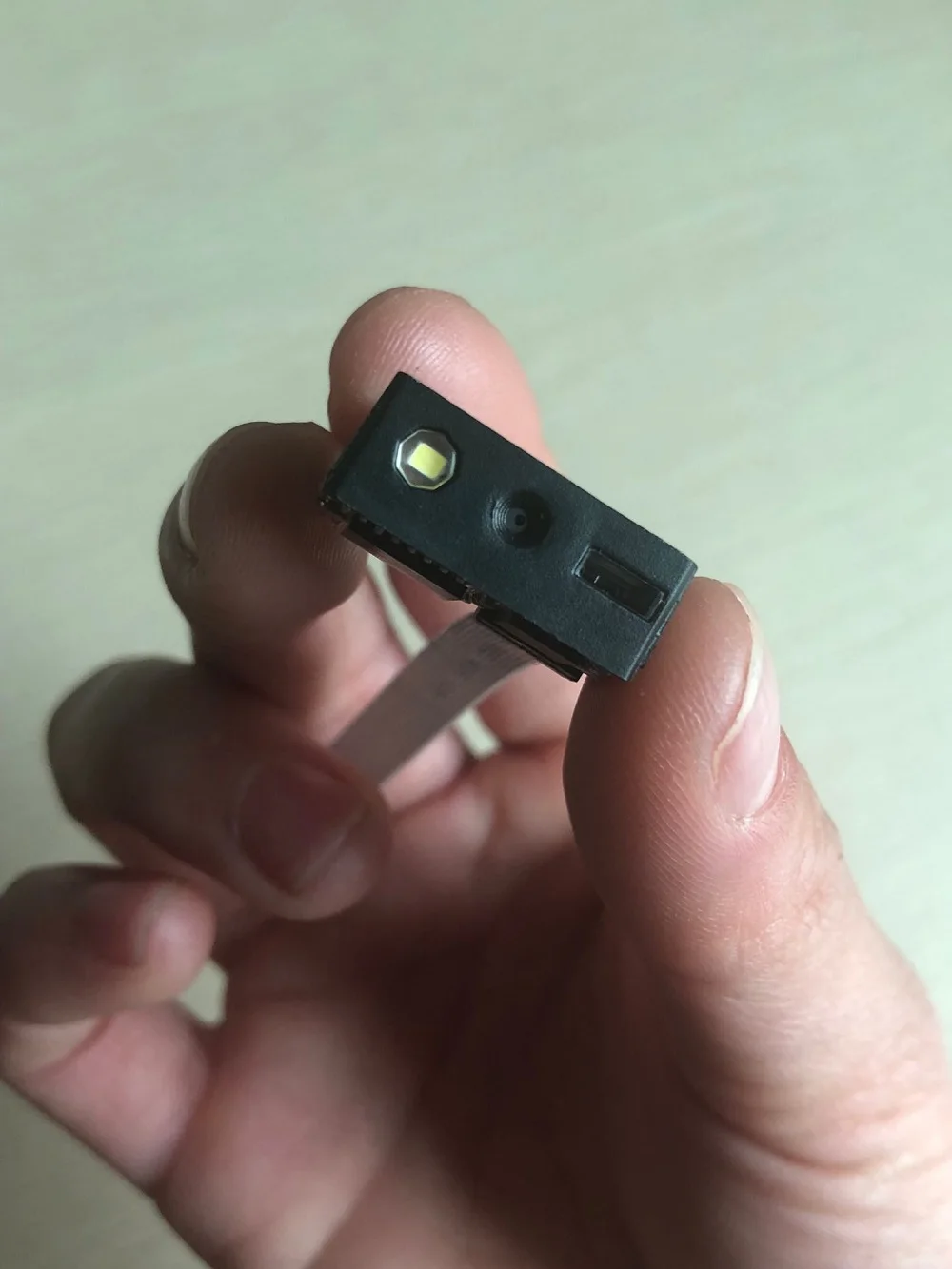

3

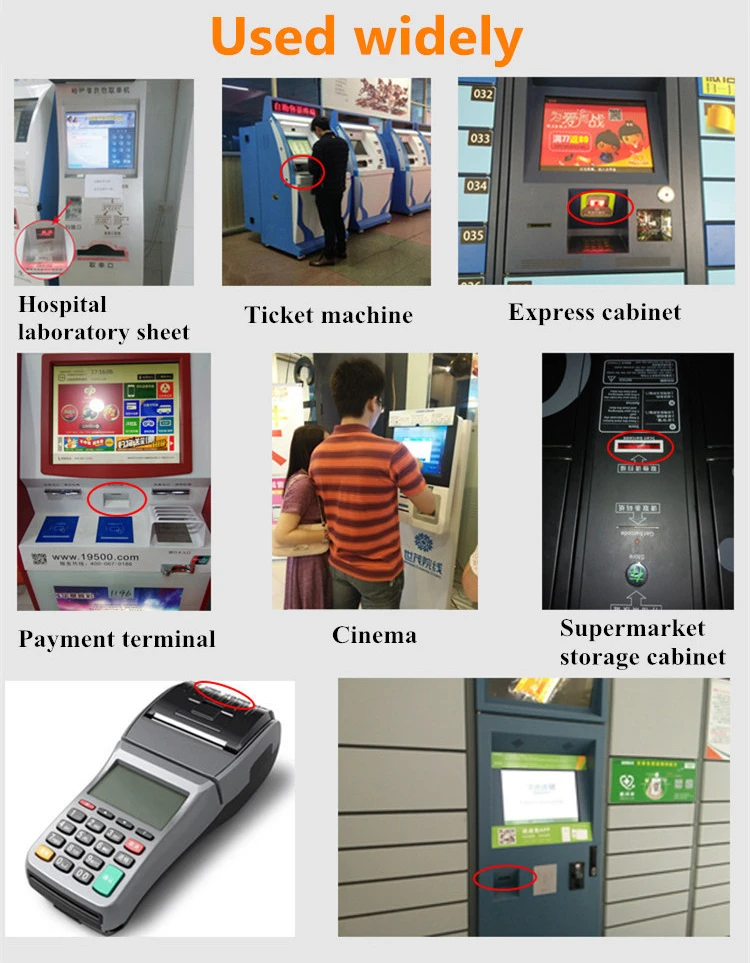

9

16.17.




bluetooth 2d scannerbluetooth 2d scannerbluetooth 2d scannerbluetooth 2d scannerbluetooth 2d scannerbluetooth 2d scanner















Packaging Details




  • Unit Type:
    piece


  • Package Weight:
    0.5kg (1.10lb.)


  • Package Size:
    17cm x 13cm x 10cm (6.69in x 5.12in x 3.94in)
