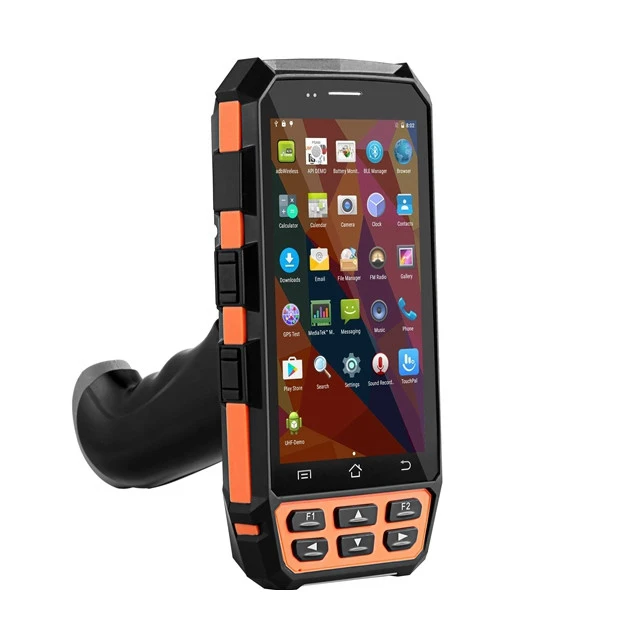

Rugged Handheld 5 Inch Mobile Terminals Wifi Bluetooth 4G LTE 1D 2D Barcode Scanner PDA Handheld Scanner With Pistol Grip
Scan Speed:
100 scans/second
Scan Element Type:
CMOS
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Colour Depth:
48 Bit
Model Number:
RT510
Product Type:
Portable Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
RUGLINE
Optical Resolution:
720x1280
CPU:
Quad A53 1.5GHz quad-core
Memory:
2GB RAM, 16 GB ROM
Operating System:
Android 7.0
Data Communication:
4G/3G/2G,WiFi, Bluetooth,GPS
Screen:
5 Inch
IP Rating:
IP65
Barcode Scanner(Optional):
1D/2D barcode Scanner
Rugged Handheld 5 Inch Mobile Terminals Wifi Bluetooth 4G LTE 2D Barcode Scanner PDA Handheld Scanner With Pistol Grip
Standard Configuration:
This link price including:
- Android 7.0 +5'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+ 8.0MP Camera + GPS + 4G
- With 2D Scanner and Pistol grip
- Free SDK
My mobile/whatsapp:+86 15875551277
Standard Accessories:
Standard Features:
- 8.0M mega pixel camera
- Multiple languages
- Support Google Play Store
- 2GB RAM, 16 GB ROM, MicroSD(max 32GB expansion)
- Android 7.0 OS
- SIM card,2 PSAM card, Micro SD (TF) Card Expand Port;
- High capacity 4000mA large capacity battery for critical requirements
- Pogo Pin interface for convenient charging with optional charge cradle
- Industrial rugged design, waterproof and protection grade(IP65)
-
RT510 SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension
170mm(H)x85mm(W)x23mm(D)±2 mm
Weight
Net Weight :370g (including battery&wrist strap)
Display
Gorilla 5.0 in. TFT-LCD(480x854)touch screen with backlight
Keypads
3 TP keys, 6 function keys, 4 side buttons
Expansions
2 PSAM, 1 SIM, 1 TF
Battery
Rechargeable li-ion polymer, 3.7V, 4500mAh/8100mAh
PERFORMANCE CHARACTERSTICS
CPU
Quad A53 1.5GHz quad-core
Operating System
Android 7.0
Storage
1GB RAM, 8GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp.
-20℃ to 50℃
Storage Temp.
-20℃ to 70℃
Humidity
5%RH to 95%RH(non-condensing)
Drop Specifications
5ft./1.5 m drop to concrete across the operating temperature range
Sealing
IP65, IEC compliance
ESD
±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge
DEVELOPMENT ENVIRONMENT
SDK
HHW Software Development Kit
Language
Java
Environment
Android Studio or Eclipse
DATA COMMUNICATION
WWAN
TDD-LTE Band 38, 39, 40, FDD-LTE Band 3, 7;
WCDMA(850/1900/2100MHz), GSM/GPRS/Edge 850/900/1800/1900MHz)
WLAN
2.4GHz/5GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS
GPS(embedded A-GPS), accuracy of 5 m
BARCODE READER(OPTIONAL)
1D barcode
1D laser engine
Honeywell N431x
Symbologies
All major 1D barcodes
2D barcode
2D CMOS Imager
Honeywell N6603
Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution
8.0 megapixel
Lens
Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF
Frequency 125KHz/134.2KHz(FDX-B/HDX) Protocol ISO 11784&11785 R/W Range 2cm to 10 cm
RFID HF
Frequency 13.56MHz Protocol ISO 14443A&15693 R/W Range 2cm to 8cm
RFID UHF
Frequency 865~868MHz or 920~925MHz; Protocol EPC C1 GEN2/ISO 18000-6C
Antenna Gain Circular antenna(2dBi); R/W Range 1 m to 1.5 m(tags and environment dependant)
Active 2.45GHz
Read range more than 200 m
433MHz
Read range more than 200 m
FINGERPRINT READER(OPTIONAL)
Sensor: TCS1SM Sensor type: Capacitive, area sensor Resolution: 508 DPI
Performance: FRR<0.008%, FAR<0.005% Capacity: 1000
PSAM SECURITY(OPTIONAL)
Protocol
ISO 7816
Baudrate
9600, 19200, 38400,43000, 56000, 57600, 115200
Slot
2 slots(maximum)
Accessories
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 14cm x 9cm (7.87in x 5.51in x 3.54in)
