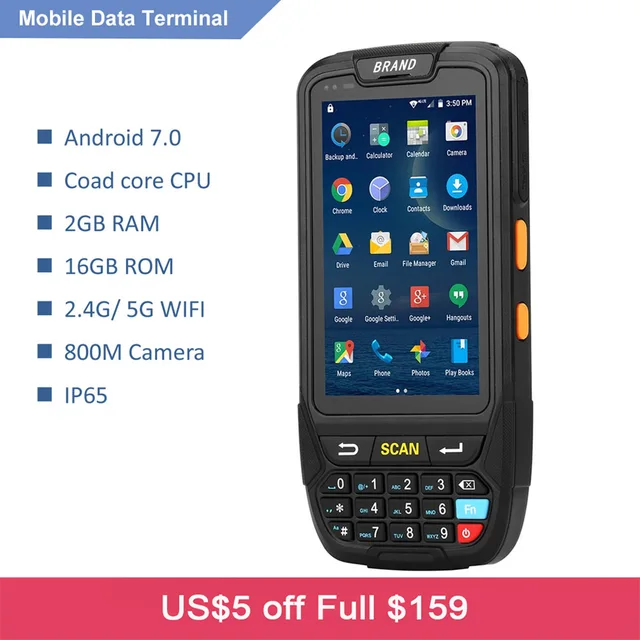

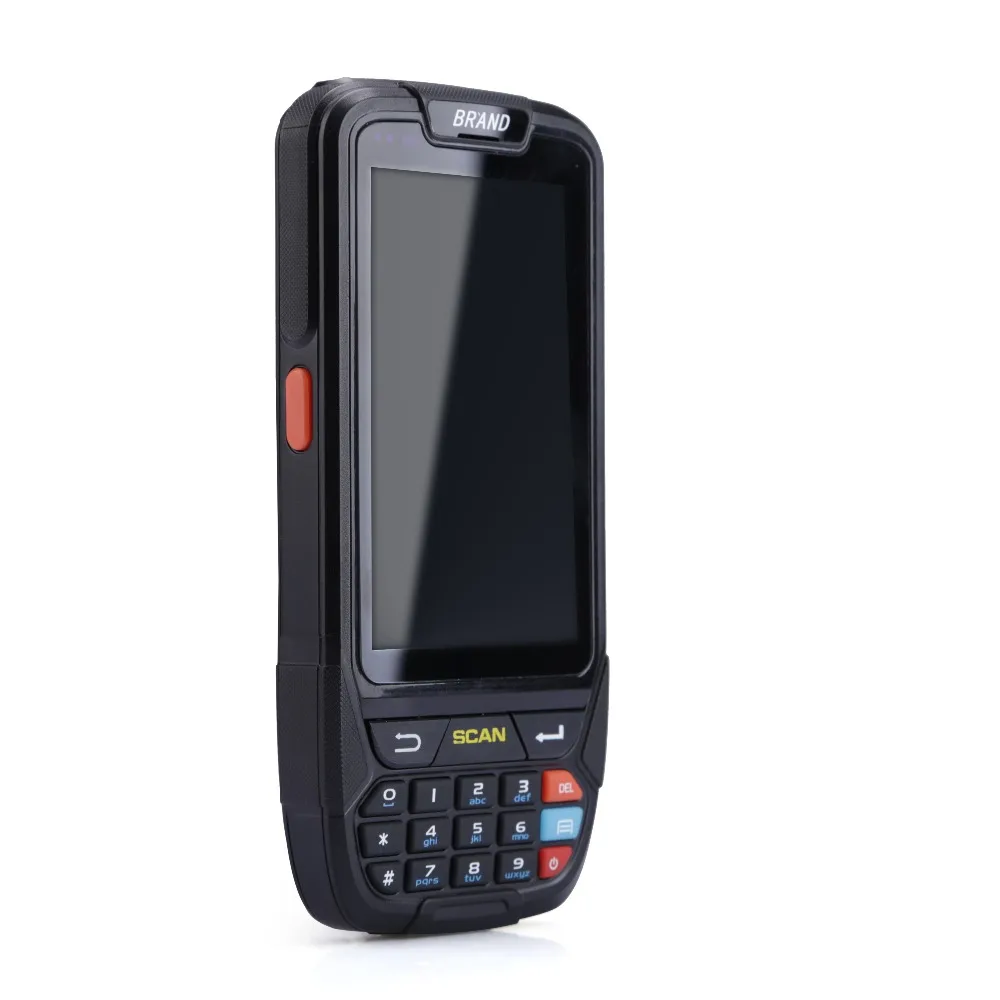

PL-40L PDA Scanner Industrial IP65 Rugged Warehouse 2D QR code 1D Laser scanner PDA Handheld Android Barcode Scanner terminal
Scan Speed:
200 scans/second
Interface Type:
USB
Type:
Handheld Scanners
Scan Breadth:
A4
Colour Depth:
48 Bit
Model Number:
RT800
Novelty:
New
Scanning Light Source:
Laser Light
Brand Name:
RUGLINE
Optical Resolution:
480*800
Scan Element Type:
1D/2D Scanner
Product Type:
Bar Code Scanner
O.S.:
Android 7.0
Item Name:
RT800 PDA terminal wireless 1D/2D Data Collector
Memory:
2GB RAM, 16GB ROM, MicroSD(max 64GB
Battery:
3.7V 4,000mAh Li-battery
CPU:
ARM Cortex-A53 64bit Quad-Core 1.3G
Expand Port:

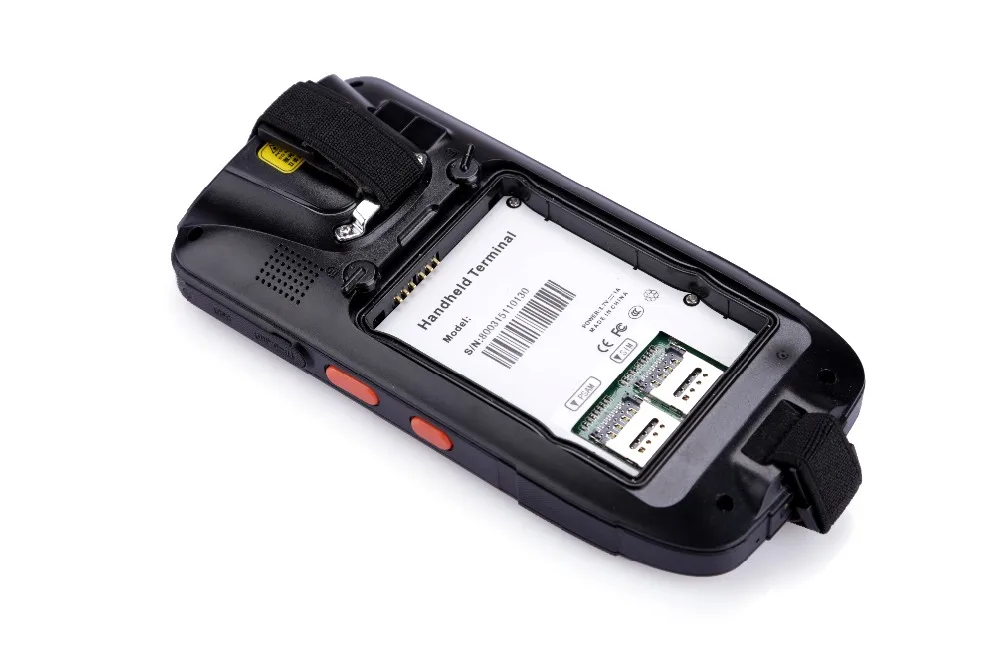

SIM card, Micro SD (TF) Card
Wireless:
4G LTE/3G/GPRS/GSM/Bluetooth/Wifi
Display:
4.0'' QVGA touch panel TFT-LCD Display
Barcode Scanner:
Mingde966(Standard),HoneywellN4313
PL-40L PDA Scanner Industrial IP65 Rugged Warehouse 2D QR code 1D Laser scanner PDA Handheld Android Barcode Scanner terminal

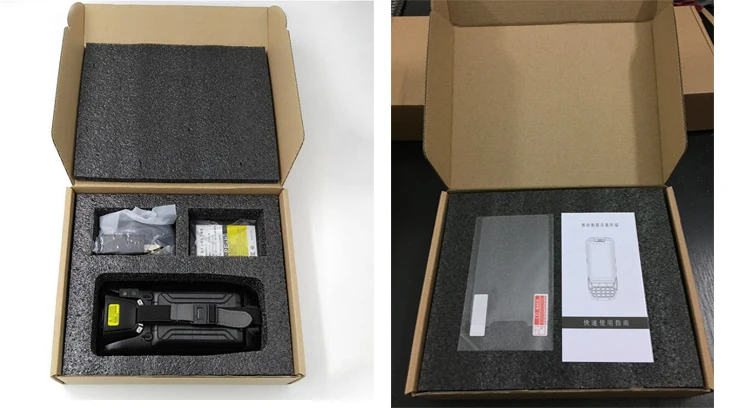

Standard Accessories:
Optional: NFC/RFID : ( If you need the optional function, please leave message or contact us. Thanks.)
https://www.aliexpress.com/store/product/Android-7-0-Handheld-pos-terminal-with-NFC-UHF-RFID-reader-memory-4-inch-large-sc
Attention: Belt Case Protect bag :( If you need the optional function, please visit this link ) :
https://www.aliexpress.com/item/33060095463.html?storeId=5078268&spm=2114.12010615.8148356.7.44f73782J2Hrpz

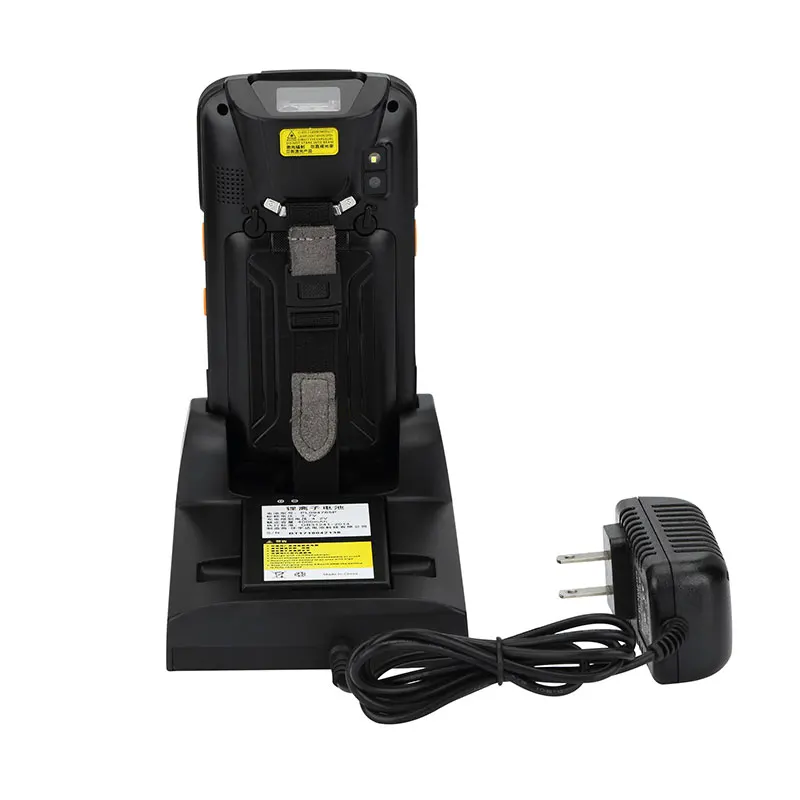

Attention:convenient charging with optional charge cradle.buy cradle pls visit this link.
https://www.aliexpress.com/item/33055984906.html?storeId=5078268&spm=2114.12010615.8148356.9.44f73782caWSqd
reen/4405146_329899
92298.html?spm=2114.12010612.8148356.7.33afec3adl1KQz
Standard Features:
-8.0M mega pixel camera
-Multiple languages
-Support Google Play Store

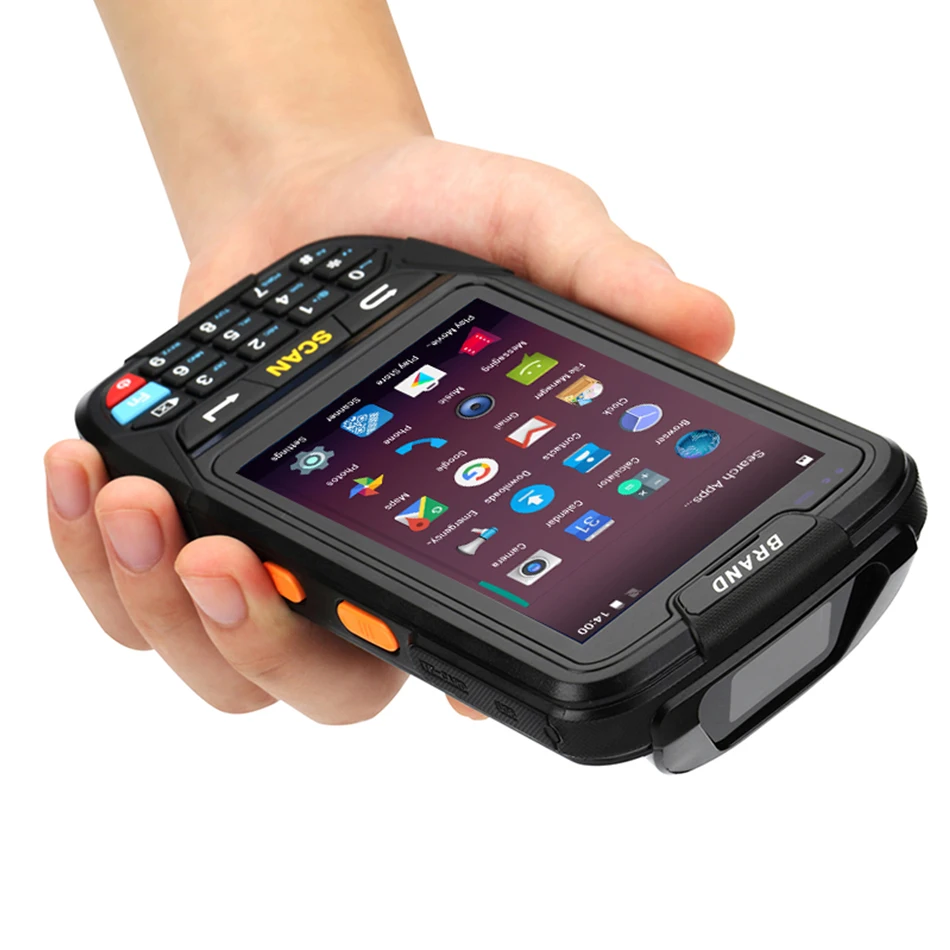

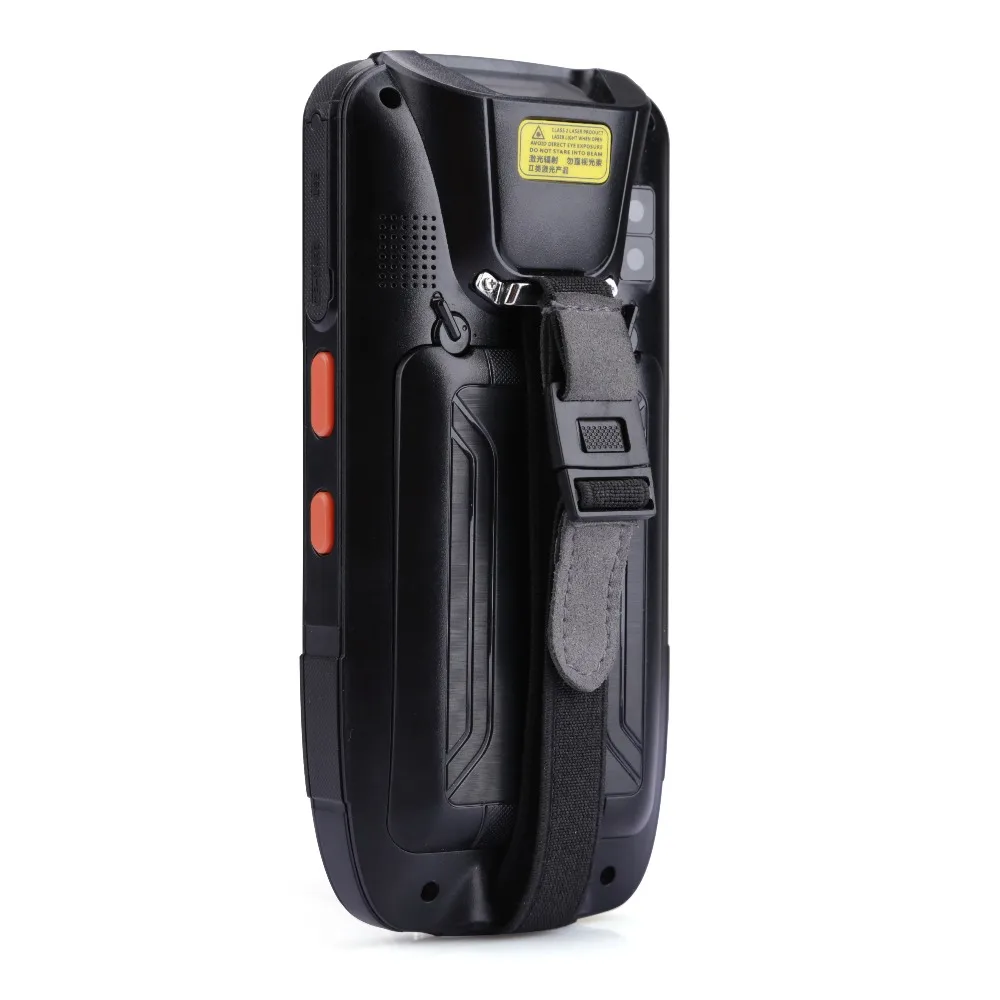

-Compact and Portable Ergonomic Design with wrist strap
-Safe OS (Android 7.0) Highly optimized Android operating system
-High capacity 4000mA large capacity battery for critical requirements

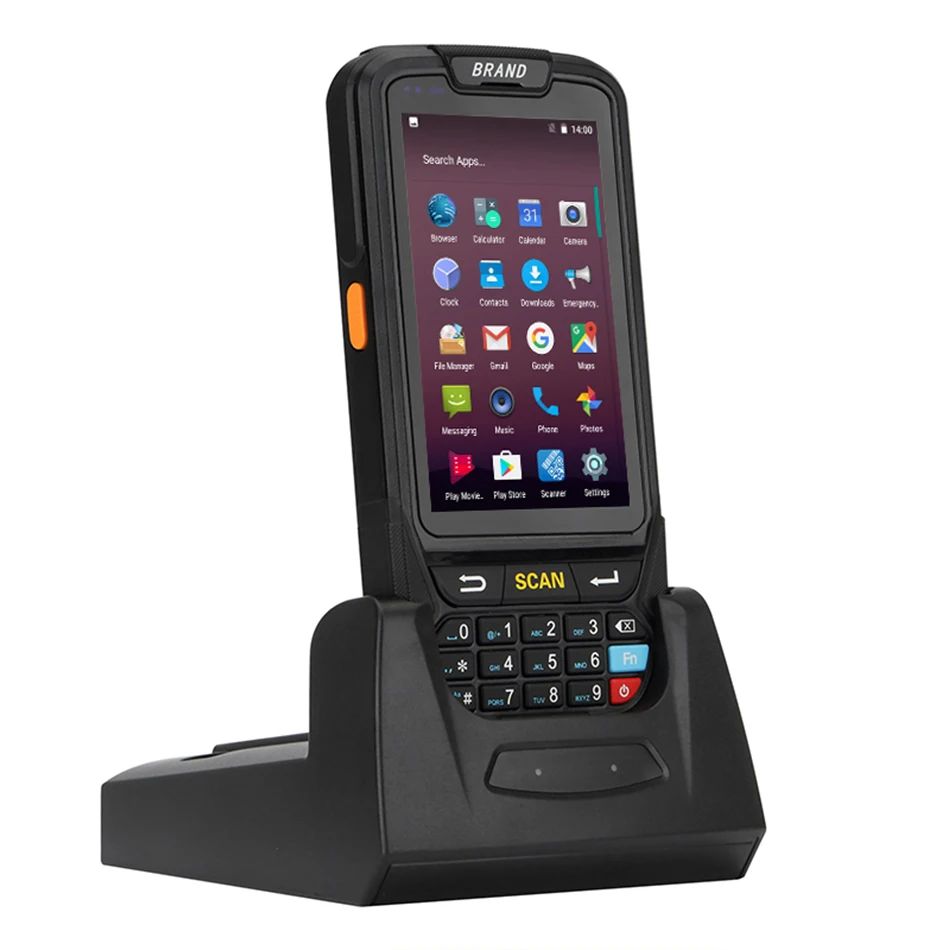

-Pogo Pin interface for convenient charging with optional charge cradle
-Industrial rugged design, waterproof and protection grade(IP65)
Main Parameters:
Model Name: | Touch Screen Android 7.0 PDA |
CPU | ARM Cortex-A53 64 bit quad-core(1.3GHz) |
Memery+Flash | 2G+16G NAND Flash,micro-TF up to 32G |
Display | 4.0'' QVGA touch panel TFT-LCD Display(480X800) |
Wireless | WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS |
Operating System | Android 7.0 |
Interface Type: | USB2.0 Device |
Scanner: | 1D/2D Scanner |
Dimension: | 152mm×77mm×29mm |
Weight: | <500g |
Battery: | 3.7V 4,000mAh Li-battery |
Optional(add money) | Charge Cradle, NFC(HF), RFID(UHF) |
Physical Parameter | |
Dimensions | 152mm(L)×77mm(H)×29mm(W) |
Weight | <500g |
Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen |
TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
The brightness of LED Backlight is adjustable | |
Expand Port | SIM card, Micro SD (TF) Card |
Communication Interface | USB2.0 Device, |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency | 8 1W speaker |
Buttons | 21pcs soft silicon key |
Data Communication | |
WI-FI | Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
FDD-LTE 4G | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
WCDMA 3G | Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
GSM 2G | 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Operating Environment | |
Operating Temperature | —20C to 50C |
Storage Temperature | —25C to 70C |
Environment Humidity | 5%RH--95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP65 |
Development Environment | |
Operating System | Android 7.0 |
SDK | exclusive use software development kit |
Supported Language | JAVA |
Development Tool | Eclipse |
1D Laser Scanner | |
One dimensional laser scanner | Mingde966(Standard) Symbol 955, HoneywellN4313, |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(±)12/sec (both way) |
Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS |
2D CMOS (Optional) | |
CMOS Scanner | Newland 3096(Standard) HONEYWELL N3680 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
Focus element (VLD) | 655nm ± 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
RFID(Optional) | |
NFC&HF | 13.56MHz;ISO14443A/B protocol |
UHF | 902Mhz – 928Mhz 、865MHz – 868MHz |
Camera | Hd 8 million pixels, with LED, automatic focusing |
GPS | Support A-GPS |
Android 7.0 System | |
CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
RAM | 2G RAM |
Flash ROM | Standard 16G NAND Flash Storage |
Micro SD/TF port (Max up to 32G) | |
Our Services
Thank you for the interest about our products,we will handle the service after sale as following:
1).We offer 15 months warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.
2).If clients handle the service locally,we will free offer 2% LCD,Housing and keyboard.1% other spares.All the quality issue terminals should take picture and be reported,we will supply it if our spare parts is not enough.
3).For the product assemble and repairment,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
4).We will provide technical assistance for the whole life.In case clients would like to extend 1 year warranty period in their market,we would suggest clients buy 2.5% terminals for replacement.And 2% LCD,Housing and keyboard.1% other spares.
FAQ
1.How will you deliver my goods to me? How long do I need to wait before my goods arrive? You can select shipping options possible,such as DHL,UPS, FedEx, TNT,EMS to enable our customers get their goods rapidly at door. We also ship economic methord such as air cargo and sea cargo, Direct line,Air Mail according to clients' request.3-7 days for international express, 5-7 days for air cargo, 20-40 days by sea cargo.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T(Bank transfer), Western Union, Money Gram, Paypal, Cash, L/C etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment.For bulk order,based on different quantities.
6. Warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7.Can you print my brand name (logo) on these products?Yes! We can provide professional OEM services to make it your brand even for your trial sample order, like display start up logo on screen, print/laser logo on tablet back and front and Gift box Package
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in more cheap price.
11: Can buyers decide the express company that wil be used? Yes. Buyers can choose the express company they prefer or cooperated with.
12: Can Buyers use their own couriers or shipping agents? Yes, buyers can use their own shipping agents.
13: Do I need to pay taxes when receive the samples? It depends on invoice value and the customs policy of the destination country. Generally taxes will occur. We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
14: How about your product quality? We provide unrivaled Quality - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control and Final Quality Control for every price. We follow at least 18 QC test procedure,and do 100% FQC to ensure your satisfaction.
15.How much do I need to pay for your OEM service? If your order is over 100 pcs, we can make your own brand display logo for free! About other more details,it’s according to your special requirement.
Do you have any other question? Contact me now! We look forward to cooperating with you.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
22cm x 18cm x 7cm (8.66in x 7.09in x 2.76in)
