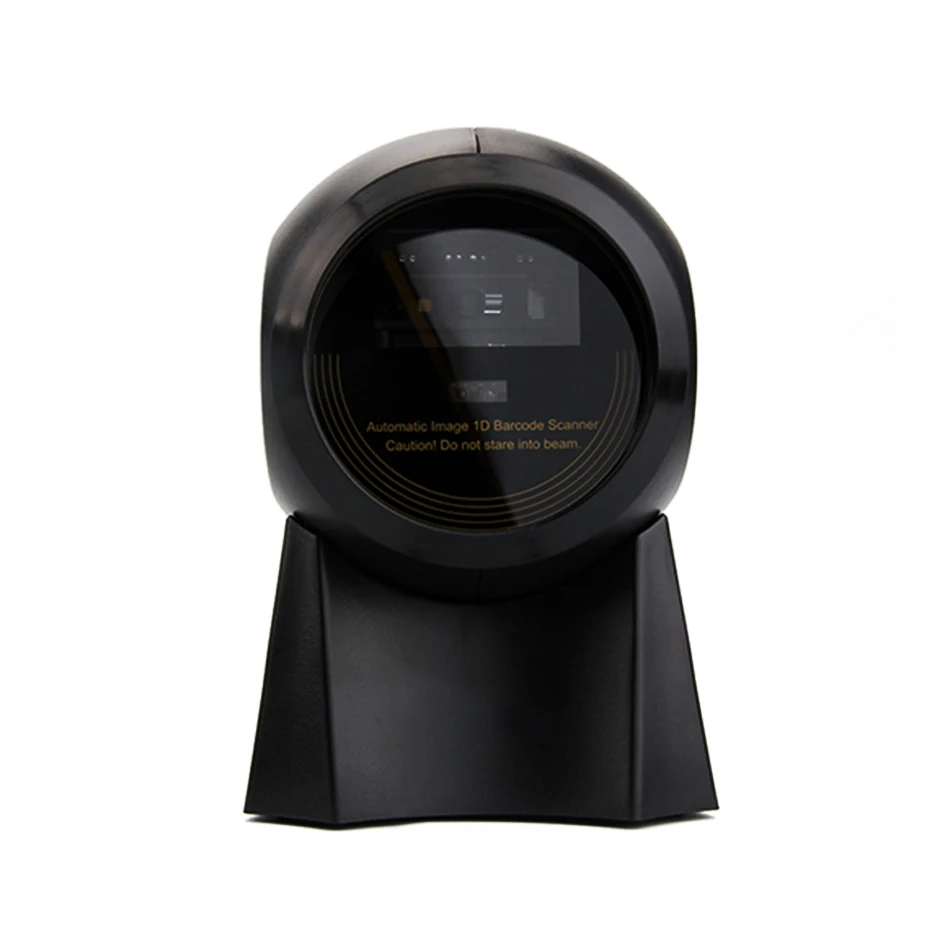

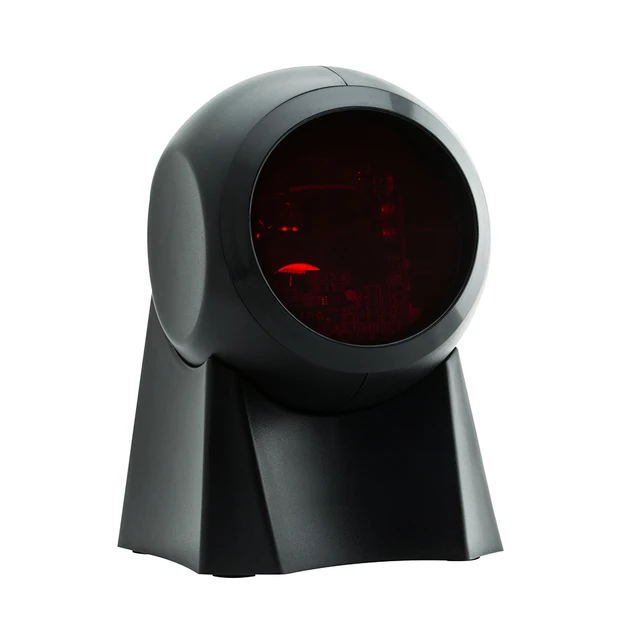

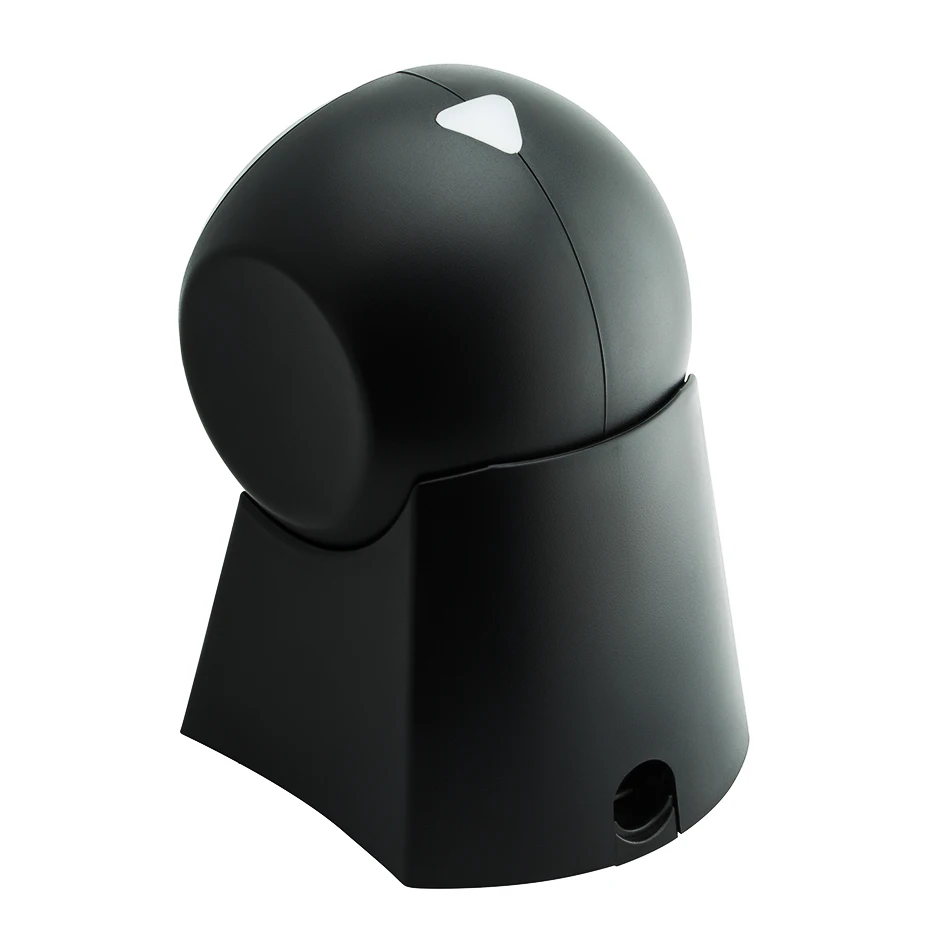

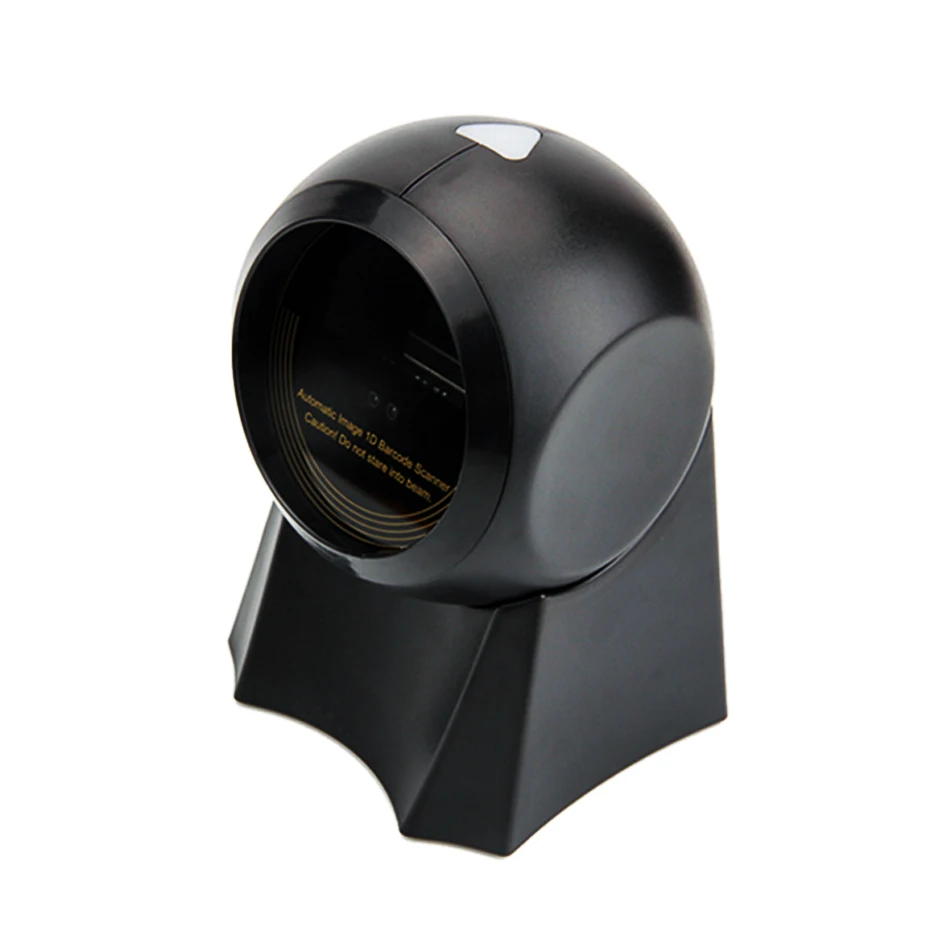

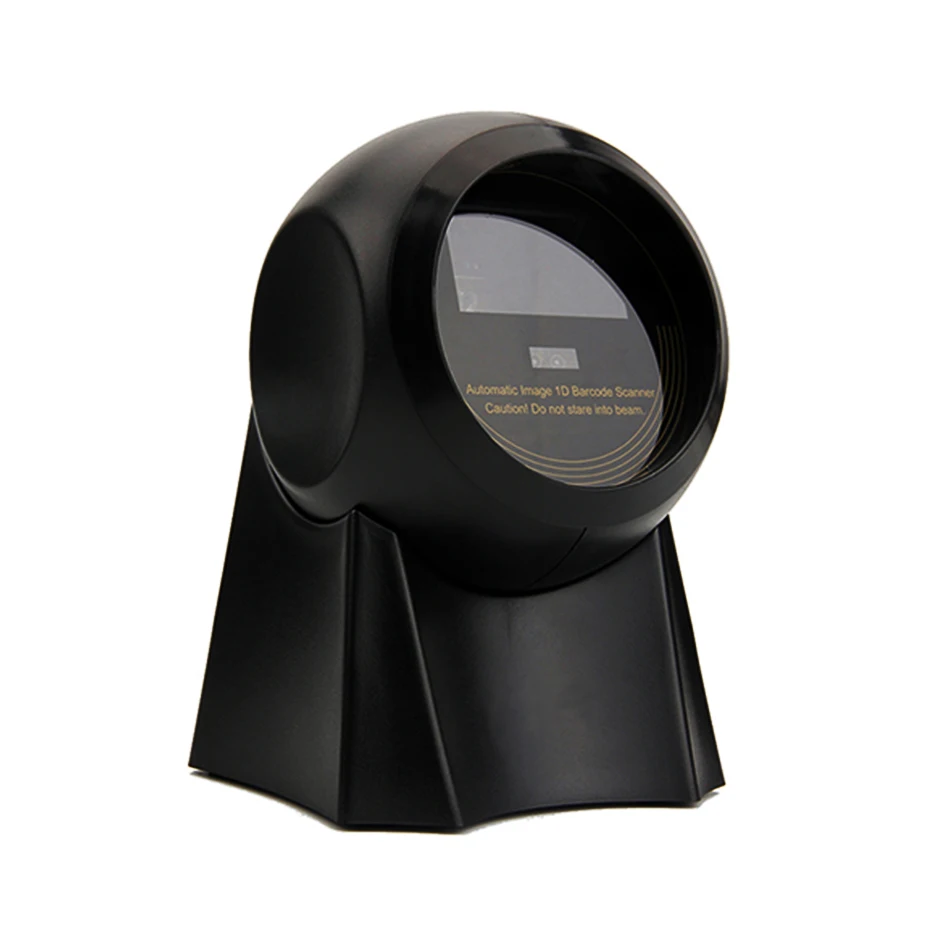

OBS-002 1D Best presentation barcode scanner 1D USB Omni directional Barcode Scanner platform 1D Omnidirectional barcode reader
Product Type:
Bar Code Scanner
Novelty:
New
Interface Type:
USB
Scan Element Type:
CMOS
Brand Name:
GZQIANJI
Scanning Light Source:
LED
Time to market:
Mar-13
Type:
Barcode Scanner
Colour Depth:
42 Bit
Model Number:
OBS-002
Scan Breadth:
1D barcode scanner
Optical Resolution:
Barcode scanner 2D
Scan Speed:
1500 times/s
Product name:
Omnidirectional Laser Barcode Scanner 1D USB
Scan Speed:
1500 times/s
Interface Type:
USB
OBS-002 Omnidirectional Barcode Scanner 1D USB Desktop High Speed 1D Bar Code Reader with Hands Free Adjustable Stand and USB Cable
Features:
1. Product name: Desktop 1D Image Barcode Scanner
2. 1500 scans/sec Scanning Speed
3. Stable Housing Design
4. Read All Standard 1D Bar Codes
5. Auto Scanning
6. Traditional Durable Interface
7. USB Supported

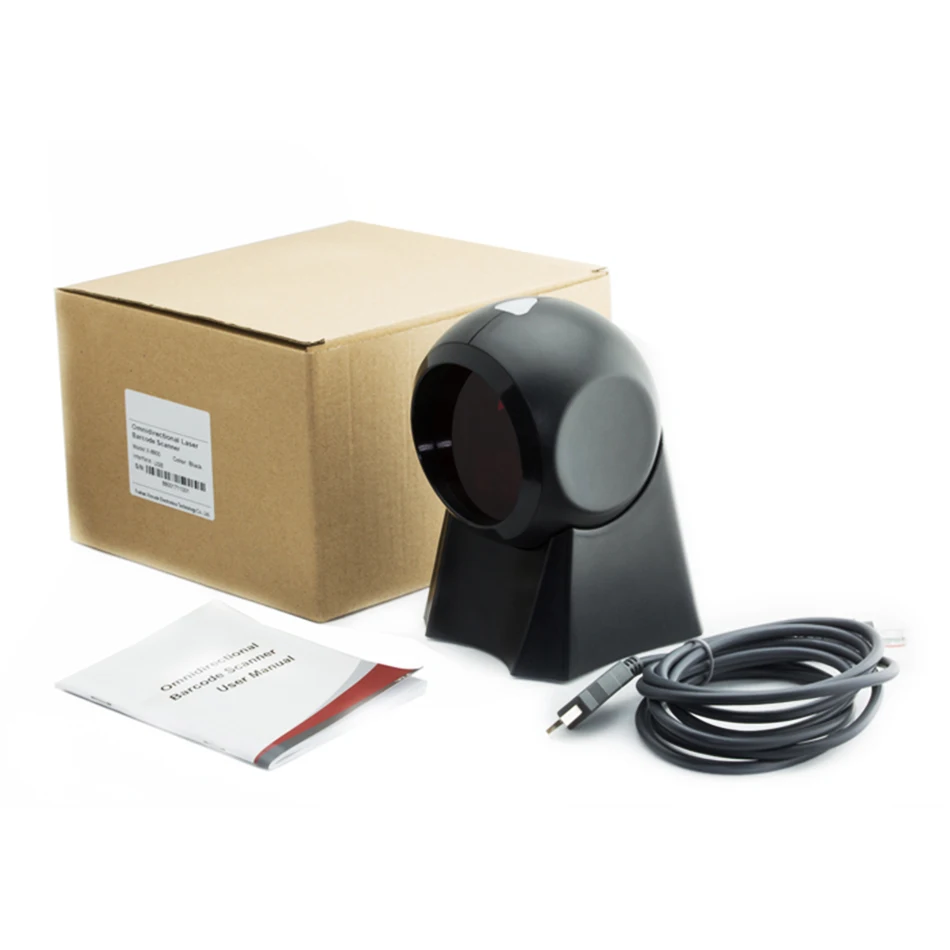

Package includes:
1*barcode scanner+1*User manual+1*USB cable.
Widely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.
1D Omnidirectional Barcode Scanner
Light source
Visible Laser Diode
Wave length
650nm
Scan mode
20-line scanning
Scan speed
1500times/sec
Scan distance
0-200mm
Scan window
128mm @ 200mm
Scan direction
5 scan direction
Min resolution
0.10mm(pcs0.9)
Decoding capability
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Postal Code, etc.
Interface
USB,RS232,PS2
Print contrast
30%
Error rate
1/5 million
Indicator
Two color LED (green & red)
Beeper Operation
Programmable tone & volume
physical parameter
L*W*H: 60mm*128mm*154mm;Weight:300g
Material
ABS+PC
Cable
2 meters long
Electrical parameter
Voltage: 5V; Electric current: 200mA; Power: 1.0 Watts
Laser safety
CDRH Class IIa: IEC 60825-1: Class I
EMC
CE & FCC DOC compliance
Environmental parameter
Operating temperature: -20℃-45℃ Storage temperature: -20℃-60℃ Humidity: relative humidity 5%-95% (non-condensing) Light level: sunlight 4.000lux Max
Shock resistance
Designed to withstand 2 meters drop on concrete surface
Technical parameters are subject to be changed without notice!
Unit Type:
piece
Package Weight:
0.8kg (1.76lb.)
Package Size:
20cm x 19cm x 13cm (7.87in x 7.48in x 5.12in)
