Long distance Barcode scanner Warehouse Handheld GPS PDA terminal Android Honeywell 1D 2D Barcode scanner with display screen

Special Price Long distance Barcode scanner Warehouse Handheld GPS PDA terminal Android Honeywell 1D 2D Barcode scanner with display screen

Product ID : 32982190470

Price : $212.60 - 377.75

Discount Price : $180.71 - 321.09

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Scan Speed:
  100 scans/second



•
  Scan Element Type:
  CMOS



•
  Interface Type:
  USB2.0



•
  Type:
  Handheld Scanners



•
  Scan Breadth:
  A4



•
  Colour Depth:
  48 Bit



•
  Model Number:
  pda android



•
  Product Type:
  Portable Scanner



•
  Novelty:
  New



•
  Time to market:
  Mar-13



•
  Scanning Light Source:
  Laser Light



•
  Brand Name:
  mussels



•
  Optical Resolution:
  480*800



•
  2D scanner:
  Honeywell3680, Honeywell6603



•
  1D scanner:
  Minde966 , Honeywell4313



•
  CPU:
  ARM A53 64bit Quad-Core 1.3G



•
  Flash ROM:
  Standard 16G Flash Storage /TF port (Max up to 32G)



•
  RAM:
  2G



•
  Operating system:
  Android 7.0



•
  Screen size:
  4.0 inch



•
  Barcode scanner:
  1D or 2D barcode scaner



•
  RFID:
  RFID LF, HF NFC, UHF RFID



•
  Battery:
  3.7V 4000mAh Li-battery



•
  Camera:
  Hd 8 million pixels



•
  Applied fields:
  inventory in warehouse, industry, logistics, courier, retail



•
  Supported 2D code:
  Postal Codes, US PostNet,US Planet, UK Postal, Australian Postal



•
  Supported 1D code:
  UPC/EAN Code128 , Code39 , Code93 , Code11, Codabar, MSI RSS



•
  Protection level:
  IP65


Product Description

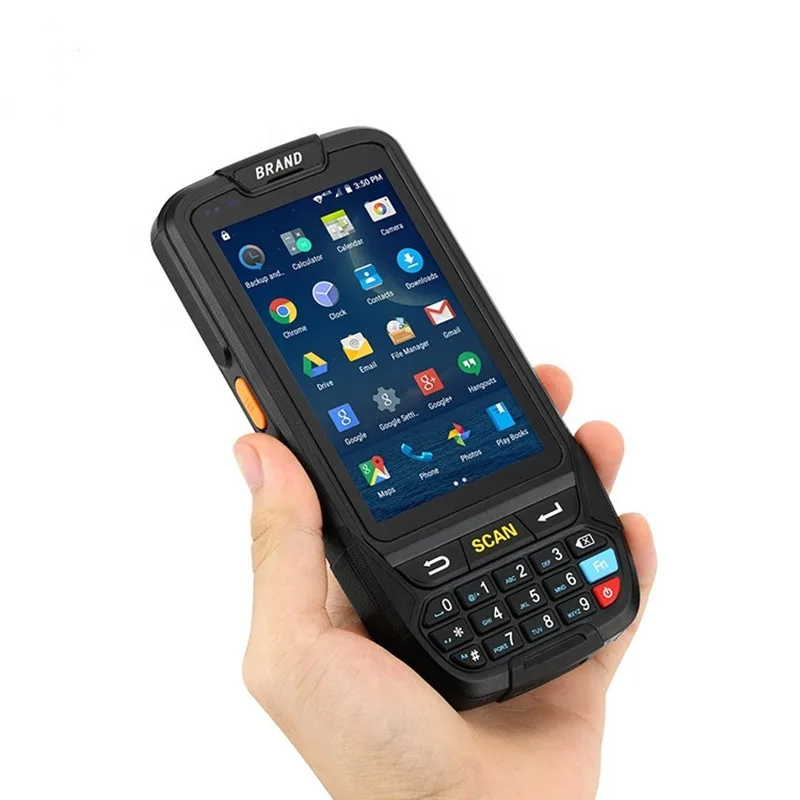

Long distance Barcode scanner Warehouse Handheld GPS PDA terminal Android Honeywell 1D 2D Barcode scanner with display screen

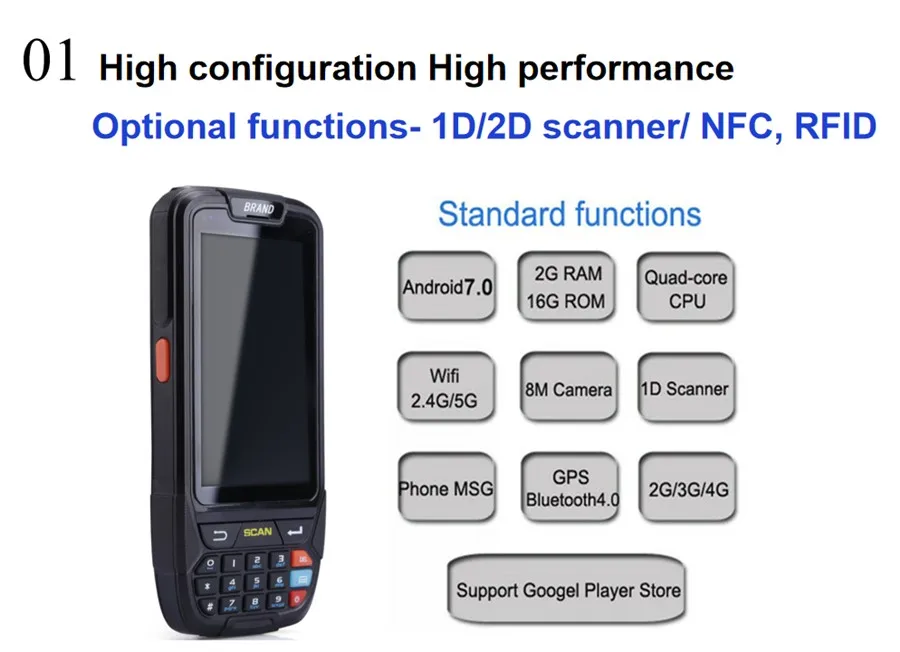

The standard configuration

4 inch touch screen + Android 7.0 OS + Wifi + Bluetooth + GPS  + FDD-TLE 4G / WCDMA / GSM + phone + Camera + Google play + 2G RAM + 16G ROM + Free English SDK









Optional functions

 1D/ 2D barcode scanner, or RFID LF/ HF, NFC/ UHF RFID, or charging cradle. Please choose according to your needs.







Quick details



•

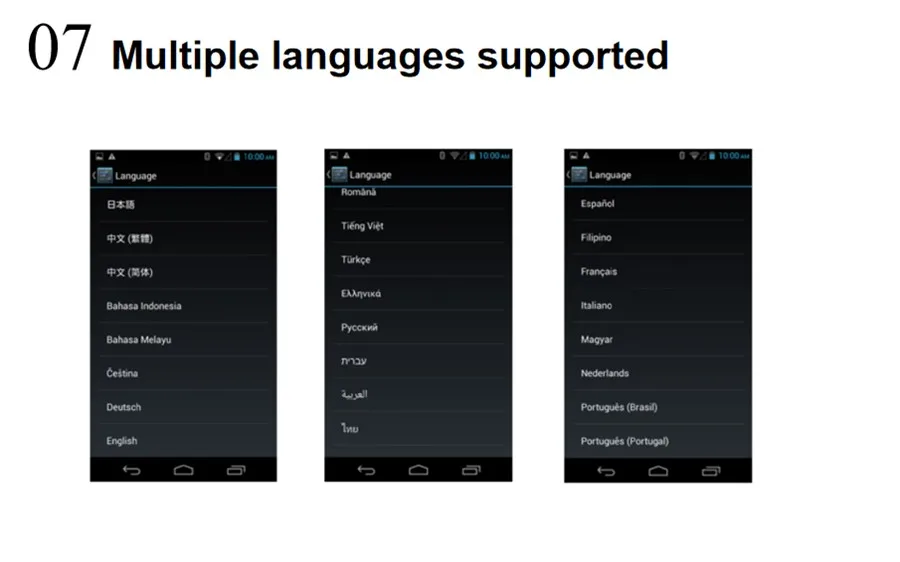

  Multiple languages supported



•
  Support Google Play store



•
  8.0M mega pixel camera



•
  Compact and Portable Ergonomic Design with wrist strap



•
  Safe OS (Android 7.0) Highly optimized Android operating system



•
  High capacity 4000mAh battery



•
  Pogo Pin interface for convenient charging with optional charge cradle



•
  Industrial rugged design, waterproof and protection grade(IP65)












Technical specifications

Physical Parameter
Size	152mm(L)×77mm(H)×29mm(W)
Weight	<500g

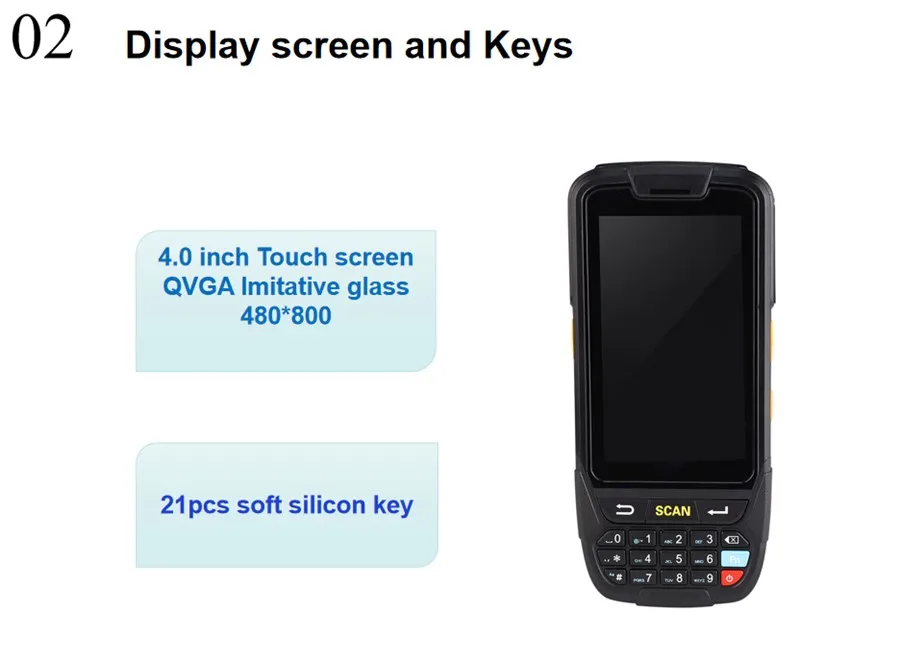

Display Screen	Color 4.0 inch WVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable
Expand Port	SIM card,  Micro SD (TF) Card，PSAM card*2 (OPTIONAL)
Communication Interface	USB2.0 Device,
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input

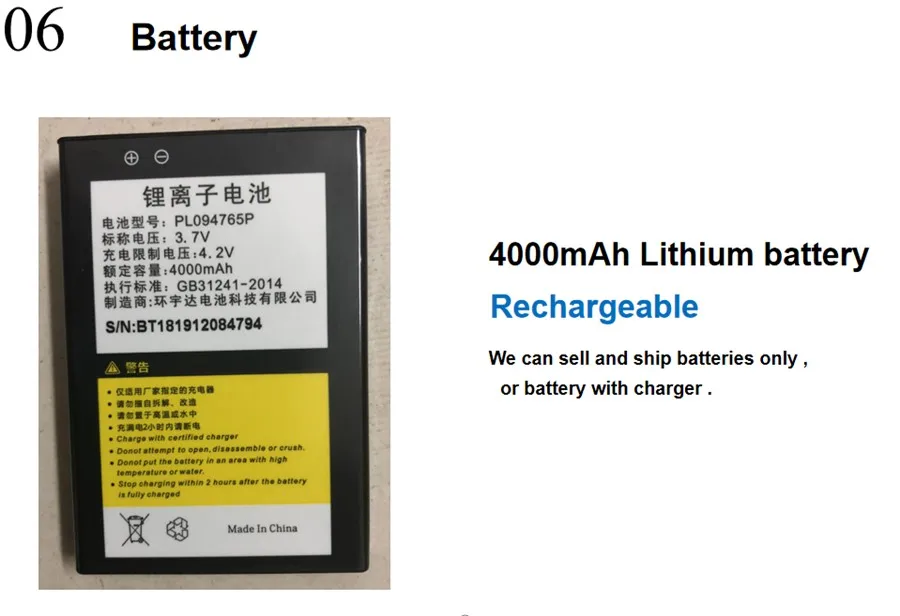

Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4000mAh Optional
Frequency	8 1W speaker
Key	21pcs soft silicon key
Performance Parameter
CPU	ARM Cortex-A53 64bit Quad-Core 1.3G
RAM	2G RAM
Flash ROM	Standard 16G NAND Flash Storage Micro SD/TF port (Max up to 32G)

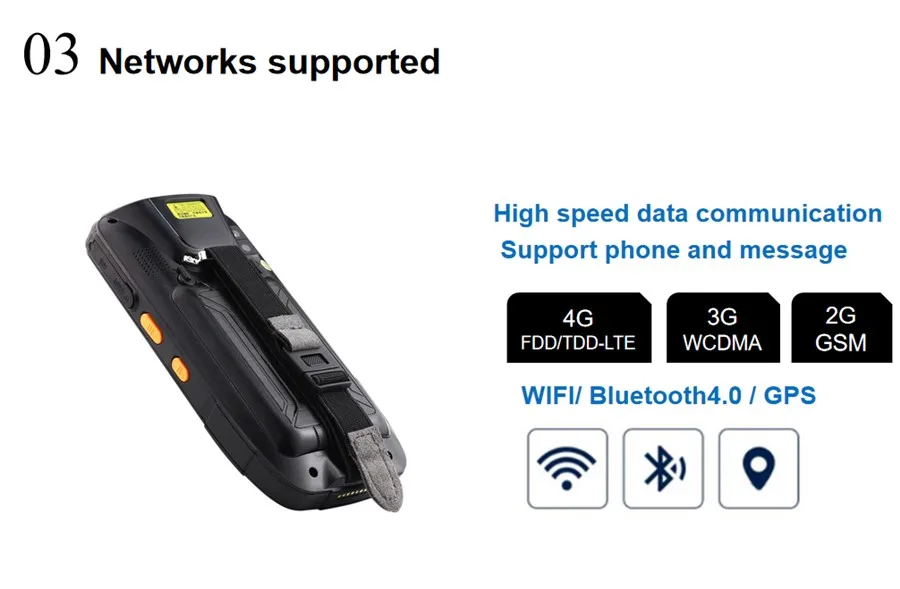

Data Communication
WI-FI	Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G	FDD-LTE （B1/B2/B3/B5/B7/B8/B20） TDD-LTE （B40）
WCDMA 3G	WCDMA （850/900/1900/2100MHz）
GSM 2G	GSM（850/900/1800/1900MHz）
Bluetooth	Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Operating Environment
Operating Temperature	—20C to 50C
Storage Temperature	—25C to 70C
Environment Humidity	5%RH--95%RH(no condensation)

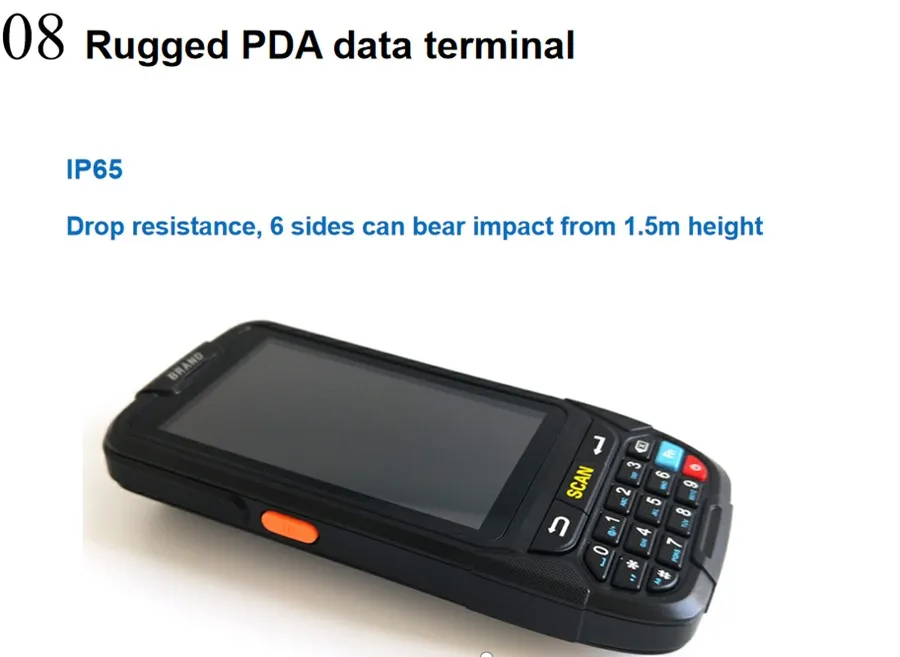

Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP65
Development Environment
Operating System	Android7.0
SDK	exclusive use software development kit
Supported Language	JAVA
Development Tool	Eclipse
A one-dimensional bar code collect
One dimensional laser scanner	HoneywellN4313,Mingde966
Resolution	4Mil minimum width
Ambient Light	10000ft.candles(107640 lux)
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
Two-dimensional bar code acquisition
CMOS Scanner	HONEYWELL N3680  , HONEYWELL N6603  newland 3096, newland 3090
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
Focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID
LF	125K;ISO11784/ISO11785 protocol
HF	13.56MHz;ISO14443A/B protocol

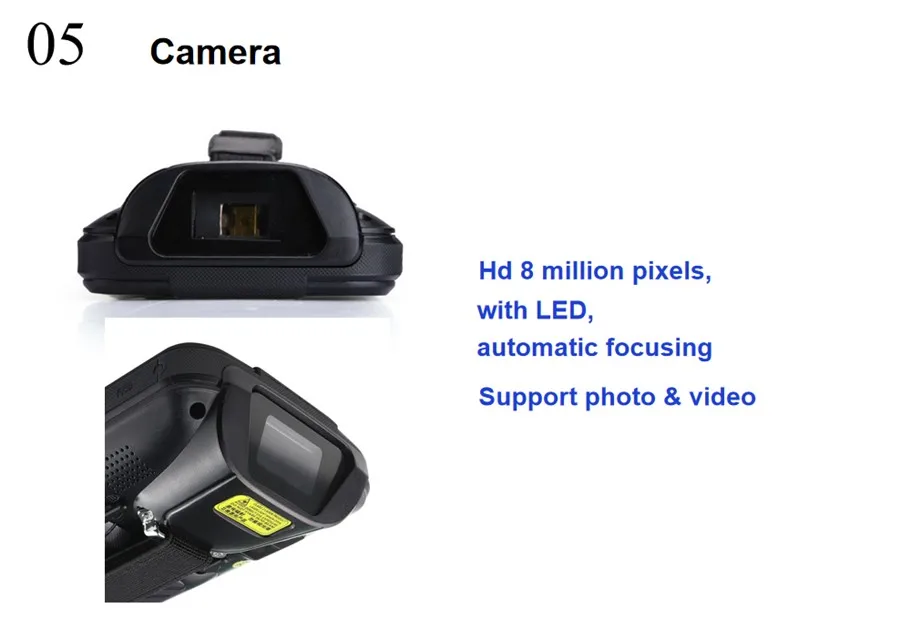

Camera	Hd 8 million pixels, with LED, automatic focusing
GPS	Support A-GPS



1 unit packing list include

1x PDA

1x battery

1x USB data cable

1x plug (US, EU, AU version for mathched counties, will ship the plug version according to your address)

1x user manuel

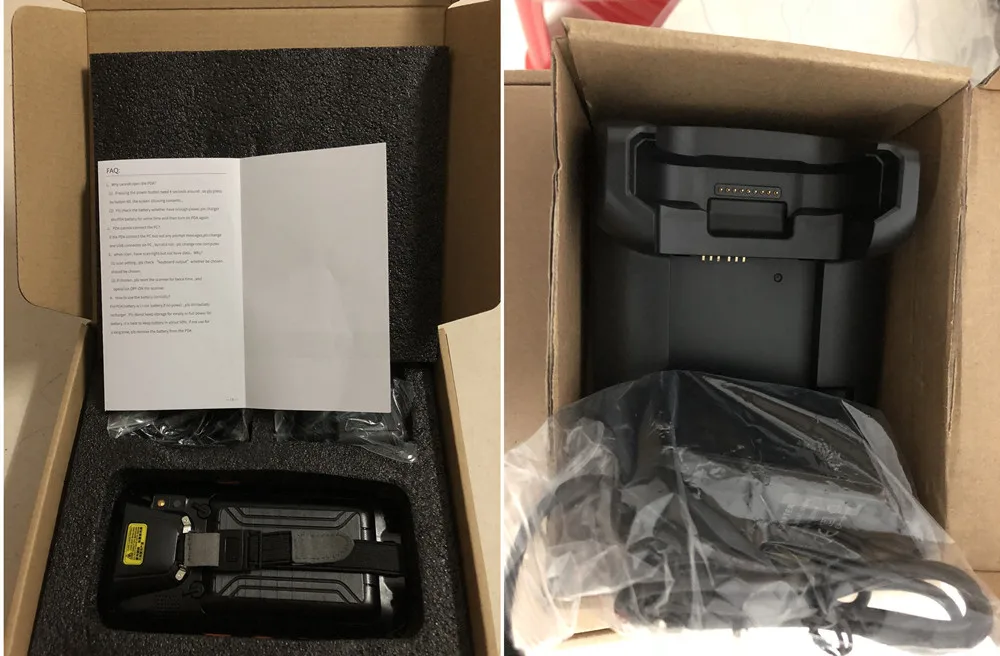

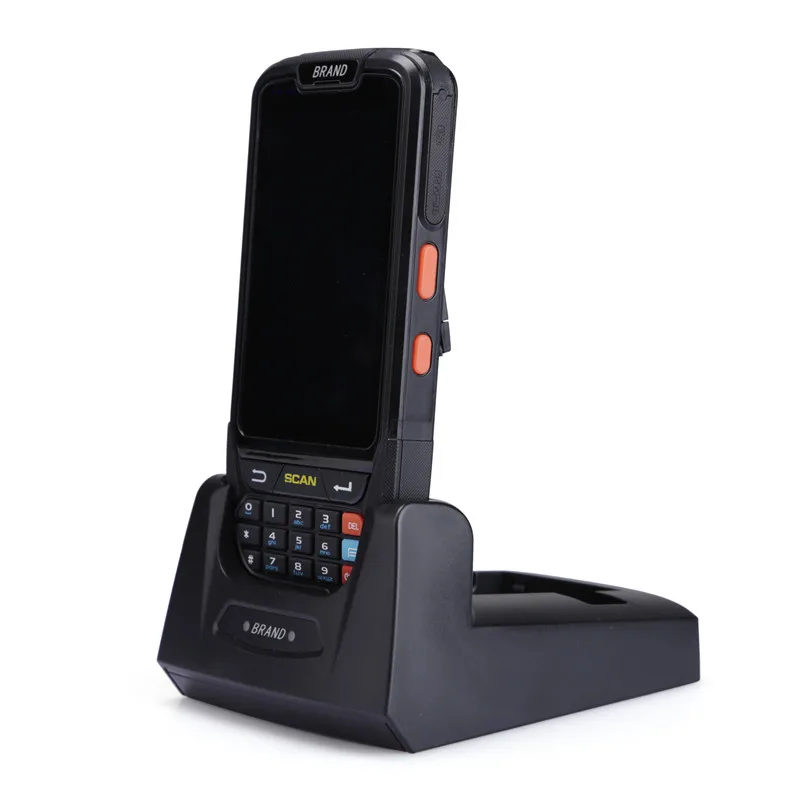

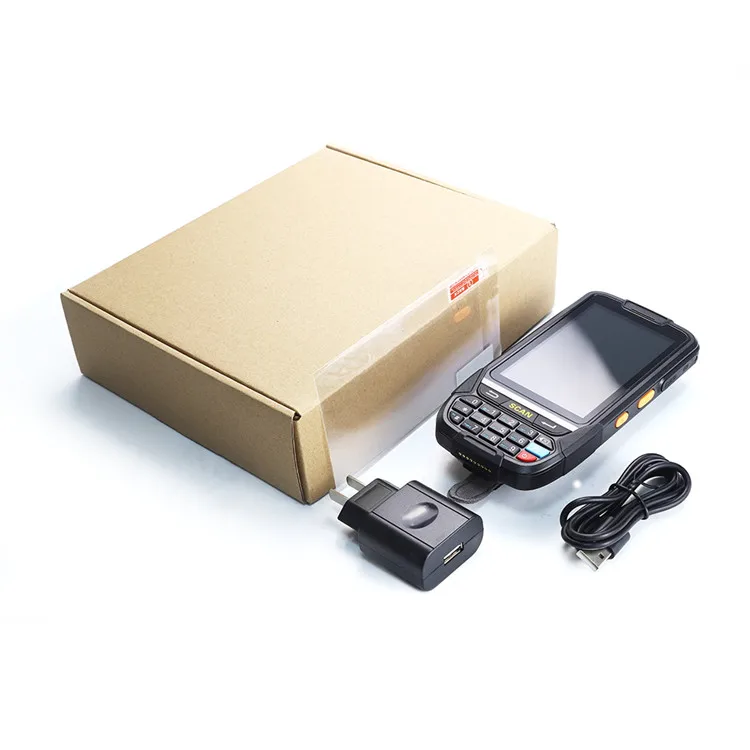

If your order is PDA with charger, eg, 1d with charger, or 2d with charger, packaging like below.

The packing list includes 1*charger, 1*PDA, 1*Battery, 1*USB cable, 1*plug, 1*user manual.

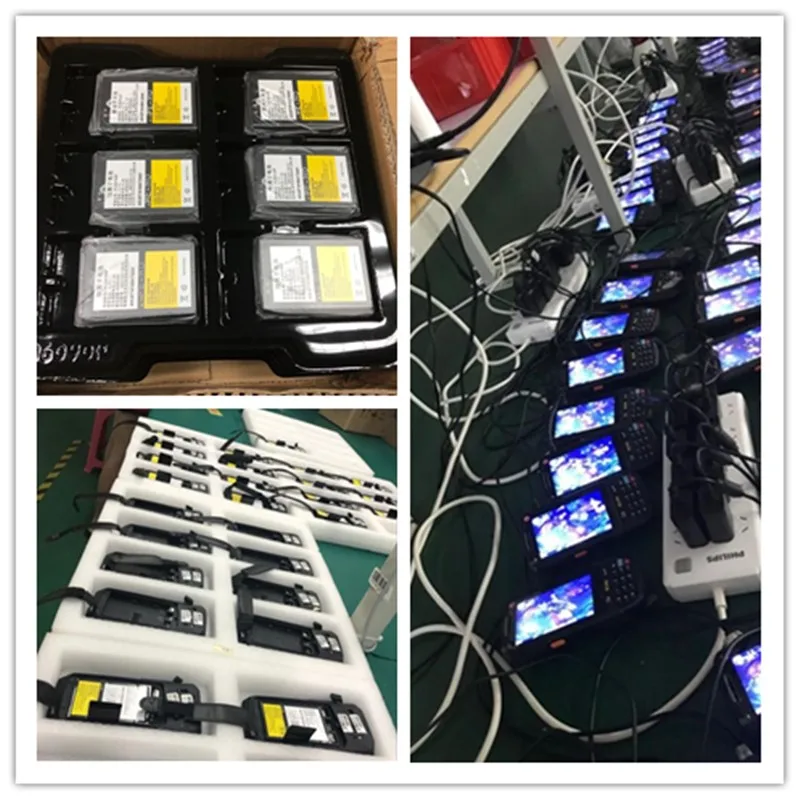

Factory Quality Control

All items will be inspected one by one before packed and shipped.

All items will be well-packed for safe shipment in the transportation process.



1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.

2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.

3) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient's CNPJ or CPF number, otherwise,  the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .

4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.

1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.

2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager. You will get a reply within 1 natural day.

3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.



If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.

Enjoy your shopping.

​

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.0kg (2.20lb.)



•
  Package Size:
  25cm x 15cm x 10cm (9.84in x 5.91in x 3.94in)
