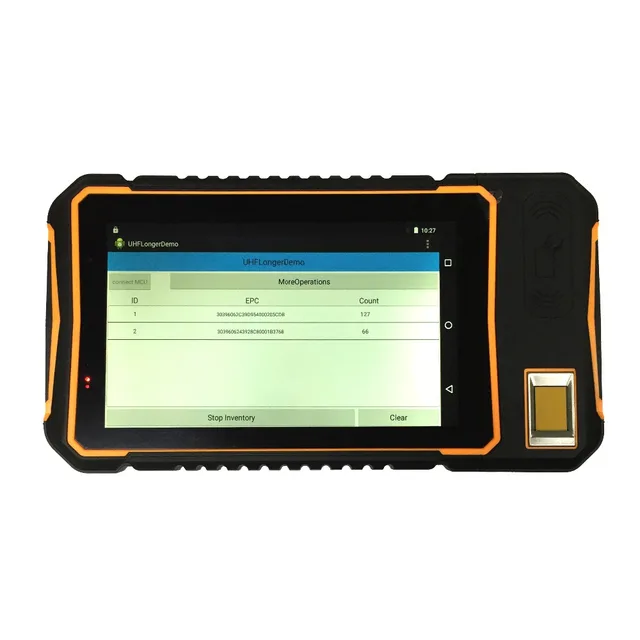

Handheld Terminal 7" Rugged Android Waterproof Tablet Mini PC 1D 2D Barcode Scanner Fingerprint Reader GPS RFID UHF NFC 10000mah
Brand Name:
RUGLINE
Scan Speed:
100 scans/second
Type:
Industrial Tablet with Barcode Scanner
Optical Resolution:
720*1280
Scan Element Type:
CMOS
Interface Type:
USB
Scan Breadth:
2D laser barcode
Model Number:
RT711
Novelty:
New
Scanning Light Source:
Laser Light
Colour Depth:
48 Bit
Time to market:
Mar-13
Product Type:
AndroidTablet Barcode Scanner
CPU:
Cortex A53 1.3GHz quad-core
OS:
Android 7.0
Memory:
2GB RAM, 16 GB ROM
Screen:
7 inch
Data Communication:
4G/3G/2G,WiFi, Bluetooth,GPS
Barcode Scanner:
1D Symbol SE955 /2D Honeywell N6603
RFID Reader:
LF / HF / UHF (Optional)
Fingerprint Reader:
TCS1SM (Optional)
Battery:
3.7V, 10000mAh
IP Rating:
IP65
Standard Configuration:
Android 7.0 + 7'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+ 8.0MP Camera + GPS + 4G
Free SDK
Optional: 1D / 2D Barcode Scanner , NFC/RFID , UHF / LF, Fingerprint Sensor
(Flexible customization according to your requirements, If you have any questions, please contact me on TradeManager or Skype: xcl.selinna )
Standard Accessories:
1xTablet, 1xPower Supply, 1xLithium Polymer Battery , 1xDC charging cable, 1xUSB data cable
Optional: Thermal Printer
Standard Features:
8.0M mega pixel camera
Multiple languages
Support Google Play Store
2GB RAM, 16 GB ROM, MicroSD(max 32GB expansion)
Android 7.0 OS
SIM card, Micro SD (TF) Card Expand Port;
High capacity 10000mA large capacity battery for critical requirement
Industrial rugged design, waterproof and protection grade(IP65)
2D Barcode Scanner & Fingerprint Sensor :
Fingerprint Reader:
UHF & Fingerprint Reader:
UHF RFID Reader & 2D Barcode Scanner :
Extraordinary Battery Life
Extremely large internal battery of 10000mAh can ensure long battery in different using environment;
Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;
Extremely Stable Hardware Display
7.0 inch tough Gorilla Glass 3 9H screen can ensure the performance under different tough environment;
Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, espcially like UHF+HF, UHF+LF, HF+LF;
Highly Integrated and Preinstalled Application
The highly integrated and preinstalled ScanServer can satisfy most of the solutions obtained from Google Play by the working principle of ‘Plug and Play’;
Quick-Charging
Quick-charging technology can provide the most efficient experience;
Perfect Service
Professional and skillful service involving the whole life cycle can guarantee the stability.
Physical Characteristics | |||
Dimension | 208mm(H)x130mm(W)x20mm(D)±2 mm | ||
Weight | Net Weight :1150g (including battery&wrist strap) | ||
Display | 7.0 in. TFT-LCD(1280x720)touch screen with backlight | ||
Backlight | LED backlight | ||
Expansions | 1 SIM, 1 TF | ||
Battery | Rechargeable li-ion polymer, 3.7V, 10000mAh | ||
Performance Characteristics | |||
CPU | Cortex A53 1.3GHz quad-core | ||
Operating System | Android 7.0 | ||
Storage | 2GB RAM, 16GB ROM, MicroSD (max 32GB expansion) | ||
User Environment | |||
Operating Temp. | -20℃ to 50℃ | ||
Storage Temp. | -20℃ to 70℃ | ||
Humidity | 5%RH to 95%RH(non-condensing) | ||
Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||
Sealing | IP65, IEC compliance | ||
Development Environment | |||
SDK | HHW Software Development Kit | ||
Language | Java | ||
Environment | Android Studio or Eclipse | ||
Data Capture | |||
WWAN | TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; | ||
WCDMA(850/1900/2100MHz); | |||
GSM/GPRS/Edge (850/900/1800/1900MHz); | |||
WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n | ||
WPAN | BT Class v2.1+EDR, BT v3.0+HS, BT v4.0 | ||
GPS | Support | ||
Camera | |||
Resolution | Rear 8.0 megapixel, front 2.0 megapixel | ||
Lens | Auto-focus with LED flash | ||
DATA CAPTUER | |||
Barcode scanner (Optional) | |||
2D barcode | 2DCMOSImager | Honeywell N6603 | |
Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
RFID Reader (Optional) | |||
RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | |
Protocol | ISO 11784&11785 | ||
R/W Range | 2cm to 10 cm | ||
RFID HF/NFC | Frequency | 13.56MHz | |
Protocol | ISO 14443A&15693 | ||
R/W Range | 2cm to 8cm | ||
RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
Protocol | EPC C1 GEN2/ISO 18000-6C | ||
Antenna Gain | Circular antenna(2dBi) | ||
R/W Range | 1.5m to 2m (tags and environment dependant) | ||
Fingerprint Reader (Optional) | |||
Sensor | TCS1xx | ||
Sensor type | Capacitive, area sensor | ||
Resolution | 508 DPI | ||
Performance | FRR<0.008%, FAR<0.005% | ||
Capacity | 1000 | ||
Accessories | |||
Standard pacakge | 1xPower Supply | ||
1xLithium Polymer Battery | |||
1xDC charging cable | |||
1xUSB data cable | |||
Shipping
1. Items ordered will be sent via UPS,DHL,EMS,TNT,FedEx or Aliexpress Standard Shipping within 1~5 business days after payment complete.
2. Please leave completed and correct address, so as to make sure the parcel will be sent to the buyer without any delay.
3. We do not gurantee delivery time on all international shipments due to the difference in customs clearing times in
individual countries, which may affect how quickly your product is inspected.
4. For all free shipping items, we will send them to the buyer via Aliexpress Standard Shipping,The delivery time will be different depending on the different countries, which will be 15-30 days.
5.If buyer need the fast delivery, DHL, FEDEX,UPS,TNT,EMS are all available (5-15 Days). Buyer can check details the Estimated Delivery Time to different countries via different Shipping Method when you place order.
6. You can indicate your personal requirement when place your order.
Import taxes
Please note that buyers are responsible for all additional customs fees, brokerage fees, duties and taxes for importation into your country. The shipping cost does not include any import taxes, and the buyers are responsible for customs duties.
Usually, we will write lower value and mark “gift” or “sample” to help you to reduce and avoid import taxes. If you need full value on the shipping bill or invoice, please let us know when you place order.
Payment
We accept payment via TT (Bank transfer), Western Union, PayPal, Visa, MasterCard, Maestro and other payment methord.
Warranty & Return
1. All items will be 100% check or tested before shipping.
2. In case if the item is defective or has any problem,please contact us first to check the problem,after confirmed by us,it can be exchanged or return within 7 days after receipt.
3. If you need to exchange or return,please request a return address from us.Items return must contains all accessories and packing well.The buyer should pay for the return shipping fee.
4. We offer 1 year warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.
5. .For the product maintenance,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
6. .We will provide technical assistance for the whole life.
Technical support
We provide free SDK ,DEMO and the application development guide and development environment introduction,meanwhile we will provide technical support in all of your development process.
Customer Service
1. If you have any questions,please feel free to contact us by email or Trade Manager.(Skype: xcl.selinna) We will reply you ASAP within 24 hours.
2. Please don’t forget to leave us a 5 star positive feedback if you are satisfied with our product and service.We really appreciate and value any chance to do business with you.
3. If you have any un-satisfied about the product or our service,please DO contact us before leaving negative feedback.We surely will do our best to solve all problems and improved our service.
Do you have any other question? Contact me now! We look forward to cooperating with you.
Unit Type:
piece
Package Weight:
1.8kg (3.97lb.)
Package Size:
28cm x 18cm x 6cm (11.02in x 7.09in x 2.36in)
