Free Shipping High Performance Wireless Barcode scanner 1D 2D Bluetooth Android 7.0 Handheld Data Terminal Rugged PDA
Best Offers Free Shipping High Performance Wireless Barcode scanner 1D 2D Bluetooth Android 7.0 Handheld Data Terminal Rugged PDA
Product ID : 32991748932
Price : $248 - 443
Discount Price : $178.56 - 318.96
* Price Update at : Jully, 25 2019 *
Item specifics
Brand Name:
RUGLINE
Scan Speed:
200 scans/second
Type:
Barcode Scanner
Optical Resolution:
480*800
Scan Element Type:
1D Laser 2D CCD
Interface Type:
USB
Scan Breadth:
1D 2D QR HONEYWELL Scanner optional PDA Handheld terminal rugged PDA
Model Number:
RT800
Novelty:
New
Scanning Light Source:
Laser Light
Colour Depth:
48 Bit
Time to market:
Mar-13
Product Type:
Bar Code Scanner
CPU:
ARM Cortex-A53 64 bit quad-core(1.3GHz)
Memery+Flash:
2G+16G NAND Flash,micro-TF up to 32G
Operating System:
Android 7.0
Battery:
3.7V 4,000mAh Li-battery
Screen:
5 Inch
Wireless:
4G,WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
Item name:
wireless Andorid 7.0 Touch Screen Android PDA 1D/2D barcode scanner
Display:
4.0'' QVGA touch panel TFT-LCD Display
Model Number:
Portable data terminal PDA barcode scanner
1D Scanner:
Mingde966(Standard),HoneywellN4313
2D Scanner:
Newland 3096(Standard), HONEYWELL N3680
Optional:
QR scanner and NFC HF UHF RFID
Product Description
Free Shipping High Performance Wireless Barcode scanner 1D 2D Bluetooth Android 7.0 Handheld Data Terminal Rugged PDA
Standard Configuration:
Android7.0+4'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+1D/2D+3G/4G+GPS+Camera+Free SDK
Option :NFC ,LF(125K/134.2K)
( If you need the optional function, please contact us )
Standard Accessories:
Standard: Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs

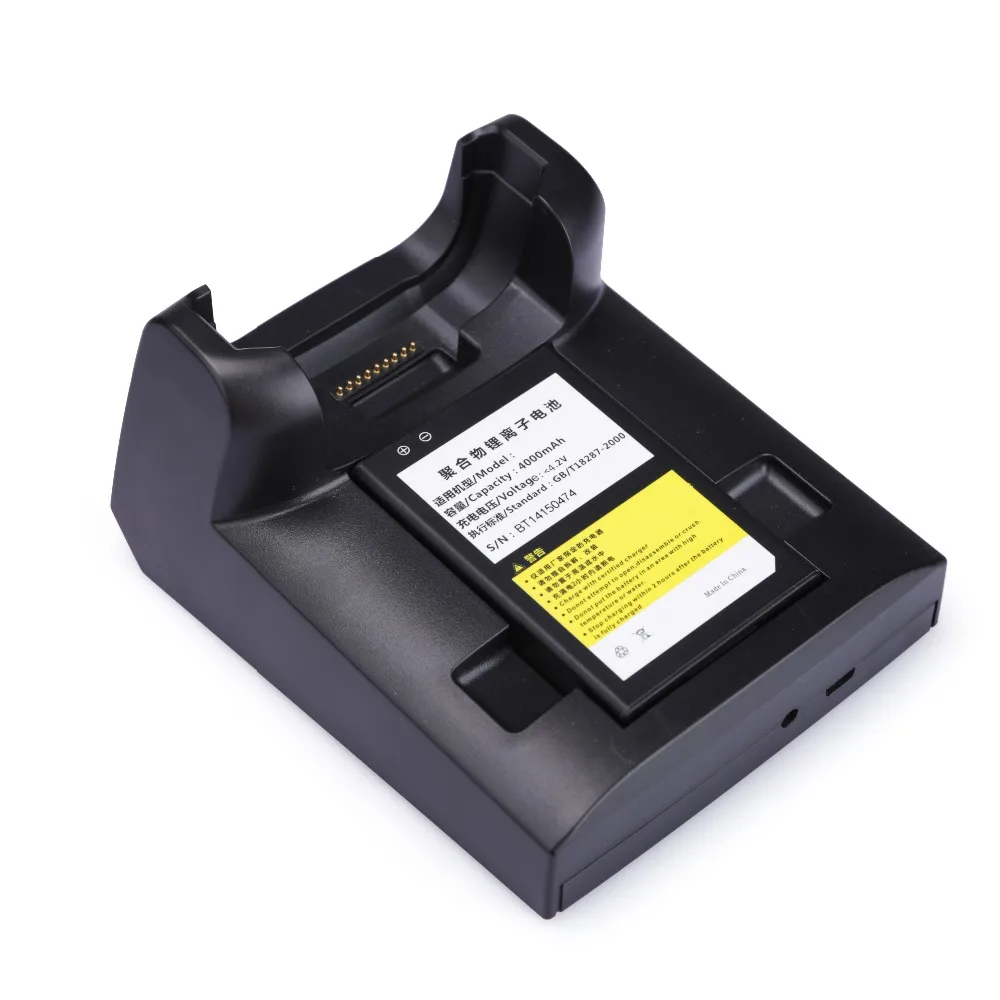

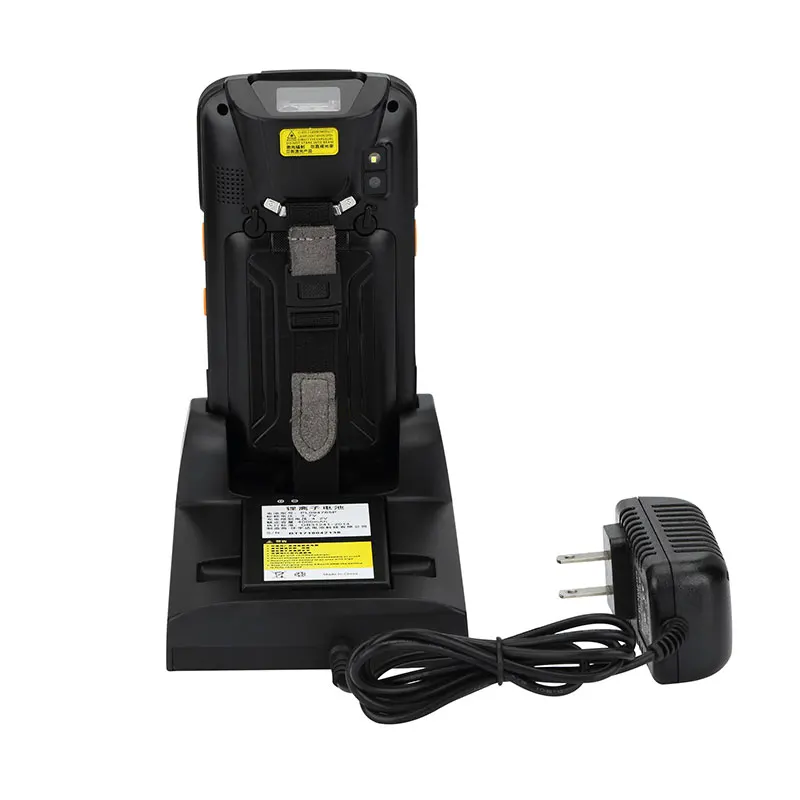

Optional: Extra Charge Cradle
Standard Features:
-8.0M mega pixel camera
-Multiple languages
-Support Google Play Store
-Compact and Portable Ergonomic Design with wrist strap
-Safe OS (Android 7.0) Highly optimized Android operating system
-High capacity 4000mA large capacity battery for critical requirements
-Pogo Pin interface for convenient charging with optional charge cradle
-Industrial rugged design, waterproof and protection grade(IP65)
Main Parameters:
| Model Name: | Touch Screen Android 7.0 PDA |
| CPU | ARM Cortex-A53 64 bit quad-core(1.3GHz) |
| Memery+Flash | 2G+16G NAND Flash,micro-TF up to 32G |
| Display | 4.0'' QVGA touch panel TFT-LCD Display(480X800) |
| Wireless | WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS |
| Operating System | Android 7.0 |
| Interface Type: | USB2.0 Device |
| Scanner: | 1D/2D Scanner |
| Dimension: | 152mm×77mm×29mm |
| Weight: | <500g |
| Battery: | 3.7V 4,000mAh Li-battery |
| Optional(add money) | Charge Cradle, NFC(HF), RFID(UHF) |
| Physical Parameter | |
| Dimensions | 152mm(L)×77mm(H)×29mm(W) |
| Weight | <500g |
| Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen |
| TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
| The brightness of LED Backlight is adjustable | |
| Expand Port | SIM card, Micro SD (TF) Card |
| Communication Interface | USB2.0 Device, |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
| Frequency | 8 1W speaker |
| Buttons | 21pcs soft silicon key |
| Data Communication | |
| WI-FI | Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
| FDD-LTE 4G | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
| Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
| Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
| WCDMA 3G | Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
| Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
| GSM 2G | 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
| 900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
| 1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
| 1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Operating Environment | |
| Operating Temperature | —20C to 50C |
| Storage Temperature | —25C to 70C |
| Environment Humidity | 5%RH--95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| Development Environment | |
| Operating System | Android 7.0 |
| SDK | exclusive use software development kit |
| Supported Language | JAVA |
| Development Tool | Eclipse |
| 1D Laser Scanner | |
| One dimensional laser scanner | Mingde966(Standard) Symbol 955, HoneywellN4313, |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (both way) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (Optional) | |
| CMOS Scanner | Newland 3096(Standard) HONEYWELL N3680 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| Focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| RFID(Optional) | |
| NFC&HF | 13.56MHz;ISO14443A/B protocol |
| UHF | 902Mhz – 928Mhz 、865MHz – 868MHz |
| Camera | Hd 8 million pixels, with LED, automatic focusing |
| GPS | Support A-GPS |
| Android 7.0 System | |
| CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage |
| Micro SD/TF port (Max up to 32G) | |
PDA Barcode scanner 1D 2D Blutooth Android PDA Handheld Terminal Rugged PDA Wireless Mobile
1D Bar code Scanner Data Collector
Packaging Details
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
36cm x 21cm x 9cm (14.17in x 8.27in x 3.54in)
