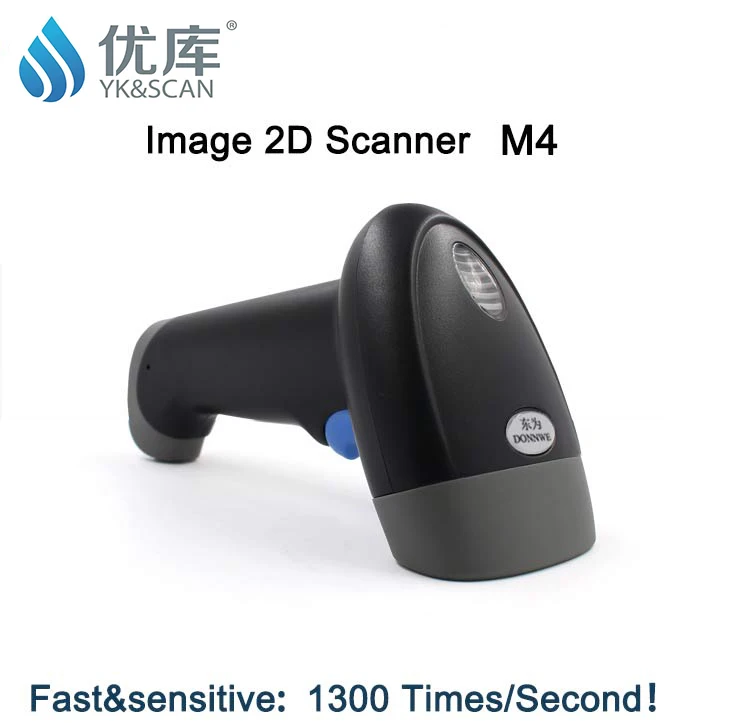

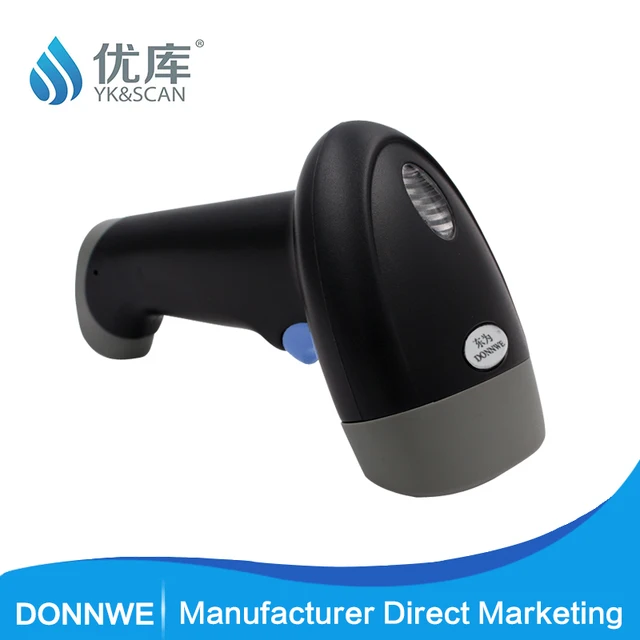

Automatic Barcode Scanner High Speed Scanning Scanner Portable 2D USB For Codes Printing on Paper or Film or Cellphone Screen
Product Type:
Bar Code Scanner
Novelty:
New
Interface Type:
USB
Scan Element Type:
CMOS
Scanning Light Source:
LED
Time to market:
Mar-13
Type:
Barcode Scanner
Scan Breadth:
A4
Model Number:
M4
Colour Depth:
32 Bit
Optical Resolution:
640*480
Scan Speed:
1300 Times/Second
Storage temperature range:
-20-60degrees
System Compatibility:
Linux/Android/Mac/Windows XP/7/8/10
Readable Minimum Bar Code:
4mil
Recognizable Print Contrast:
35%
Support keyboard language:
Multi-language
Automatic Barcode Scanner High Speed Scanning Scanner Portable 2D USB For Codes Printing on Paper or Film or Cellphone Screen

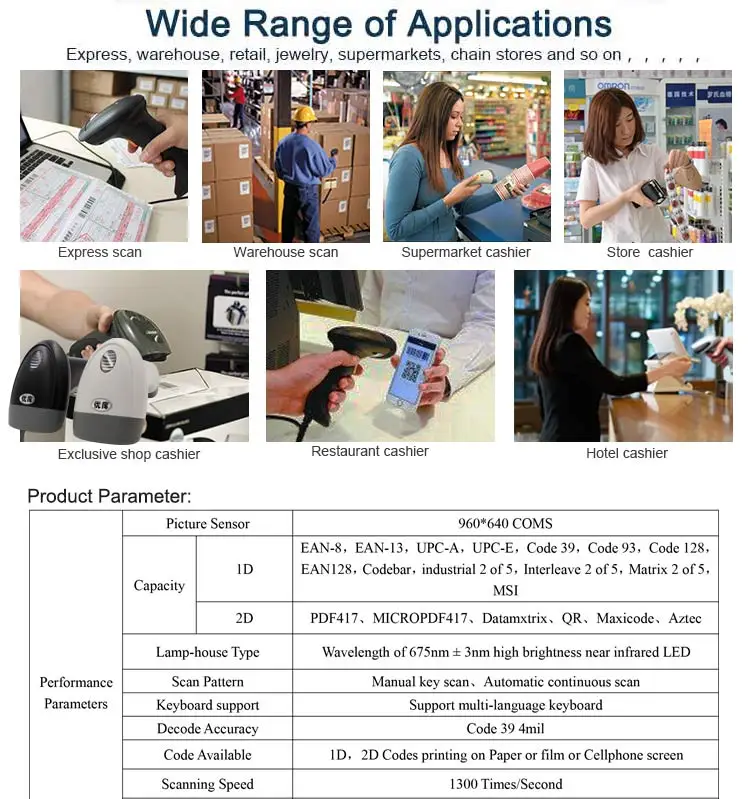

Product Parameter：
|
Performance Parameters | Picture Sensor | 640*480 COMS | |||
| Capacity | 1D | EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code 11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1 DataBar（RSS14）、 GS1 DataBar Limited、 GS1 DataBar Expanded | |||
| 2D | PDF417、QR-code、MicroQR、 Data Matrix、QR、Aztec | ||||
| Depth of Field | Tested Code | Minimum | Maximum | ||
| 5mil code39 | 2.5CM | 8CM | |||
| 13mil EAN13 | 3.5CM | 25CM | |||
| 15mil DM | 2.5CM | 14CM | |||
| 15mil QR | 2CM | 13CM | |||
| 15MIL PDF417 | 6CM | 18CM | |||

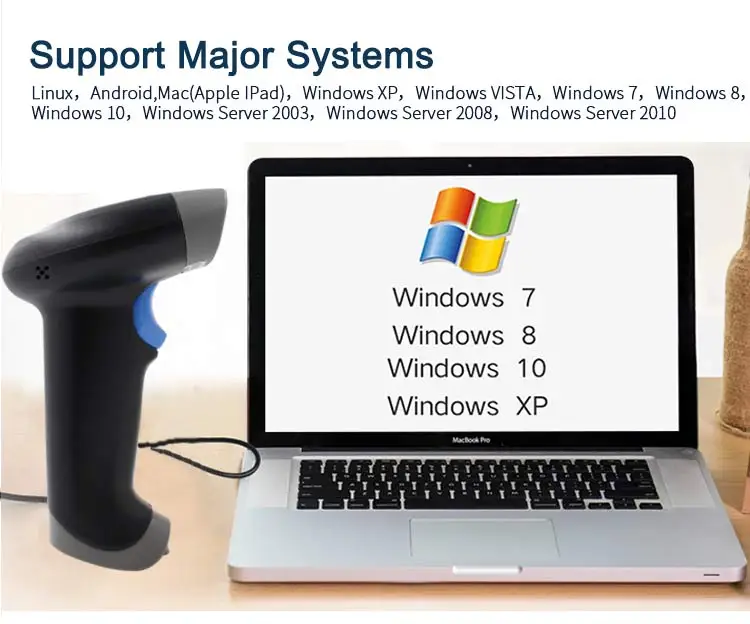

| System Compability | Linux，Android，Windows XP、7、8、 10，Mac | ||||
| Lamp-house Type | Wavelength of 675nm ± 3nm high brightness near infrared LED | ||||
| Scan Pattern | Manual key scan、Automatic continuous scan | ||||
| Keyboard support | Support multi-language keyboard | ||||
| Decode Accuracy | Code 39 4mil | ||||

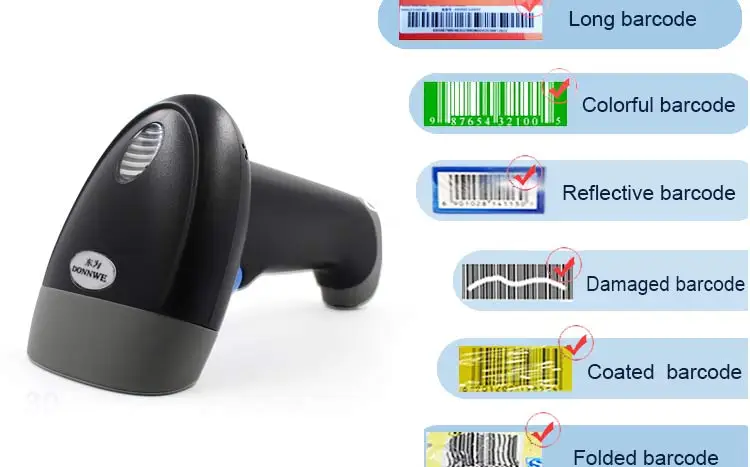

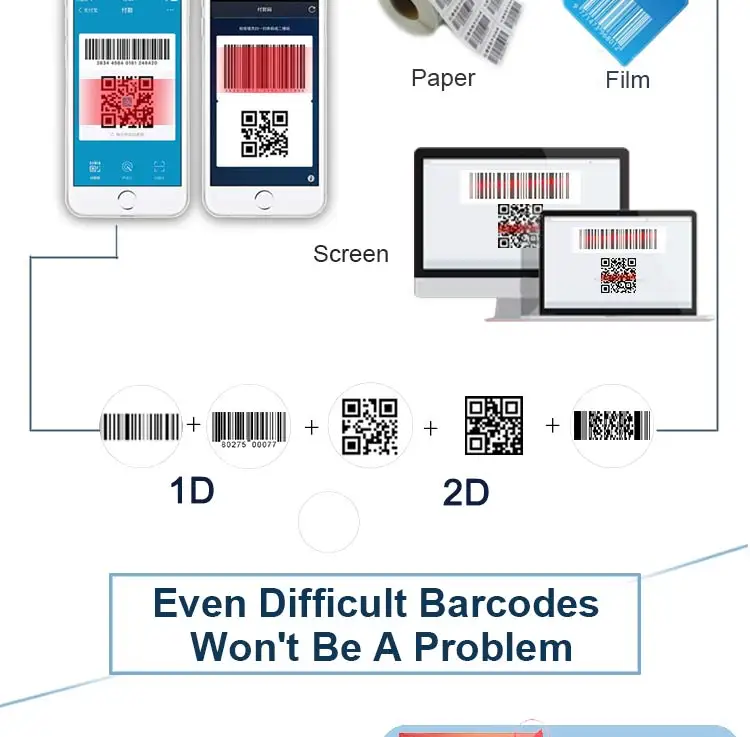

| Code Available | 1D，2D Codes printing on Paper or film or Cellphone screen | ||||
| Scanning Speed | 1300 Times/Second | ||||

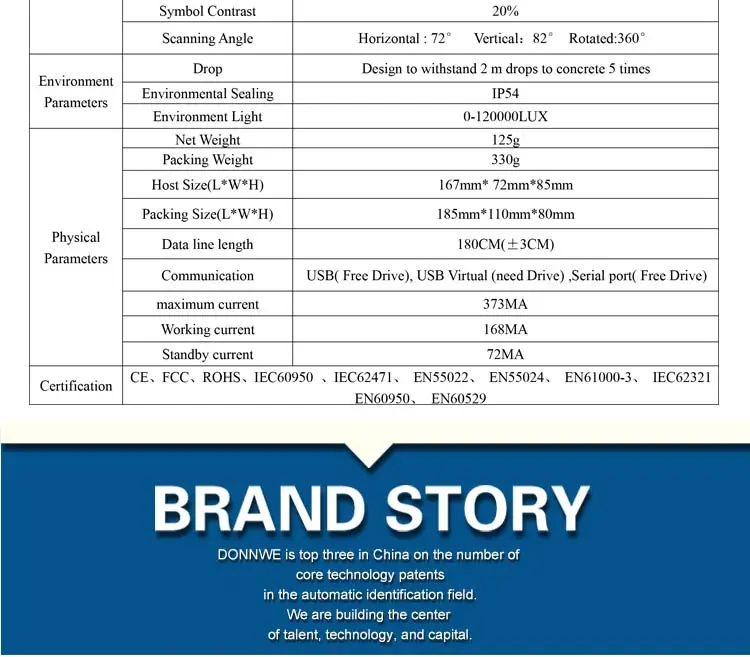

| Symbol Contrast | 25% | ||||
| Secondary development | Not support | ||||
| Barcode output editing | support adding prefix and suffixes | ||||

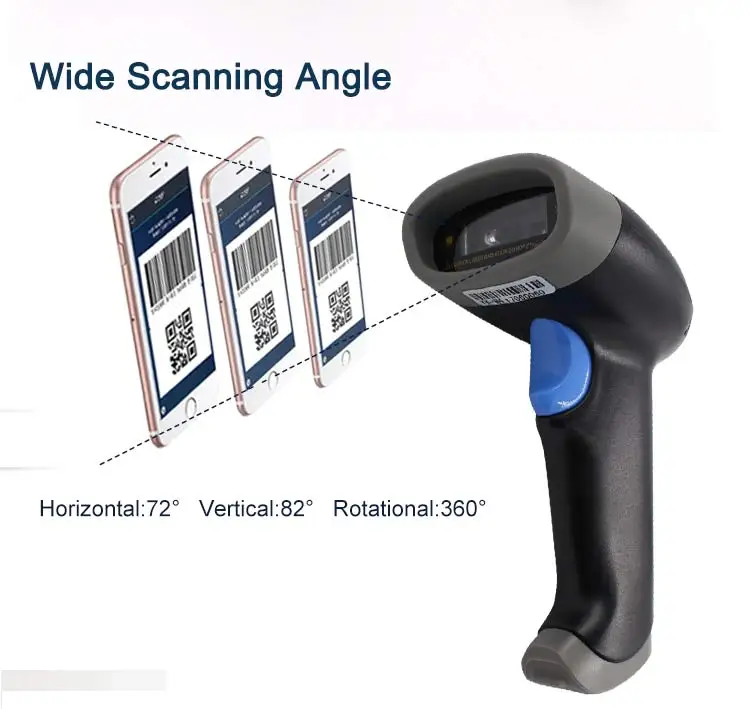

| Scanning Angle | Horizontal : 72° Vertical：82° Rotated:360° | ||||
| Human- computer interaction | Indicator light | Blue light mains tips and decoding flicker | |||
| Buzzer | Start Tips，Decoding success tips | ||||
| Button | Trigger scan | ||||

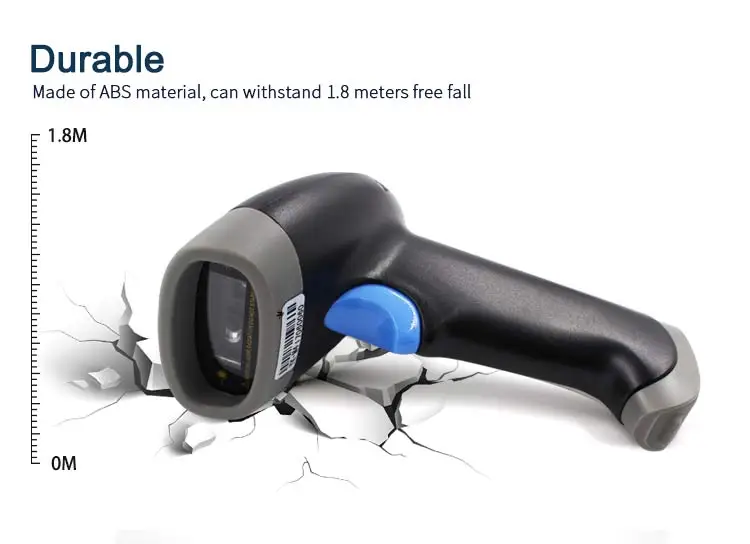

| Environment Parameters | Drop | Design to withstand 2 m drops to concrete 5 times | |||
| Environmental Sealing | IP54 | ||||
| Working Temperature | -20-55℃ | ||||
| Conserve Temperature | -20-60℃ | ||||
| Working Humidity | 5-95% Non-Condensed | ||||
| Conserve Humidity | 5-95% Non-Condensed | ||||
| Environment Light | 0-120000LUX | ||||
| Physical Parameters | Net Weight | 122g | |||
| Packing Weight | 325g | ||||
| Host Size(L*W*H) | 160mm*80mm*100mm | ||||
| Packing Size(L*W*H) | 185mm*85mm*110mm | ||||
| Data line length | 180CM(±3CM) | ||||

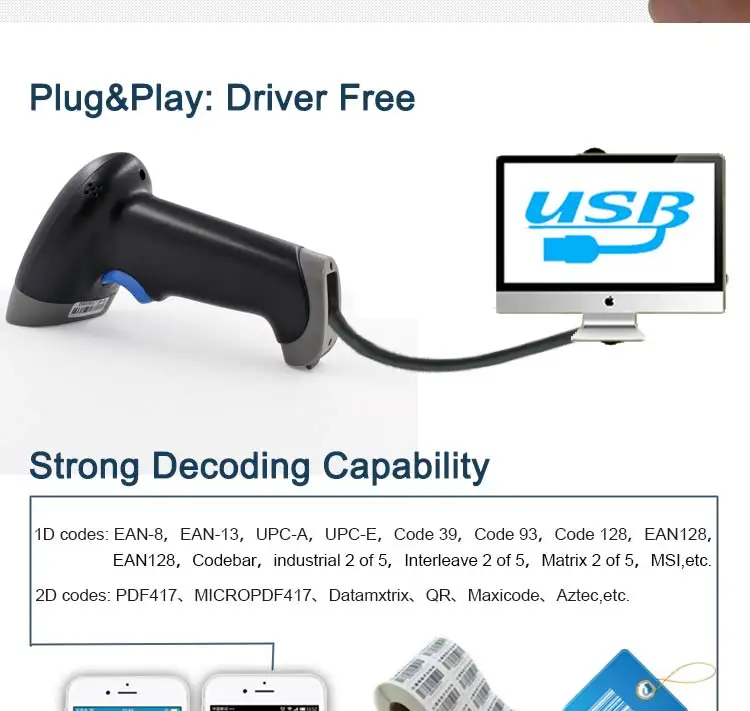

| Communication | USB( Free Drive)，Serial port RS232 | ||||
| maximum current | 293MA | ||||
| Working current | 168MA | ||||
| Standby current | 80MA | ||||
| Certification | CE、FCC、ROHS、IEC60950 、IEC62471、 EN55022、 EN55024、 EN61000-3、 IEC62321 EN60950、 EN60529 | ||||
Unit Type:
piece
Package Weight:
0.3kg (0.66lb.)
Package Size:
18cm x 10cm x 10cm (7.09in x 3.94in x 3.94in)
