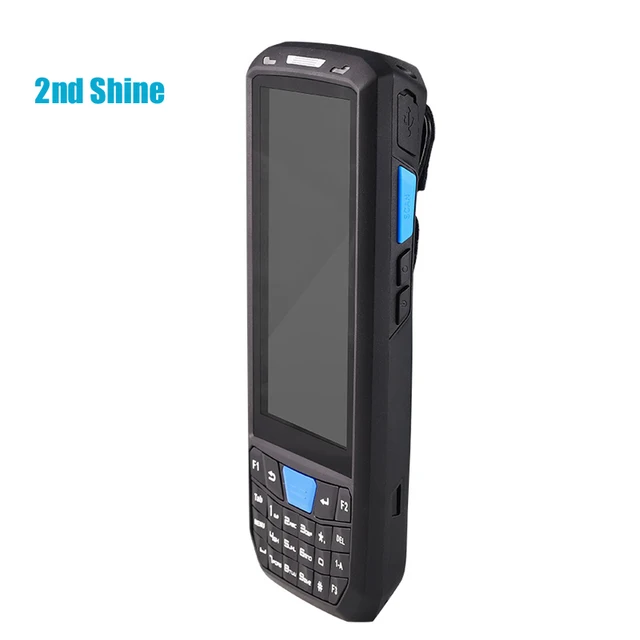

2ndshine Bluetooth Handheld Barcode Scanner RFID Reader Writer Wifi 4G GPRS with Android 7.0 OS
Novelty:
New
Interface Type:
USB
Scan Element Type:
CMOS
Scan Speed:
100 scans/second
Time to market:
Mar-13
Product Type:
Portable Scanner
Type:
Barcode Scanner
Colour Depth:
32 Bit
Model Number:
T805
Scanning Light Source:
Laser Light
Brand Name:
2ndshine
Optical Resolution:
480*800
Scan Breadth:
1D/2D Barcoder scanner
OS:
Android 7.0
touch screen :
4.5inch
Communication :
2G/3G/4G
RFID option 1:
ISO14443A/B& ISO15693
MOQ:
1PC
Product name:
1d barcode scanner
Protect Level:
IP66
RFID Option 2:
125khz RFID reader
Products Status:
Stock
Scanner type:
1D/2D Barcoder scanner
Android Barcode Scanner 1D 2D QR Laser Bar Code Scanner Rfid Mobile Reader Wireless Rugged Android
- Basic Function:
- Android 7.0 OS/ 4G FDD-LTE/WCDMA/GSM/ 2G RAM+16G ROM
- 2.4G&5G WIFI/ Bluetooth/ GPS/ 8MP camera with flash
- Basic barcode reader type: 1D barcode (support EAN13/EAN8/UPC/Code 39/JAN13/Code 11)
- Competitiveness:
- Optional configuration: 2D, NFC(13.56M), Psam
- With 4.5inch touch screen and number key pad, mobile phone outlook and easy to operate.
- 8MP camera, satisfied you taking high quality photos.
- Open android 7.0 platform, support Java and Eclipse.SDK is free.
- 4200mAh long life battery, keep longer work.
- IP66 protect level,waterprrof/dustproof/falling preventing
- Factory price, help you win the market in your place.
- 1d barcode scanner
- Packaging:
- T805 barcode reader-1pcs;usb data cable-1pcs:charger-1pcs;battery-1pcs;hand strap-1pcs.
- Cradle/charger base/docking station need 15usd extra cost, pls visit this link:
- https://www.aliexpress.com/store/product/2nd-Shine-tech-S802-PDA-Cradle-docking-station-device-base/2063137_32811272153.html?spm=a2g0y.12010612.8148356.1.507c6ed8Vk8yxX
-
- Buy extra battery pls visit this link:
- https://www.aliexpress.com/store/product/2nd-Shine-S802-Battery-4000mAh/2063137_32689639050.html?spm=a2g0y.12010608.0.0.2b9c769140Vy0E
| Physical Parameter | |
| Size | 166mm(L)×77.5mm(W)×22mm(D) |
| Weight | <500g |
| Display screen | 4.5 inch IPS 480 * 854 PX with Multi-point touch capactive screen. |
| Expand port | PSAM x 2（optional）、Micro SIM x 1 、POGO Pin x 1、Micro SD(TF) card x1 |
| Communication interface | Type-C, USB x 1 |
| Battery capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh Optional. RTC battery keeps time not lost. |
| audio frequency | Speaker(mono)x1，Microphonex1，headphonex1 |
| Flashlight | Compatible with flashlight and electric torch. |
| Acceleration sensor
| 1、3-Axis 2、Sampling can be adjusted per second, such as 1~100 times. |
| Basic function | 1、Motor*1 2、color lamp*2 3、Optical sensor support 4、The flashlight brightness is the same as camera flash |
| Key | 29 Silicon key,Support touch screen soft keyboard and physical keyboard. |
| Performance Parameter | |
| OS | Android7.0 |
| |
|
| Ram/flash Rom | 16G Flash ROM and 2GB RAM（8G Flash ROM and 1GB RAM Optional）, Micro SD/TF card slot(Max up to 32G). |
| Typewriting | English, Pinyin, five strokes, handwriting input, support soft keyboard
|
| Language | Chinese, English,Korean,Japanese,Malay, Singaporean etc |
| Camera | 8MP autofocus camera with flash |
| GPS | Support GPS or AGPS |
| NFC | Support 13.56MHz；ISO1443A/B、15693；read distance is 2cm-5cm |
| Data Communication | |
| WI-FI | Support IEEE802.11a/b/g/n， it need effective wireless LAN signal cover |
| 4G | FDD-LTE （B1/B2/B3/B5/B7/B8/B20） TDD-LTE （B40） |
| 3G | WCDMA （850/900/1900/2100MHz） |
| 2G | GSM（850/900/1800/1900MHz） |
| Bluetooth | Support 2.0+EDR/3.0+HS/4.0+HS Transmission distance is 5-10m |
| Scanner engine(Optional) | |
| 1D Laser scanner (optional) | Minde SE966 / Honeywell N4313/ Newland EM1300(CCD) |
| Support Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128, GS1 Databar,HIBC,etc. | |
| 2DCMOS scanner (optional) | Newland EM3090 / Newland EM3096/ Honweyll N6603 |
| Support PDF417,MicroPDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc. | |
| Operating System | |
| Standby current | ≤10mA，Target ：no more than 8mA。 |
| Temperature | -20℃ to 55℃ |
| Storage | -25℃ to 70℃ |
| Environment Humidity | 5%RH--95%RH(no condensation) |
| Drop specification | 6 sides can bear impact from 1.5m drop to cement floor about 30 times in the range of operating temperature |
| Product certification | |
| IP rating | IP66 |
| Safety specification
| IEC2 /FDA Ⅱgrade,conform IEC60825/EN60825-1 standard |
| Working life | No less than 5 years |
2SHINE
|
About Order: |
1. Samples
- Less than 10pcs samples are applied each time for our clients, the price is obviously a little bit higher than the wholesale price.
- But If you want more than 100pcs, it'll be much cheaper. However,the more you order,the lower production cost it'll be, so the cheaper price you'll get.
All the price is excluding the freight fee.
2. Quality
- Color issues: All the PDA products are 100% absolutely objects photographed,but because of the Camera-technology, Light,Pixels and other factors, there'll be a little bit difference with the real product. Please take the real goods for reference or make sure with our sales in advance.
- Qualifications: Our PDAs are produced according to the ISO9001 quality management system, and all the products have passed through IP65,CCC,and ROHS.
3. Delivery
- If you want PDAs like S802 which are always in stock,it may needs 4-5 days to delivery.
- If you want OEM/ODM products with particular functions, it may needs 15 days more to produce and delivery.
More specific details. please contact our sales.
4. Transportation
- We always choose the competitive and safe shipping agent like DHL,UPS and Fedex and any other designated shipping agent by the customers.
- If it goes smoothly with the customs clearance, you'll get the goods in 4-7 days.
5. After-Sale Service
- We support 13 months warranty,during this period,it's exactly FREE to replace you a quiet new device terminal if your machines have serious irreversible functional damage.
- Freight fare is half paid of the round trip by both sides. Customer pay the freight fee when they are sending the machines to china,and we'll pay it when returning them back to the clients.
- FAQ
Question 1: Can i put my logo on the device?
Answer: YES, you can but MOQ is 20pcs ..
Question 2: How long is the delivery time ?
Answer: Device leader time is about 3-4 days, Delivery time is about 4 days by DHL.Question 3: Where can i get SDK?
Answer: Pls leave your email address after your order, we will send SDK to your email box...Question 4: How much will wrote on the shipping invoice?
Answer: To help you pay less to your country custom, we will write only 50usd/pc in the Shipping invoice. If you need original price, pls contact me.
Question 5: Can the charger base/cradle Synchronization with the computer?
Answer: No, the cradle/base only can charge the device and a battery together, but can not synchronization with the computer. You can use the USB cable to connect your computer, just like our phone.Android Barcode Scanner 1D 2D QR Laser Bar Code Scanner Rfid Mobile Reader Wireless Rugged Android
Android Barcode Scanner 1D 2D QR Laser Bar Code Scanner Rfid Mobile Reader Wireless Rugged Android
Unit Type:
piece
Package Weight:
1.5kg (3.31lb.)
Package Size:
20cm x 10cm x 10cm (7.87in x 3.94in x 3.94in)
