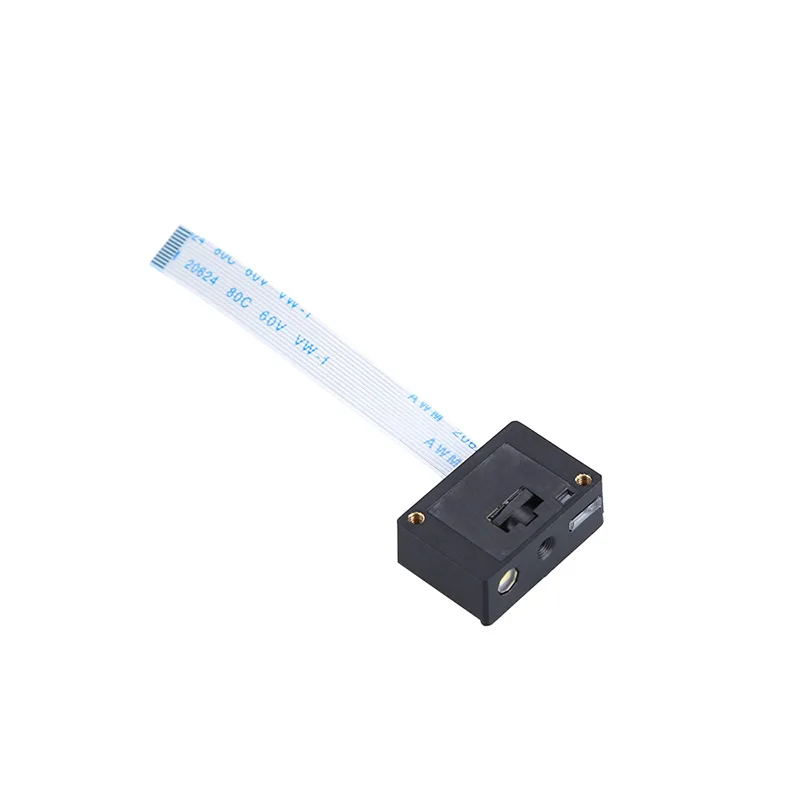

Youku 2D Barcode Scanner Engine 960*640 32 Bit Bar Code Scanner QR/1D/2D/ Scan Module For Supermarket File Scanning Module

Best Price Youku 2D Barcode Scanner Engine 960*640 32 Bit Bar Code Scanner QR/1D/2D/ Scan Module For Supermarket File Scanning Module

Product ID : 32958830910

Price : $29.60 - 35.52

Discount Price : $48.29

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Interface Type:
  USB



•
  Scan Element Type:
  CMOS



•
  Scanning Light Source:
  RGB Three Color Light Emitting Diode LED



•
  Time to market:
  Mar-13



•
  Type:
  Barcode Scanner



•
  Scan Breadth:
  A4



•
  Colour Depth:
  32 Bit



•
  Model Number:
  E3000H



•
  Scan Speed:
  350 Times/ Second



•
  Optical Resolution:
  960*640



•
  Volate :
  3.3V



•
  Dimension:
  21mm*14mm*8mm



•
  Scan Speed:
  30 fps/second



•
  Color:
  Black



•
  Symobologies:
  1D 2D


Product Description

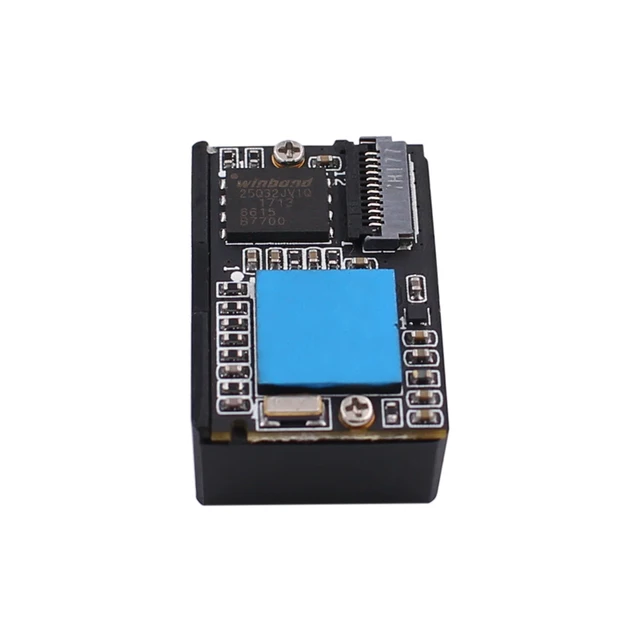

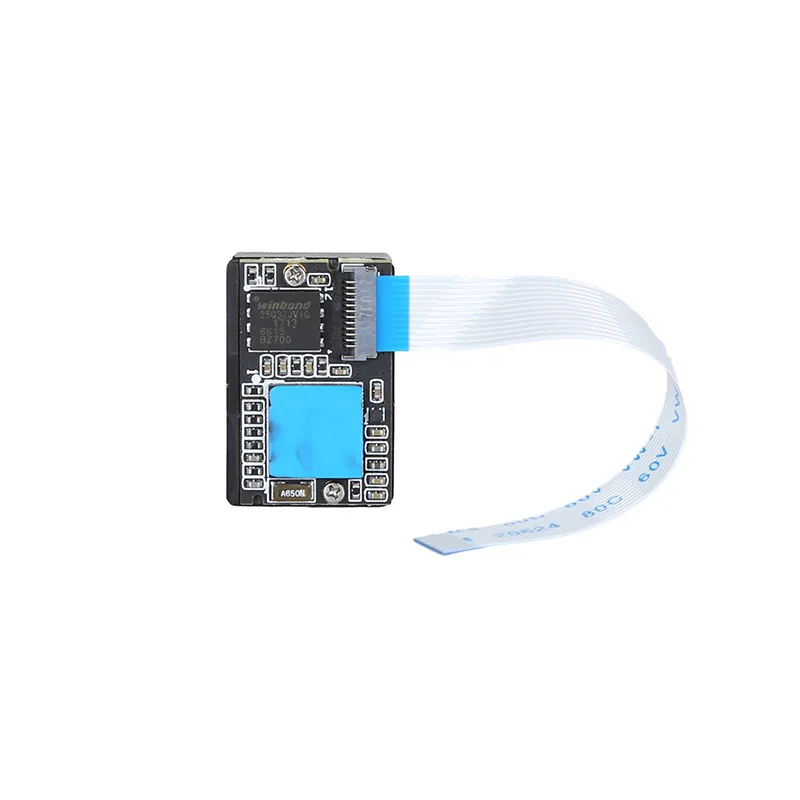

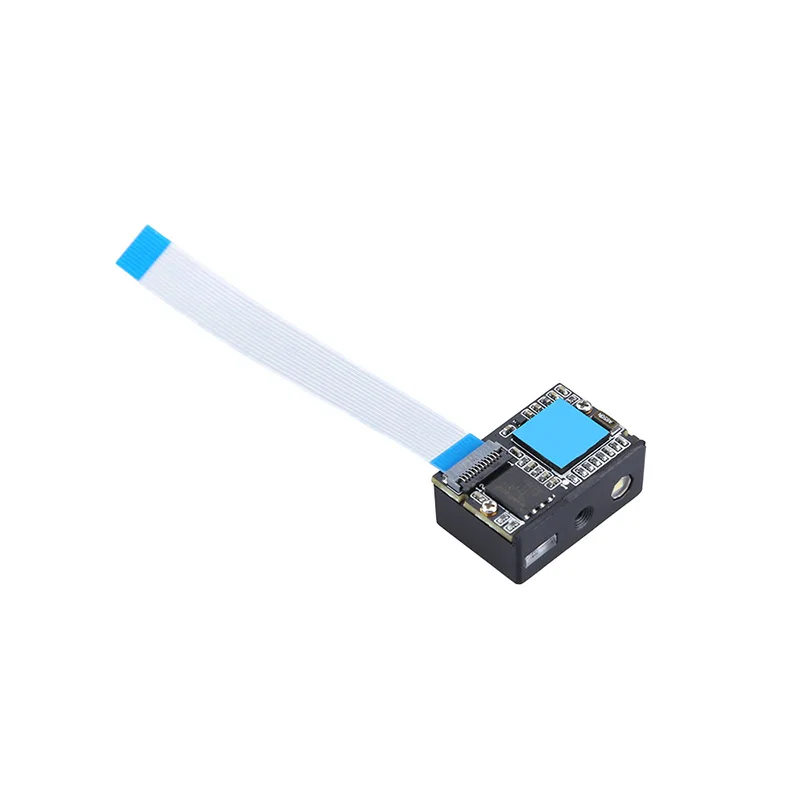

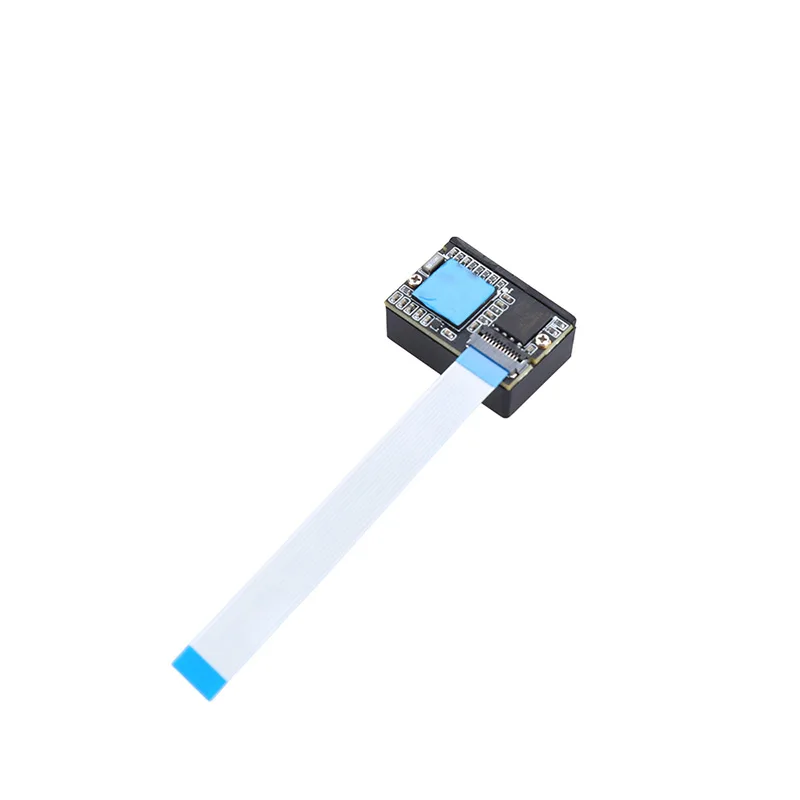

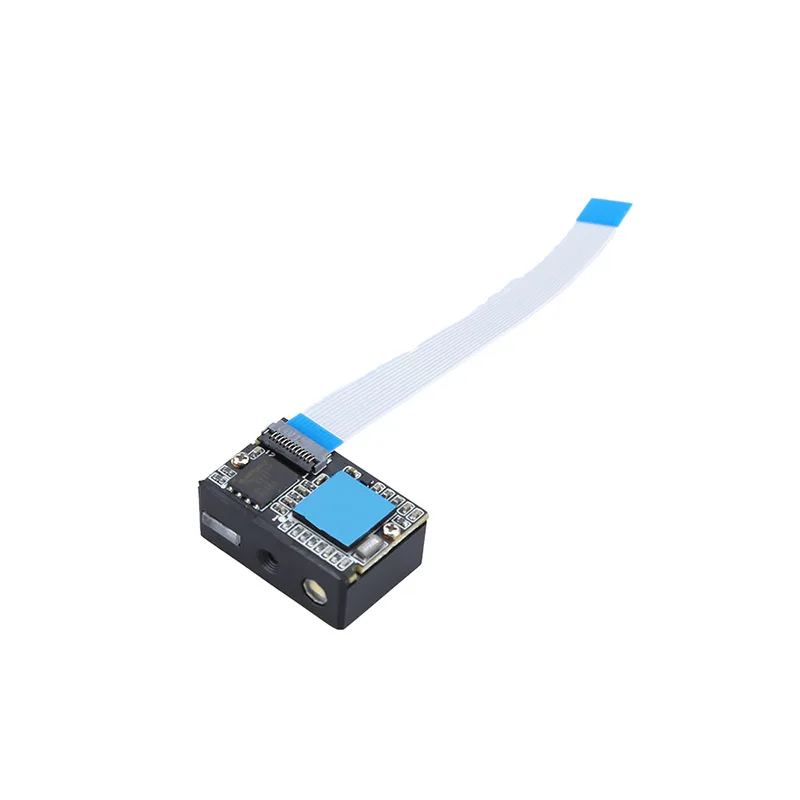

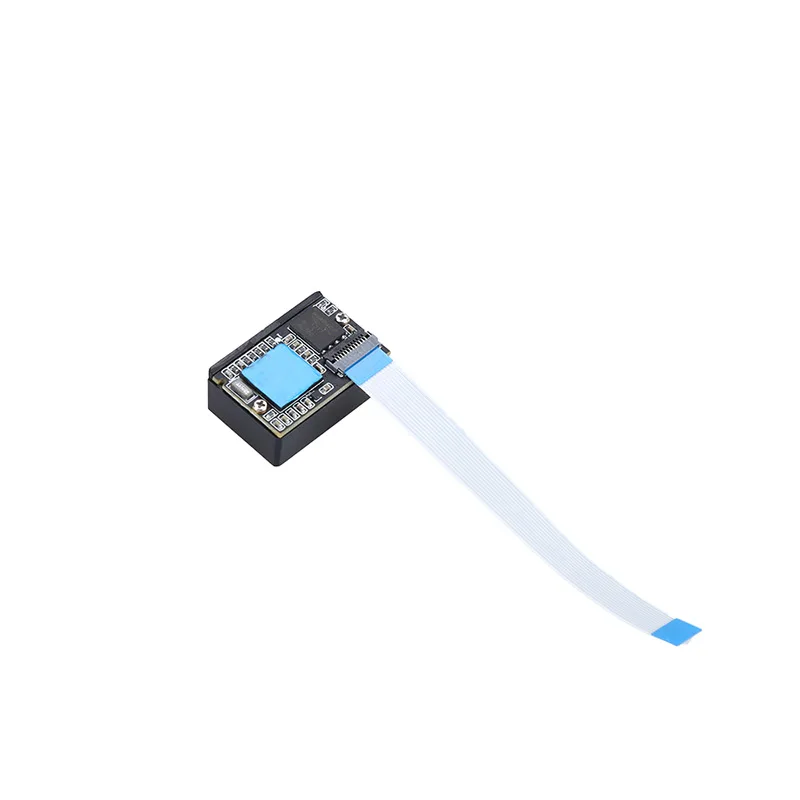

Youku 2D Barcode Scanner Engine 960*640 32 Bit Bar Code Scanner QR/1D/2D/ Scan Module For Supermarket File Scanning  Module



Symobologies :

1D : EAN-8、EAN-13、 EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code 11、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、 MSI、GS1 DataBar（RSS14）

2D: PDF417、MIcroQR、Datamxtrix、QR、GS1、Aztec;

Interface :   USB / TTL232 / RS232  / USB-Virtual COM ;

Scan Speed : 30 fps/second;

Volate :  3.3V

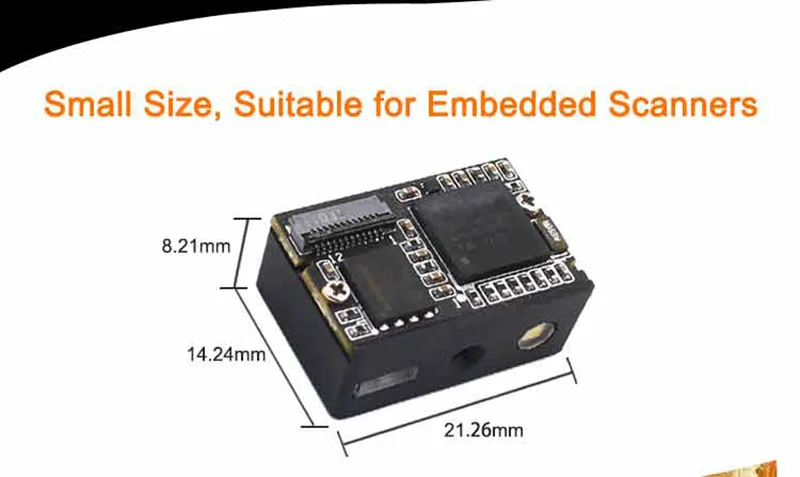

Dimension :  21mm*14mm*8mm







                     ​Pin Definition for scanner

PIN#	Signal Name	I/O	Definition
1	NC	NC	-
2	VDD	-	3.3V  power input
3	GND	-	GND
4	RX	input	TTL-232  input
5	TX	output	TTL-232 output
6	USB_D-	input /output	USB_D-signal
7	USB_D+	input/output	USB_D+signal
8	NG	-	Null
9	Buzz	output
10	LED	output
11	NG	-
12	nTrig	input



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.5kg (1.10lb.)



•
  Package Size:
  12cm x 10cm x 5cm (4.72in x 3.94in x 1.97in)
