USB Cable COMS 1D Scan Barcode Scanner Handheld POS Reader Decoder UT-MS5100
Colour Depth:
32 Bit
Scan Breadth:
A4
Time to market:
Mar-13
Scan Speed:
100 scans/second
Product Type:
Bar Code Scanner
Scan Element Type:
CMOS
Scanning Light Source:
LED
Interface Type:
USB
Model Number:
UT-MS5100
Type:
Barcode Scanner
Optical Resolution:
300*300
Brand Name:
litescanner
Novelty:
New
Color:
Black
Max Paper Size:
A4
USB Cable COMS 1D Scan Barcode Scanner Handheld POS Reader Decoder UT-MS5100
Fetures
Omni directional scanning capability: No need to adjust barcode
Promoted image processing: High quality image
Multiple Focal Options: Three product versions (Standard, HD and DPM), leading to improved productivity
Multi-interface: auto interface detection
Support mobile screen reading: capable to read coupons on mobile phone
Medical standard material: anti- bacteria material
High IP rating: IP43
High Drop performance: 6 inches
Specification
Physical Characteristics
Dimensions 18.0 cm H x 7.0cm L x 8.5 cm W
Weight 160g
Power 5 VDC ± 10% @ 450 mA
Power Supplies Power supplies are available for applications that
do not supply power over the host cable
Operating Temp 0° C to 40° C
Storage Temp -40° C to 70° C
Humidity 5% to 95%, non-condensing
Drop Spec Withstands multiple 6 ft. drops to concrete
Symbology Decode Capability
Motion Tolerances Up to 25 in. / 63.5 cm per second
Interfaces Supported USB: HID Keyboard (default mode),COM Port Emulation
Standard
Minimum Resolution -SR: Code 39 4.8mil; UPC 60% 5 mil; PDF417 5 mil,1:1048576Datamatrix 7.5 mil
-HD: Code 39 3 mil; UPC 60% 5 mil; PDF417 4 mil,Datamatrix 4.8 mil
1D UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code
128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2D PDF417, MicroPDF417, Composite Codes, TLC-39,
Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Decode Ranges
Typical Performance* Typical Working Ranges
HD Focus Range SR Focus Range ER Focus Range
Bar Code Type Symbol Density Near Far Near Far Near Far
Code 39 5.0 mil 5mm 90mm 30mm 120mm 80mm 180mm
100% UPCA 13.0 mil 8mm 200mm 15mm 350mm 10mm 480mm
Code 39 20.0 mil 8mm 250mm 15mm 350mm 20mm 550mm
PDF 417 6.8 mil 5mm 95mm 10 mm 150mm 70mm 220mm
Data Matrix 10.0 mil 5mm 110mm 10mm 180mm 65mm 260mm
QR Code 20.0 mil 10mm 150mm 10mm 350mm 20mm 450mm
Resolution 1D Code 39 2.8 mil (0.071mm) 4.8 mil (0.122mm) 4.8mil (0.122mm)
Resolution 2D Data Matrix 4.8 mil (0.122mm) 6.6 mil (0.168mm) 7.5mil (0.191mm)
*Performance may be impacted by bar code quality and environmental conditions

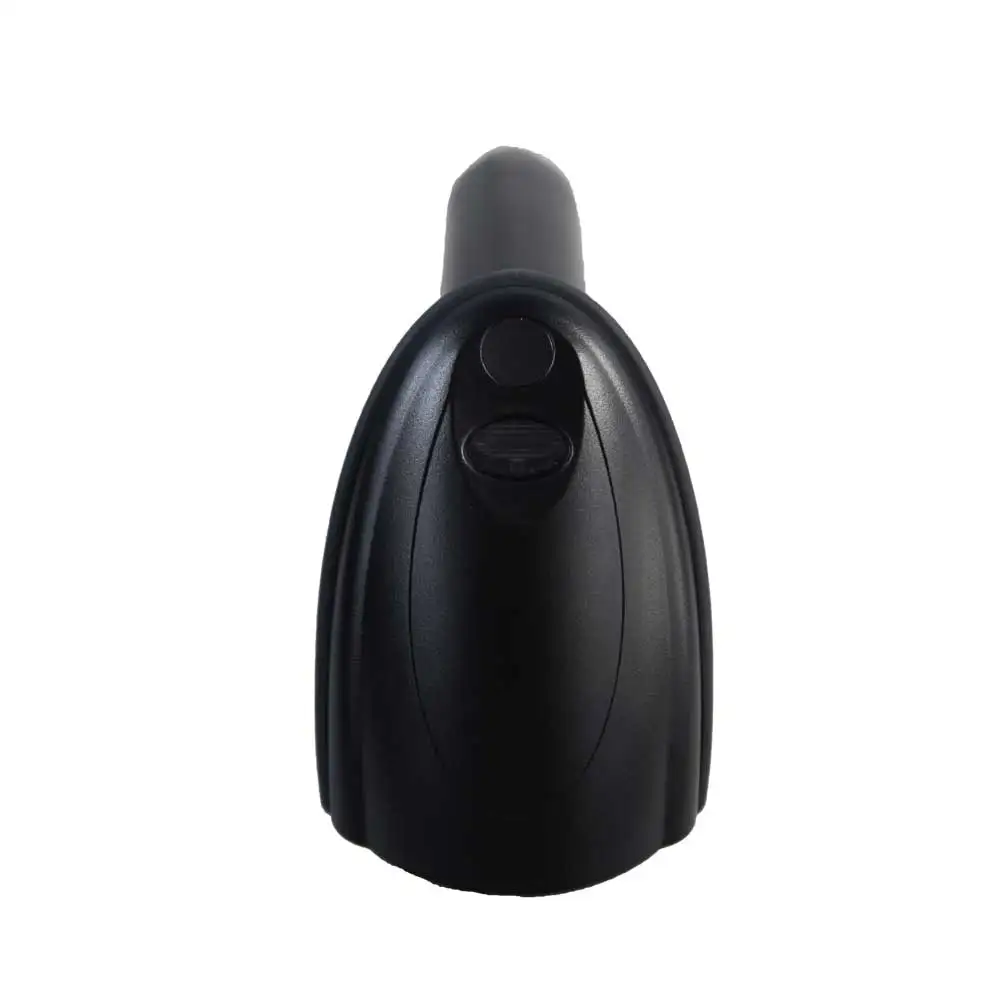

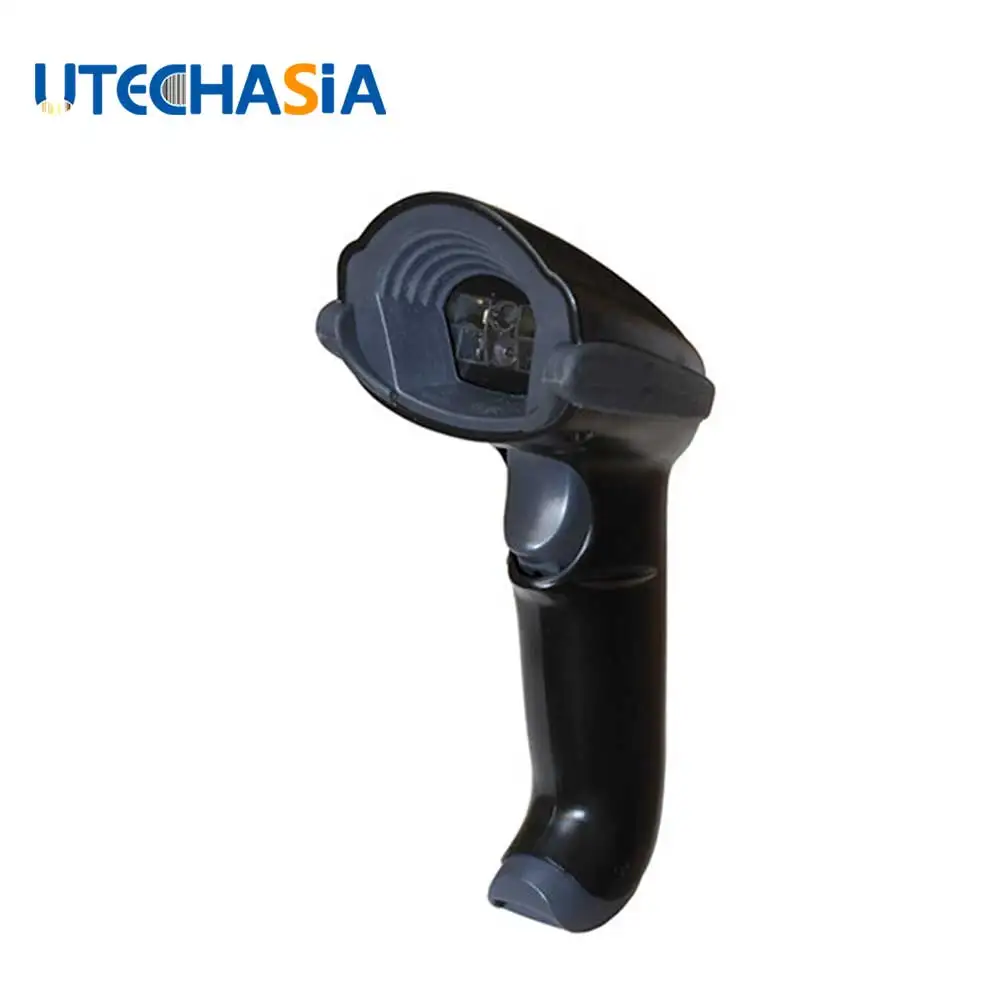

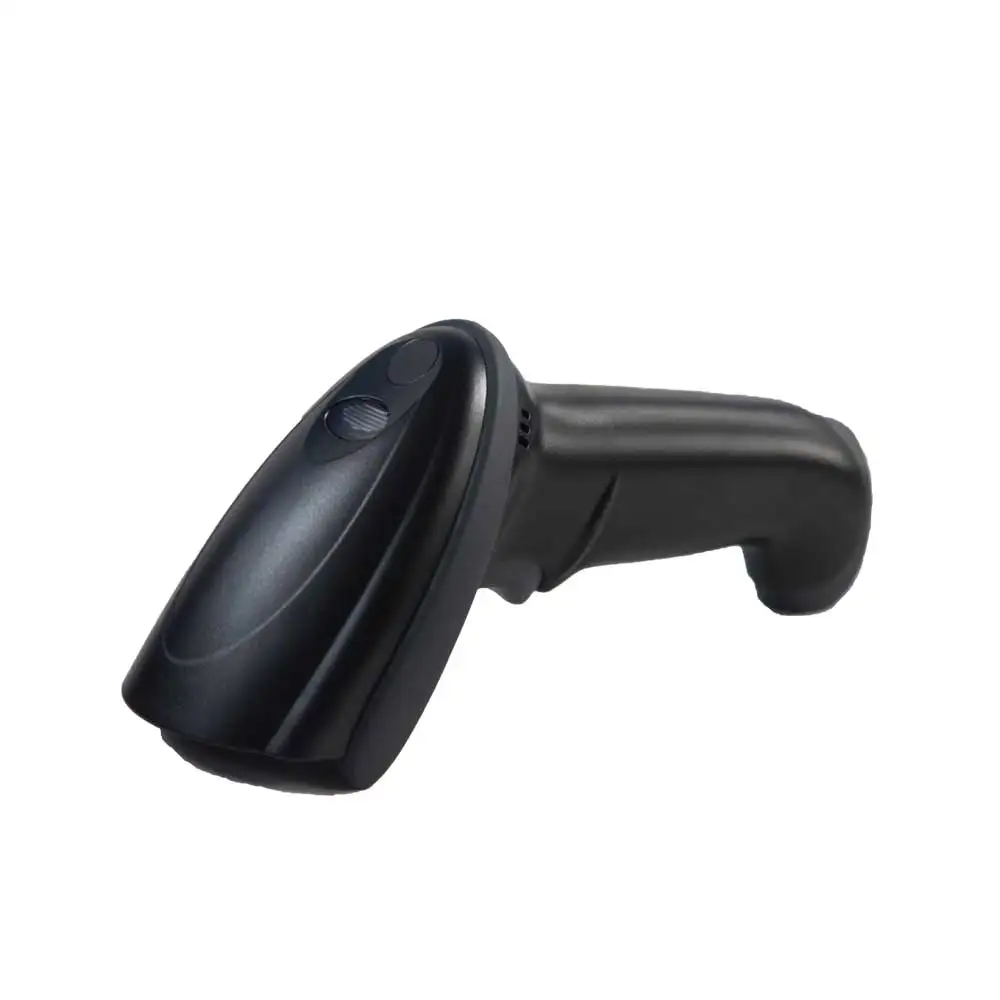

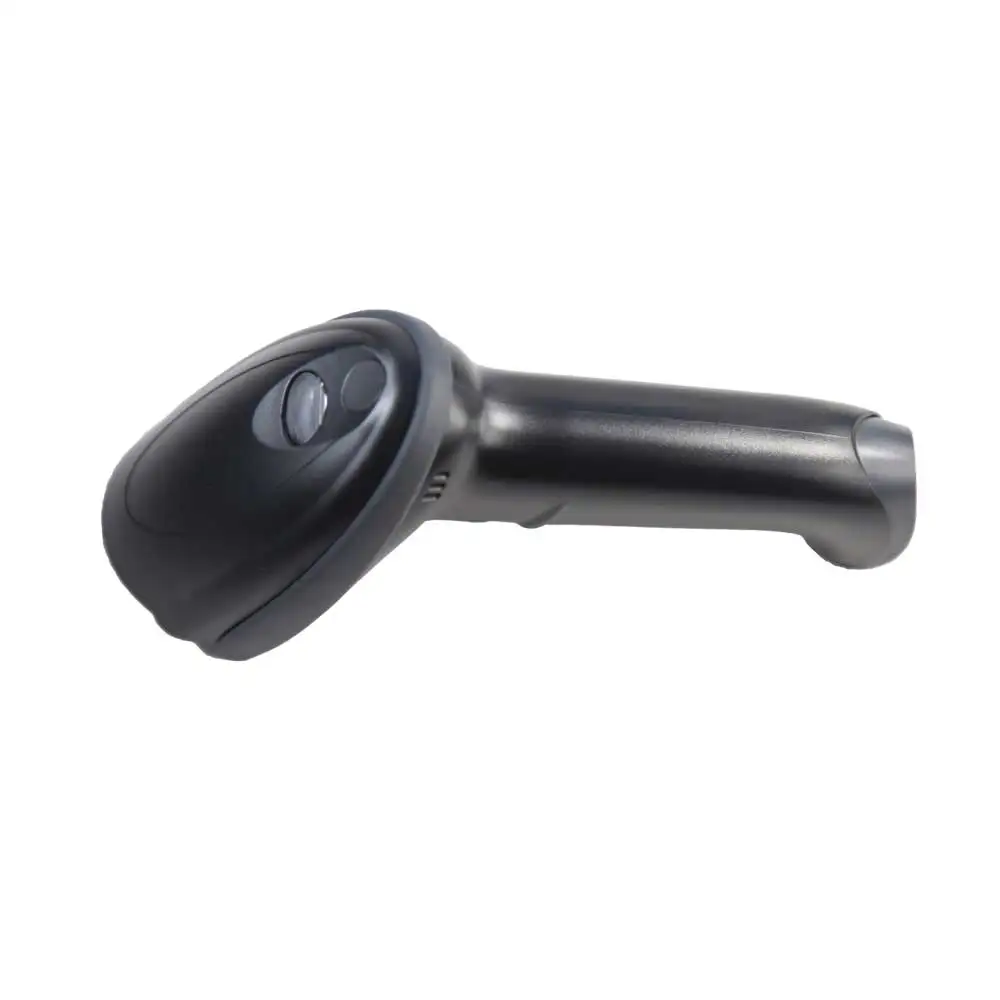

Product Show
About us
1. Store of Unique Electronic which founded in 2008, production and sales integration;
2. R & D and manufacturer of Barcode Scanners & Magnetic Card Reader;
3. High quality, competitive price and FCC, CE, RoHs certifications;
4. Supply OEM/ODM products and distribution services for all customers;
5. Best after-service & fast shipping for all products we sell.
Payment Term
1 We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2 Payment must be made within 3 days of order.
Shipment
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
8. Delivery Methods: ePacket,EMS,DHL, China Post, AliExpress Standard Shipping and so on.
Return
1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and we will not issue you a refund or replacement. Shipping cost is bear by both seller and buyer in half.
2. All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return.
3. We will refund you full winning bid amout, upon receipt of the item in its original condition and packaging with all components and accessories included, after both Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement.
Guaranty
1. 12 months Manufacturer's limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3 month warranty.
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number.We do not repair or replace items with an expired warranty.
3. You agree to all of the above listed policies upon ordering on aliexpress!
Feedback
We strive for 100% customer satisfaction!
Positive Feedback is very important to us. If there is any problems with the transaction, we do hope that you will contact with us before leaving neutral or negative feedback, your any questions or requests will get prompt attention, and we promise we will do our best to provide you satisfactory solution. Thank you in advance! :-)
Unit Type:
piece
Package Weight:
0.6kg (1.32lb.)
Package Size:
20cm x 15cm x 10cm (7.87in x 5.91in x 3.94in)
