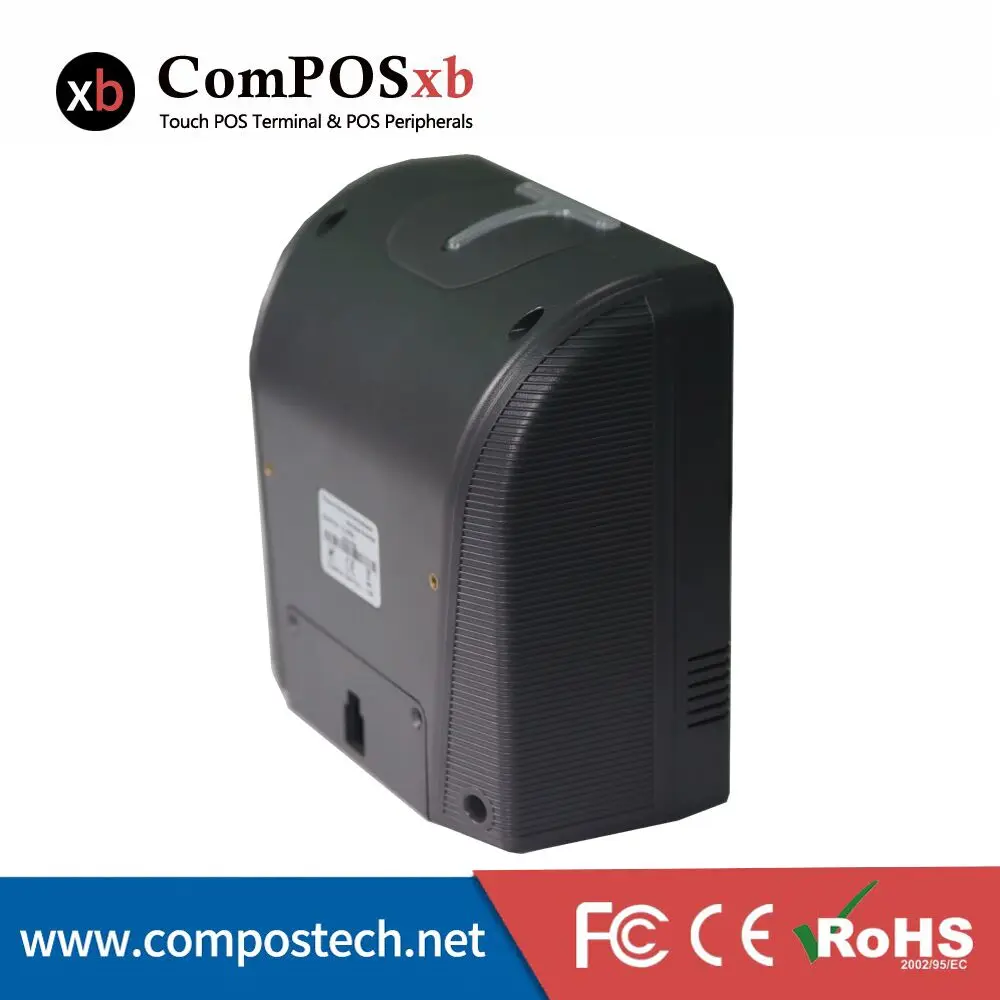

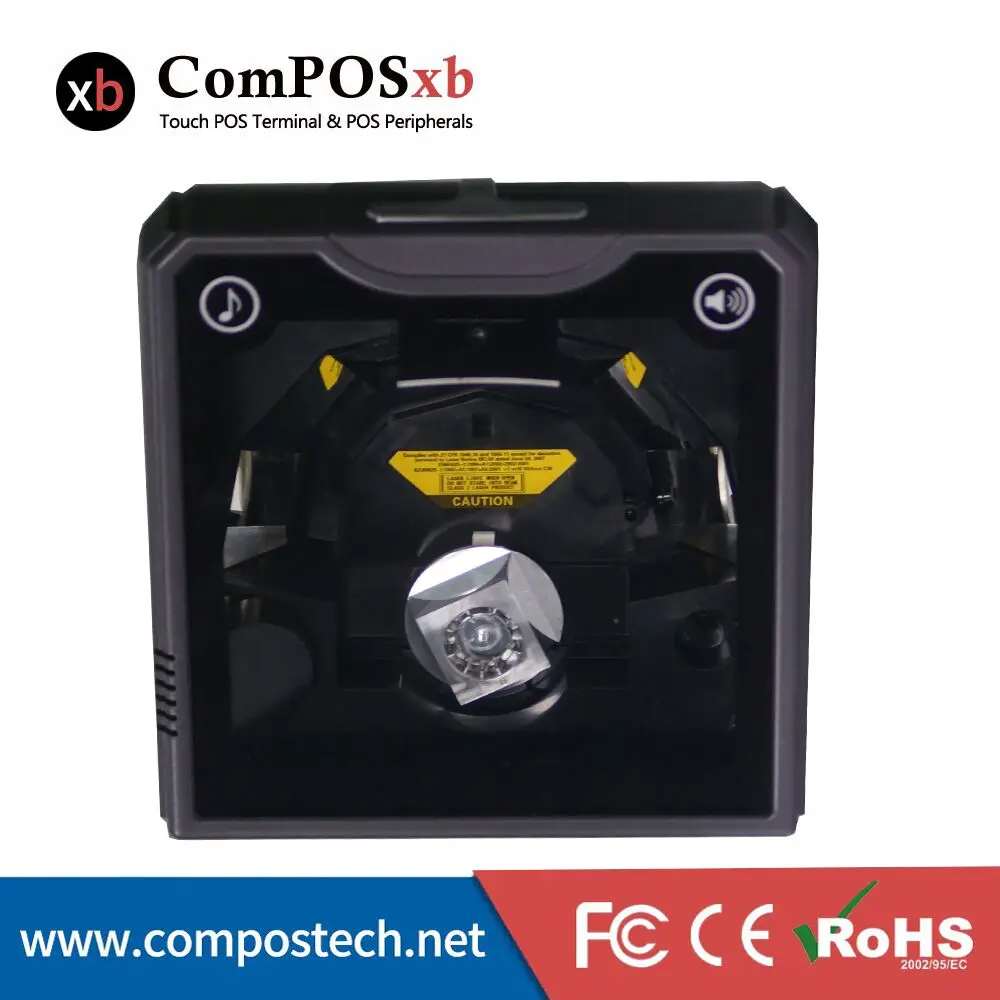

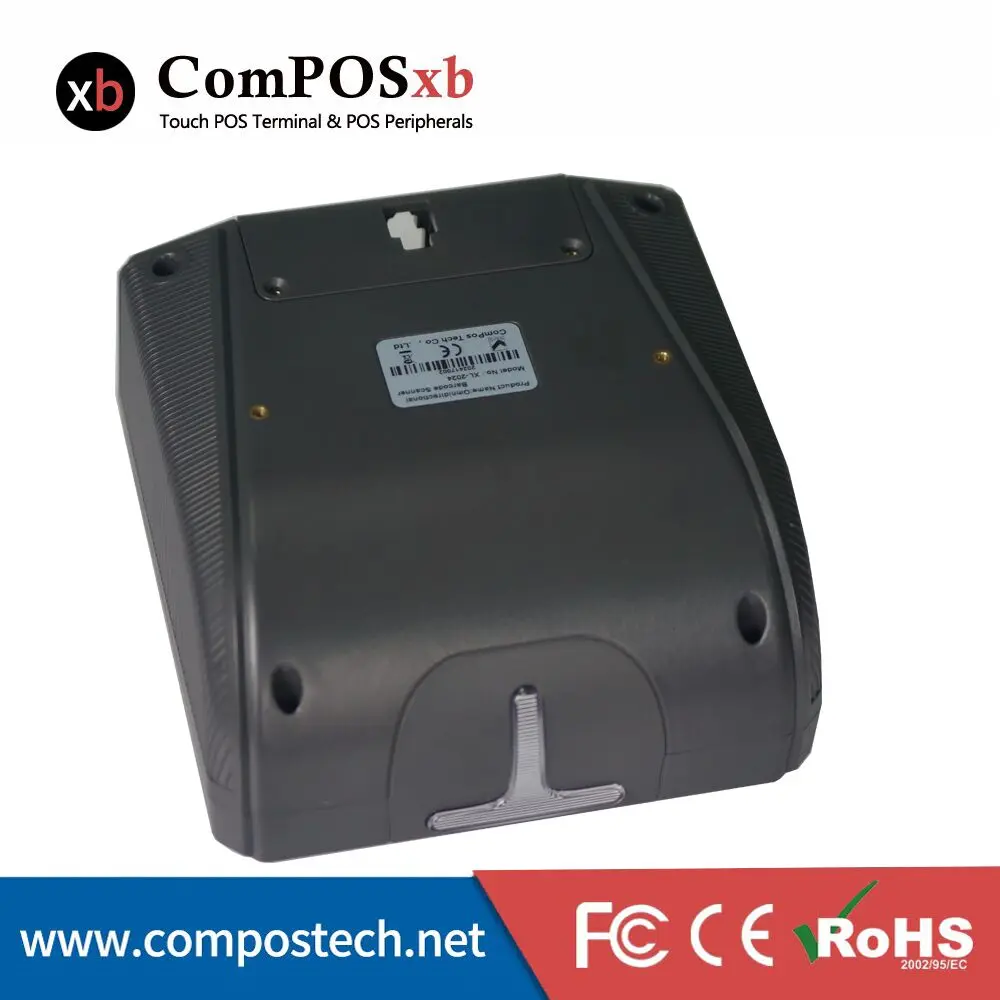

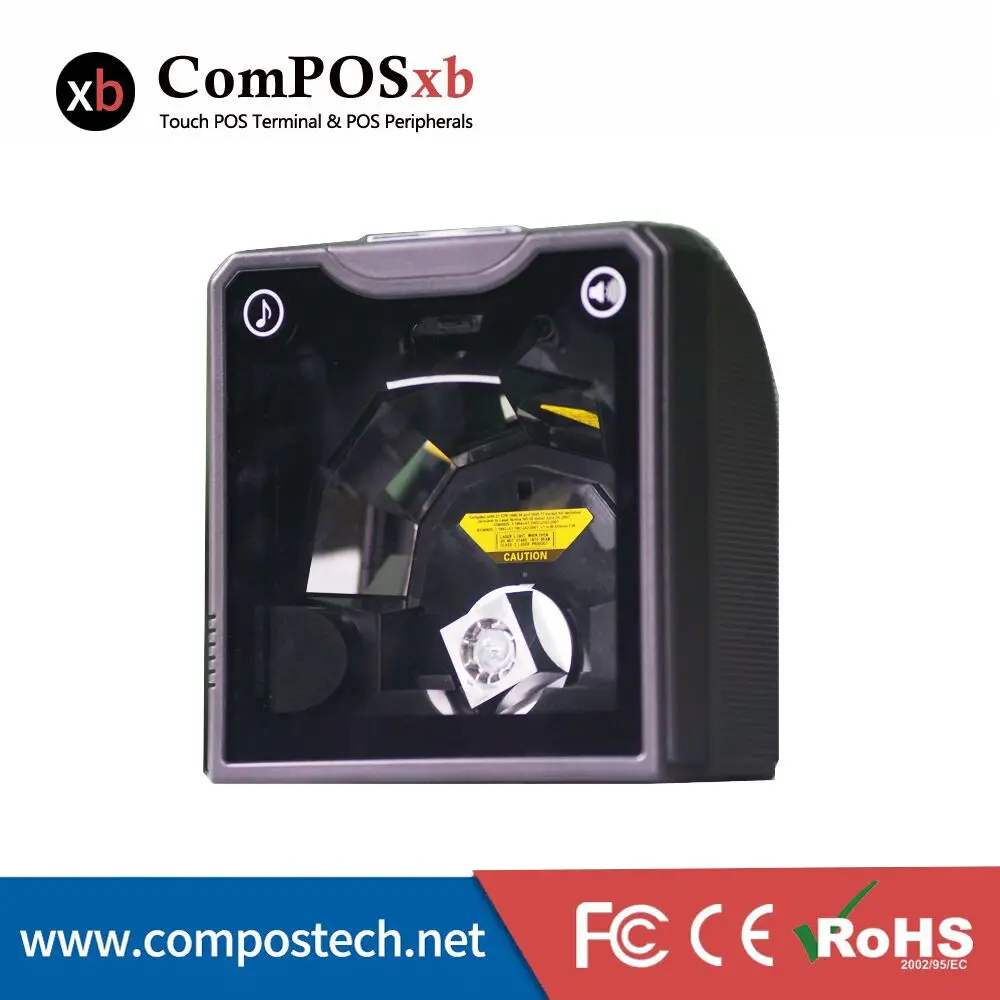

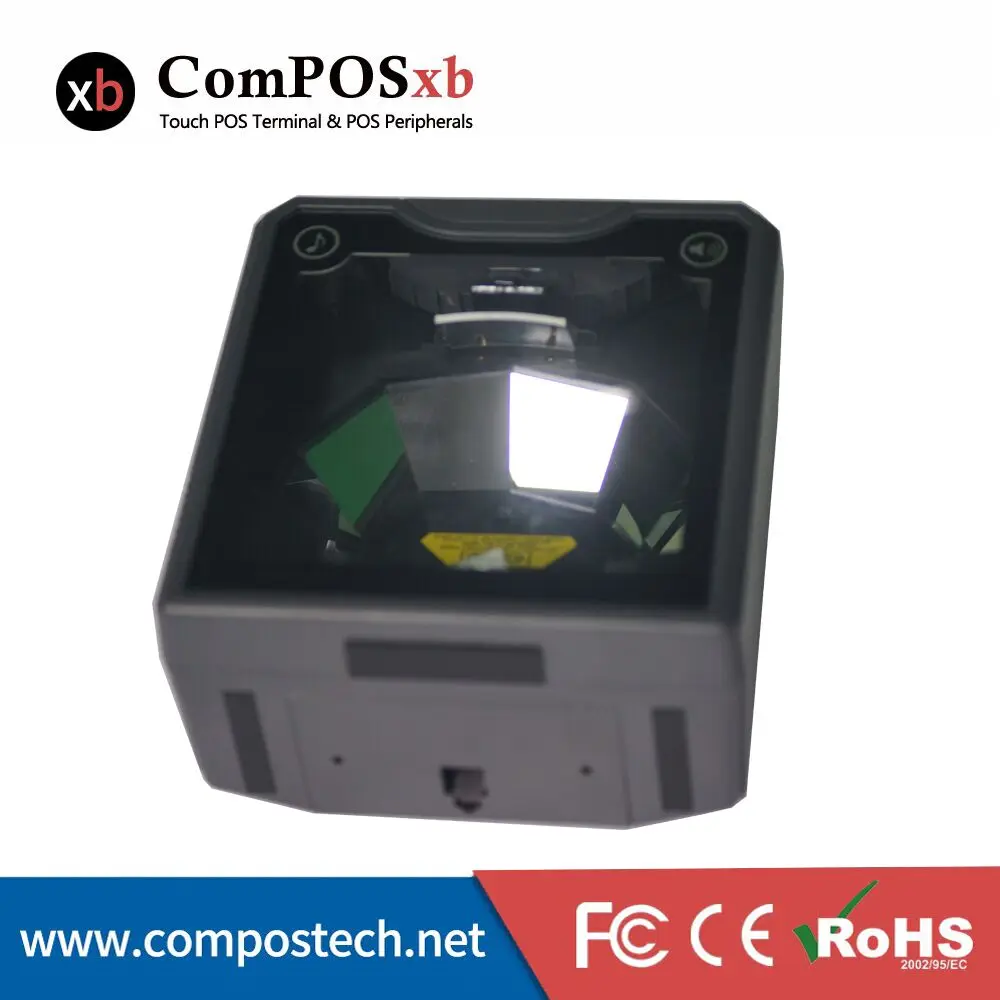

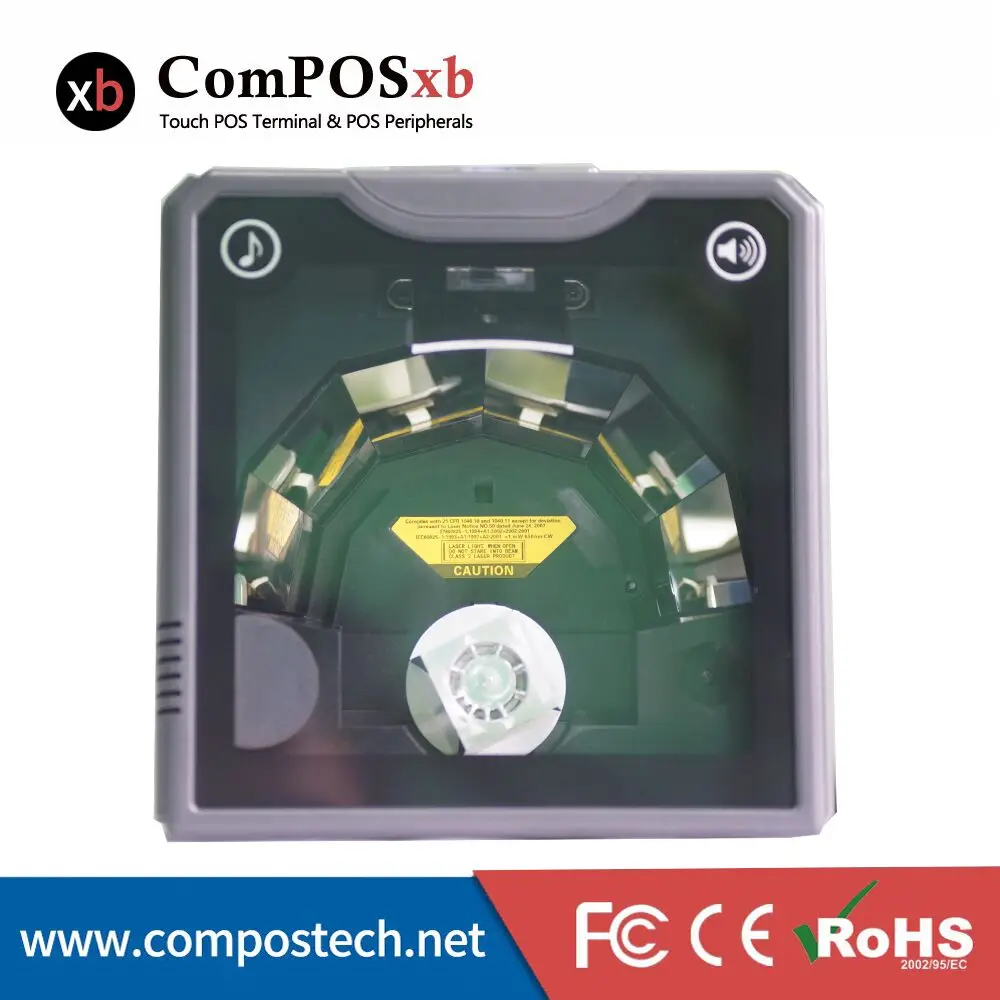

Supermarket Mall Small Scanner Hands-free Scanning Capability Laser Scanner
Brand Name:
ComPOSxb
Model Number:
EH-BC2024
Optical Resolution:
other
Type:
other
Scan Breadth:
other
Scan Element Type:
other
Scan Speed:
other
Interface Type:
other
Ambient Light:
Immune to normal indoor lighting up to 1600 Lux
Immunity:
Immune to sunlight up to 86,000 Lux
Humidity:
5% to 95%, non-condensing
Feature:
· High-performance omni-directional scanning;
· Small form factor suits retail environments;
· Increases accuracy of transactions and tracking of inventory;
· Hands-free scanning capability;
· Integrates with your existing POS solution to offer more info about sales.
Specification:
| Performance Characteristics | |
| Light Source: | Visible laser (650-670nm) |
| Scan Pattern: | 20 lines, five scanning angles with four lines for each angle |
| Scan Rate | 1620 scans/Sec |
| Scan Distance: | 20cm |
| Print Contrast | 30% minimum reflective difference |
| Resolution | 0.125mm (5mil) PCS0.9 |
| Code Support: | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 128, Codabar, Interleaved 2 of 5, Msi, Plessey |
| Physical Characteristics | |
| Interfaces Supported: | Keyboard Wedge, RS232, USB |
| Power: | +5V DC ± 12V DC |
| Dimensions: | 15.3cmX15.1mmX10cm |
| Weight: | 730g |
| Color: | Black |
| User Environment | |
| Operating Temperature: | 0~40 deg C |
| Storage Temperature: | -40~ 60 deg C |
| Ambient Light Immunity: | Up to 450 ft. candles/4,844 lux |
| Humidity: | 5~95% relative humidity, non-condensing |
| Electrostatic Discharge | Conforms to ±15KV air discharge and ±8KV of contact discharge |
| Drop Specifications: | Withstands repeated 1m drops to concrete surface |
| Safe: |
|
| Laser Safety: | CDRH Class A. IEC60825-1 class 1 .FCC class A. UL1950 .CSA22.2 No.950 . IEC 950 and CE |
Unit Type:
piece
Package Weight:
0.22kg (0.49lb.)
Package Size:
24cm x 15cm x 10cm (9.45in x 5.91in x 3.94in)
