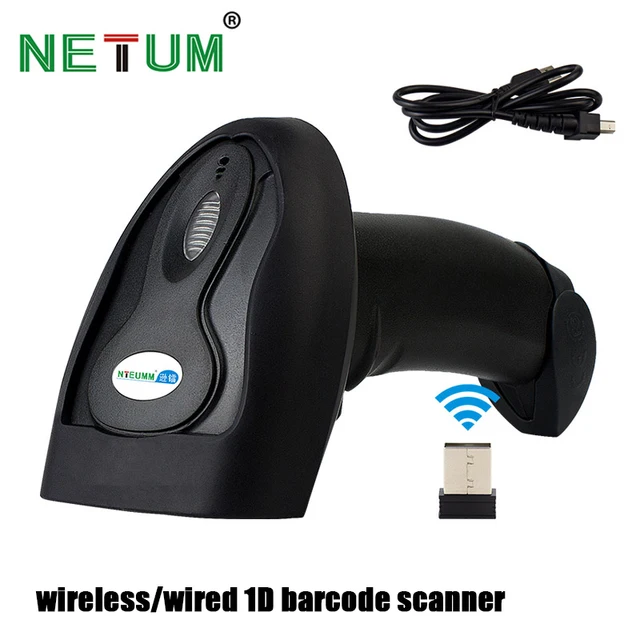

NETUM K2 Wireless/Wired 2.4G Laser Barcode Scanner Laser Barcode Reader USB Interface CE Black Handheld Portable Scanner

Cheap NETUM K2 Wireless/Wired 2.4G Laser Barcode Scanner Laser Barcode Reader USB Interface CE Black Handheld Portable Scanner

Product ID : 32917753850

Price : $33.80

Discount Price : $23.66

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Interface Type:
  USB



•
  Optical Resolution:
  600*600



•
  Model Number:
  netum K2



•
  Scan Element Type:
  CCD



•
  Time to market:
  Mar-13



•
  Type:
  Barcode Scanner



•
  Scan Breadth:
  A4



•
  Scan Speed:
  200 scans/second



•
  Colour Depth:
  32 Bit



•
  Brand Name:
  NETUM



•
  Scanning Light Source:
  Laser Light



•
  Maximum power:
  0.285W



•
  Maximum current:
  75mA



•
  Battery capacity:
  1800MAH



•
  Charging time:
  4-5 hours



•
  usage count:
  22,500 times



•
  size:
  17065*100mm



•
  weight:
  0.11kg



•
  Charging wire length:
  0.9m



•
  Reading mode:
  laser



•
  Scanning speed:
  200 times / sec



•
  light source:
  265 LUX (130nm)



•
  type of light source:
  Visible laser diode, wavelength 630-650 nm


Product Description



NETUM K2 Wireless/Wired 2.4G Laser Barcode Scanner Laser Barcode Reader USB

Interface CE Black Handheld Portable Scanner



Optical performance

 Reading mode: laser

 Type of light source: visible laser diode, wavelength 630-650 nm

 Light source: 265 LUX (130nm)

 Scan mode: two-way scanning

 scanning speed: 200 times / sec

 Accuracy: ≥4mil

 Printing contrast: ≥35%



Working characteristics

 Operating environment

 Operating environment: 0°C-60°C

 Storage temperature: -40°C-80°C

 Storage Humidity: 5%-90%

 Ambient illumination: 0-100,000 lx







Electrical characteristics

 Maximum power: 0.285W

 Operating voltage: (3.3V~4.2V) ± 5%

 Maximum current: 75mA



Other performance

Communication distance: 100 meters visible distance

 Battery capacity: 1800MAH

 Charging time: 4-5 hours

 Number of uses: 22,500 times

 Standby time: 30 seconds to enter standby

 LED indicator Matching indicator: Blue

 Scanning indicator: blue

 Charging indicator: red

 Low battery alarm: The buzzer sounds twice

 Operating current: 10mA (standby); 100mA (scan); 60mA (data conversion)

 Horizon: 34° V x 46° H (vertical x horizontal)

 Scanning angle: ±65°, ±60°

 Scan Demo:

(Scanning Depth of Field) (1mil=0.0254mm)

5mil: 40-105mm

10mil: 10-250mm

15mil: 23-380mm

20mil: 35-490mm

30mil: 30-650mm

Decoding ability

 Decoding type UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, 39 code, 39 code (ASCII full code), 32 code,

Trioptic 39 code, cross 25 code, industrial 25 yards (Discrete 2 of 5), matrix 25 yards, Kudba code (NW7), 128 yards,

UCC/EAN128, ISBT128, 93 yards, 11 yards (USD-8), MSI/Plessey, UK/Plessey, China Postal code,

 Reminder mode: buzzer, LED indicator

 Mode of operation: Manual button trigger scan

 Transmission Mode: Wireless 2.4G

 Support Interface: USB



Physical properties

 Dimensions: Length x width x height (mm): 170*65*100mm

 Weight: Scanner: 0.11kg

 Color: Black

 Charging wire length 0.9m

 Handle material: ABS+TPU



Safety regulations

 Laser Safety Level: National Level 1 Laser Safety Standard

 Waterproof and dustproof seal rating: IP41

 Seismic resistance: 3 m free fall



 Related certification: CE, FCC, ROHS, SGS, ISO and other certification

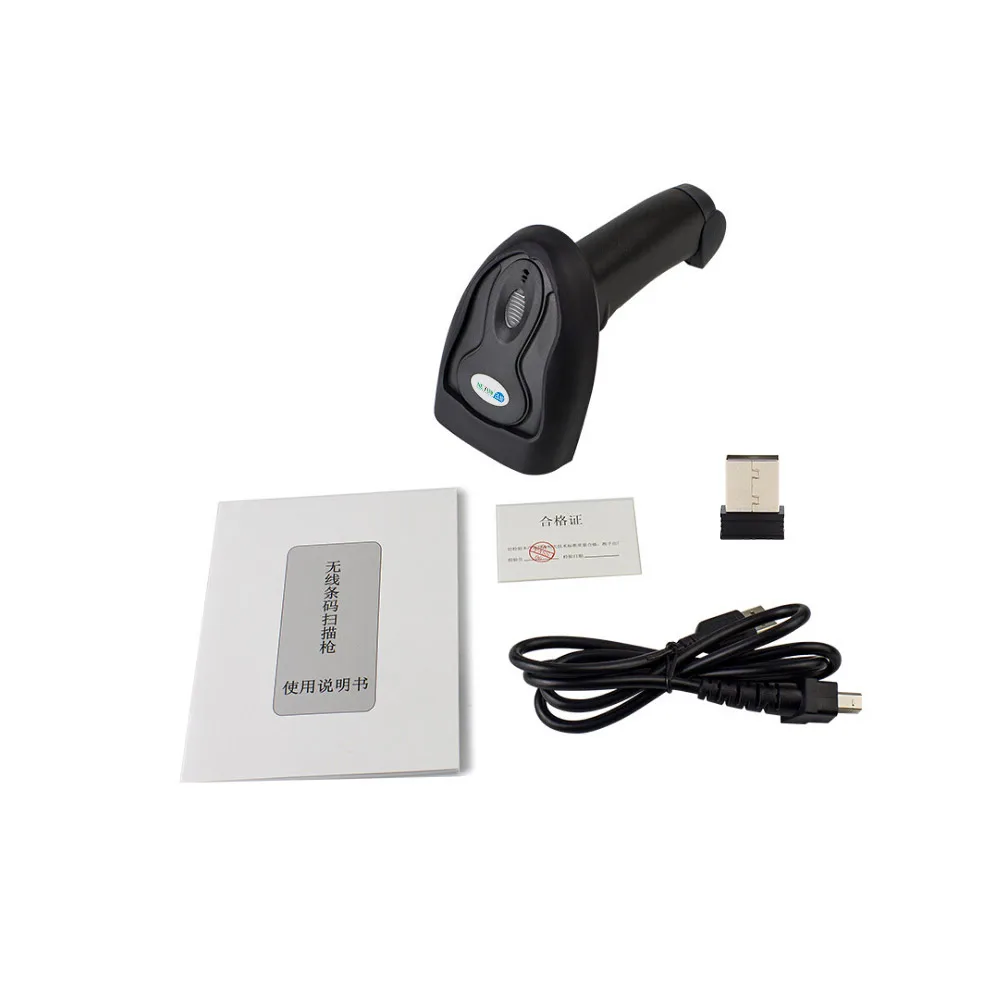

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.35kg (0.77lb.)



•
  Package Size:
  17cm x 7cm x 10cm (6.69in x 2.76in x 3.94in)
