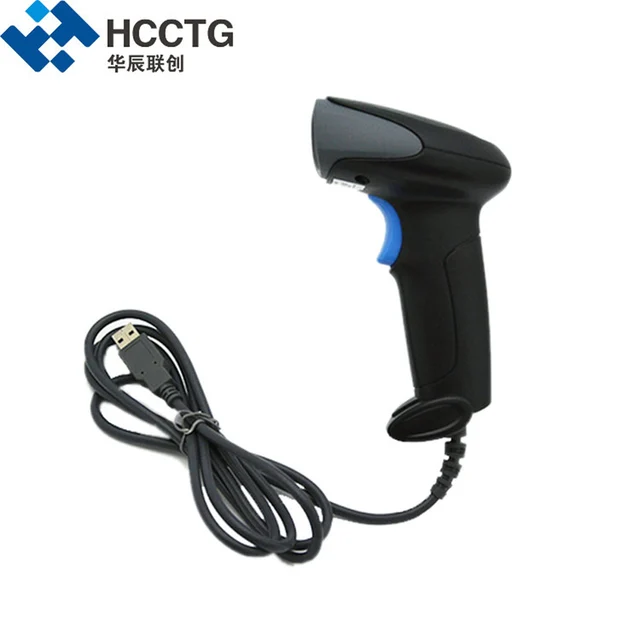

Mini USB Handheld 2D Android Barcode Scanner HM400
Optical Resolution:
600*600
Scan Element Type:
CMOS
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A6
Colour Depth:
32 Bit
Model Number:
HM400
Product Type:
Bar Code Scanner
Novelty:
New
Scanning Light Source:
LED
Brand Name:
HCCTG
Scan Speed:
300 scans/second
Interface Type:
USB
Optical Resolution:
≥5mil
Button life:
10 million times
Working Current:
220mA
Print Contrast:
20%
Working Voltage:
DC5V
Certificate:
ROHS
Mini USB Handheld 2D Android Barcode Scanner HM400
Features

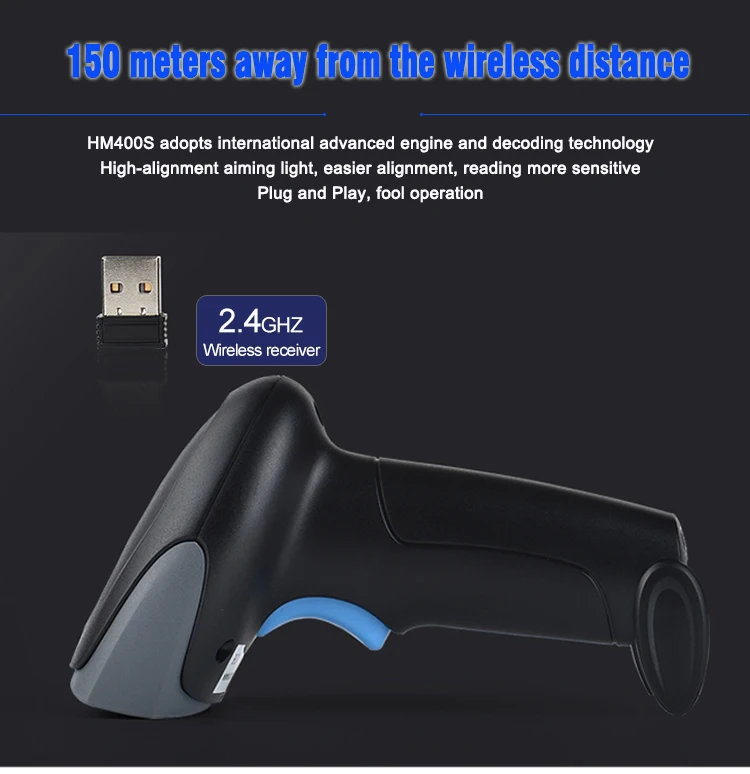

1. Global public free frequency 2.4GHZ
2. Full-size reading
3. Bright fill light, radian code, broken code, small code reading ability is stronger
4. High-alignment aiming light, easier alignment, reading more sensitive
5. Plug and Play, fool operation
6. 2D,All Code & screen barcode reading
Specification
| Image Sensor | CMOS (Image)
|
| Button life
| 10 million times
|
| Scanning Speed
| ≥300 times/s |
| Resolution
| ≥5mil |
| Scanning angle | Tilt ±60°,Deflection ±65°,Rotation :360° |
| Print Contrast | 20% |
| Certificate | ROHS |
| Interface | USB |
| Scanning mode
| Manual mode |
| Indicator
| Buzzer, LED light |
| Working Voltage
| DC5V±0.25V |
| Working Current
| 220mA |

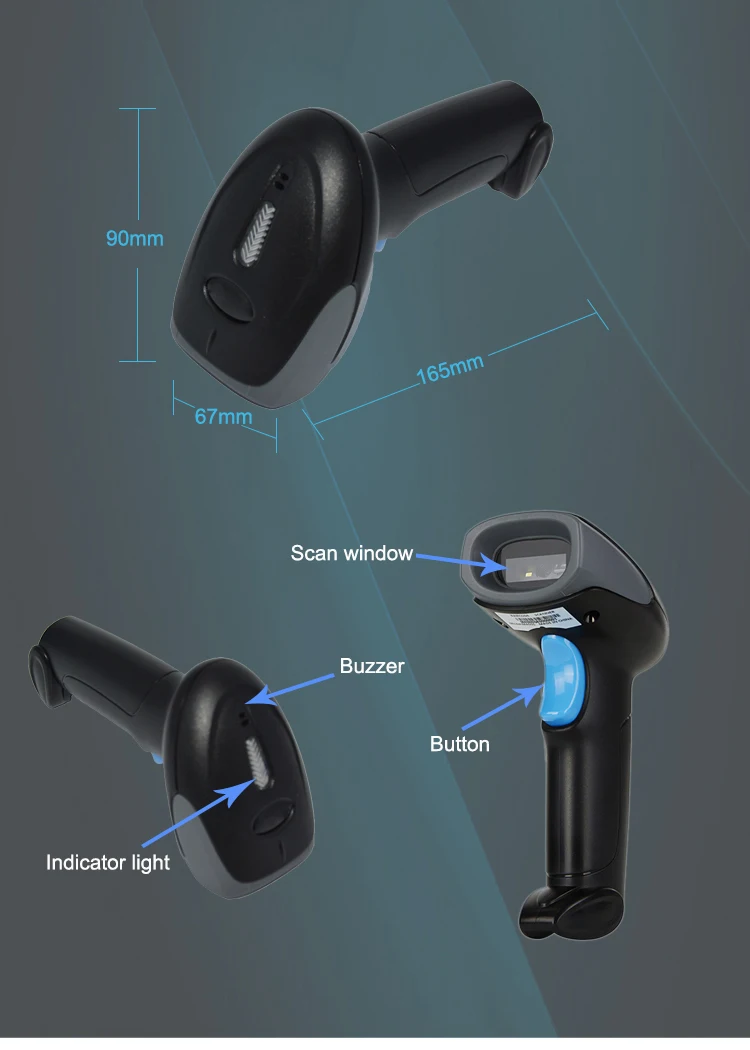

| Dimension(L*W*H)
| 98*65*165mm |
| Weight
| about 170g (without cable) |
| Decoding depth
| 5mil(Code39):3-8cm 10mil(QR):2-9cm 13mil(UPCA):3-17cm 20mil(QR):2-15cm 40mil(Code 39):17-40cm 40mil(QR):5-22cm |
| Decoding types
| 1D codes:UPC/EAN with supplementals,Bookland EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCll,Trioptic Code 39,Code 32,Code 93,Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Cinese 2of 5,GSI DataBar VAariants,Korean 3 of 5,ISBT Concat 2D codes:PDF417,Data Matrix,QR code |
| Material
| ABS+PC (environment protection raw material)
|
| Working temperature
| -20℃-45℃ |
| Storage temperature
| -40℃-60℃ |
| Charging time
| 4.5-5h |
| Centre frequency
| 2.4GHz |
| Transmission distance
| 5-15cm |
| Shock resistance | Fall resistance from 2m to concrete floor
|

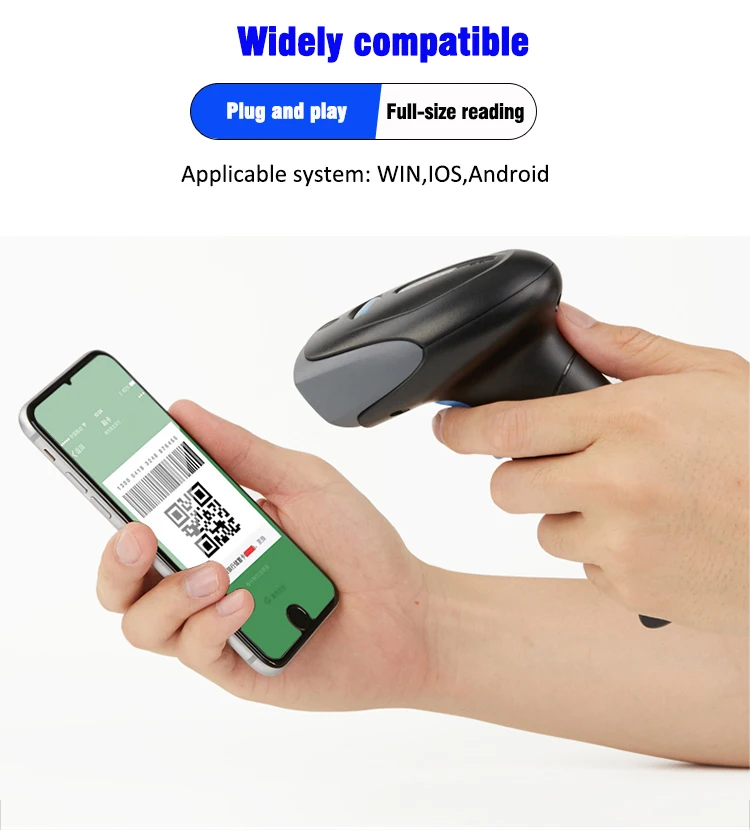

| Applicable system | WIN,IOS,Android |
Unit Type:
piece
Package Weight:
1.5kg (3.31lb.)
Package Size:
15cm x 11cm x 25cm (5.91in x 4.33in x 9.84in)
