Free Shipping high speed pocket USB bluetooth V4.0 QR Code Mini Handhled 1D 2D Barcode Scanner for IOS Android Tablets Win PC

Best Offers Free Shipping high speed pocket USB bluetooth V4.0 QR Code Mini Handhled 1D 2D Barcode Scanner for IOS Android Tablets Win PC

Product ID : 32864267090

Price : $49.75 - 74.04

Discount Price : $37.81 - 56.27

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Optical Resolution:
  600*600



•
  Scan Element Type:
  CMOS



•
  Type:
  Barcode Scanner



•
  Scan Breadth:
  A4



•
  Colour Depth:
  32 Bit



•
  Model Number:
  RS3600



•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Time to market:
  Mar-13



•
  Scanning Light Source:
  Natural Light+LED



•
  Brand Name:
  RUGLINE



•
  Scan Speed:
  500 scans/sec



•
  Interface Type:
  Bluetooth



•
  Battery:
  DC 3.7V, 1200mA



•
  Support:
  tablet,smartphone,PC,note PC



•
  Drop:
  1.5



•
  symbol:
  1D and 2D barcode scanner


Product Description

Free Shipping high speed pocket USB bluetooth V4.0 QR Code Mini Handhled 1D 2D Barcode Scanner for IOS Android Tablets Win PC

Features:

1, 50 m viewing distance wireless transmission

2, Compatible with various types of Bluetooth devices

3, Support for Windows series

4, Support for Mac, Android, IOS

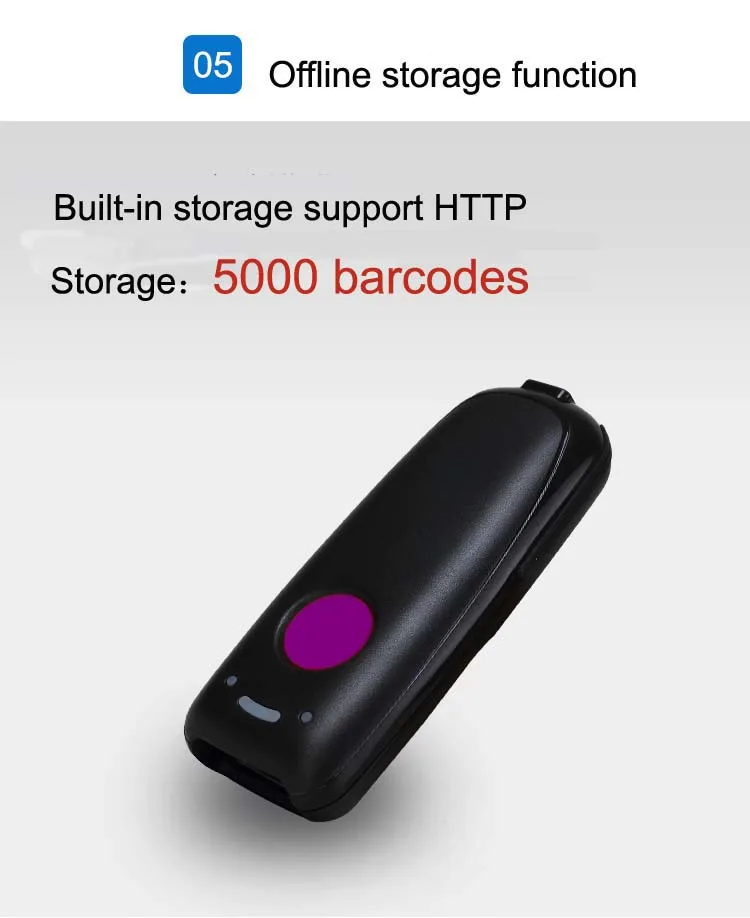

5, Built-in storage support HTTP

6, storage: 5000barcodes

7, Instant upload Mode, storage Mode

8, HID/SPP Mode and can switch

9, Bluetooth/Wired two Mode



Product Specification: RS3600-2D  Mini Wired+Wireless Bluetooth Barcode Scanner
Decoder parameters
Working current：3.5 V ± 10%x100mA	Light source：617LED
Sensor：640*480 CMOS	lumination： 6500K LEDs
CPU：ARM 32-bit Cortex	Decoding speed：500/sec
Depth of Filed：30-600mm	Indication：Buzzer & LED
Decoding accuracy：≥4mil
Trigger Mode：Button，Continuous，Auto-Induction
Printing Contract ：≥25%
Scanning angle：Angle of rotation±30°，inclination± 60°，declination ± 60°
Anti-interference：0-100000Lux Max
Decode Capability： 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93， Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5（IATA）， Coda bar（NW-7），MSI Plessey，RSS，etc. 2D: QR Code, Data Matrix，PDF417，etc.
Button life ：10000,000 times	LED life：100000 hours
Drop test ：1.8m	transmission：Bluetooth & USB-Wire
Working temperature：-20℃ to 50℃	Relative humidity：5%-95%
Wireless Parameters
Wireless type：Bluetooth	Transmission distance：50m
Battery：3.7V-1200mAh	Charging power：5V-400mA

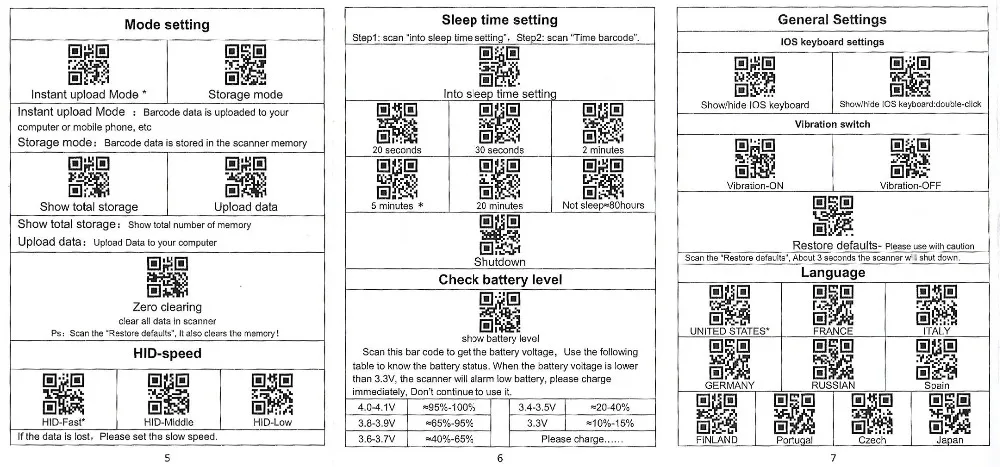

Working mode：Instant upload mode，Storage mode, Not lost mode
Storage：4MB≈40000 EAN13 barcodes

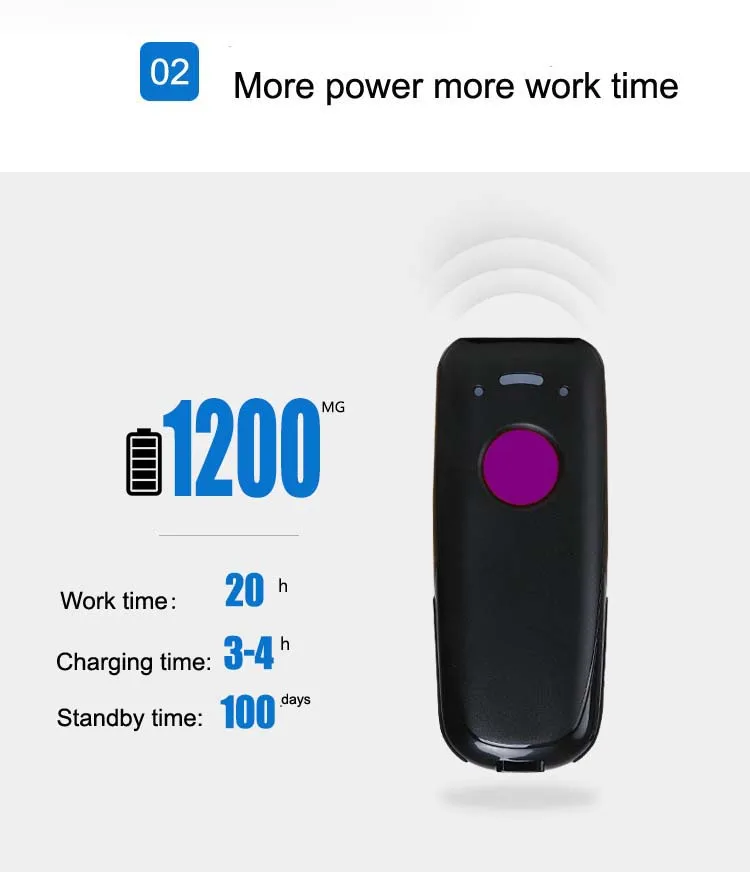

Working time：Full load≈15hours，Normal use ≈3 to 8days

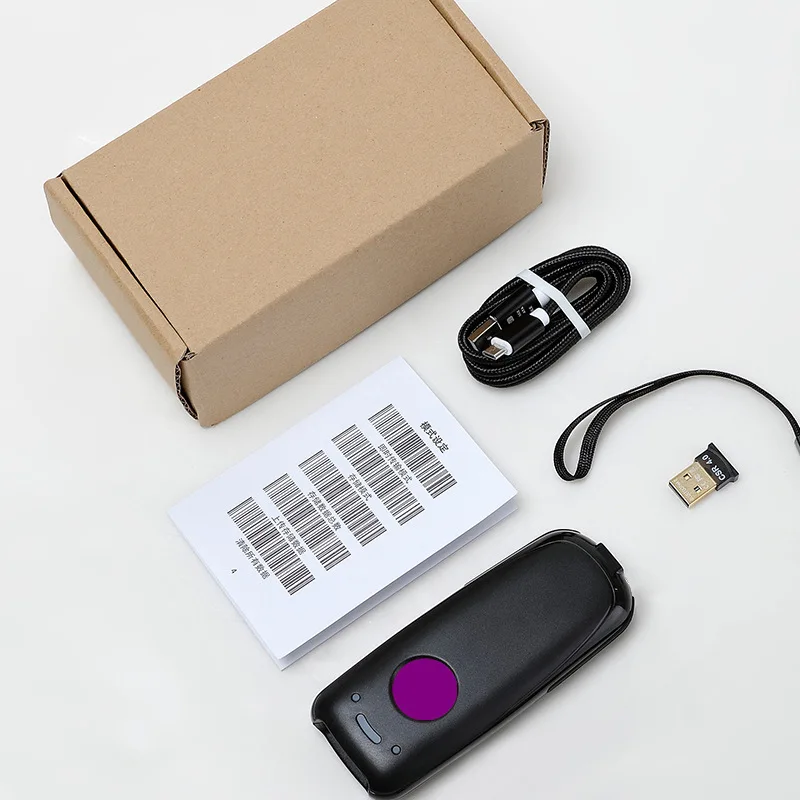

Package list:

Scanner *1, Charging Cable *1, USB Receiver*1, Manual *1 ,Sling* 1, Box* 1

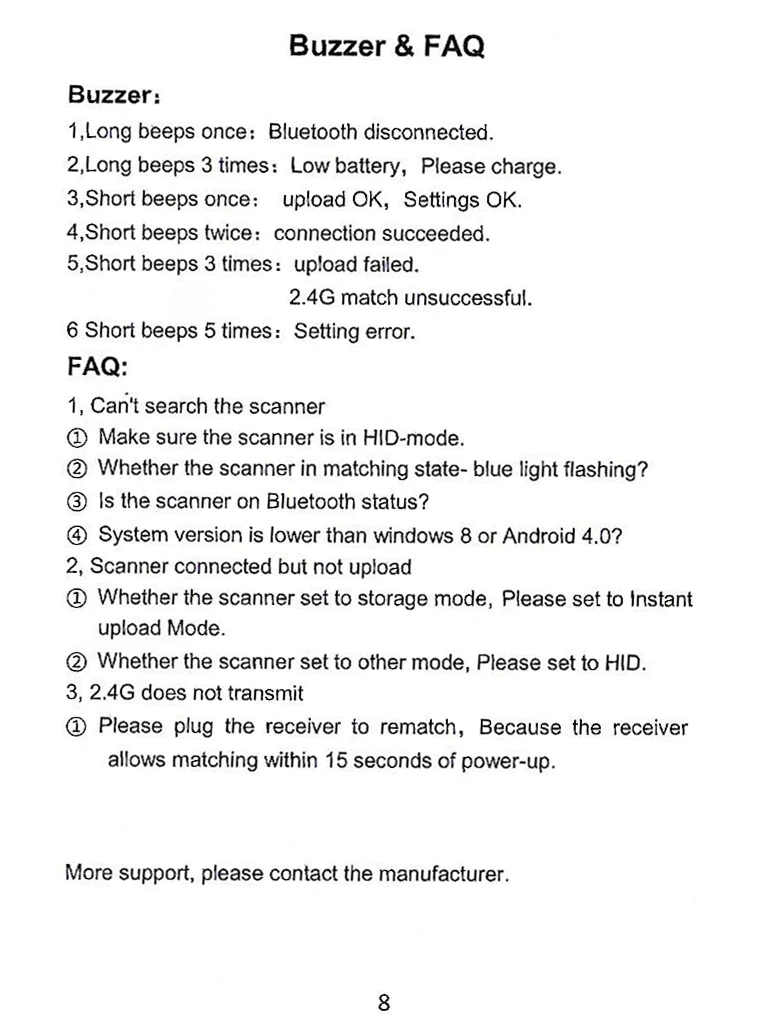

FAQ:

1. It can not connect with Android device

If the device is android 3.0 or above version,it can connect directly.

2. It can not recognize some type of barcodes

Some inactive typebarcodes are disabled as factory default.So you should enable this tyoe via read tge ebable barcode.

If you don't know the type,pls contact out technical support.

3. Bracods can't upload to PC or mobile after paired

A:Please chekc is the pairing successfully?The indicator of scanner should be blue.

B:Please check if you enable inventory mode(under inventory mode,the barcodes need upload manually or read tge upload barcodefor upload)

4. PC or mobile phone can not search out it

A:Confirm scanner is power on.

B:The scanner can pair only when blue LED is flashing.

5. Can It connect with mobile or tablet after connecting with PC

If you want to change device,plesae clear the pairing information on the device first and reset it.The Method is according to front steps.

6. It can not connect autolly after restart the mobile device

A. Please make sure that there is no other BT connection with mobile device.

B. Power on scanner,it will connect with the mobile device automatically.

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.17kg (0.37lb.)



•
  Package Size:
  16cm x 9cm x 6cm (6.30in x 3.54in x 2.36in)
