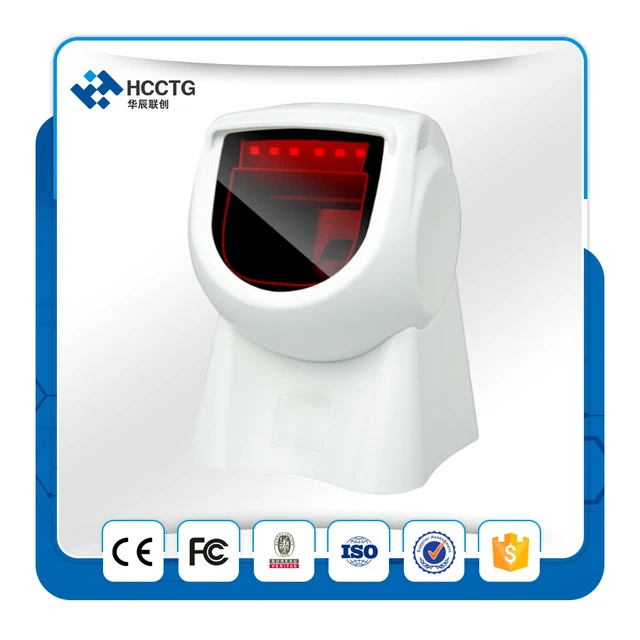

Desktop 2D Image Barcode Scanner HS7200 IP 54 USB Bar code Scanner
Cheap Desktop 2D Image Barcode Scanner HS7200 IP 54 USB Bar code Scanner
Product ID : 32833742191
Price : $112
Discount Price : $70.88 - 86.19
* Price Update at : Jully, 25 2019 *
Item specifics
Colour Depth:
32 Bit
Scan Breadth:
A4
Time to market:
Mar-13
Model Number:
HS7200
Product Type:
Bar Code Scanner
Scan Element Type:
CMOS
Scanning Light Source:
LED
Brand Name:
HCCTG
Interface Type:
USB
Type:
Barcode Scanner
Optical Resolution:
300*300
Novelty:
New
Scan Speed:
300scans/sec
Type:
Desktop 2D Image Barcode Scanner
Interface:
USB
Material:
ABS+PC
Power Supply:
DC 5V/420mA
Sensor:
Planar CMOS sensor
Light Source:
white LED (lighting)
Processor:
32-bit ARM MCU
Resolution:
1D 4MIL, 2D QR8 3MIL, PCS45%
Scanning Speed:
300scans/sec
Scanning Method:
Auto-sensing
Product Description
Desktop 2D Image Barcode Scanner HS7200 IP 54 USB Bar code Scanner
General
HS-7200 is a new type desktop barcode scanner to replace the traditional
omnidirectional laser barcode scanner. It adopts the CMOS technology which can
read 1D&2D barcodes on electronic screen, for example, mobile phone screen. It has
a more stable performance than omnidirectional laser barcode scanner.
Specification
| Physical Parameters | |
| Material | ABS+PC |
| Size | L*W*H: 153mm*109mm*97mm |
| Power Supply | DC 5V/420mA |
| Weight | 310±5g (without cable) |
| Performance Parameters | |
| Support Interface | USB |
| Sensor | Planar CMOS sensor |
| Light Source | white LED (lighting) |
| Decoding Capability | All standard 1d&2d barcodes: Codabar,Code39,Code32,InterLeaved 2 of 5,Code93,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8, EAN/JAN-13,GS1 DATABAR(RSS14), GS1 DATABAR Limited, Gs1databar Expanded, QR, MicroQR, PDF417, Data Matrix, AZTEC |
| Resolution | 1D 4MIL, 2D QR8 3MIL, PCS45% |
| Depth of Field | 4MIL CODE39: 0--4 CM 13MIL UPC-A : 0--16 CM 15MIL QR : 0--14 CM 1D code from Alipay 0--24 CM 2D code from Alipay 0--47 CM Available for Stationery small barcode & wide barcode |
| Scanning Speed | 300scans/sec |
| Scanning Method | Auto-sensing |
| Scanning Area | 5 * 5 cm² -- 20 * 20 cm² |
| Prompting Mode | Buzzer, indicator light (LED) |
| Printing Contrast | No lower than 35% |
| Scanning Angle | Roll 0-360°, pitch ±65°, yaw ±60° |
| Environment Parameters | |
| IP Grade | IP 54 |
| Operating Temperature | 0 to 50 ºC / 32 to 122 ºF |
| Storage Temperature | 0 to 50 ºC / 32 to 122 ºF |
| 0 to 50 ºC / 32 to 122 ºF | 5 - 95% (non-condensing ) |
| ESD Protection | 15kv air discharge |
| Shock Resistance | 1m free fall on concrete surface |
