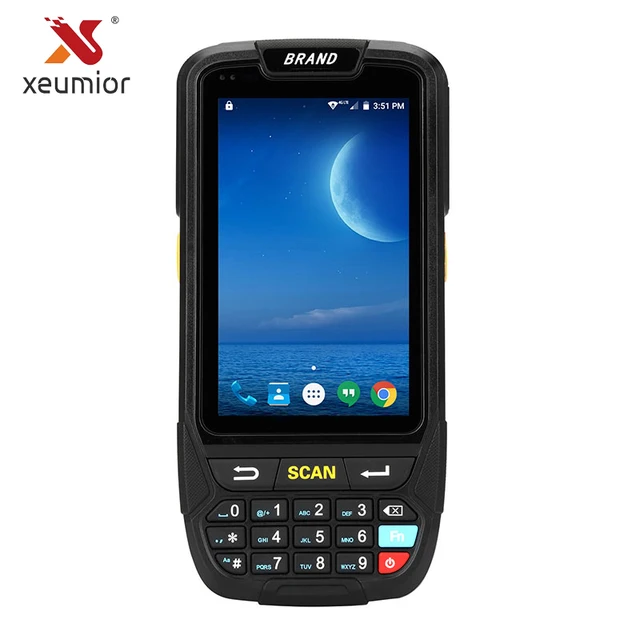

Android Portable Data Collector PDA Terminal With 1D/2D Laser Barcode Scanner Reader For Inventory Management Warehouse System

Best Price Android Portable Data Collector PDA Terminal With 1D/2D Laser Barcode Scanner Reader For Inventory Management Warehouse System

Product ID : 32718752727

Price : $389 - 485

Discount Price : $21.85 - 30.40

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Novelty:
  New



•
  Interface Type:
  USB



•
  Time to market:
  Mar-13



•
  Type:
  Barcode Scanner



•
  Scan Breadth:
  A4



•
  Colour Depth:
  32 Bit



•
  Model Number:
  SM-DT40



•
  Scanning Light Source:
  Laser Light



•
  Brand Name:
  xeumior



•
  Optical Resolution:
  480*800



•
  Scan Speed:
  200 scans per second



•
  Product Type:
  rugged pda



•
  Scan Element Type:
  1d laser module



•
  Screen :
  4 inch



•
  Processor Type:
  Quad-Core ARM Cortex-A53 CPU1.3G



•
  Operating System:
  Android 7.0



•
  Barcode:
  1D,2D QR code



•
  NFC:
  13.56MHZ



•
  Battery:
  4000mA



•
  Item Type:
  portable data terminal



•
  camera:
  800w



•
  develop language:
  java



•
  RAM:
  2GB


Product Description

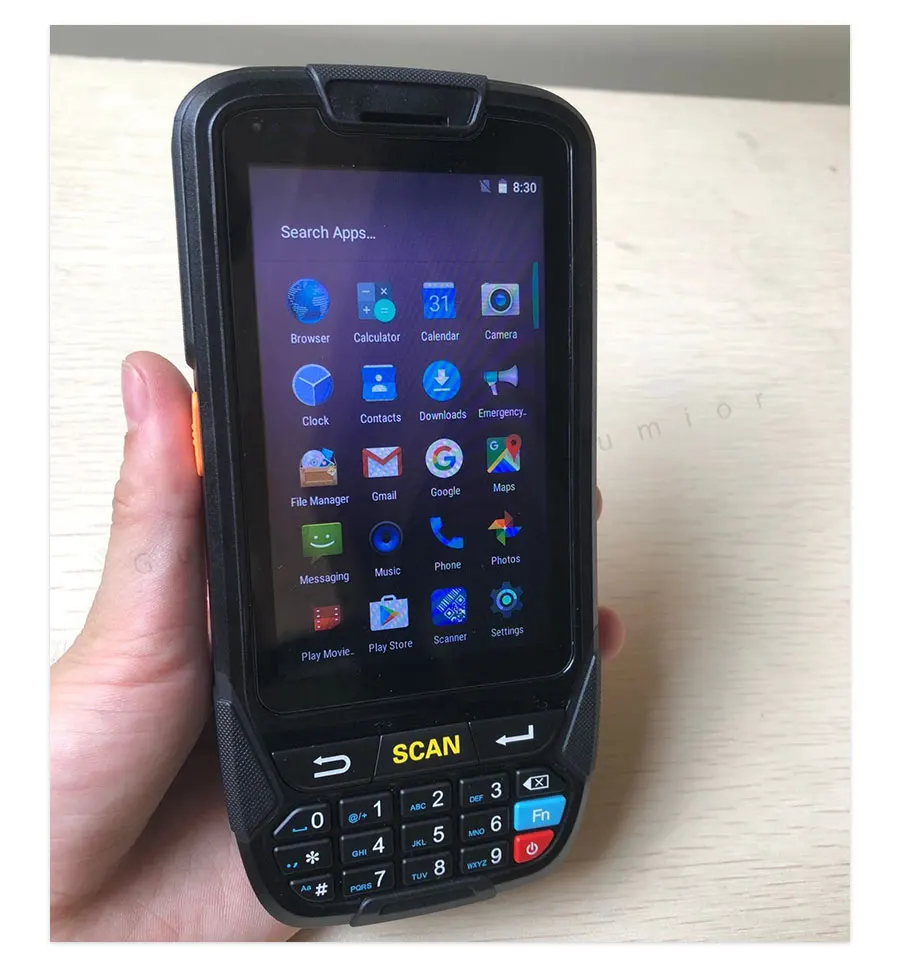

Android Portable Data Collector PDA Terminal With 1D/2D Laser Barcode Scanner Reader For Inventory Management Warehouse System

Operating System: Android 7.0



Function:

1.Wifi, 4G, GPS,camera

2.Bluetooth

3.1D/2D laser barcode scanner

4.NFC



Feture :

1.Android 7.0 operation system;
2.Quad-Core ARM Cortex-A53 Quad-core 1.3G;

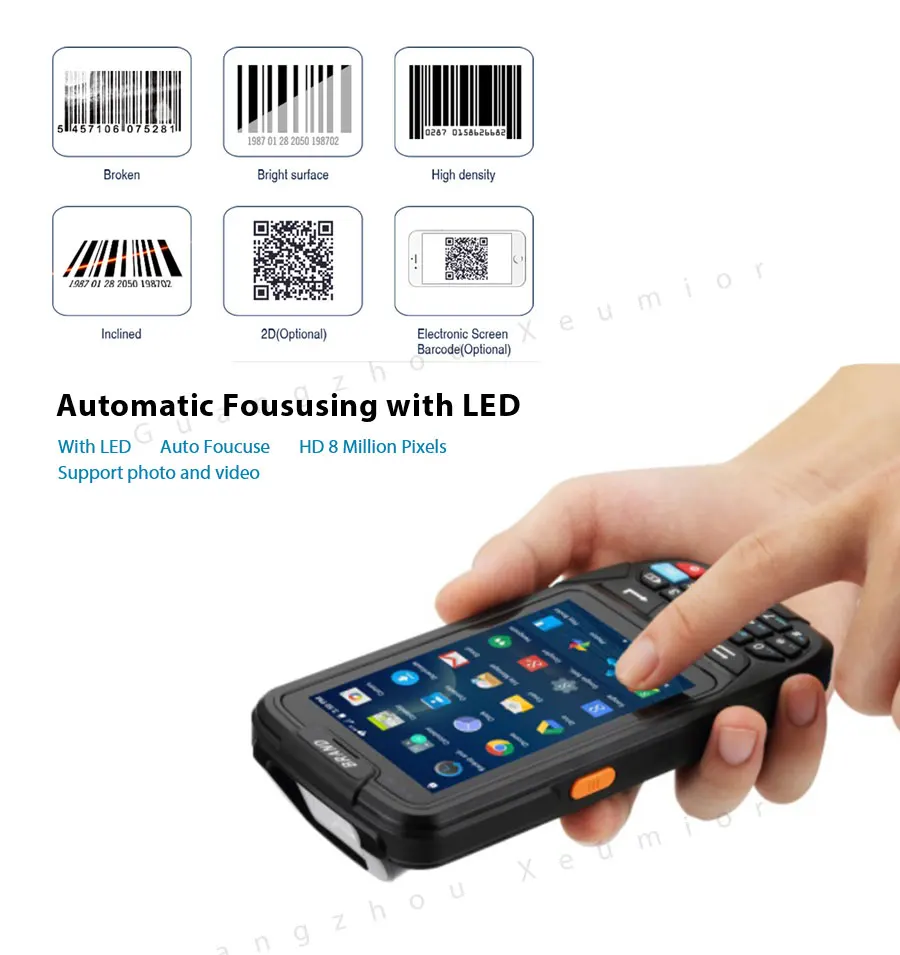

3.Hd 8 million pixels, with LED, automatic focusing;
4.SIM card, PSAM card, Micro SD (TF) Card Expand Port;
5.Rechargeable Li-polymer Battery 3.7V 4000mAh;
6.Color 4.0 inch QVGA imitative glass durable touch screen.

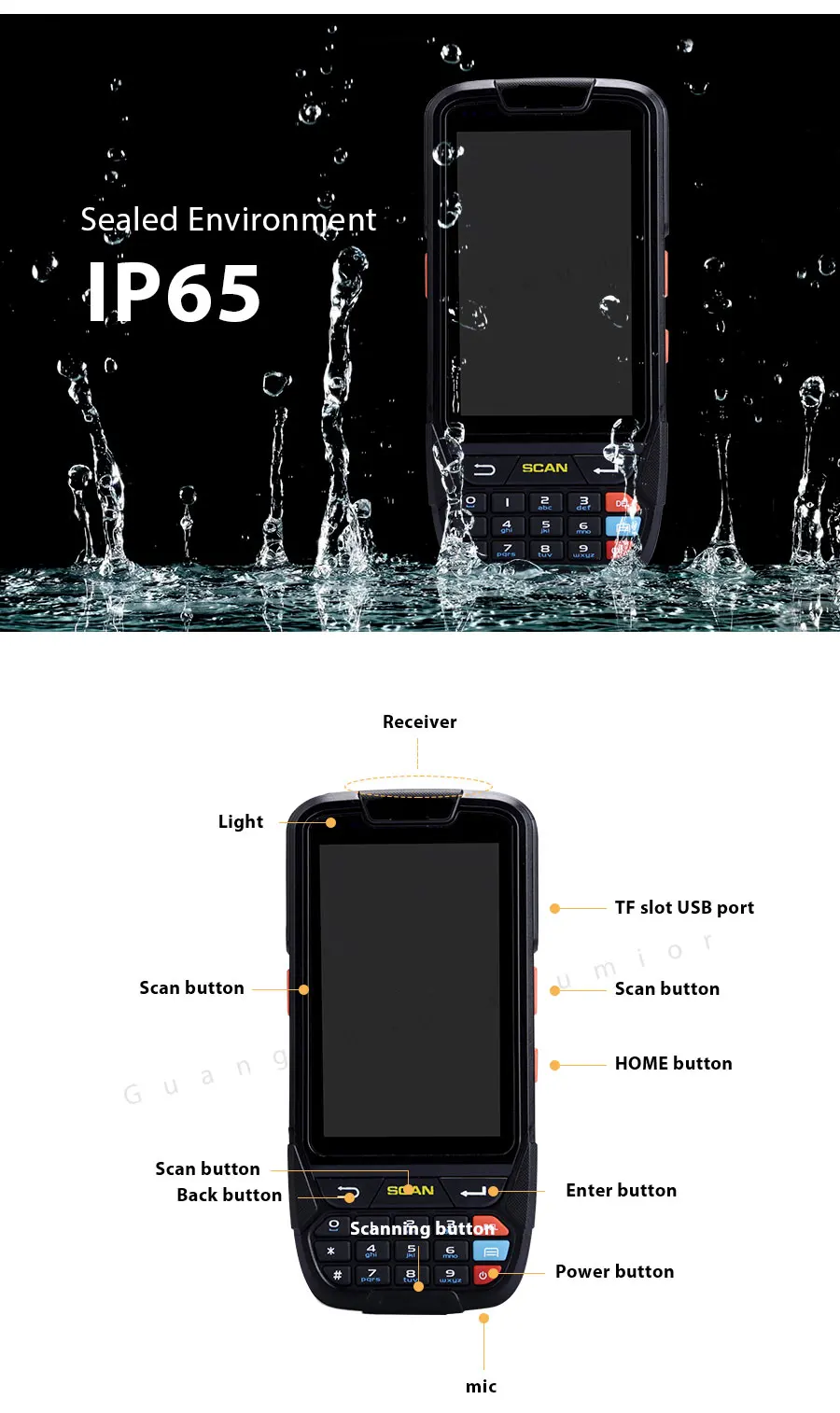

7.Sealed Environment: IP65

8.Support 1d barcode scanner

9.Support NFC(HF.13.56M rfid) or 125K RFID

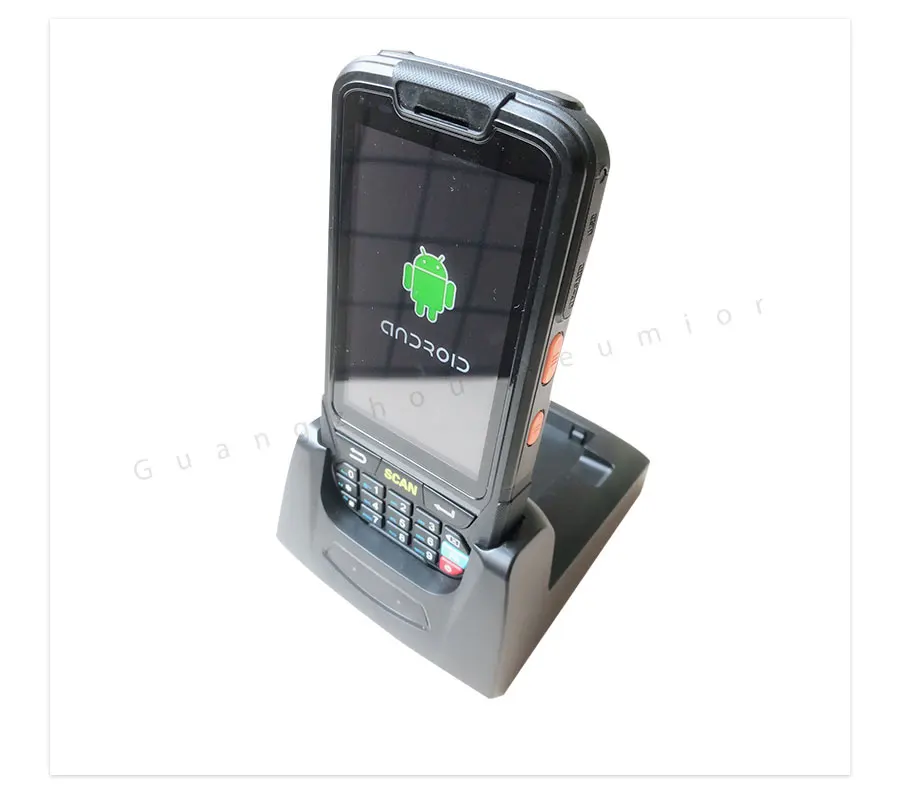

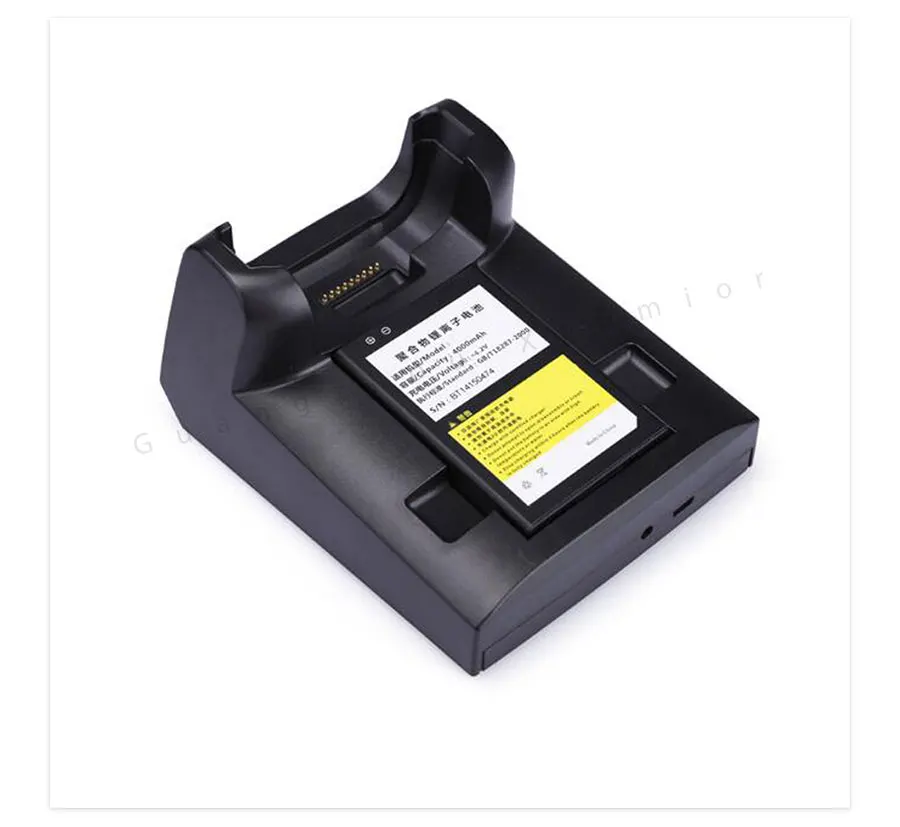

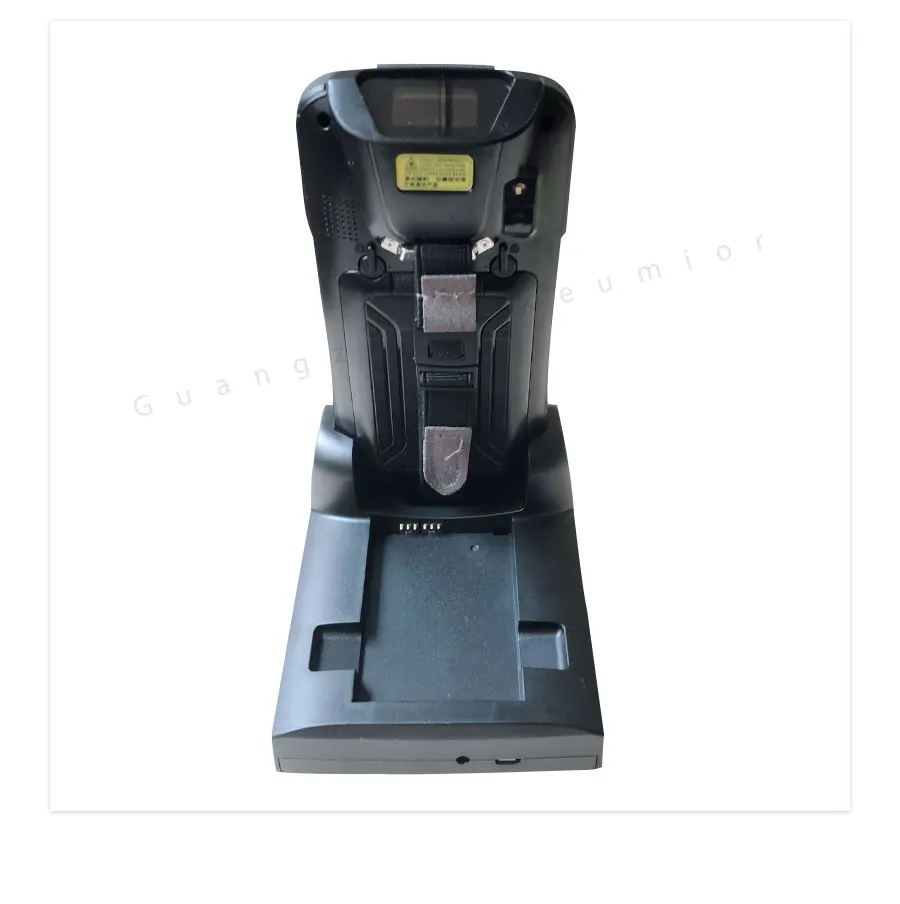

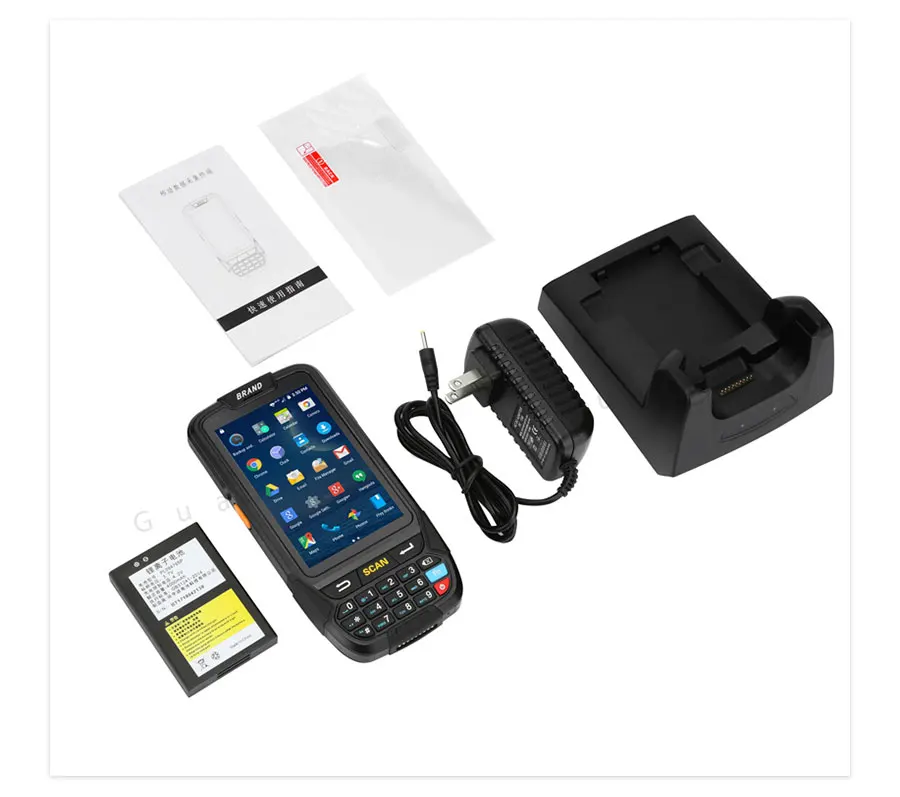

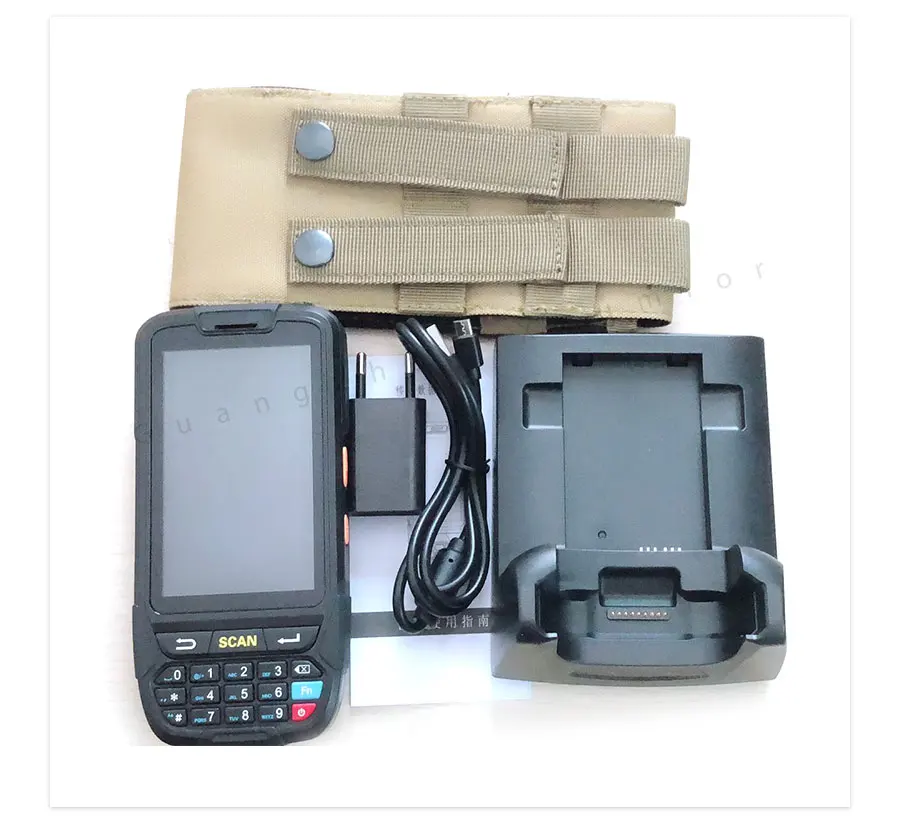

If you want charge cradle, please order from blow link:

https://www.aliexpress.com/store/product/Xeumior-Charge-Cradle-for-Android-PDA-Barcode-Scanner-SM-DT40-SM-DT50/814481_32963096969.html?spm=2114.12010611.8148356.15.7a4855d2LWlNx5







Technical specifications

Physical Parameter
Size	152mm(L)X77mm(H)x25mm(W)
Weight	<300g
Display Screen	Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable
Expand Port	SIM card, PSAM card(optional), Micro SD (TF) Card
Communication Interface	USB2.0 Device, RS-232(Optional)
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4000mAh Optional
Frequency	8Ω 1W speaker
Key	21pcs soft silicon key
Performance Parameter
CPU	Quad-Core ARM Cortex-A53 CPU1.3G
RAM	2G RAM
Flash ROM	Standard 16G NAND Flash Storage Micro SD/TF port  Max up to 32G
Data Communication
WI-FI	Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover
4G All netcom	Support FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/CDMA/EVDO and GSM)
Bluetooth	Support Bluetooth 4.0, transmission distance is 5-10m
Operating Environment
Operating Temperature	—20 to 50
Storage Temperature	—25 to 70
Environment Humidity	5%RH--95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP65
Development Environment
Operating System	Android 7.0
SDK	exclusive use software development kit
Supported Language	JAVA
Development Tool	Eclipse
A one-dimensional bar code collect
One dimensional laser scanner	Honeywell N43XX
Resolution	4Mil minimum width
Ambient Light	10000ft.candles 107640 lux
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47º±35º(Standard) / 35º±3º(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
Two-dimensional bar code acquisition
CMOS Scanner	Honeywell 3680
The Sensor Resolution	752(level)x480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
Focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID
LF	125K/134K;ISO11784/ISO11785 protocol
HF(NFC)	13.56MHz;ISO14443A/B 15693 protocol
Camera	Hd 8.0 million pixels, with LED, automatic focusing
GPS	Support A-GPS











Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.5kg (3.31lb.)



•
  Package Size:
  20cm x 12cm x 9cm (7.87in x 4.72in x 3.54in)
