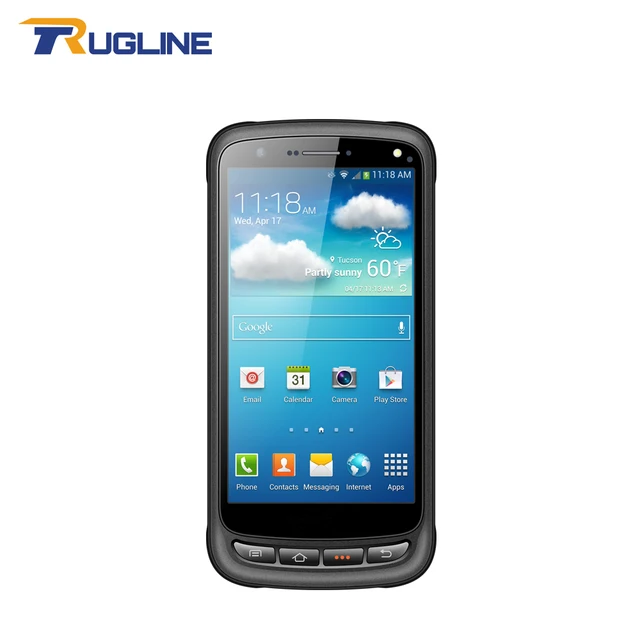

5.2 Inch Android 6.0 Handheld 2D Barcode Scanner PDA IP67 Data Terminal For Inventory Logistics
Brand Name:
RUGLINE
Scan Speed:
100 scans/second
Type:
Handheld Scanners
Optical Resolution:
1920*1080
Scan Element Type:
CMOS
Interface Type:
USB
Scan Breadth:
A4
Model Number:
RT700
Novelty:
New
Scanning Light Source:
Laser Light
Colour Depth:
48 Bit
Time to market:
Mar-13
Product Type:
Bar Code Scanner
OS:
Android 6.0
Memory:
2G RAM,16G ROM
Screen Size:
5.2 inch
Data Communication:
4G/3G/2G WiFi Bluetooth GPS
IP Rating:
IP67
NFC:
ISO14443A/B ISO15693 NFC-IP1 NFC-IP2 etc.
Optional functions:
2D barcode scanner
CPU:
Cortex-A53 Quad-core 1.3GHz
5.2 Inch Android 6.0 Handheld 2D Barcode Scanner PDA IP67 Data Terminal For Inventory Logistic
Standard Configuration:
Android 6.0 + 5.2'' Screen + 2G RAM+16GROM + Wifi + Bluetooth4.0 + 13MP Camera + GPS + 4G + NFC
Free SDK
Optional Functions----1D / 2D Barcode Scanner , UHF RFID, Fingerprint Reader, Iris
(Flexible customization according to your requirements, If you have any questions, please leave message or whatsapp:+86 13662270229 or Skype: xcl.selinna )
Standard Accessories:
Terminal 1 Pcs, Battery 1pcs, Usb data cable1pcs, Charger 1pcs
Optional: Charge Cradle , Pistol Grip , Carry Case; Thermal Printer
Standard Features:
13 mega pixel rear camera with flach
Multiple languages
Support Google Play Store
2GB RAM, 16 GB ROM, MicroSD (max 32GB expansion)
Android 6.0 OS
1*SIM card,1*SIM or TF card,optional PSAM card slot (2 at most,ISO7816 protocol)
High capacity 5000mA large capacity battery for critical requirements
Pogo Pin interface for convenient charging with optional charge cradle
Industrial rugged design, waterproof and protection grade (IP67)
y

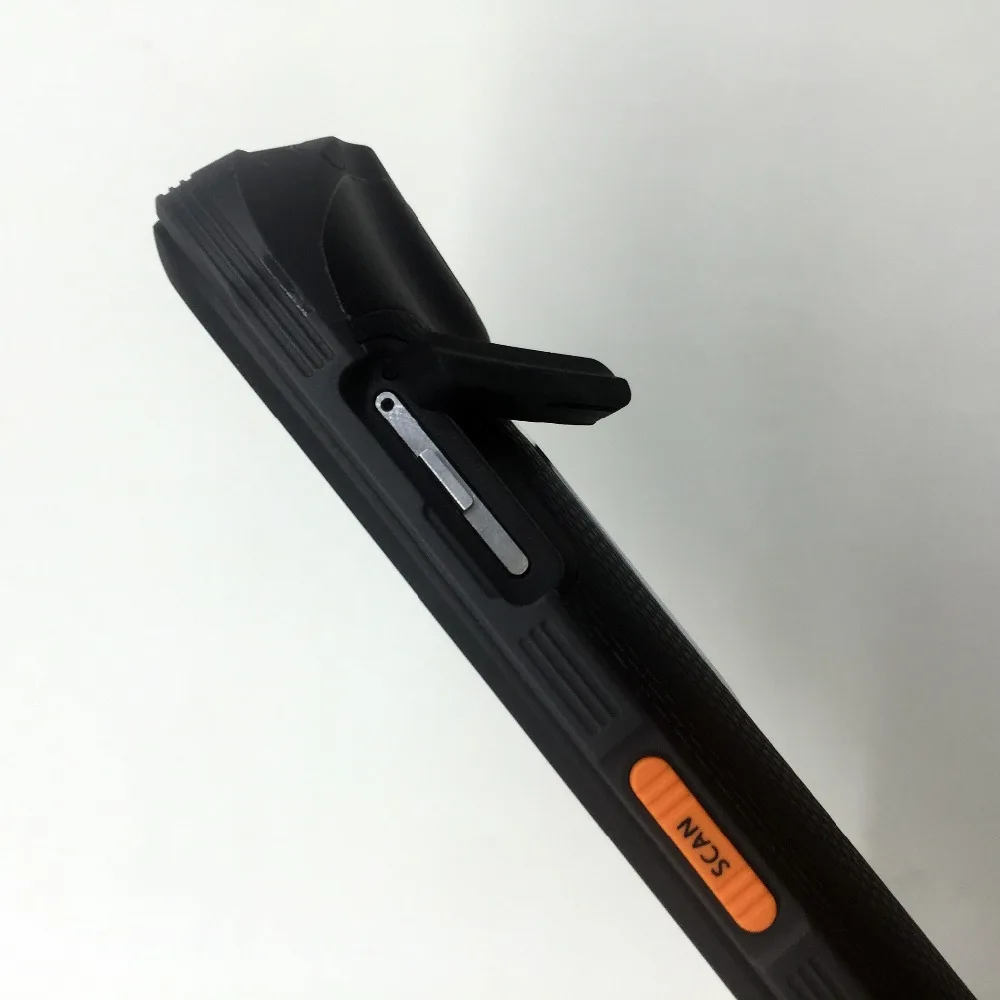

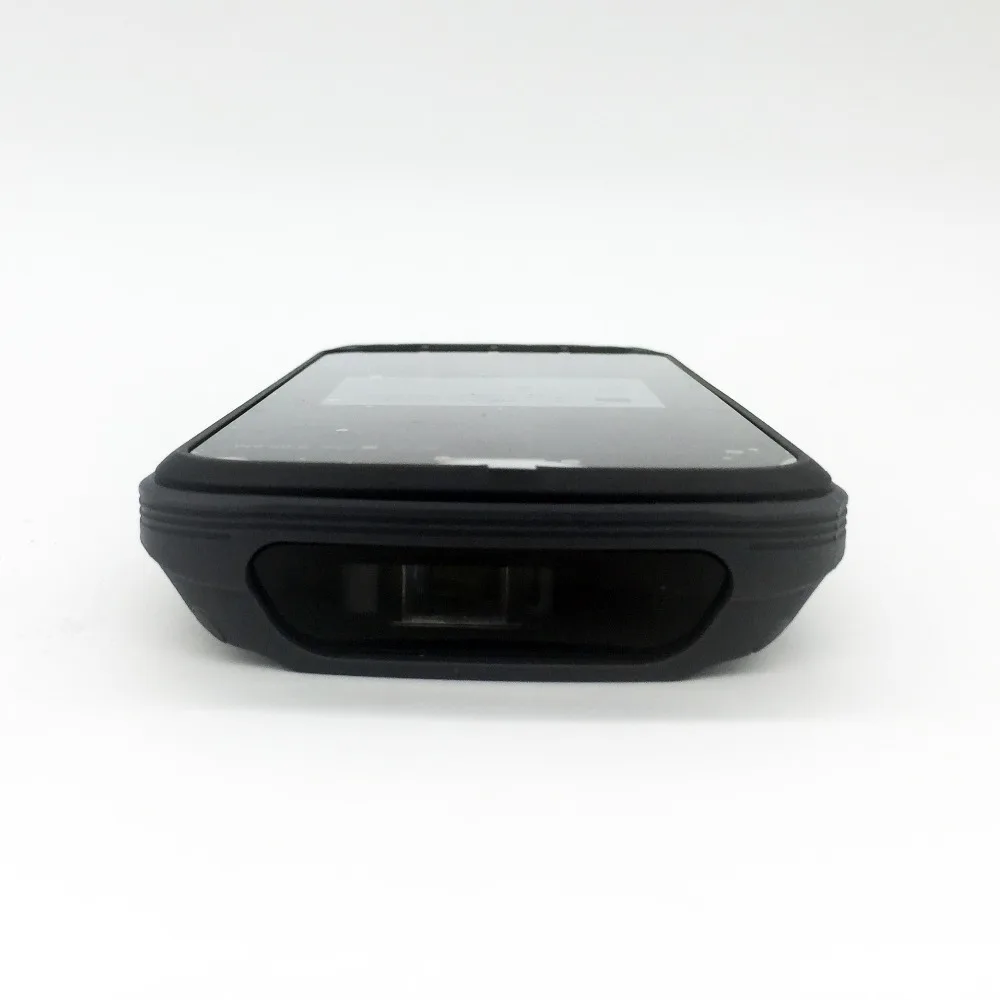

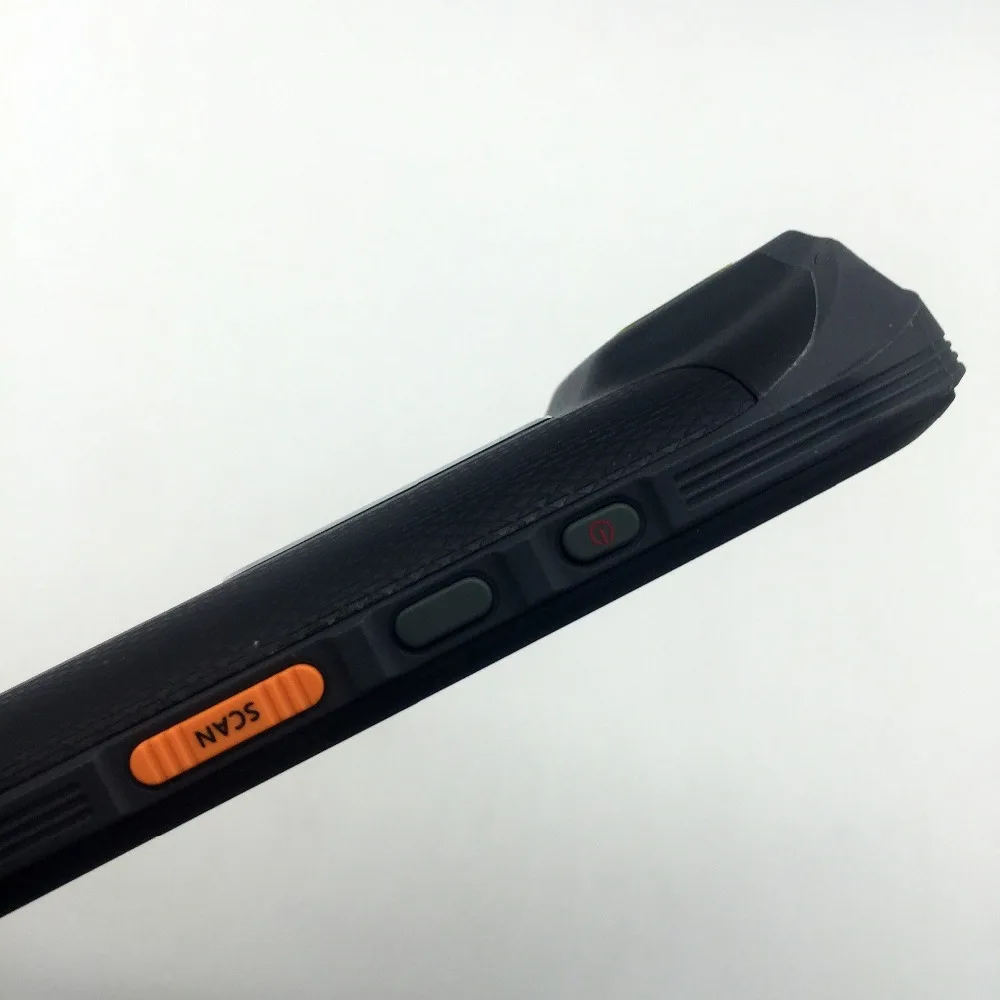

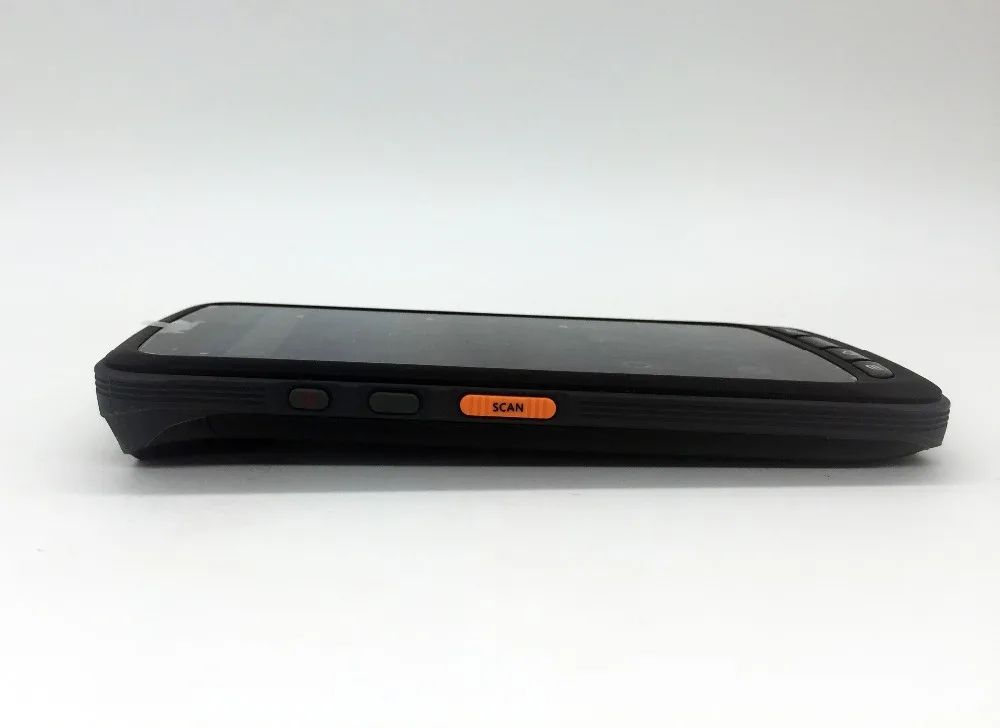

Real Picture
Physical Characteristics | |
Dimension | 163.8*79.2*13.8mm/6.45*3.12*0.54in |
Weight | <242g/8.5oz |
Display | 5.2'' IPS FHD 1920x1080 |
Touch Panel | Corning Gorilla Glass, multi-touch panel,gloves and wet hands supported |
Expansion Slot | 2 PSAM slots at most, 1 slot for SIM card, 1 slot for SIM or TF card |
Keypad | 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key |
Power | Main battery: Li-ion, rechargeable, 4000mAh |
Audio | speaker, 2 microphones |
Interfaces | USB2.0 Type-C, OTG |
Sensors | Proximity Sensor, Vibration Motor |
Performance | |
CPU | Cortex-A53 Quad-core 1.3GHz |
RAM+ROM | 2GB+16GB |
Expansion | Supports up to 32 GB Micro SD card |
Developing Environment | |
Operating System | Android 6.0 |
SDK | Software Development Kit |
Language | Java |
Tool | Eclipse / Android Studio |
User Environment | |
Operating Temperature | 14°Fto 122°F / -10°C to 50°C |
Storage Temperature | -40°F to 158°F / -40°C to 70°C |
Humidity | 5% - 95%RH (Non-condensing) |
Sealing | IP67 |
Drop Specification |
|
Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
ESD | ±8KV air discharge, ±4KV conductive discharge |
Communication | |
WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
WWAN(Europe) | 2G: 850/900/1800/1900MHz; |
3G: 850/900/1900/2100MHz; | |
4G: B1, B3, B5, B7, B8, B20, B40 | |
WWAN(America) | 2G: 850/900/1800/1900MHz; |
3G: 850/900/1700/1900MHz; | |
4G: B2, B4, B7, B12, B17 | |
WWAN (China) | 2G: 900/1800MHz; |
3G:900/2100MHz ; | |
4G:TDD-LTE: B38, B39, B40, B41, FDD-LTE: B1, B3, B5 | |
WWAN (Others) | Depending on the country's ISP |
Bluetooth | Bluetooth 4.0 |
GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
NFC | |
Frequency | 13.56MHz |
Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
Range | 2-4cm |
Camera | |
Camera | 13MP autofocus camera with flash |
| |
2D Imager Scanner | Zebra SE4710/Honeywell N6603 |
1D Symbologies |
|
2D Symbologies |
|
Iris(Optional) | |
Rate | <150ms |
Range | 20-40cm |
FAR | 1/10000000 |
Unit Type:
piece
Package Weight:
0.85kg (1.87lb.)
Package Size:
20cm x 14cm x 10cm (7.87in x 5.51in x 3.94in)
