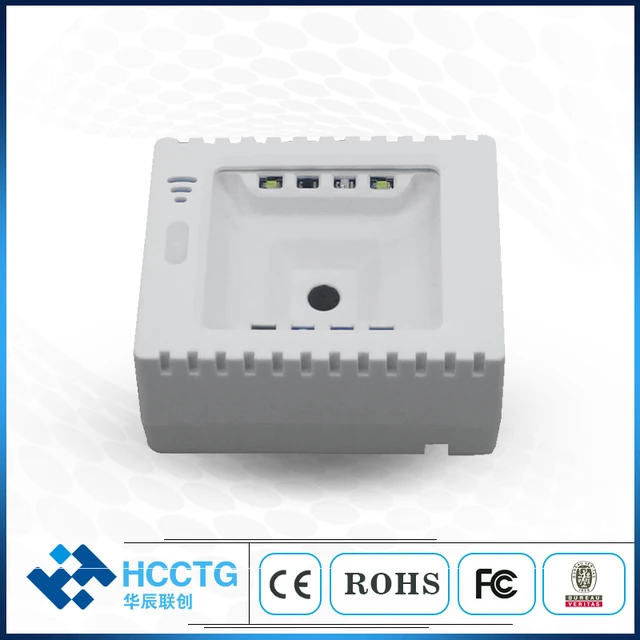

2D Reader Android Embedded QR Code Barcode Scanner Module HS-2002B
Interface Type:
USB
Brand Name:
HCCTG
Scan Element Type:
CMOS
Scan Breadth:
A3
Scan Speed:
200 scans/second
Type:
Barcode Scanner
Model Number:
HS-2002B
Optical Resolution:
300*300
2D Reader Android Embedded QR Code Barcode Scanner Module HS-2002B
Features
Ø Quickly identify the screen 1D/2D code
Ø Embedded compact body
Ø No plugins required, lightning invoicing
Ø Integrated design of body and data line
Ø Rich application scenarios
Ø Compatible with multiple systems
Specification
| Image Sensor | 640×480 CMOS | |
| Ambient light intensity | 0~100000 Lux | |
| Illumination | No lighting mode, reading light mode, constant light mode | |
| Reading code system | 1D | Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISSN,ISBN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-14,Matrix 2 of 5(European Matrix 2 of 5),Industrial 25, Standard 25,Code 39,Codabar, Code 93,Code11,Plessey, MSI-Plessey,RSS-14,RSS-Limited, RSS-Expand PDF417, Data Matrix,QR,Micro QR |
| 2D | ||
| Reading accuracy | ≥5mil | |
| Typical reading depth of field | QR CODE( 30MIL) 0-15CM CODE 128 (10MIL) 0-12CM | |
| Bar code sensitivity | tilt | ±60°@ 0°Roll and 0° Skew |
| Rotate | 360°@ 0°Pitch and 0° Skew | |
| deflection | ±55°@ 0°Roll and 0° Pitch | |
| Minimum contrast | ≥30% | |
| Data interface | RS-232, USB | |
| Physical parameter | Dimension | 67*53*34.5mm (L* w * h) |
| Packing | 2 single packs, 40 packs/boxes | |
| weight | Single: 260g ; FCL: 5.85kg | |
| Prompt mode | Buzzer, LED indicator | |
| Current | Maximum current | <150mA |
| Working current | 90mA±15mA | |
| stand-by current | 65mA±2mA | |
| Environmental parameters | Operating temperature | -20℃~50℃ |
| Storage temperature | -40℃~70℃ | |
| Relative humidity | 5%~95% (no condensation) | |
Application Scenarios
Ø Supermarket Cashier counter
Ø Self-service vending machine
Ø self-service ticket vending machines
Ø cinema ticket machines
Ø payment windows
Ø ticket pick-up machines
Ø Gates
Ø etc
Unit Type:
piece
Package Weight:
0.5kg (1.10lb.)
Package Size:
7cm x 6cm x 4cm (2.76in x 2.36in x 1.57in)
