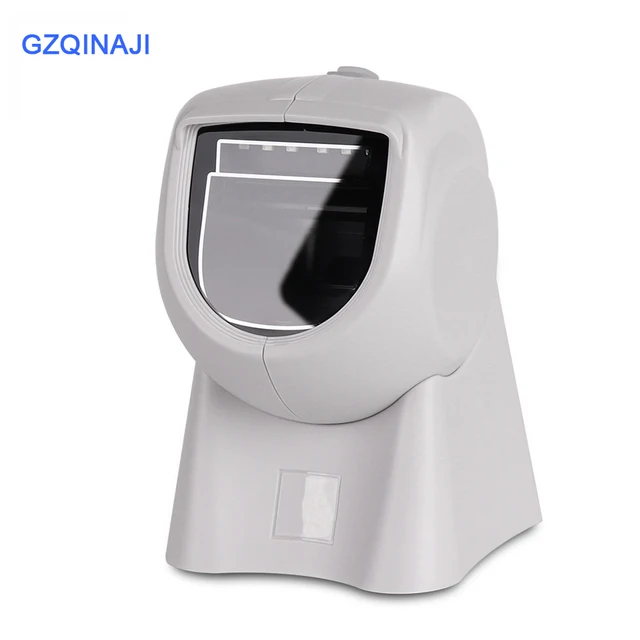

2D Desktop Hands Free Barcode Scanner 1D 2D QR USB Omnidirectional laser scanner Bar code scanenr reader Scanning platform

Best Offers 2D Desktop Hands Free Barcode Scanner 1D 2D QR USB Omnidirectional laser scanner Bar code scanenr reader Scanning platform

Product ID : 32903670778

Price : $111.29

Discount Price : $79.02

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Interface Type:
  USB



•
  Scan Element Type:
  CMOS



•
  Brand Name:
  GZQIANJI



•
  Scanning Light Source:
  LED



•
  Time to market:
  Mar-13



•
  Type:
  Barcode Scanner



•
  Colour Depth:
  42 Bit



•
  Model Number:
  OBS-2003



•
  Optical Resolution:
  Barcode scanner 2D



•
  Scan Speed:
  1500 times/s



•
  Scan Breadth:
  1D 2D QR barcode scanner



•
  Product name:
  Omnidirectional Barcode Scanner 1D 2D USB



•
  Scan Speed:
  1500 times/s



•
  Interface Type:
  USB


Product Description

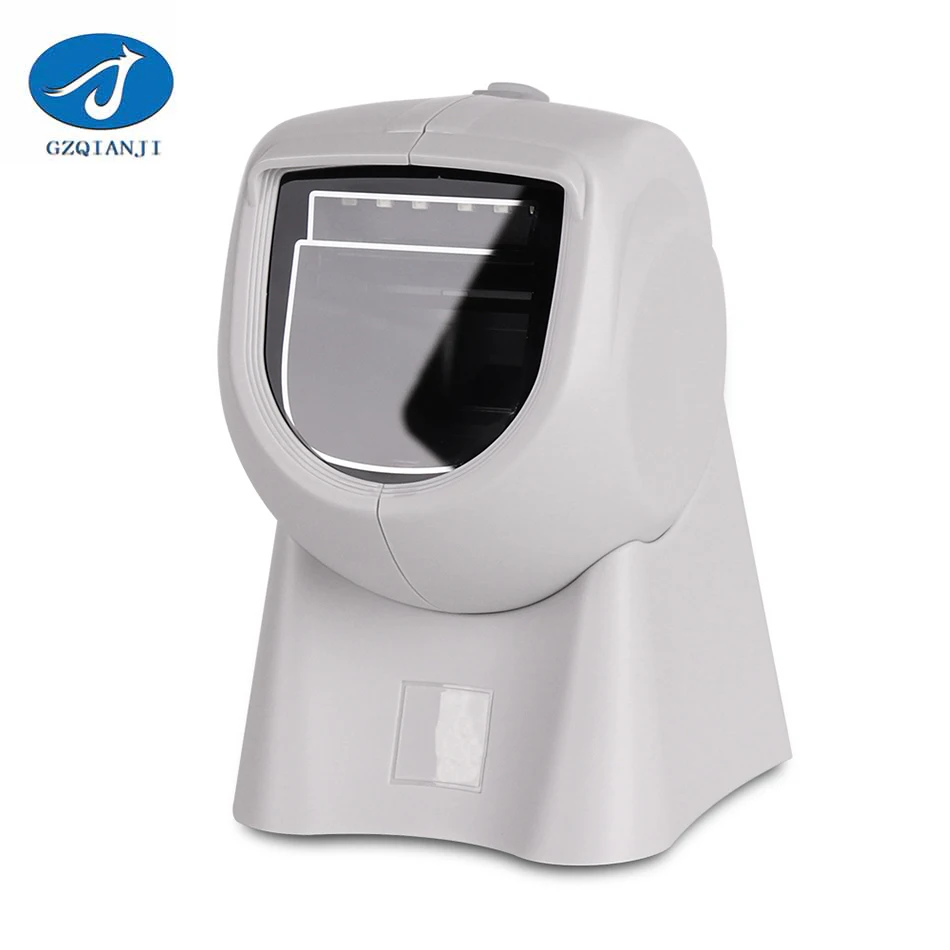

OBS-2003 Desktop Omnidirectional 2D Barcode Scanner QR 2D for Supermarket USB POS
Bar code
Reader Auto Scan PDF417 EAN Code128
1500 times/s
High Speed

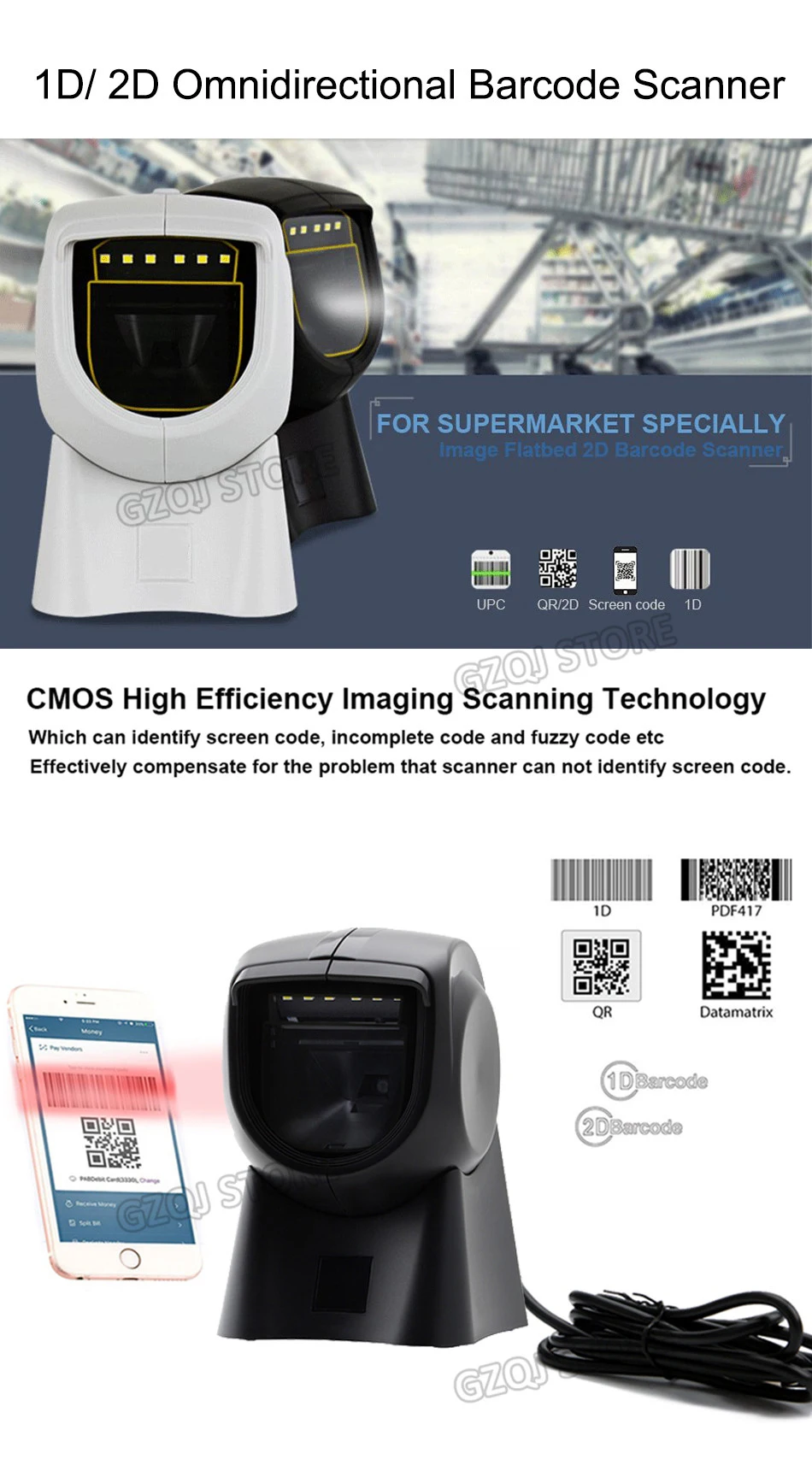

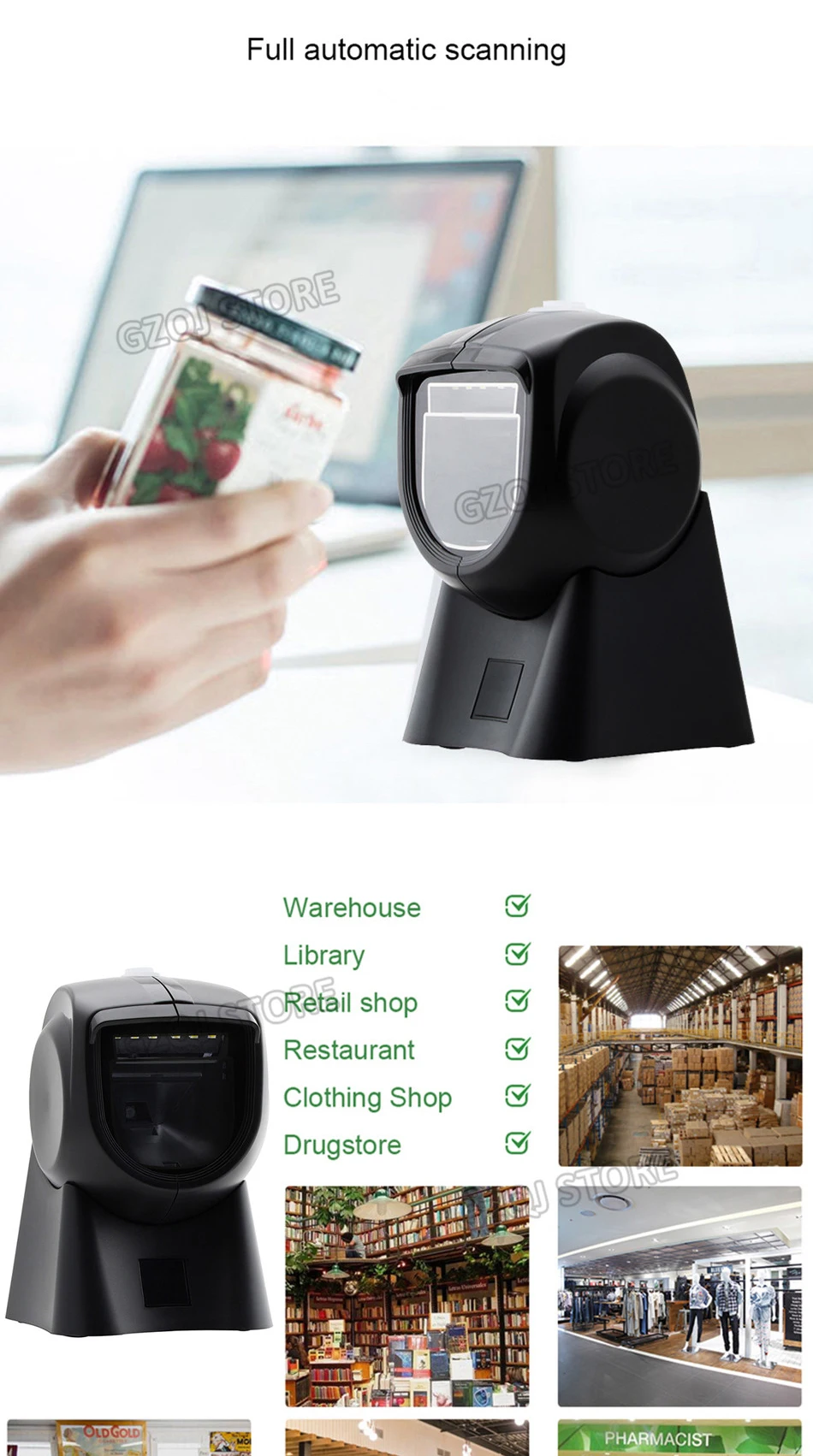

Omni Automatic Flatbed 2D Barcode QR code Scanner. (Automatically Reading Function)



▲High working efficiency with auto sensor and 1500 times/second. Suitable for Supermarket, Library, Retail Store Warehouse, Parking, etc.

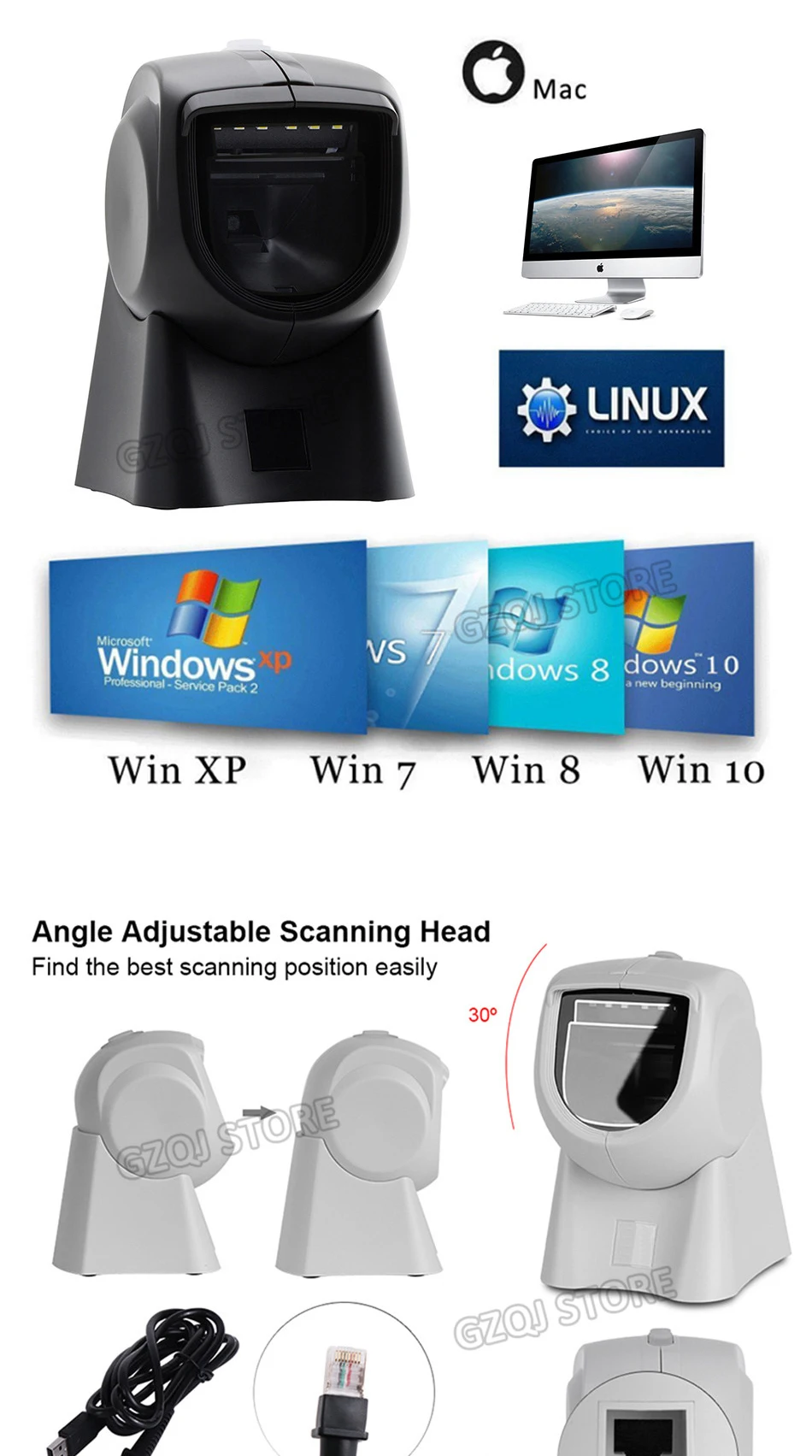

▲Plug and Play, no need for any driver or software. What we should do is insert the scanner into USB port of windows/Linux PC, Mac, Tablet etc.
▲Decode capability: UPC/EAN,Code39,interleaved 2 of 5,Code93, Code128,CodeBar,Industry25,2D QR code,PDF417,etc.
▲It is 2D barcode scanner, which can read both 1D and 2D barcode. If you need 1D scanner, please search OBS-001.
▲ If you need Virtual COM, please read the setting barcode"USB Virtual COM port" on user manual
▲For any setting, eg.add Prefix/Suffix, [Enter], please follow the guide of User Manual or contact us.

Physical Parameters
Material	ABS+PC

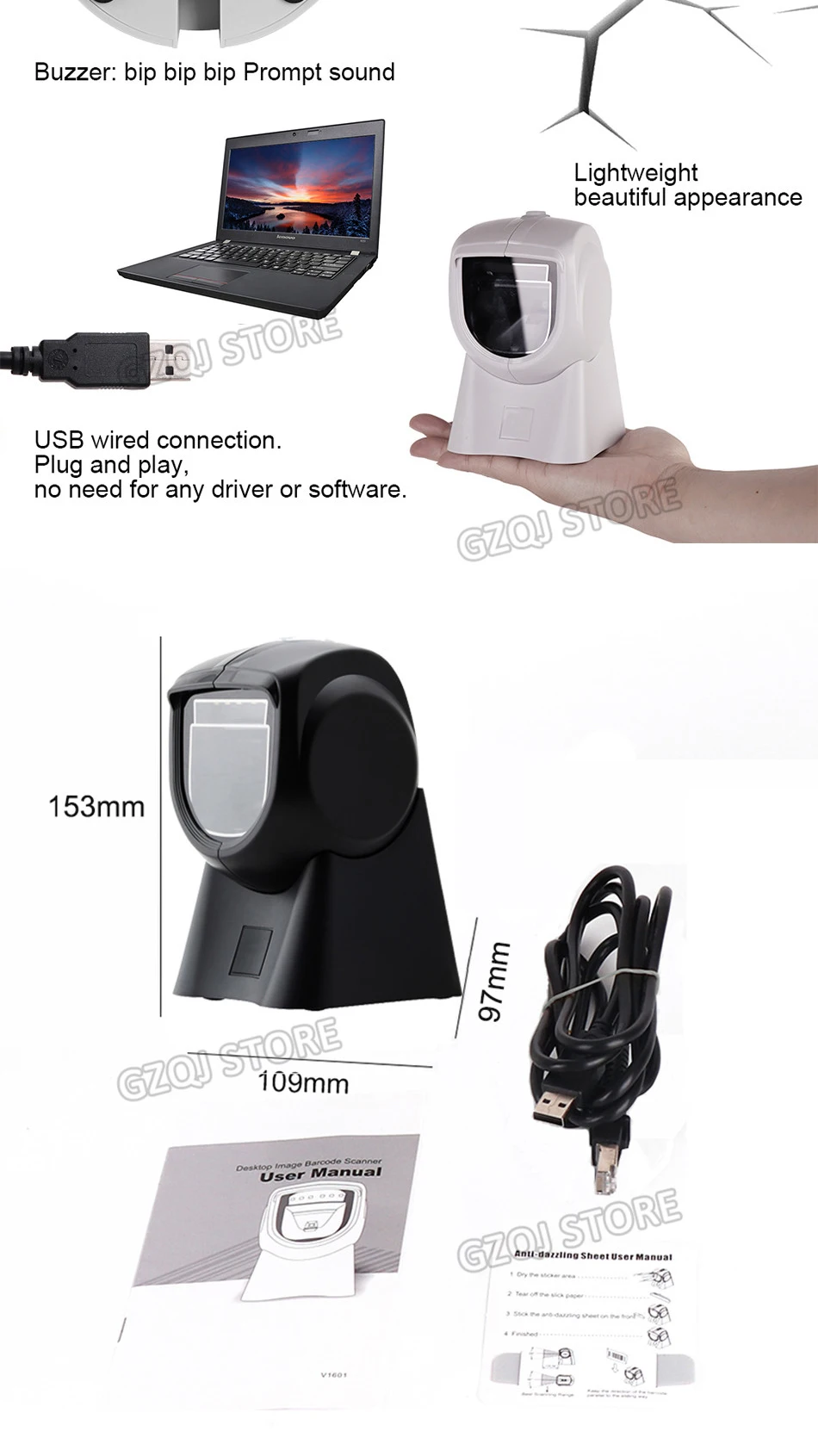

Size	L*W*H: 153mm*109mm*97mm
Power Supply	DC 5V/420mA
Weight	310±5g (without cable)
Performance Parameters
Support Interface	USB
Sensor	Planar CMOS sensor
Light Source	white LED (lighting)
Processor	32-bit ARM MCU
Decoding Capability	1D version: Codabar,Code39,Code32,InterLeaved 2 of 5(24bit),Industrial 2 of 5( Industrial25), Matrix 2 of 5,Code93,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN- 13,GS1 DATABAR(RSS14),GS1 DATABAR Limited, Gs1databar Expanded
	2D version: QR, MicroQR, PDF417, Data Matrix, AZTEC.
Resolution	1D 4MIL, 2D QR8 3MIL, PCS45%
Depth of Field	4MIL  CODE39:       0--4   CM
	13MIL  UPC-A :       0--16  CM
	15MIL  QR    :       0--14  CM
	1D code from Alipay 0--24 CM
	2D code from Alipay 0--47 CM
	Available for Stationery small barcode & wide barcode
Scanning Speed	300scans/sec
Scanning Method	Auto-sensing
Scanning Area	5 * 5 cm⊃2; -- 20 * 20 cm⊃2;
Prompting Mode	Buzzer, indicator light (LED)
Printing Contrast	No lower than 35%
Scanning Angle	Roll 0-360°, pitch ±65°, yaw ±60°
Environment Parameters
IP Grade	IP 54
Operating Temperature	0 to 50 ºC / 32 to 122 ºF
Storage Temperature	0 to 50 ºC / 32 to 122 ºF
Operating Humidity	5 - 95% (non-condensing )
ESD Protection	15kv air discharge
Shock Resistance	1m free fall on concrete surface







Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.62kg (1.37lb.)



•
  Package Size:
  20cm x 19cm x 13cm (7.87in x 7.48in x 5.12in)
