ZEBEX Z-6030 laser barcode scanning platform/ZEBEX Z-6030 laser barcode scanner/ZEBEX Z-6030 laser barcode gun/barcode reader

Special Offers ZEBEX Z-6030 laser barcode scanning platform/ZEBEX Z-6030 laser barcode scanner/ZEBEX Z-6030 laser barcode gun/barcode reader

Product ID : 32422953113

Price : $79.49

Discount Price : $29.65

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Interface Type:
  USB



•
  Time to market:
  Mar-13



•
  Type:
  Barcode Scanner



•
  Scan Breadth:
  A4



•
  Colour Depth:
  32 Bit



•
  Scanning Light Source:
  Laser Light



•
  Model Number:
  Z-6030



•
  Scan Element Type:
  laser



•
  Optical Resolution:
  none



•
  Scan Speed:
  1400/S



•
  Max Paper Size:
  0.1mm(4mil)@Code 39, PCS=90%



•
  Products Status:
  Stock


Product Description

ZEBEX Z-6030 laser barcode scanning platform/ZEBEX Z-6030 laser barcode scanner/ZEBEX Z-6030 laser barcode gun/barcode reader

Specification:



Operational
Light Source	650 nm visible laser diode (VLD)
Depth of Field	0~206mm @ UPC/EAN PCS=90%
Scan Pattern	5 directions
Scan Line	20
Scan Rate	1, 400 scans per second (omnidirectional); 70 scans per second (single-line)
minimum resolution	0.1mm(4mil)@Code 39, PCS=90%
Print Contrast	30%(UPC/EAN 100%)
LED Indicator	Two-color LED (blue & red)
Programmable Operation	Beeper tone & volume

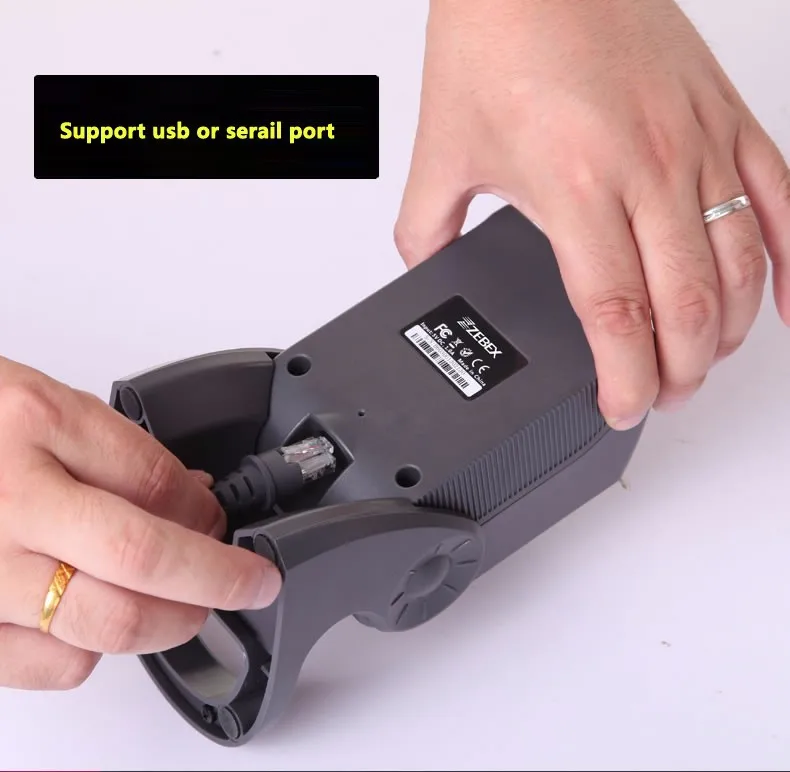

System Interface	HID USB, USB Virtual COM,
Physical

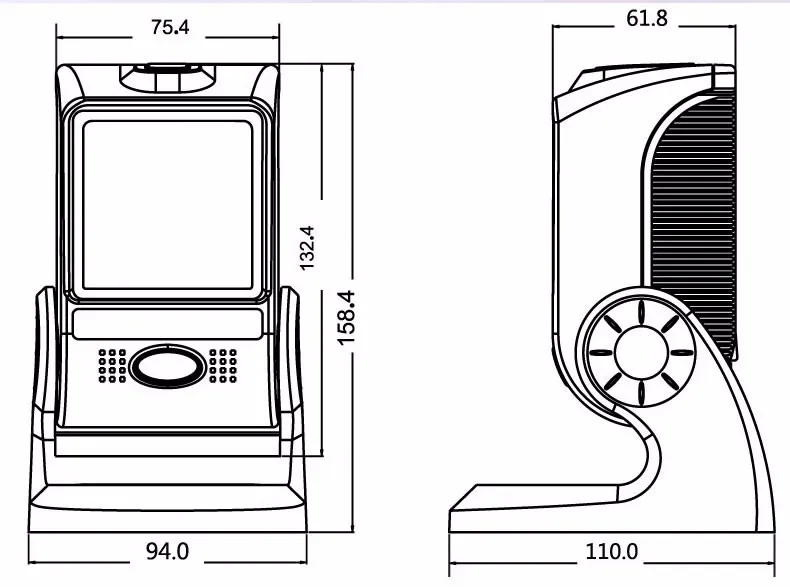

Demension	94mm*158.4mm*110mm
Weight	320g(not including cable)
Length of cable	Standard 2M straight
Power
Input Voltage	5VDC±10%
Operating Current	220mA
Environmental
Operating Temperature	0°C – 40°C (32°F – 104°F)
Humidity	5% – 95% RH (no dewing allowed)
Storage Temperature	-20°C – 60°C (-4°F – 140°F)
Light Level	Up to 4, 500 Lux (fluorescence
Regulatory
EMC	CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
Laser Class	CDRH Class IIa, IEC 60825-1 Class 1
DECODING CAPABILITY
Barcode type	UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded
Light Source	650 nm visible laser diode (VLD)

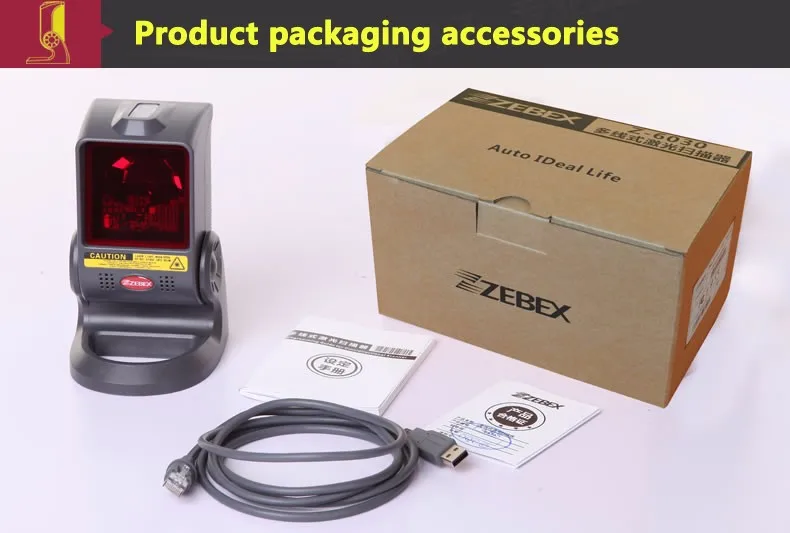

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.0kg (2.20lb.)



•
  Package Size:
  30cm x 20cm x 20cm (11.81in x 7.87in x 7.87in)
