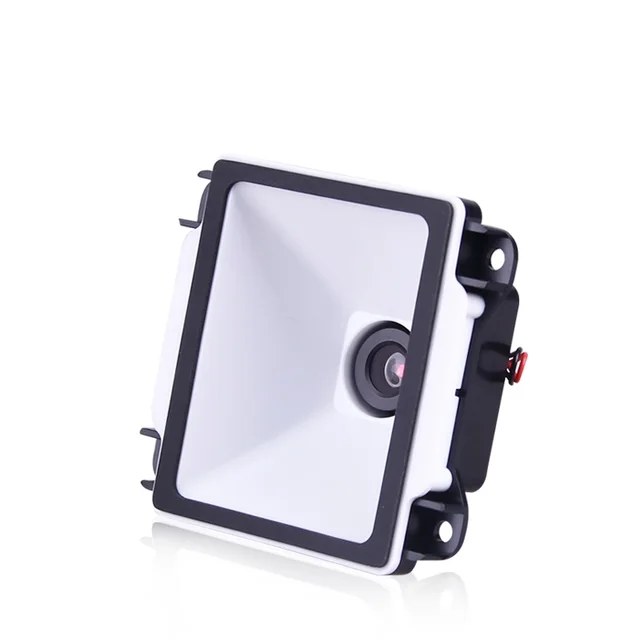

NLS-EM20 2D scanning module self-service terminal express cabinet special one-dimensional two-dimensional fixed scanner
Product Type:
Bar Code Scanner
Novelty:
New
Interface Type:
USB
Model Number:
EM20
Scanning Light Source:
LED
Scan Element Type:
CCD
Type:
Barcode Scanner
Optical Resolution:
none
Scan Speed:
none
Scan Breadth:
none
Colour Depth:
none
¦ Technology
Armed withNewland’s fifth-generation of technology, the scanengine can decode even poor quality barcodes with ease.
¦ Snappy On-Screen Barcode Capture
The NLS-EM20 can capture on-screenbarcodes effortlessly even when the screen is covered with protective film orset to its lowest brightness level.
¦ Multiple Interfaces
The NLS-EM20supports USB and TTL-232 interfaces to meet diverse customer needs.
¦ Two-In-One Design
Seamlessintegration of image sensor and decoder board makes the scan engine small, lightweightand easy for integration.
¦ Low Power Consumption
Theadvanced technology incorporated inthe scan engine promises low power consumption and prolonged service life.
Application Scenarios (as an accessory)
Self-servicecabinets used in e-commerce, express delivery services and smart homes; ATMs;kiosks; queue machines; lottery machines; certificate makers.
| Performance | Image Sensor | 752×480 CMOS |
| Light Source | White LED | |
| Symbologies | 2D PDF417 , QR C ode (QR1/2, Micro) , D ata Matrix (ECC200, ECC000, 050, 080, 100, 140) | |
| 1D Code128 , UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, I nterleaved 2 of 5 , ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBar TM ( RSS ) , (RSS-14 , RSS-Limited, RSS-Expand ) | ||
| Resolution | ≥5mil | |
| Typical Depth of Field | EAN-13 10mm-55mm (13mil) | |
| PDF 417 15mm-35mm (6.67mil) | ||
| Data Matrix 15mm-40mm (10mil) | ||
| QR Code 10mm-50mm (15mil) | ||
| Symbol Contrast | ≥30% reflectance difference | |
| Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±40° | |
| Field of View | Horizontal 80°, Vertical 56° | |
| Mechanical/ Electrical | Interface | TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS) |
| Operating Voltage | 3.0~5.5VDC | |
| Current@5VDC | Operating 160mA | |
| Sleep 12mA | ||
| Dimensions | 65.1(D)×61.1(W)×43.6(H)mm | |
| Weight | 41.5g | |
| Environmental | Operating Temperature | -20℃~+60℃ (-4°F~140°F) |
| Storage Temperature | -40℃~+80℃（-40°F~176°F） | |
| Humidity | 5%~95% (non-condensing) | |
| Ambient Light | 0~100000lux (natural light) | |
| Accessories | USB Cable | Used to connect the NLS-EM20 to a host device. |
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
