IP54 Hand Held Laser 2D Imager Cordless Barcode Scanner HM400S
Product Type:
Bar Code Scanner
Novelty:
New
Brand Name:
HCCTG
Scan Element Type:
CMOS
Optical Resolution:
600*600
Scanning Light Source:
LED
Model Number:
HM400
Scan Breadth:
A6
Type:
Barcode Scanner
Colour Depth:
Other
Interface Type:
2.4G wireless Bluetooth
Scan Speed:
300 scans/second
Scan Element Type:
CMOS
Max Paper Size:
20-170mm
Distance:
150 meters away
Scan mode:
Manual
OS:
WIN,IOS,Android
Charging time:
4.5-5h
Feature:
Full-size reading
Dustproof/Waterproof:
IP54
Scan Speed:
more 300 times/s
Interface Type:
2.4G wireless Bluetooth
Colour Depth:
32 Bit
Optical Resolution:
more 5mil
Indicator:
Buzzer, LED light
Medical Wireless Bluetooth 2.4GHz POS 2D Imager Barcode Scanners HM400S
Introduction
HM400S is a mid-to-low-end 2D image scanner with low price and outstanding performance. It not only meets ergonomic design, but also is more practical and can meet the application requirements in various occasions. If you are looking for a high quality, low cost 2D image scanner, the HM400S will be your best choice
Features
- Global public free frequency 2.4GHZ
- 150 meters away from the wireless distance
- Full-size reading
- Bright fill light, radian code, broken code, small code reading ability is stronger
- High-alignment aiming light, easier alignment, reading more sensitive
- Plug and Play, fool operation

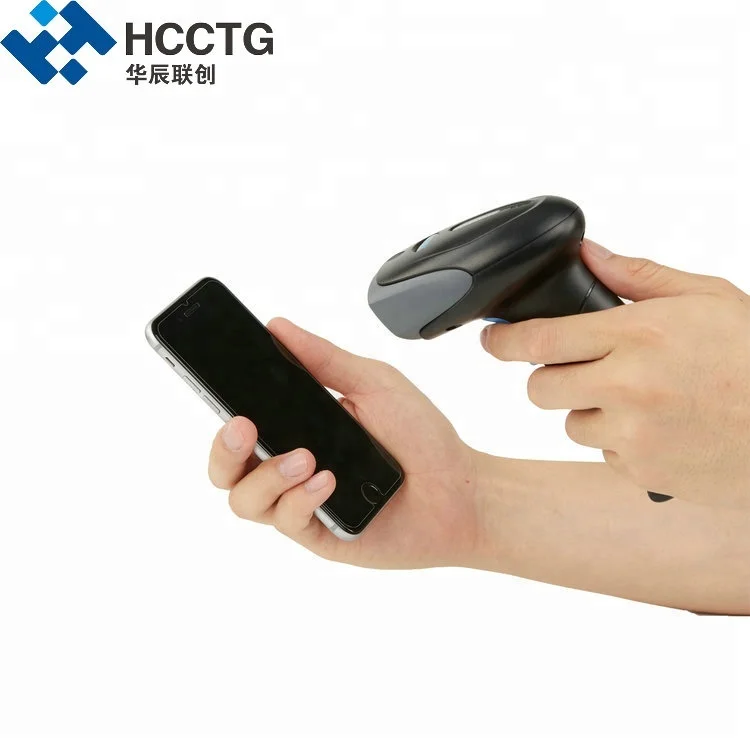

- 2D,All Code & screen barcode reading
Specification
| Image Sensor | CMOS (Image)
|
| Button life
| 10 million times
|
| Scanning Speed
| ≥300 times/s |
| Resolution
| ≥5mil |
| Dustproof/Waterproof | Ip54 |
| Scanning angle | Tilt ±60°,Deflection ±65°,Rotation :360° |
| Print Contrast | 20% |
| Certificate | ROHS |
| Receiver size | 19*14*6mmL*W*H |
| Interface | Full built-in automatic recognition USB, USB-COM
|
| Scanning mode
| Manual mode |
| Indicator
| Buzzer, LED light |
| Working Voltage
| DC5V±0.25V |
| Working Current
| 220mA |
| Dimension(L*W*H)
| 98*65*165mm |
| Weight
| about 170g (without cable) |
| Decoding depth
| 5mil(Code39):3-8cm 10mil(QR):2-9cm 13mil(UPCA):3-17cm 20mil(QR):2-15cm 40mil(Code 39):17-40cm 40mil(QR):5-22cm |
| Decoding types
| 1D codes:UPC/EAN with supplementals,Bookland EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCll,Trioptic Code 39,Code 32,Code 93,Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Cinese 2of 5,GSI DataBar VAariants,Korean 3 of 5,ISBT Concat 2D codes:PDF417,Data Matrix,QR code |
| Material
| ABS+PC (environment protection raw material)
|
| Working temperature
| -20℃-45℃ |
| Storage temperature
| -40℃-60℃ |
| Charging time
| 4.5-5h |
| Centre frequency
| 2.4GHz |
| Transmission distance
| 70m(spacious) |
| Shock resistance | Fall resistance from 2m to concrete floor
|
| Applicable system | WIN,IOS,Android |
Unit Type:
piece
Package Weight:
1.5kg (3.31lb.)
Package Size:
15cm x 11cm x 25cm (5.91in x 4.33in x 9.84in)
