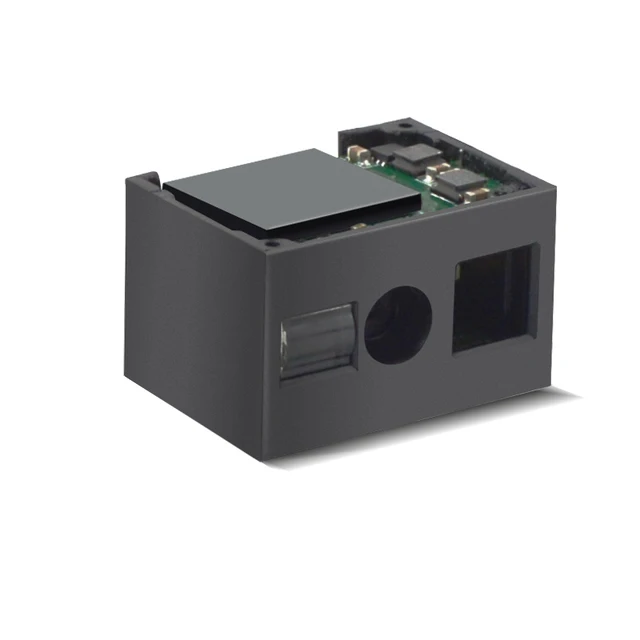

Image Kiosk 2D/QR/1D plug play Koisk Embedded Scanner Module SH-50 USB2.0/TTL Interface USB 2D Scan engine
Product Type:
Bar Code Scanner
Novelty:
New
Interface Type:
USB
Scan Speed:
200 scans/second
Scanning Light Source:
LED
Scan Element Type:
CCD
Model Number:
SH-50
Type:
Barcode Scanner
Optical Resolution:
none
Scan Breadth:
none
Colour Depth:
none
Max Paper Size:
none
SH-50 using advanced imaging technology, with barcode scanning and digital image acquisition function is very strong, the extended depth of field and fast reading, and enhance the performance of low quality barcode reader. From the high-density one-dimensional bar code to the two-dimensional bar code on the mobile device screen, SH-50 can easily read.
The new high-density design and reliability design, the internal key components are concentrated in a fixed module, suitable for mobile, equipment cabinets, assembly lines, intelligent machine equipment integration.
Product features
Unique decoding technology:The use of international top-level decoding technology, a variety of one-dimensional, two-dimensional code decoding, full scan code.
High performance scanning technology:To support a variety of high-density, damaged, deformed bar code scanning, while supporting the computer, mobile phones, flat screen, such as two-dimensional code scanning.
Wide range of applications:ultra small size, widely used mobile handheld terminals, POS payment, equipment cabinets, intelligent robots and other things networking industry chain.
Scanning performance
| Barcode | scan depth density |
| 4mil Code39 | 33-100mm |
| 13mil UPC | 32-255mm |
| 20mil Code39 | 35-355mm |
| 6mil PDF417 | 30-150mm |
| 10mil Data Matrix | 30-200mm |
| 15mil Data Matrix | 21-300mm |
| 20mil QR | 23-300mm |
| This data may vary due to barcode quality and environmental factors. | |
SH-50 Technical parameters
Physical parameter
| Scanning type | image acquisition technology |
| Safety | performance in line with national standards for laser safety |
| Outline | size length * width * height 17mm*65mm*95mm |
performance parameter
| Operating current | 250mA/5V |
| Barcode type | standard one- two-dimensional bar code (full code) |
| System interface | USB,RS232 |
Environmental parameter
| The operating temperature | ﹣20°﹣50° |
| The storage temperature | ﹣40°﹣60° |
| Light intensity | 0-100.000LUX |
| Kinematic tolerance | 100 mm / sec 13milUPC |
Unit Type:
piece
Package Weight:
0.5kg (1.10lb.)
Package Size:
15cm x 15cm x 20cm (5.91in x 5.91in x 7.87in)
