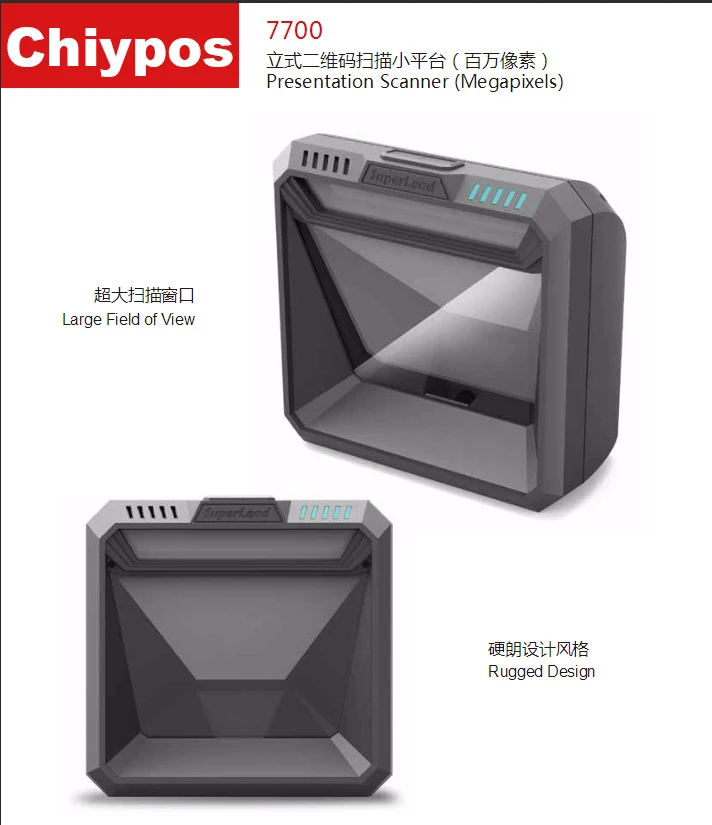

Handfree 1D/2D Ticketing QR Barcode Scanner omni-directional Barcode Scanner Platform Original Designer 7700 Desktop Auto Sense
Colour Depth:
16 Bit
Product Type:
Bar Code Scanner
Novelty:
New
Interface Type:
USB
Scanning Light Source:
LED
Scan Element Type:
CCD
Type:
Barcode Scanner
Model Number:
7700
Scan Breadth:
A4
Scan Speed:
200 scans/second
Optical Resolution:
300dpi
Time to market:
Oct-11
Product features
Super large reading window
- Objects from the induction
- Mobile phone APP barcode scanning
- A key quickly switch work mode
- Multiple language barcode message transfer
- Build in RS232 and USB interface
Typical applications
- Retail
- Cashier POS
- Medical
- Mobile coupons
- Check-in
- The pharmacy
- The lottery betting station
- Bank ect
Symbology Decode Capability
A dimensional barcode1-D:
UPC,EAN,Code128，Code39，Code93，Code11，Matrix 2 of 5，Interleaved 2 of 5 Codabar，MSIplessey，GS1 DataBar，China Postal，Korean Postal，etc.
Two dimensional barcode2-D:
PDF417，MicroPDF417，Data Matrix，Maxicode，QR Code，MicroQR,Aztec,Hanxin，ect.
Decode Ranges
5MIL:0mm-30mm
13MIL:0mm-150mm
performance may be impacted by bar code quality and environmental conditions
Performance Characteristics
Light Source:Illumination: 6500K LED
Field of View:45° (H) x 35° (V)
Roll/Pitch/Yaw:360°, ±65°, ±60°
Print Contrast:25% minimum reflective difference
Interfaces supported:USB,RS232
Physical Characteristics
Dimensions:105mm x 146mm x 70mm
Weight:200g
Voitage:5 VDC
Current:400mA (Operating)
User Enveronment
Operating Temperature:0℃ to 50 ℃
Storage Temperature:-40℃ to 70℃
Humidity:0% to 95% relative humidity，non-condensing
Shock Specifications:Designde to withstand 1.5m（5’）drops
Ambient Light lmmunity:100.000 Lux.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
15cm x 15cm x 20cm (5.91in x 5.91in x 7.87in)
