Ep7000 Mini 1D/2D/Qr Barcode Scanner Cmos Image Scanning Module For Various Embedded Device Access Control Office Electronic S
Scan Element Type:
CMOS
Type:
Barcode Scanner
Model Number:
EP7000
Product Type:
Bar Code Scanner
Novelty:
New
Brand Name:
semoic
Optical Resolution:
scanner
Scan Speed:
2.2m / s
Interface Type:
USB
Scan Breadth:
5x5x3cm
Ep7000 Mini 1D/2D/Qr Barcode Scanner Cmos Image Scanning Module For Various Embedded Device Access Control Office Electronic S

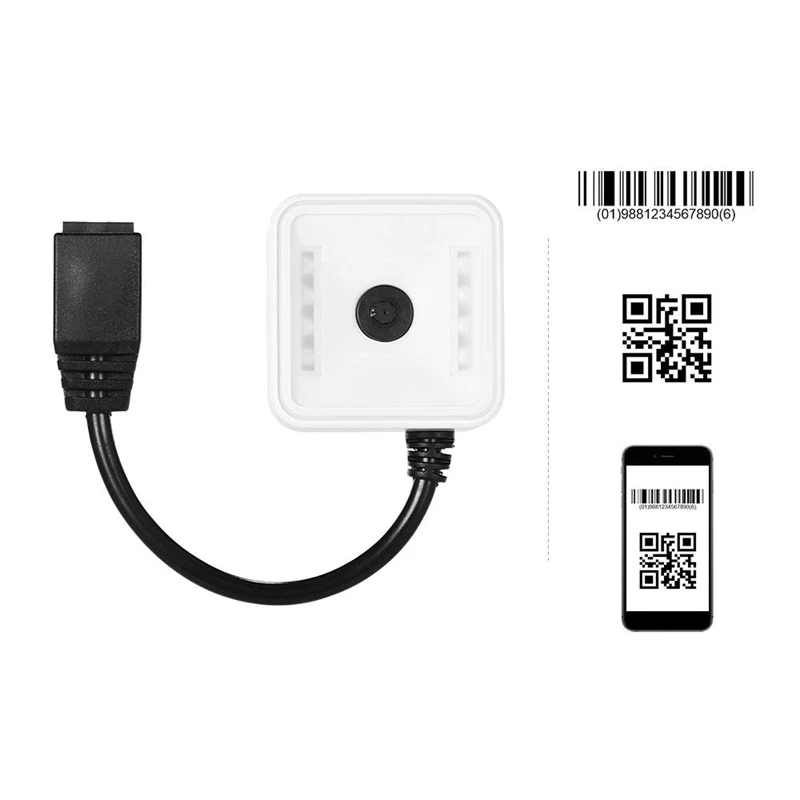

Image barcode scanner module, fast scan speed on mobile screen, easy to read 1D and 2D barcode, plug to use, compatible to many OS such as Linux, Android, Windows XP,7,8,10, Mac, wider scanning range comparing with traditional scanning.

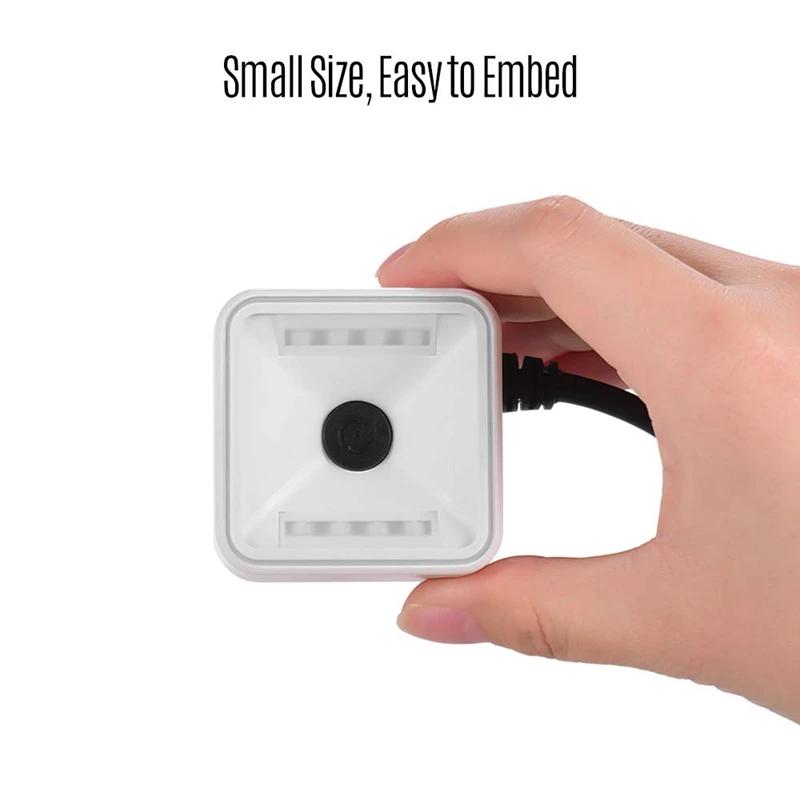

Small size and embedded design, especial for self-help device, kiosk device, access control machine, gates, bus tolls and other equipment.

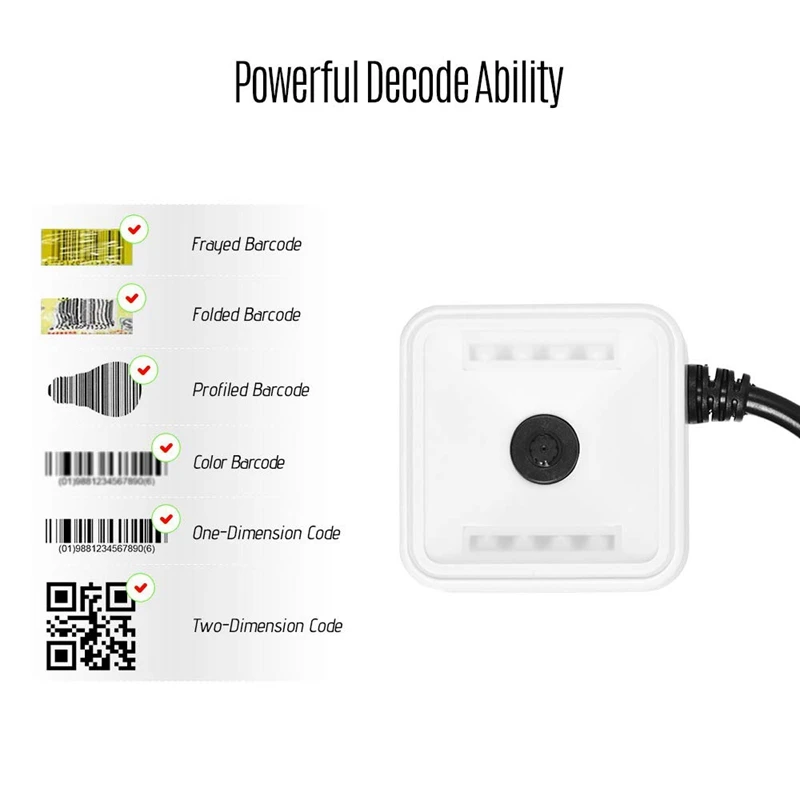

Adopting high sensitivity CMOS sensor, the scanner has strong decoding ability to effectively identify fuzzy, color or anomalous barcodes; paper or film 1D 2D barcodes; high reflective screen or low brightness screen barcodes and so on.

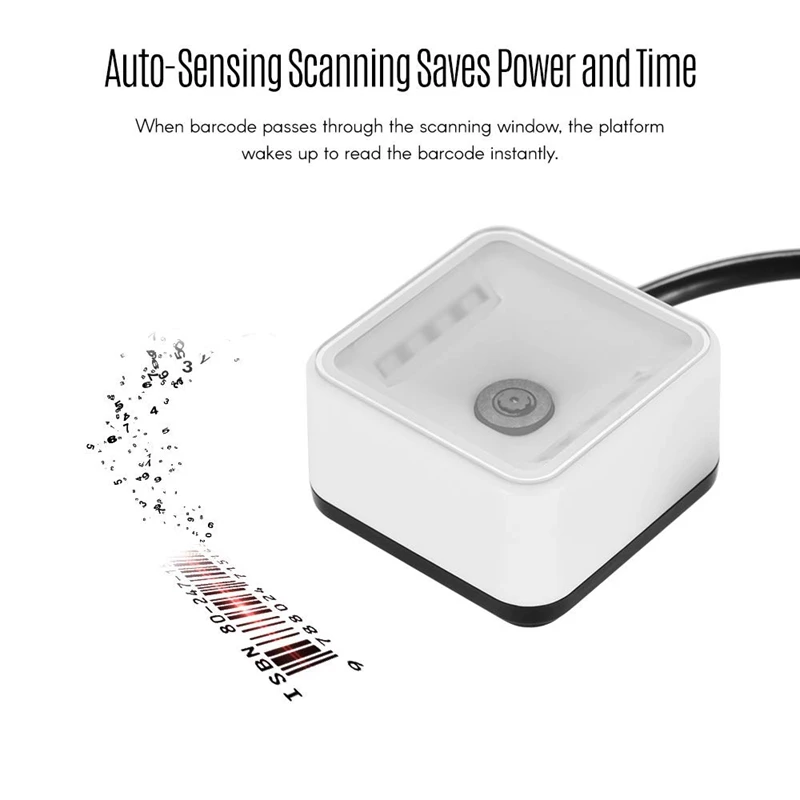

Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the platform wakes up to read the barcode instantly.
Indicator Light: red light: light on when power on; light flash when decode
Model: EP7000
Communication Interface: USB
Exercise Tolerance: 2.2m/s
Decoding Types:
1D barcode: EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded.
2D barcode: PDF417,QRcode,MicroQR,Aztec,Datamatrix
OS Compatibility: Linux,Android,Windows XP,7,8,10,Mac
Scanning Mode: automatically scanning
Language: English / Chinese
Minimum Identification Accuracy: Code 39yard 5mil
Print Contrast Signal: 35%
Secondary Development: support (through serial port instruction to achieve)
Scanning Angle: Roll +/-360 degree, Pitch +/-65 degree, Yaw +/-75 degree
Drop Resistance: Can withstand free fall 5 times (less than 2m)
Waterproof and Dustproof: Meet the IP54 Standard
Working Temperature: -20-55 Celsius
Storage Temperature: -20-60 Celsius
Working Humidity: 5-95%
Storage Humidity: 5-95%
Buzzer: starting, decoding, successful sending
Working Voltage: 5V
USB Interface Auto-induction --
Standby Power: 118mA/0.59W
Operating Power: 149mA/0.745W
Maximum Working Power: 151mA/0.755W
colour:white
Material:ABS
size:5x5x3cm
Package Contents:
1 x Scanner
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
Unit Type:
piece
Package Weight:
0.205kg (0.45lb.)
Package Size:
18cm x 10cm x 5cm (7.09in x 3.94in x 1.97in)
