2D CMOS Barcode Scanner Module for POS/High Quality Scannerreader Module

Special Price 2D CMOS Barcode Scanner Module for POS/High Quality Scannerreader Module

Product ID : 32809328816

Price : $124

Discount Price : $110.36

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Colour Depth:
  32 Bit



•
  Scanning Light Source:
  Laser Light



•
  Scan Element Type:
  CMOS



•
  Optical Resolution:
  2400*1200



•
  Type:
  Barcode Scanner



•
  Time to market:
  Oct-11



•
  Scan Breadth:
  A4



•
  Scan Speed:
  200 scans/second



•
  Product Type:
  Bar Code Scanner



•
  Brand Name:
  ZYXRZYL



•
  Model Number:
  89t



•
  Interface Type:
  USB



•
  Novelty:
  New


Product Description

89T is an OEM image engine which Use CMOS image technology and advanced world level decoding algorithm.89T has a high performance engine that can decode most types of 1D/2D Barcode, including the samples on the printed matter and handset screen.  Owing to the small structure,89T can be easily integrated into OEM products, including handset scanner, portable or fixed devices. many documents including communication specification ,hardware interface and SDK can be provided.



Main Features

-Contain scanner engine and decoder

-Small body, simple installation

-Can read major standard 1D and 2D barcodes

-Easy to be integrated with all kinds of OEM equipments

-Meet the compact design of human engineering

-Support RS232 and USB port

-Embedded high performance processing chip, high decoding speed

-High precision and the ability to read





Specification



Type

CMOS

Resolution

752x480

Barcode capability

2D:PDF417,QR Code,Data Matrix,Chinese sensible code,etc.

1D:code128,EAN-13,EAN-8,Code39,etc

Precision

≥ 3mil

Interface supported

RS-232 (3.3V TTL-level)

Scan of depth

40mm~300mm

print contrast

≥ 30%

Roll

360°@ 0°Pitch and 0°Skew

Pitch

60° @ 0°Roll and 0°Pitch

Skew

60°@ 0°Roll and 0°Skew

Ambient light

0 - 100,000 LUX

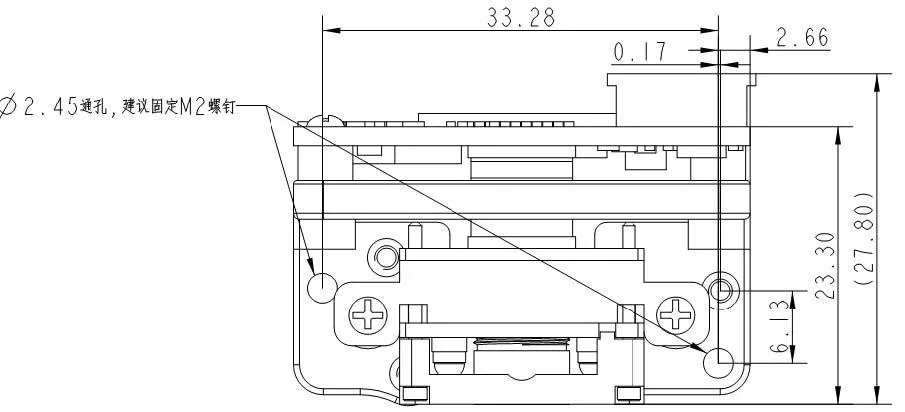

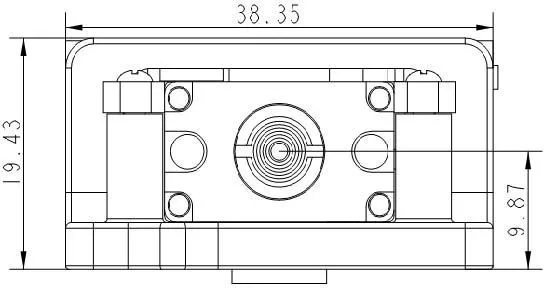

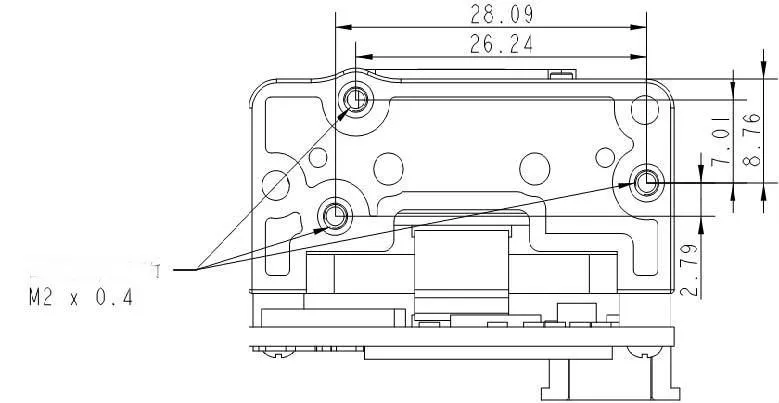

Dimensions

38.25 L mm × 19.43 mm H × 27.80 W mm

Maximum Power consumption

1.4W

Voltagea

3.3V

Current

400 mA

300 mA

70 mA

Weight

25g

Working temperature

-5°C~ +45°C

Storage temperature

-40°C~+60°C

Working humidity

5% - 95%(Non-condensing)

--500 scans /sec

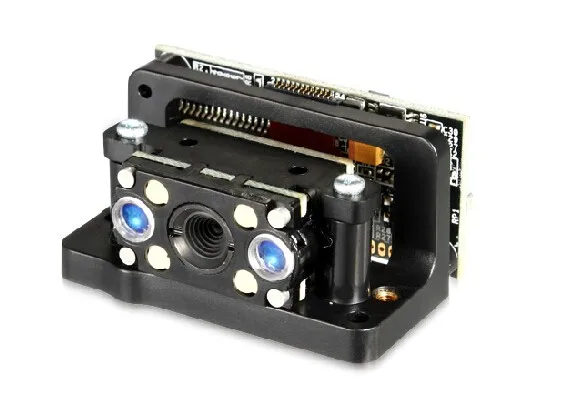

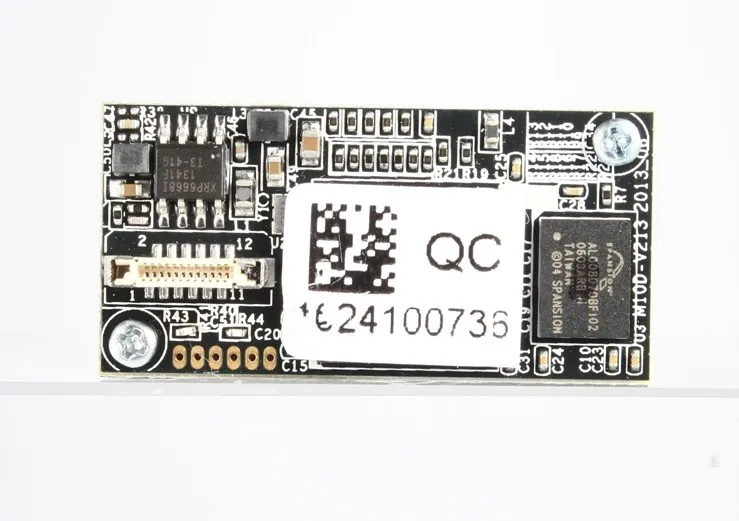

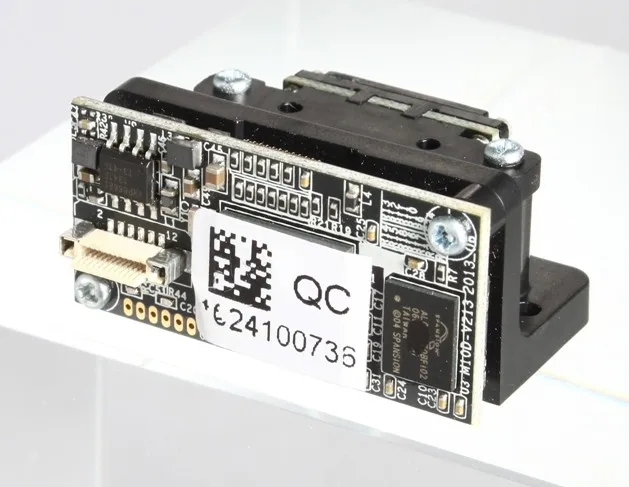

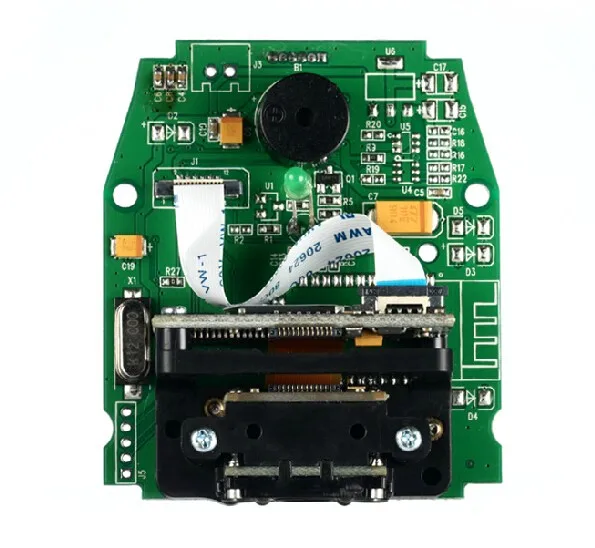

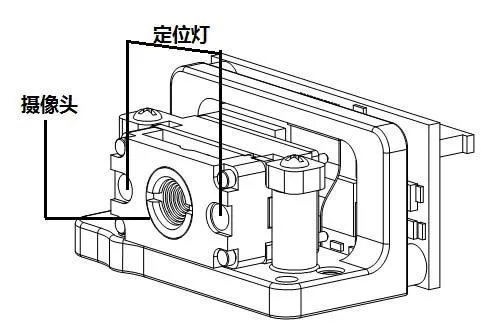

Detailed Images

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.2kg (0.44lb.)



•
  Package Size:
  11cm x 7cm x 4cm (4.33in x 2.76in x 1.57in)
