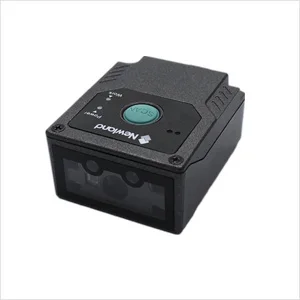

1D/2D QR Code Scanner Barcode Reader express delivery services smart homes ATMs kiosks queue machines lottery machines FM430
Product Type:
Bar Code Scanner
Novelty:
New
Interface Type:
USB
Model Number:
FM430
Scanning Light Source:
LED
Scan Element Type:
CCD
Type:
Barcode Scanner
Optical Resolution:
none
Scan Speed:
none
Scan Breadth:
none
Colour Depth:
none
IR/Light Triggers
The combination of IR sensor and light sensorexhibits an improved sensitivity in activating the scanner to scan barcodes asthey are presented, to achieve higher throughput and productivity.
¦ Automatic Exposure Control (AEC)
The sensors in the NLS-FM430 automatically adjustthe brightness of supplementary lighting based on the light reflected off barcode.
¦ IP54-sealed Housing
The NLS-FM430 is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.
¦ Unmatched Reading Performance
the NLS-FM430is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.
¦ Highly Visible Laser Aimer
The NLS-FM430 provides a laser-generatedcrosshair aiming pattern that is clear and bright even in bright sunlight, ensuringfirst time accurate aim.
¦ 1.5m Drop Resistance
The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).
| Performance | Image Sensor | 1280 * 800 CMOS | |
| Illumination Aiming | White LED L aser diode or green LED | ||
| Symbologies | 2D
| PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode , Micro QR, Micro PDF417, GM , Code One, etc. | |
| 1D
| EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar , UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc. | ||
| Resolution* | ≥3mil | ||
| Typical Depth of Field* | EAN-13 | 55-360mm (13mil) | |
| Code 39 | 70-180mm (5mil) | ||
| PDF417 | 55-160mm (6.7mil) | ||
| Data Matrix | 50-170mm (10mil) | ||
| QR Code | 40-210mm (15mil) | ||
| Scan Mode | Sense mode, Continuous mode, Level mode, Pulse mode | ||
| Scan Angle** | Roll: 360°, Pitch: ±55°, Skew:±55° | ||
| Field of View | Horizontal 51°, Vertical 32° | ||
| Min. Symbol Contrast* | 25% | ||
| Mechanical/ Electric | Interface | RS-232, USB | |
| Dimensions | 41.5(W)×49.5(D)×24.3(H)mm | ||
| Weight | 75g | ||
| Notification | Beep, LED indicator | ||
| Rated Power Consumption | 1622 mW (typical) | ||
| Operating Voltage | 5VDC±5% | ||
| Current @ 5VDC | Operating | 276.8mA (typical), 322.7mA (max.) | |
| Standby | 83.3mA | ||
| Environmental | Operating Temperature | -20℃ to 60℃ (-4°F to 140°F) | |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±14 kV (air discharge), ±8 kV (direct discharge) | ||
| Drop | 1.5m | ||
| Sealing | IP54 | ||
| Certifications | FCC Part15 Class B, CE EMC Class B, RoHS, IEC60825, IEC62471, KC | ||
| Environmental | Cable | USB
| Used to connect the NLS-FM430 to a host device. |
| RS-232
| Used to connect the NLS-FM430 to a host device. | ||
| Power Adapter | DC5V adapter to power the NLS-FM430 with RS-232 cable. | ||
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
