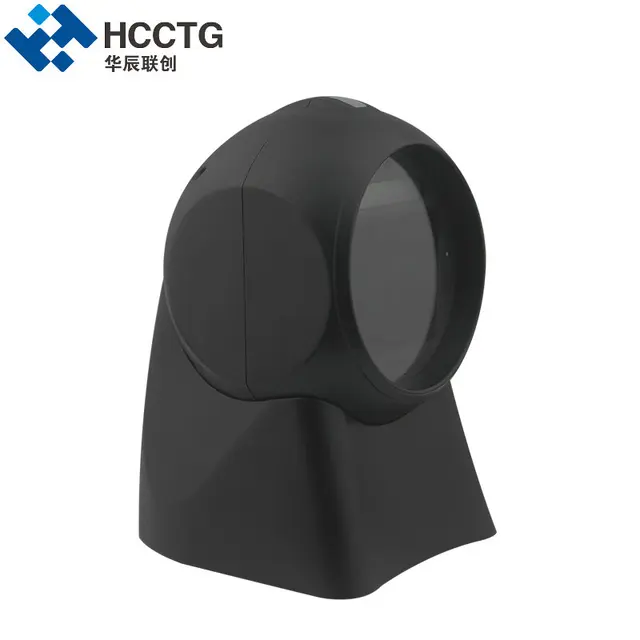

USB/RS232 CMOS Image Sensor 1D & 2D Desktop Barcode Scanner HS7301
Product Type:
Bar Code Scanner
Brand Name:
HCCTG
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Scanning Light Source:
LED
Model Number:
HS7301
Type:
Barcode Scanner
Optical Resolution:
752*480 CMOS
Interface Type:
USB+RS-232 (2m) Cable
Scan Breadth:
600*600mm
Scan Speed:
2.5 m/s
Product Type:
1D + 2D barcode scanner
Lumination:
White light, LED
Resolution:
5mil
Color:
Black, White
Dimension:
(D*W*H) 200mm*130mm*115mm
1D:
UCC+AIM-128+EAN+UPC
2D:
PDF417+QR Code+Data Matrix
Accessories:
USB+RS-232 (2m) Cable
Application::
Retailing/POS/Customer service desk/Ticket validators/O2O
USB/RS232 CMOS Image Sensor 1D & 2D Desktop Barcode Scanner HS7301
Introduction
Ø 2D barcode scanning platform movement is a high-performance movement, possessing the ability, high precision, speed, compatibility and other features, it can quickly identify 1D/2D barcode,mobile screen code,mobile payment code. products are widely used in retailing, supermarkets, tobacco, logistics, warehousing, health care, clothing, and other areas which is the most cost effective products on the market for your best choice.
Ø Support : Alipay and WeChat make collections; 2D barcode mobile payment.
Ø Support : Alipay, National tax,Aisino,Best wonoer, lightning invoicing.
Ø Support : WeChat billing assistant, lightning invoicing.(custom-made)
Feature
1. Superb Reading Performance
2. Superior Motion Tolerance
3. IP52-Rated Sealing
4. 1.2m Drop Resistance
5. IR Trigger
6. Multiple Interfaces
7. Low Power Consumption
Specification
| Image Sensor | CMOS |
| Pixels | 752*480 CMOS |
| Lumination | White light, LED |
| Symbologies | 2D: PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), HanXin code. |
| 1D: Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited,RSS-Expand) | |
| Resolution | ≥5mil |
| Motion Tolerance | 2.5 m/s |
| Scan Angle | Pitch: ±50°@ 0°Roll and 0° Skew Roll: ±360°@ 0°Pitch and 0° Skew Skew: ±60°@ 0°Roll and 0° Pitch |
| Symbol Contrast | ≥30% |
| Interface | USB HID-KBW, USB virtual port, USB HID-POS, TTL-232, RS-232 |
| Field of View | Horizontal 44°, Vertical 33.2° |
| Typical Depth of Field | EAN-13 0cm—20cm（13mil） PDF 417 0cm-7cm（6.67mil） CODE 39 0cm-12cm（5mil） Date Matrix 0cm-4cm（10mil） QR Code 0cm-10cm（15mil） |
| Decoding | Armed with 32-bit ARM chip and DSP of technology, the product is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film. |
| Lightning invoicing | Support with Alipay，National tax，Aisino，Best wonoer，WeChat, lightning invoicing. WeChat billing assistant, lightning invoicing.(custom-made) |
| High precision | The decoding accuracy 5mil. |
| USB of free drivers: | Plug and operate, windows comes with driver, no need to install the driver. |
| Fill light switch | Easy to switch enable between disable. |
| Stereo speaker | Stereo speaker adopted of graceful and vigorous acoustic quality rather than sharp and monotonous. |
| Bi-color LED indicator lights: | Adopt bi-color LED indicator lights to display different conditions in the operation.standby: green; decoding: red. |
| Accessories | Cable: USB (2m): USB HID-KBW, USB Virtual serial por, USB HID-POS; TTL-232 (2m): TTL-232 RS-232 (2m): RS-232 |
| Color | Black, White |
| Dimension | (D*W*H) 200mm*130mm*115mm |
| Weight | USB: 500g; TTL232: 500g; RS232: 550g(specification 1pcs
(USB or RS232 or TTL232 cable 1pcs; Scanning Platform 1pcs; Certifications 1pcs) |
| Package box | 20pcs per box（D*W*H）690mm*420mm*255mm |
Application
1．POS;
2．Customer service desk;
3．Ticket validators;
4．O2O.
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution since 2008. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
22cm x 15cm x 14cm (8.66in x 5.91in x 5.51in)
