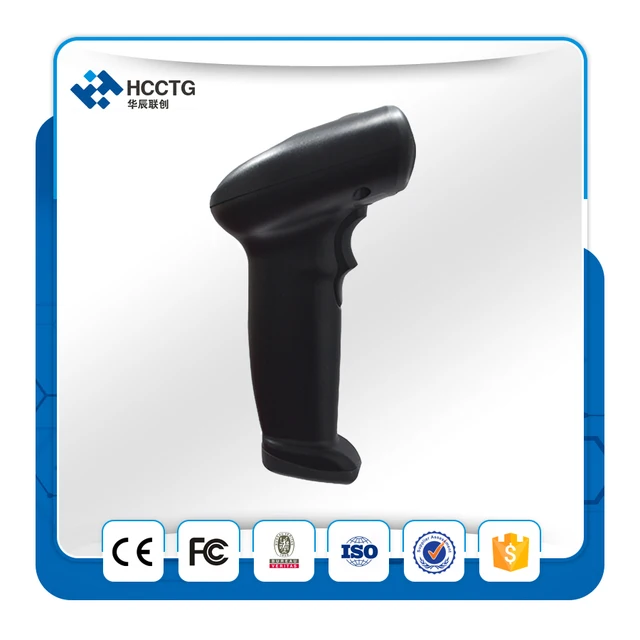

Supermarket Handheld 2D Code Scanner Bar Code Reader HS6300S with Holder
Scanning Light Source:
Laser Light
Max Paper Size:
A4
Scan Element Type:
CMOS
Type:
Barcode Scanner
Colour Depth:
24 Bit
Model Number:
HS6300S
Optical Resolution:
400*400
Scan Speed:
200 scans/second
Scan Breadth:
A4
Time to market:
Mar-13
Product Type:
Bar Code Scanner
Interface Type:
USB
Brand Name:
HCCTG
Novelty:
New
Product Type:
2D
Interface:
USB
Working Electricity:
250mA
Holder:
Hold the scanner to do scanning automatic
Power adapter:
5Vpower adapter
Resolution:
Four hundred
Material:
ABS+PC
Color :
Black
Using Way:
Supermarket, Hospital, bank and so on
Product Name:
Supermarket Handheld 2D Code Scanner Bar Code Reader HS6300S with Hold
Supermarket Handheld 2D Code Scanner Bar Code Reader HS6300S with Holder
General:
1.Optical system
- Unique patent technology of light imaging:Using white /red lighting and wide-filed camera to get lighting in most range,without the back light interruption.
- Leading Visual tomography:According to digital image processing and the visual simulation technology combined with background modeling, remove burr, defect and noise of the image, extract the color information accurately of the barcode test area,improve bar code color contrast in the form of quantification , the dynamic contrast value can reach 3-8 times compared to the initial value, improve the first reading rate effectively.
2. Control system
- Delicate surface,control the button with fingers, easy without fatigue;
- Vibration prompt function, easy to judge whether decoding successful in noisy environment,;
- Intelligent stand, induction distance5-25cm, more easy to control for more molds.
3. IP54 Industrial Level
- IP54 high industrial level Dust-proof, waterproof, anti fall CE,ROHS,FCC,IEC,ISO9001 quality testing certifications
- Appearance material:Use ABS+PC high dense synthetic materials, strong, light weight and corrosion resistance.
- 360°seal design:button,data line interfaces,double water treatment for the sound hole
- Data wires:use TPE packing material, double weave and double shield.Pass 50,000 times swing tests, transmit normal and stable in the complex electronic jamming environment.
Specification:
| physical characteristics | ||
| Reading mode | Cmos | |
| Resolution | Four hundred thousand | |
| Dimension | 173mm(L)x63mm(W)x93mm(H) | |
| Decode capacity | 1D | UPC/EAN with supplementals, Bookland EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCII,Trioptic Code 39,Code 32,Code 93, Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,GSI DataBar Variants,Korean 3 of 5,ISBT Concat and so on |
| 2D | Chinese code,PDF417,MicroPDF417,Composite Codes,TLC-39,Data Matrix,Maxicode,QR code,MicroQR,Aztec and so on | |
| Decode range | 5 mil Code 39: Near(mm):10mm Far(mm):90mm 5 mil UPCA: Near(mm):10mm Far(mm):110mm 5 mil PDF417: Near(mm):12mm Far(mm):40mm 8 mil QR code: Near(mm):10mm Far(mm):40mm 10mil Code 39 : Near(mm):10mm Far(mm):150mm 10mil UPCA: Near(mm):15mm Far(mm):120mm Resolve 1D Code 39:5mil Resolve 2D DM,QR:8mil | |
| Interface supported | USB:HID Keyboard(default model), COM Port Emulation Interfaces Supported RS232:Standard | |
| Light source | LED (630nm ± 10nm) | |
| Filed of view | Roll | 360°@ 0°Pitch and 0° Skew |
| Pitch | ±65° @ 0°Roll and 0° Pitch | |
| Yaw | ±65°@ 0°Roll and 0° Skew | |
| Print contrast | ≥ 25% | |
| Weight | 235g(including USB Data lines) | |
| Performance Characteristics | ||
| Motion tolerance | 2.25W | |
| Working voltage | DC 5V | |
| Electricity | Max | 350mA |
| Working | 250mA | |
| Await | 20mA | |
| Environment request | ||
| Operating temperature | 0°C - +45°C | |
| Storage temperature | -40°C - +70°C | |
| Humidity | 5% - 95%(non-condensing) | |
| Ambient light Immunity | Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux. | |
| Drop/Shock specifications | Withstands multiple 1.8m(6ft.) drops to concrete | |
| Certifications | ||
| Electrical Safety | UL60950-1 2nd ed,CSA C22.2No.60950-1 2nd ed,EN60950-1/IEC60950-1 2nd ed. | |
| LED Safety | IEC/EN60825-1:2001,IEC/EN62471:2006 | |
| EMI/RFI | FCC Part 15 Class B,ICES-003 Class B,EN55022 Class B,EN55024 | |
| Environmental | Compliant with ROHS diective 2002/95/EEC | |
| Spare parts | ||
| Data lines | RS-232 | RS-232 data lines ,connecting the information and mainframe,adapter interface included |
| USB | USB line ,connecting the data,with the mainframe | |
| Holder | Hold the scanner to do scanning automatic | |
| Power adapter | 5Vpower adapter,offer power to scanner with data lines. Outface:DC5V,1.5A; Input is:AC100~240V,50~60Hz | |
| Service | ||
| Mainframe | 1 year | |
Picture:
FAQ of RS232 USB Scanning Automatic 2D Barcode Scanner HS6300
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
Unit Type:
piece
Package Weight:
2.0kg (4.41lb.)
Package Size:
20cm x 15cm x 10cm (7.87in x 5.91in x 3.94in)
