Rugged PDA Android Handheld Data Terminal 1D 2D Barcode Scanner Support Wireless WiFi 4G Bluetooth GPS Warehouse PDA

Cheap Rugged PDA Android Handheld Data Terminal 1D 2D Barcode Scanner Support Wireless WiFi 4G Bluetooth GPS Warehouse PDA

Product ID : 33006020753

Price : $198 - 391.13

Discount Price : $168.30 - 332.46

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Brand Name:
  RUGLINE



•
  Scan Speed:
  200 scans/second



•
  Type:
  Barcode Scanner



•
  Optical Resolution:
  480*854



•
  Scan Element Type:
  1D Laser 2D CCD



•
  Interface Type:
  USB



•
  Scan Breadth:
  1D 2D QR HONEYWELL Scanner optional PDA Handheld terminal rugged PDA



•
  Model Number:
  RT810



•
  Novelty:
  New



•
  Scanning Light Source:
  Laser Light



•
  Colour Depth:
  48 Bit



•
  Time to market:
  Mar-13



•
  Product Type:
  Bar Code Scanner



•
  CPU:
  ARM Cortex-A53 64 bit quad-core(1.3GHz)



•
  Memery+Flash:
  2G+16G NAND Flash,micro-TF up to 32G



•
  Operating System:
  Android 7.0



•
  Battery:
  3.7V 4,200mAh Li-battery



•
  Screen:
  5 Inch



•
  Wireless:
  4G,WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS



•
  Item name:
  wireless Andorid 7.0 Touch Screen Android PDA 1D/2D barcode scanner



•
  Display:
  4.5'' QVGA touch panel TFT-LCD Display



•
  Model Number:
  Portable data terminal PDA barcode scanner



•
  1D Scanner:
  Mingde966(Standard),HoneywellN4313



•
  2D Scanner:
  Newland 3090(Standard), HONEYWELL N6603



•
  Optional:
  QR scanner and NFC HF UHF RFID


Product Description

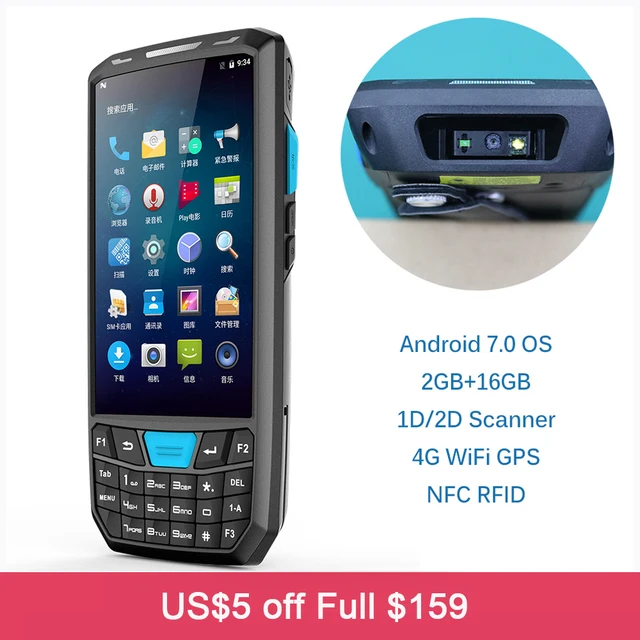

Rugged PDA Android Handheld Data Terminal 1D 2D Barcode Scanner Support Wireless WiFi 4G Bluetooth GPS Warehouse PDA

Standard Configuration:Android7.0+4.5'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+3G/4G+GPS+Camera+Free SDK

Option:1D/2D Scanner, NFC RFID Reader( If you need the optional function, please contact us.)

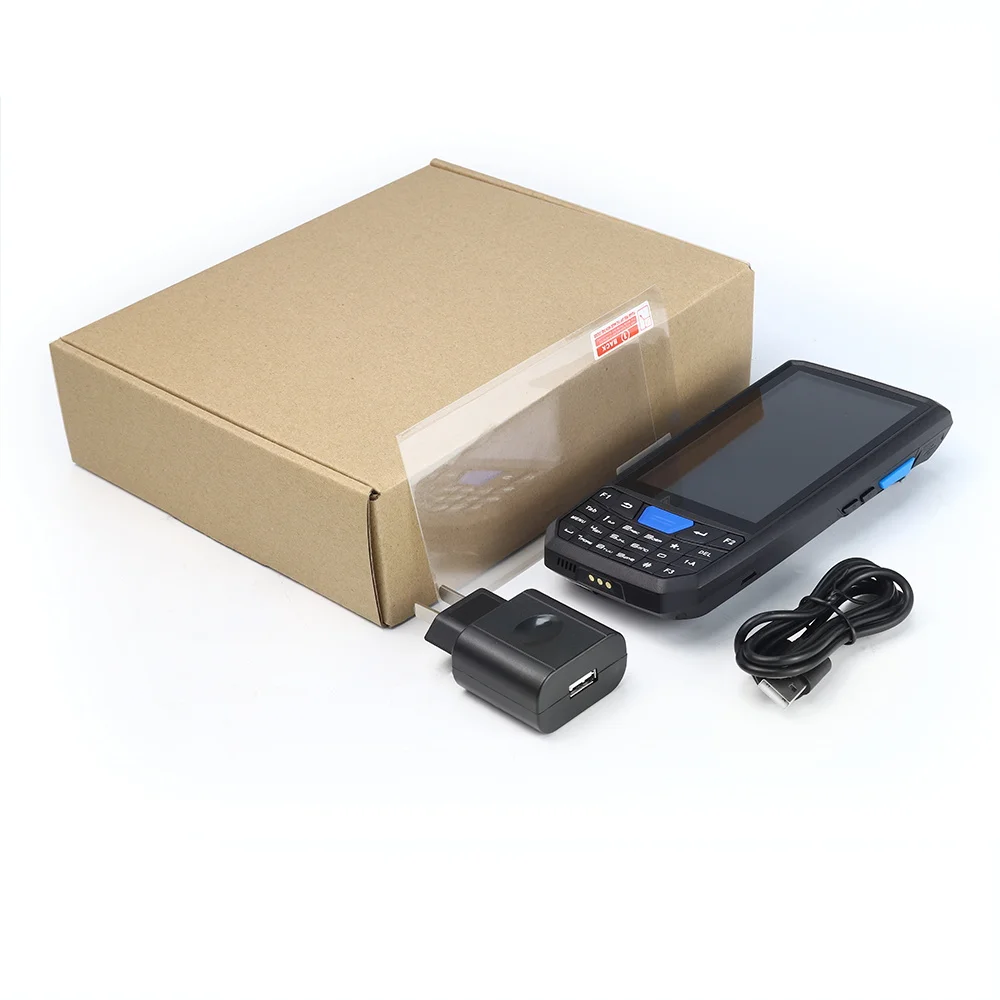

Standard Accessories:barcode reader-1pcs;usb data cable-1pcs:charger-1pcs;battery-1pcs;hand strap-1pcs

Optional: Extra Charge Cradle, Carry Case



Standard Features:

• Android 7.0 OS/ 4G FDD-LTE/WCDMA/GSM/ 2G RAM+16G ROM
• 2.4G&5G WIFI/ Bluetooth/ GPS/ 8MP camera with flash
• Basic barcode reader type: 1D barcode (support EAN13/EAN8/UPC/Code 39/JAN13/Code 11)
• Competitiveness:
• Optional configuration: 2D, NFC(13.56M), Psam
• With 4.5inch touch screen and number key pad, mobile phone outlook and easy to operate.
• 8MP camera, satisfied you taking high quality photos.
• Open android 7.0 platform, support Java and Eclipse.SDK is free.
• 4200mAh long life battery, keep longer work.
• IP66 protect level,waterprrof/dustproof/falling preventing
• Factory price, help you win the market in your place.
• ​1D/2D barcode scanner



Main Parameters:

PRODUCT PICTURES SHOW



Physical Parameter
Size	166mm(L)×77.5mm(W)×22mm(D)
Weight	<500g
Display screen	4.5 inch IPS 480 * 854 PX with Multi-point touch capactive screen.
Expand port	PSAM x 2（optional)Micro SIM x 1 、POGO Pin x 1、Micro SD(TF) card x1
Communication interface	Type-C, USB x 1
Battery capacity	Rechargeable Li-polymer Battery 3.7V 4200mAh Optional. RTC battery keeps time not lost.
audio frequency	Speaker(mono)x1，Microphonex1，headphonex1
Flashlight	Compatible with flashlight and electric torch.
Acceleration sensor	1、3-Axis 2、Sampling can be adjusted per second, such as 1~100 times.
Basic function	1、Motor*1     2、color lamp*2         3、Optical sensor support 4、The flashlight brightness is the same as camera flash
Key	29 Silicon key,Support touch screen soft keyboard and physical keyboard.
Performance Parameter
OS	Android7.0
Ram/flash Rom	16G Flash ROM and 2GB RAM（8G Flash ROM and 1GB RAM Optional）, Micro SD/TF card slot(Max up to 32G).
Typewriting	English, Pinyin, five strokes, handwriting input, support soft keyboard
Language	Chinese, English,Korean,Japanese,Malay, Singaporean etc
Camera	8MP autofocus camera with flash
GPS	Support GPS or AGPS
NFC	Support 13.56MHz；ISO1443A/B、15693；read distance is 2cm-5cm
Data Communication
WI-FI	Support IEEE802.11a/b/g/n， it need effective wireless LAN signal cover
4G	FDD-LTE （B1/B2/B3/B5/B7/B8/B20） TDD-LTE （B40）
3G	WCDMA （850/900/1900/2100MHz）
2G	GSM（850/900/1800/1900MHz）
Bluetooth	Support 2.0+EDR/3.0+HS/4.0+HS Transmission distance is 5-10m
Scanner engine(Optional)
1D Laser scanner (optional)	Minde SE966 / Honeywell N4313/ Newland EM1300(CCD)
	Support Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128, GS1 Databar,HIBC,etc.
2DCMOS scanner (optional)	Newland EM3090 / Newland EM3096/ Honweyll N6603
	Support PDF417,MicroPDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc.
Operating System
Standby current	≤10mA，Target ：no more than 8mA。
Temperature	-20℃ to 55℃
Storage	-25℃ to 70℃
Environment Humidity	5%RH--95%RH(no condensation)
Drop specification	6 sides can bear impact from 1.5m drop to cement floor about 30 times in the range of operating temperature
Product certification
IP rating	IP66
Safety specification	IEC2 /FDA Ⅱgrade,conform IEC60825­/EN60825-1 standard
Working life	No less than 5 years



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.0kg (2.20lb.)



•
  Package Size:
  36cm x 21cm x 9cm (14.17in x 8.27in x 3.54in)
