PDA NFC Bluetooth 1D 2D barcode reader WIFI 4G Industrial IP65 PDA android barcode scanner
Scan Speed:
100 scans/second
Scan Element Type:
CCD
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A8
Colour Depth:
48 Bit
Model Number:
pda nfc
Product Type:
Portable Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
mussels
Optical Resolution:
480*800
Operating system:
Android 6.0
Processor:
28nm ARM cortex A53 Qual-core 64bits 1.3 GHZ
Memory:
2G RAM + 16G ROM
Display screen:
4.0 inch
Barcode scanner:
1D , 2D barcode scanner
NFC reader:
13.56mhz
Network:
4G LTE 3G(WCDMA/EVDO/TD-SCDMA) and 2G GSM
Standard configuration:
4G WIFI NFC GPS bluetooth Camera
Keys:
23 physical Keyboards
Battery:
4000 mah lithium battery
PDA NFC Bluetooth 1D 2D barcode reader WIFI 4G Industrial IP65 PDA android barcode scanner
The standard configuration
4 inch touch screen + Android 6.0 OS + Wifi + Bluetooth + GPS + NFC + FDD-TLE 4G / WCDMA / GSM + phone + Camera + Google play + 2G RAM + 16G ROM + SDK
Optional functions,
1D / 2D barcode scanner , or PSAM, or uhf rfid reader .
Quick details
1>Android 6.0 PDA device with 4G,wifi ,NFC,GPS,bluetooth
2>IP65 industrial grade rugged classic design
3>With large capacity battery(4000 Mah)
4>Can be connected with many peripheral devices, good compatibility.
5> Provide free SDK for secondary development

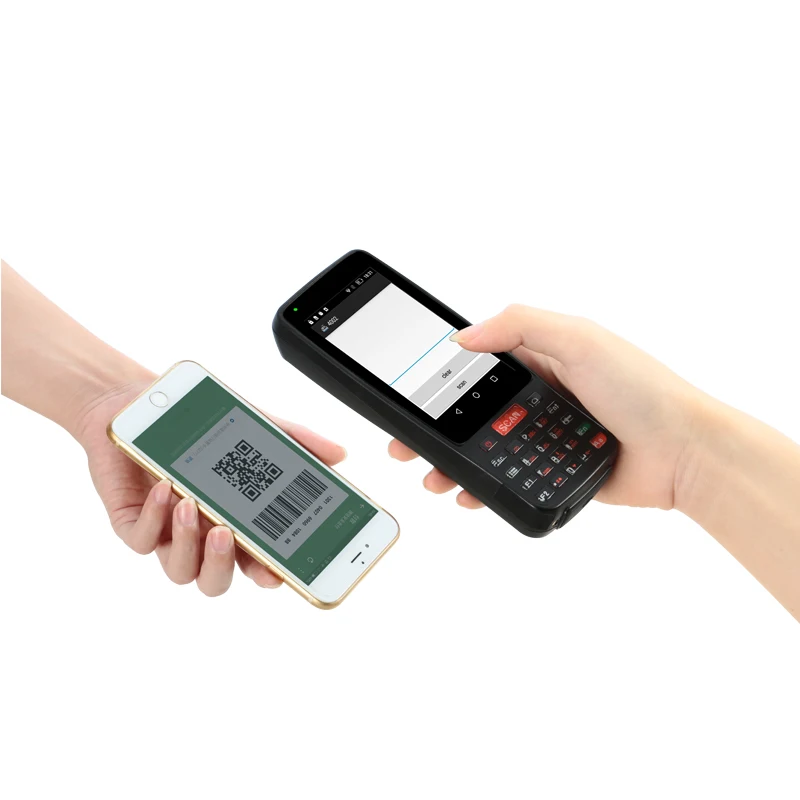

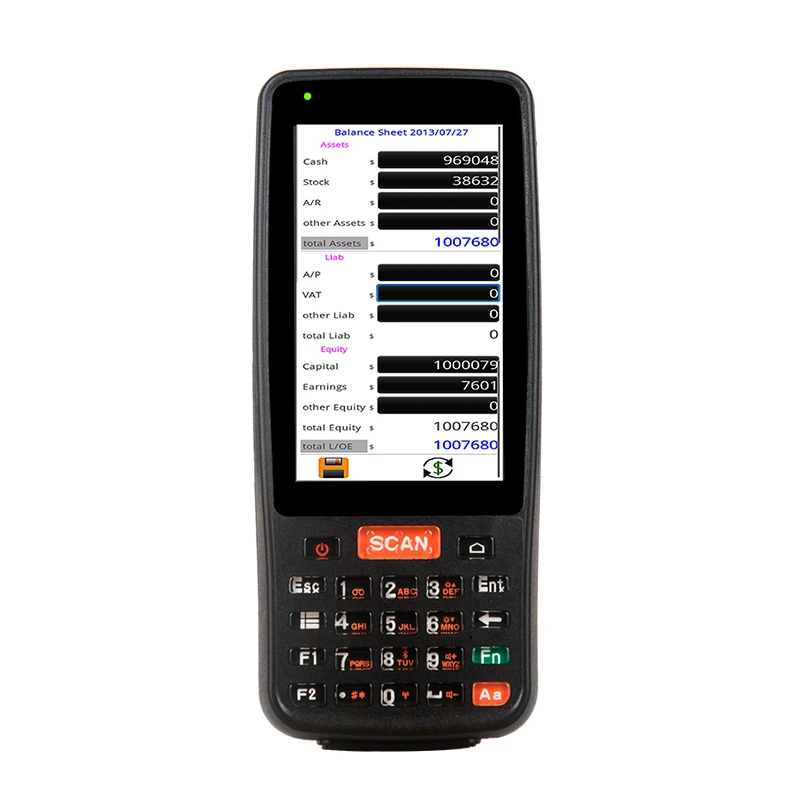

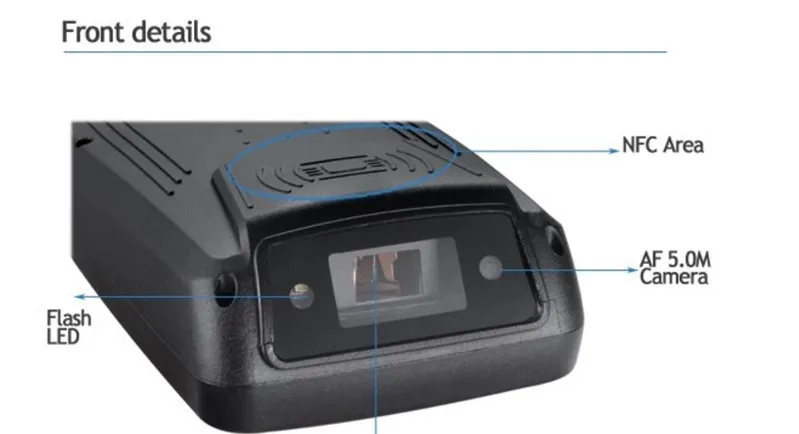

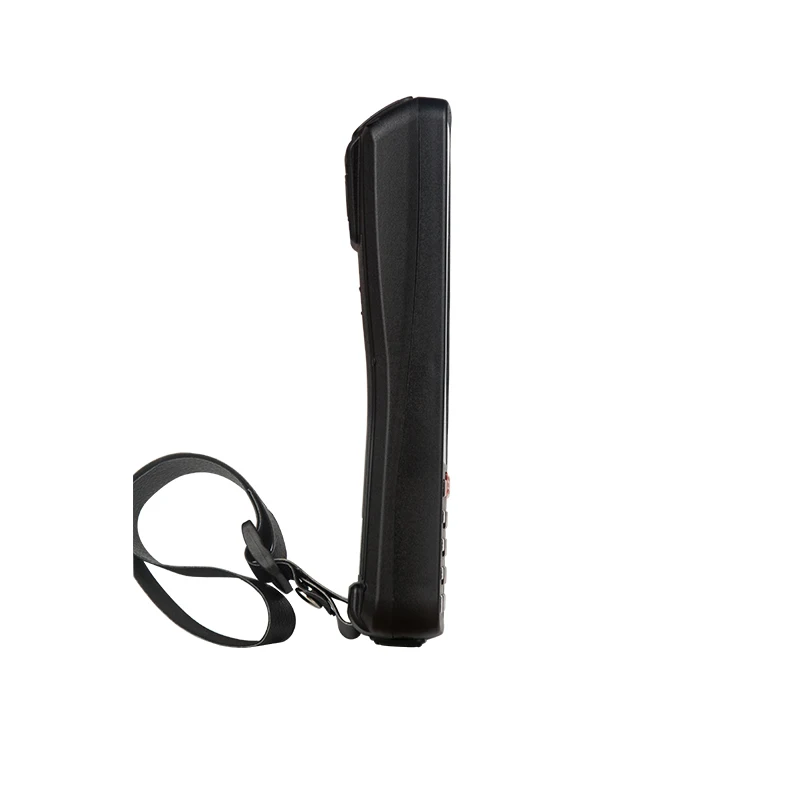

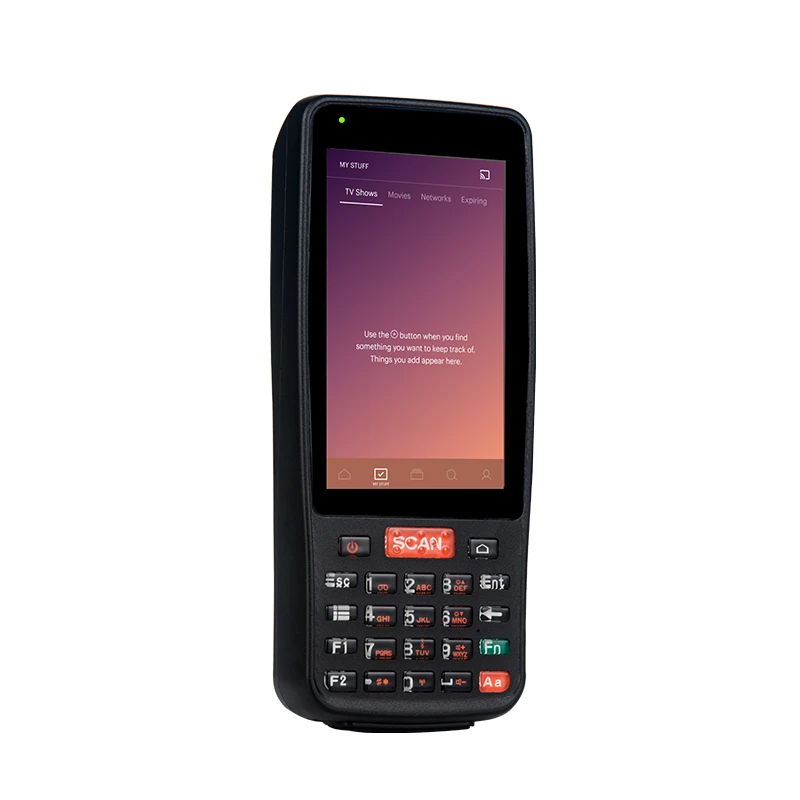

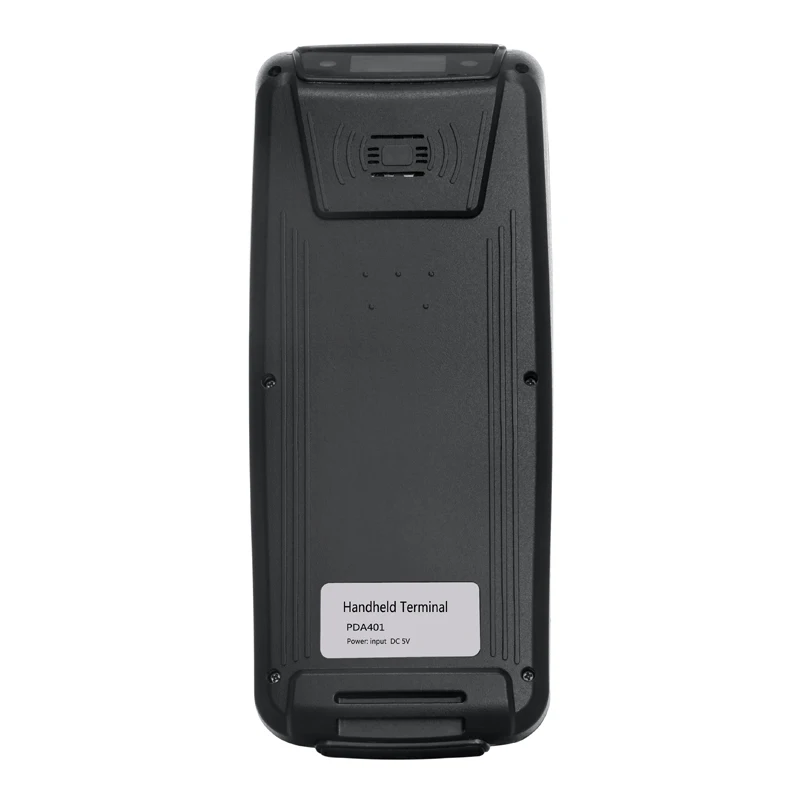

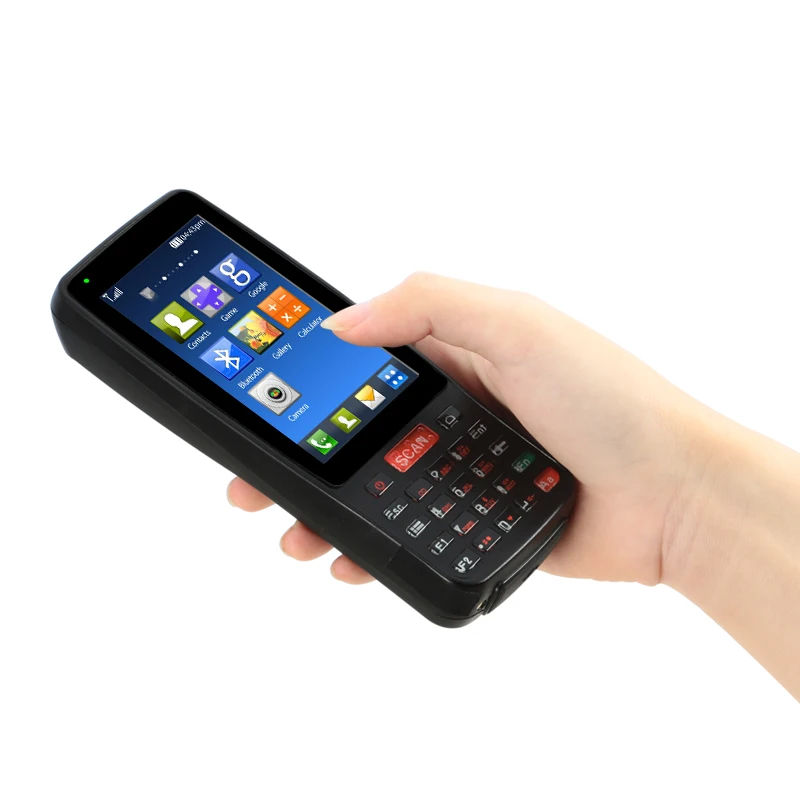

Product Show

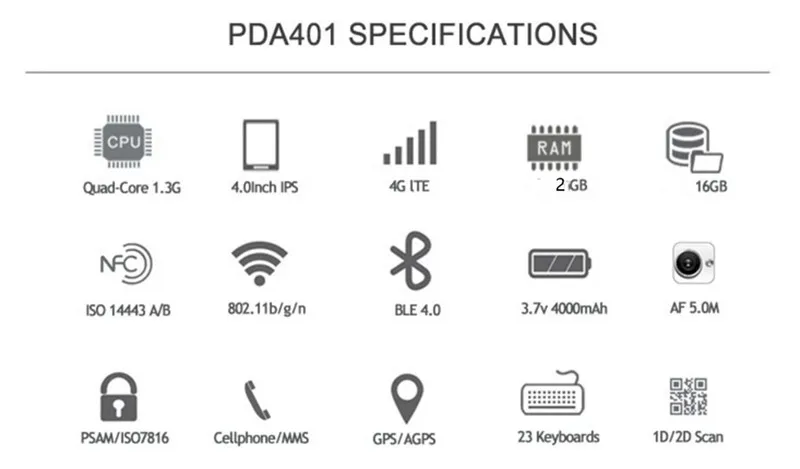

Technical Specifications
Physical Parameters | |

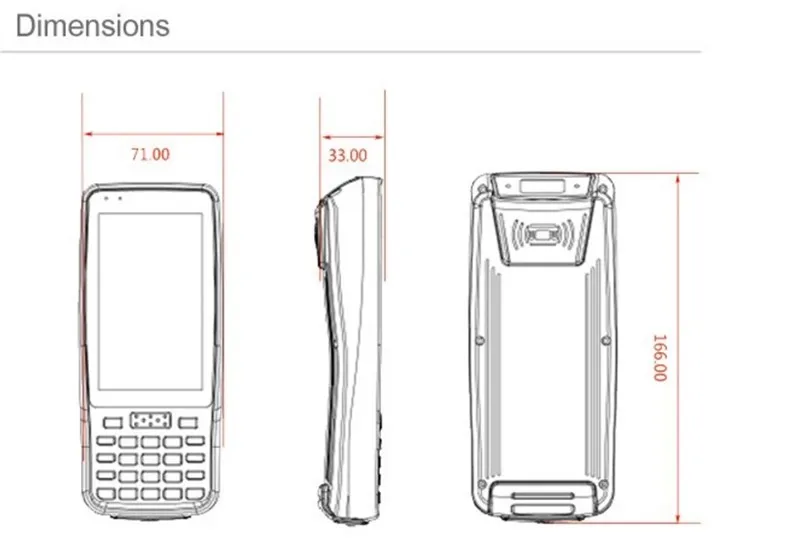

Dimensions | 162mm×70mm×31mm |
Weight | 345g without accessories |
Environmental Parameters | |
Operating Temperature | -10° to 50°C (14° to 122°F) |
Storage Temperature | -20° to 70°C (-13° to 158°F) |
Humidity | 0 to 95% relative humidity (non-condensing) |
Tumble | Designed to withstand up to 1,600 (1m) tumbles per IEC 60068-2-32 specification |

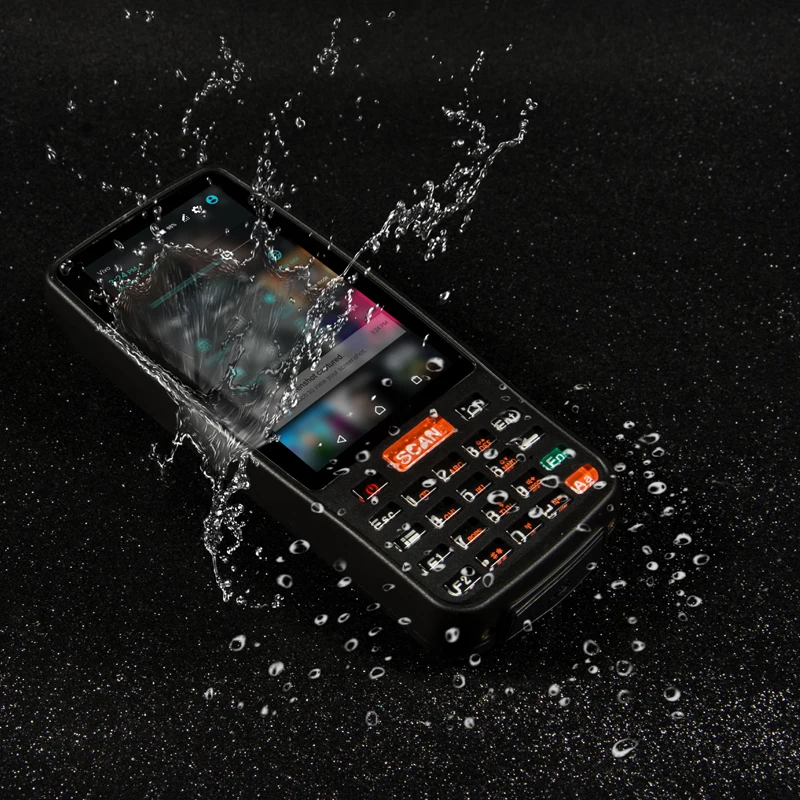

Environmental Sealing | Independently certified to meet IP64 standards for moisture and particle intrusion |
System Parameters | |
Processor | 28nm ARM Qual-core cortex A53, 1.3 GHZ |
GPU | Mali-T720 |
Memory RAM | 2GB |
Storage | eMMC 16GB and Support Max64GB SD card |
Display | 4.0inch 480*800 high resolution, full axis viewing IPS LCD With Industrial touch panel |
Keypad | 23 physical Keyboards |
Camera | Real 5.0M AF camera |
Battery | Internal 4000mAH rechargeable high-performance battery |

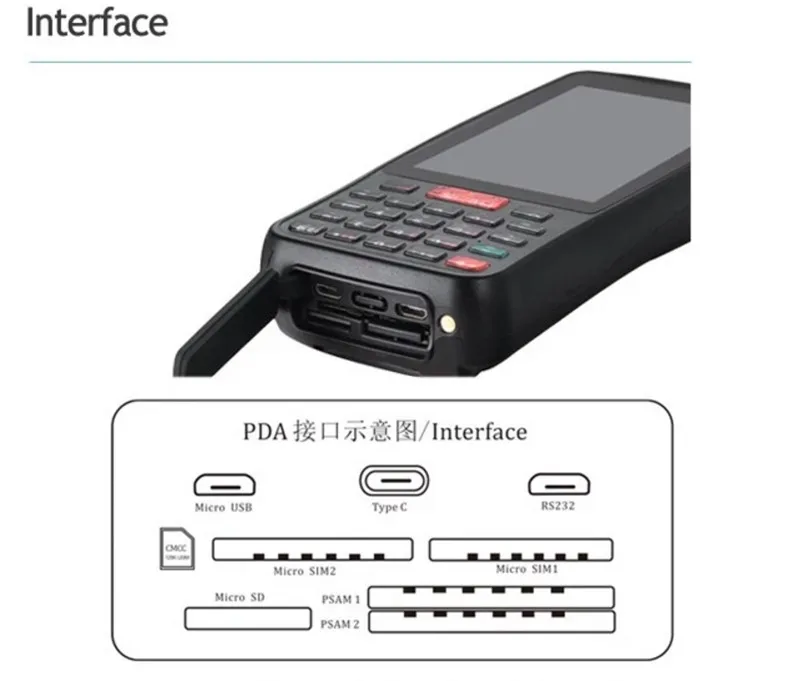

Interface | Micro SIM*1/TF card *1/RS232*1/ ( Type-c*1 , PSAM, optional) |
Platform | Android 6.0 |
Data Communication | |
GSM/GPRS/EDGE | 850/900/1800/1900MHz |
3G Network | CDMA/EVDO/WCDMA/TD-SCDMA |
LTE 4G network | LTE-FDD:B1/ B3/ B7/B8/B28 and LTE-TDD:B38/B39/B40/B41 |
Wi-Fi | IEEE 802.11 b/g/n |
Bluetooth | BT4.0 |
GPS | Integrated autonomous GPS receiver with built-in Assisted-GPS (A-GPS) services and software utilities |

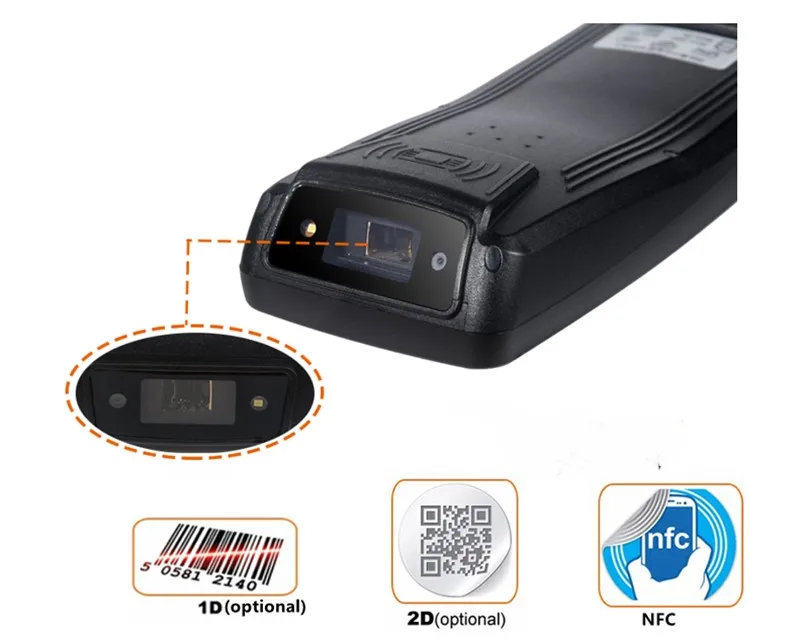

Data Collection | |
1D barcode ( optional ) | |
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5,Codabar, MSI, RSS,etc | |
2D QR ( optional ) | |
PDF417/ MicroPDF417/ Composite/ TLC-39/Datamatrix/ QR/ code/ Micro/ QR/ code/ Aztec/MaxiCode;/ Postal/ Codes:/ US/ PostNet/ US/ Planet/UK/Postal/Australian/Postal/Japan/Postal | |
NFC | |
Frequency | 13.56MHz |
W/R Tag | ISO/IEC 14443A/B,ISO15693,Mifare,Felica |

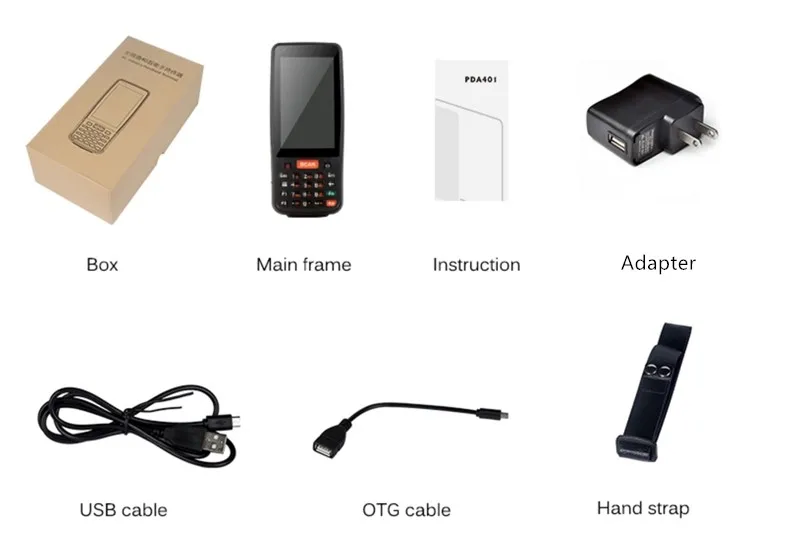

1 unit packing list include
1x PDA with battery inside
1x Adapter
1x USB data cable
1x OTG cable
1x Hand strap
1x user manuel
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient's CNPJ or CPF number, otherwise, the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .
4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager. You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Starfor the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shipping.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
18cm x 15cm x 12cm (7.09in x 5.91in x 4.72in)
