NETUM Hanheld 2D pdf417 Barcode Scanner USB Professional QR Bar Code Reader Scanning Advanced DataMatrix,PDF417 Code NT-1228
Best Offers NETUM Hanheld 2D pdf417 Barcode Scanner USB Professional QR Bar Code Reader Scanning Advanced DataMatrix,PDF417 Code NT-1228
Product ID : 32925739855
Price : $87.95
Discount Price : $61.56
* Price Update at : Jully, 25 2019 *
Item specifics
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Colour Depth:
32 Bit
Model Number:
NT-1228
Product Type:
Bar Code Scanner
Novelty:
New
Scanning Light Source:
Laser Light
Brand Name:
NETUM
Optical Resolution:
0.35mm
Scan Speed:
150 scans/second
Scan Element Type:
Laser
Interface Type:
USB,COM
Optical Resolution:
0.35M, 752H*480V
Supported 2D barcodes:
PDF417, MaxiCode, DataMatrix (ECC 200), and QR Code
Supported 1D barcodes:
all common 1D barcodes
Graphics Format Support:
BMP,JPEG,TIFF
Image Transfer Speed:
USB: Up to 12 M/s, RS232: Up to 115 kb baud rate
Light Source:
Aiming: 528 nm LED; Illumination: 630 nm LED
Product Description
NETUM Hanheld 2D pdf417 Barcode Scanner USB Professional QR Bar Code Reader Scanning Advanced DataMatrix,PDF417 Code NT-1228

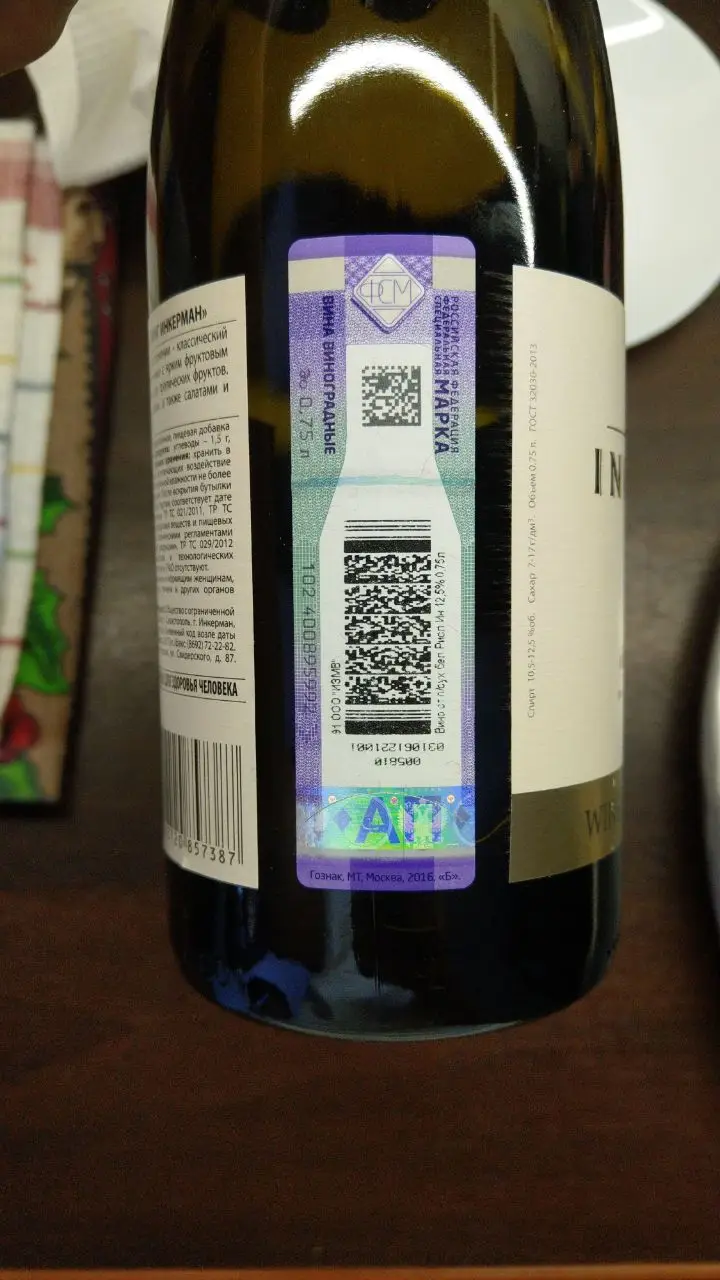

Russia's new policy:

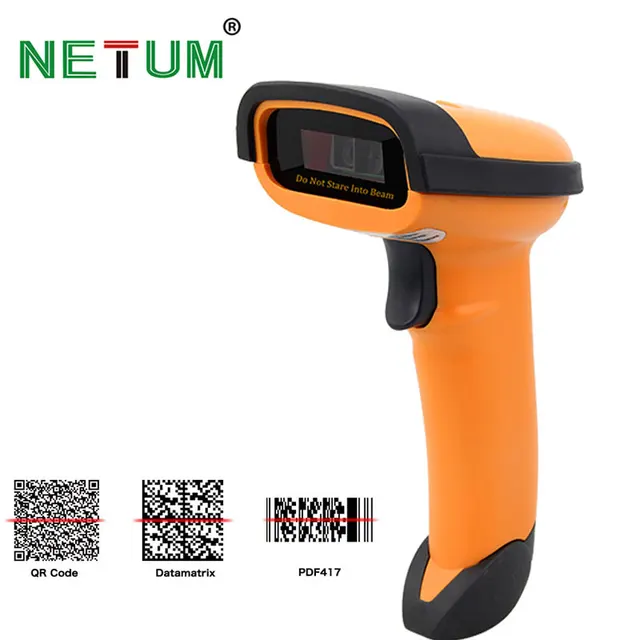

All alcohol bottles from manufacturers and suppliers are required to put PDF417 labels.Our 2D scanner can scan PDF417 ,QR and Datamatrix.
Features:

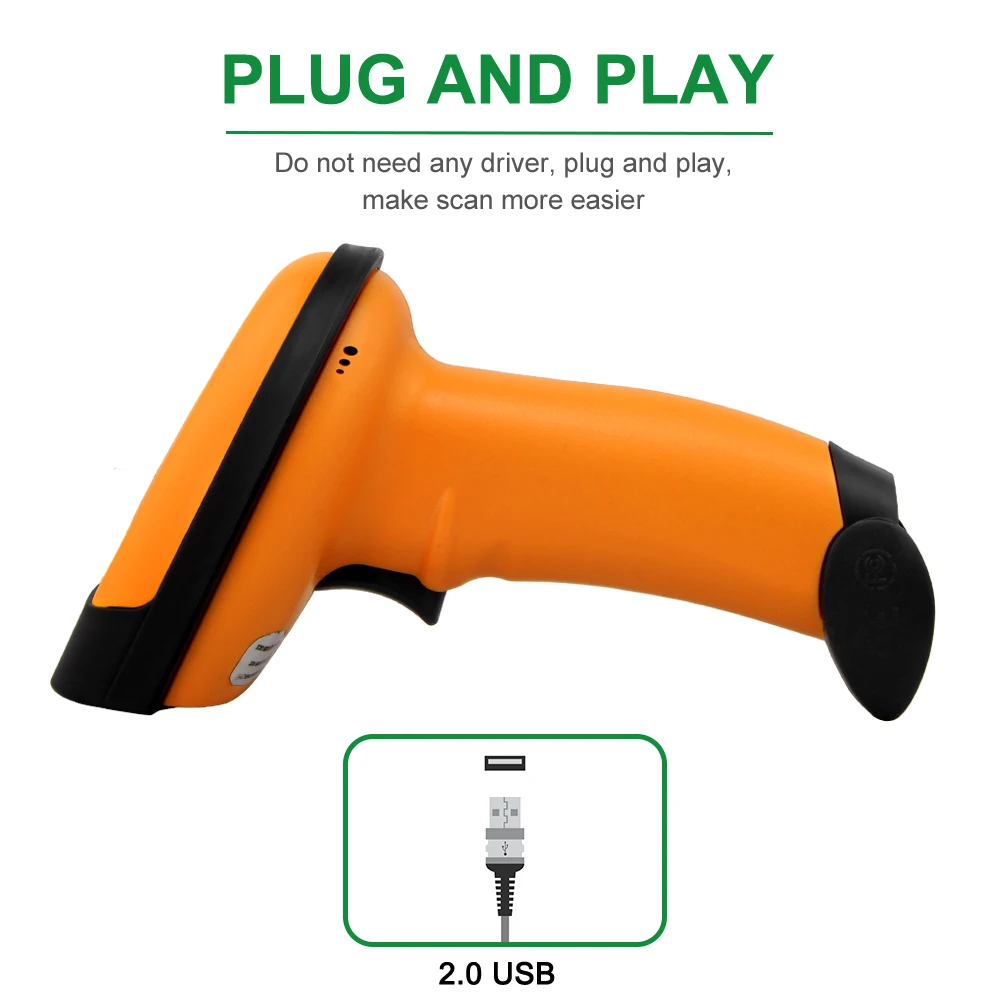

- High Quality 2D Scaning Engine, Plug&Play USB Interface
- Decode Capabilities:DataMatrix (ECC 200), QR Code, PDF417, UPC-A,UPC-E,EAN- 8,EAN-13,Code 39,Code 93,Code 32,Code39(ASCII),industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,NW7,Code 128,UCC/EAN128,USD-8,MSI/Plessey,UK/Plessey,UCC/EAN128

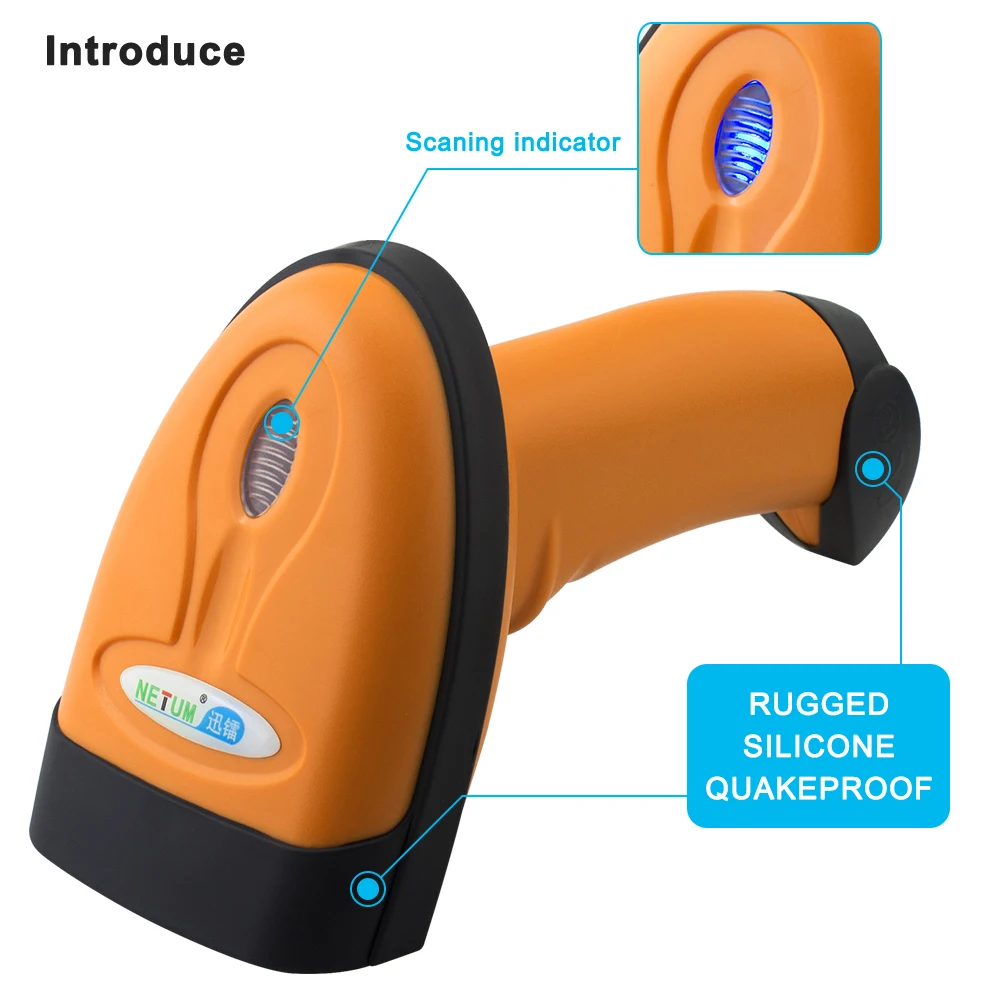

- ABS+PC Material: Durable & Pratical,anti-knock and quakeproof
- Applying CMOS image technology, easy to scan
- Multi Languages Keyboard Layout:UK British/Spainish/French/German/Italian
Parameters:
| 1 | Physical Characteristics | |

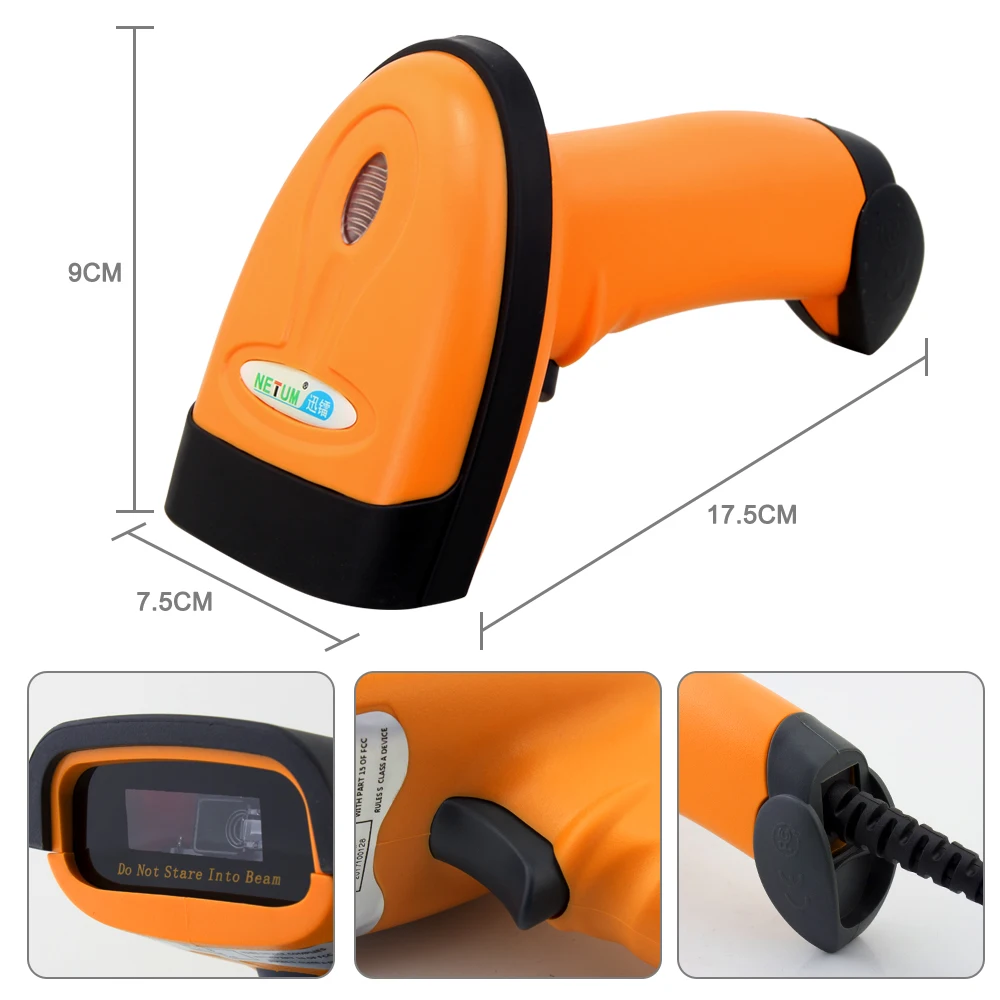

| 1.1 | Dimensions: | 51mm x 30.61mm(width) x 21mm(height) |
| 1.2 | Weight: | |
| 1.3 | Voltage and Current: | 5 +/-10%VDC @ 350 mA |
| 2 | Performance Characteristics | |
| 2.1 | Light Source: | Aiming: 528 nm LED; illumination: 630 nm LED |
| 2.2 | Field of View: | 34° V x 46° H(Vertical x Horizontal) |
| 2.3 | Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
| 2.4 | Scan Performance: |  |
| 3 | Symbology Decode Capability | |
| 3.1 | 1-D: | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 |
| 3.2 | PDF417 (and Variants): | PDF417, microPDF417 and composite codes |
| 3.3 | Postal: | U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch |
| 3.4 | 2-D: | DataMatrix (ECC 200), and QR Code |
| 3.5 | Print Contrast: | 25% minimum reflectance |
| 3.6 | Motion Tolerances: | Horizontal velocity: 5 in. (12.7 cm) per second |
| 3.7 | Interfaces Supported: | NT-8099: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces. |
| 4 | Imaging Characteristics | |
| 4.1 | Image (Pixels): | 0.35 Megapixel 752 pixels H x 480 pixels V |
| 4.2 | Graphics Format Support: | Images can be exported as Bitmap, Jpeg, and Tiff |
| 4.3 | Image Transfer Speed: | USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate |
| 4.4 | Image Transfer Time: | Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb |
| 5 | User Environment | |
| 5.1 | Operating Temperature: | 32° to 122° F / 0° to 50° C |
| 5.2 | Storage Temperature: | -40° to 158° F / -40° to 70° C |
| 5.3 | Humidity: | 5% to 95%, non-condensing |
| 5.4 | Drop/Shock Specifications: | Withstands 2000g to concrete |
| 5.5 | Ambient Light Immunity: | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. |
Packaging Details
Unit Type:
piece
Package Weight:
0.35kg (0.77lb.)
Package Size:
25cm x 20cm x 15cm (9.84in x 7.87in x 5.91in)
