DIY mini 3d scanner kit, designer and DIY basic engineer scanner set diy 3d Scanning

Special Offers DIY mini 3d scanner kit, designer and DIY basic engineer scanner set diy 3d Scanning

Product ID : 32868350890

Price : $89

Discount Price : $78.32

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Novelty:
  New



•
  Model Number:
  new



•
  Brand Name:
  LZHZXY



•
  Scan Element Type:
  other



•
  Optical Resolution:
  other



•
  Scan Breadth:
  other



•
  Type:
  other



•
  Scan Speed:
  other



•
  Interface Type:
  other



•
  product name:
  diy 3d Scanning



•
  Scanning features:
  Scanning



•
  Max Scan volumen:
  diameter 203 x height 205 mm



•
  Maximum supported weight:
  3 Kg



•
  color:
  red /black



•
  product number:
  DL0172


Product Description

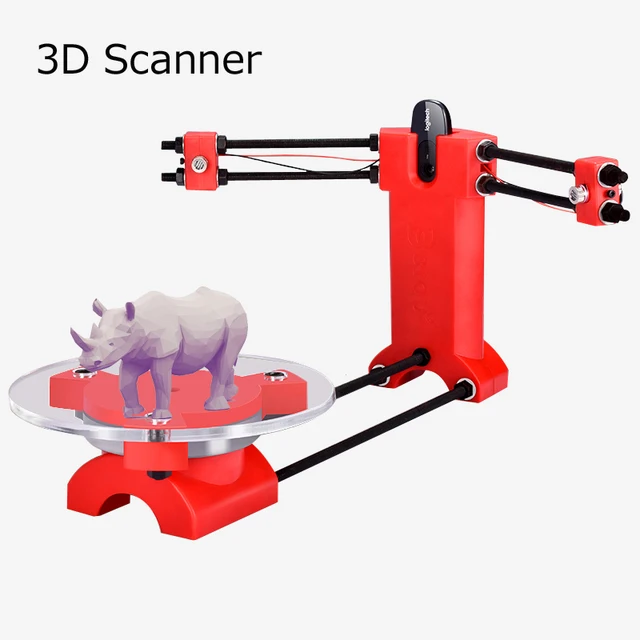

DIY  mini 3d scanner kit, designer and DIY 3D basic

engineer scanner set diy 3d Scanning



Picture showing :



Tip: DIY SCANNER s a desktop-level 3D scanner, not suitable for scanning irregular complex objects,
only scan close to the cylinder of the object, the effect will be more ideal. Scanning quality
and objects, the environment, light has a great relationship, it is recommended in our constant
light studio scan. And the installation needs to have their own hands-on ability.

3D Scanner for easy scanning of objects:



     1, opaque objects

     2, the weight of the object is less than 3 kg

     3, the object volume is greater than 5*5CM (space diameter and height)

     4, the object volume is less than 20.3*20.3CM
(space diameter and height)

     5, the object is stable



The 3D scanner is difficult to scan objects



     1, transparent objects (glass, organic plastics, etc.)

     2, light or strong reflective objects

     3, the volume is less than 5x5 cm objects

     4, very dark objects and surface blurred objects (such as plush toys, black objects)



The 3D scanner does not scan the object



     1, the volume is greater than 20.3*20.3CM objects

     2, moving objects

     3, the weight is greater than 3 kg

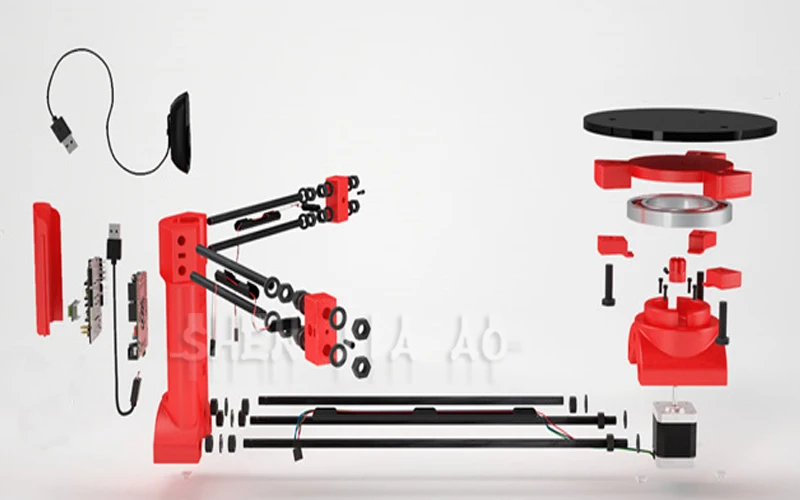

Installation diagram



3D Scanner Packing List:



1, 1 * Arduino uno control panel (latest version)

2, 1 * ZUM Scan expansion board

3, 1 * A4988

4, 1 * C270 camera

5, 2 * laser

6, 1 * 42 motor

7, 1 * 16014 bearing

8, 1 * 12V, 2A power supply

9, 1 * 200mm Acrylic platform

10, 1 * Acrylic calibration board

11, 1 * calibration paper

12, 1 * black tie band

13, 2 * M8 * 400mm screw

14, 4 * M8 * 170mm screw

15, 1 * M8 * 292mm screw

16, 10 * M3 * 10 screws

17, 6 * M3 nuts

18, 3 * M8 * 10mm screws

19, 28 * M8 nuts

20, 18 * M8 gasket

21, 1 set of prints





Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  3.0kg (6.61lb.)



•
  Package Size:
  25cm x 25cm x 24cm (9.84in x 9.84in x 9.45in)
