1D Bar Code Scanner Android Logitech Barcode Scanner with RFID Contactless Smart Card Reader
Scan Speed:
100 scans/second
Scan Element Type:
CMOS
Interface Type:
COM
Type:
Barcode Scanner
Scan Breadth:
A3
Colour Depth:
32 Bit
Model Number:
S802
Product Type:
Portable Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
2ndshine
Optical Resolution:
480*800
OS:
Android 7.0
touch screen:
4.0inch
Communication:
2G/3G/4G
Scanner type:
2d
RFID option1:
High frequency
delivery date:
3-5 working days by DHL
Product name:
logitech barcode scanner
RFID option 2:
125khz RFID reader
1D Bar Code Scanner Android Logitech Barcode Scanner with RFID Contactless Smart Card Reader
Android 7.0 OS with 2GB RAM&16GB ROM, newest technology and enough storeage.
With 4.0inch touch screen and number key pad, mobile phone outlook and easy to operate.
Support 3G&4G communication network, quick surfing internet, and can make call.(phone feature)
Small size:152mmx77mmx29mm just put it in your pocket.
8MP camera, satisfied you taking high quality photos.
Open android platform, support Java and Eclipse.SDK is free.
Free download app from google store. Google play works fine in this device.
Support 2.4G& 5G wifi, meet all your requirement.

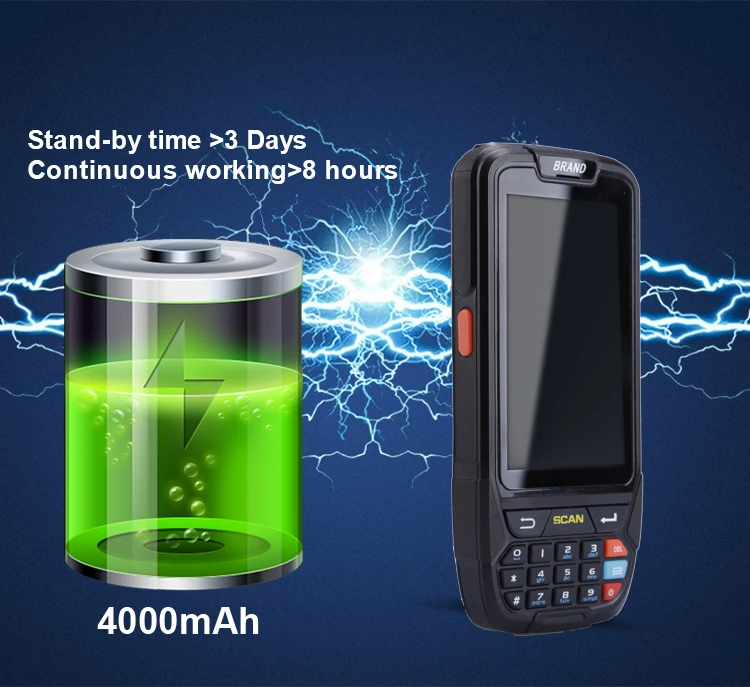

4000mAh long life battery, keep longer work.
IP65 protect level,waterprrof/dustproof/falling preventing

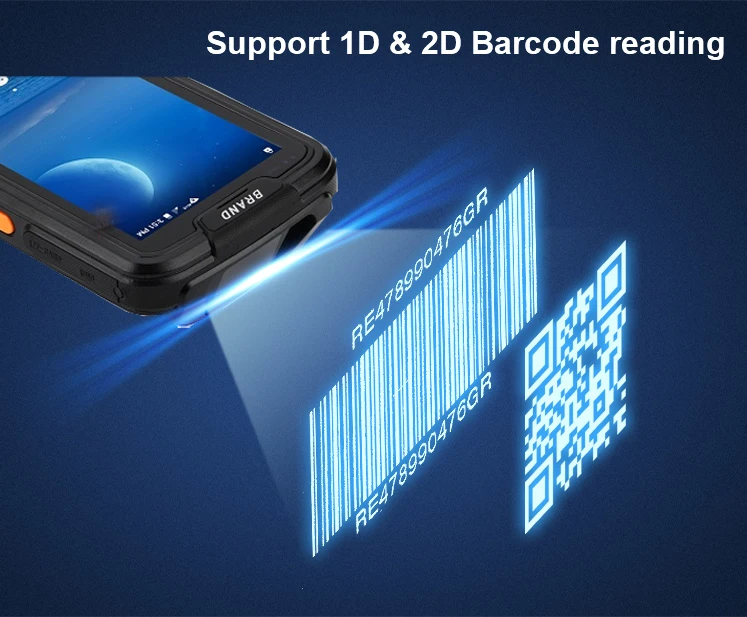

Honeywell barcode reader, 1D or 2D as you like
Factory price, help you win the market in your place
logitech barcode scanner
Packaging:
S802 barcode reader-1pcs;usb data cable-1pcs:charger-1pcs;battery-1pcs;hand strap-1pcs.
Cradle/charger base/docking station need 15usd extra cost, pls visit this link:
https://www.aliexpress.com/store/product/2nd-Shine-tech-S802-PDA-Cradle-docking-station-device-base/2063137_32811272153.html?spm=a2g0y.12010612.8148356.1.507c6ed8Vk8yxX
Buy extra battery pls visit this link:
https://www.aliexpress.com/store/product/2nd-Shine-S802-Battery-4000mAh/2063137_32689639050.html?spm=a2g0y.12010608.0.0.2b9c769140Vy0E
Physical Parameter | |
Size | 152mm(L)×77mm(H)×29mm(W) |
Weight | <400g |
Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable |
Expand Port | SIM card, , Micro SD (TF) Card |
Communication Interface | USB2.0 Device, |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency | 8 1W speaker |
Key | 21pcs soft silicon key |
Performance Parameter | |
CPU | 4 X Dual-core ARM Cotex-53 |
RAM | 2G RAM |
Flash ROM | Standard 16G NAND Flash Storage Micro SD/TF port (Max up to 32G) |
Data Communication | |
WI-FI | Support IEEE802.11b/g protocol, it need effective wireless LAN signal cover |
WCDMA | UMTS2100/900MHz UMTS1900/850MHz GSM850/900/1800/1900MHz |
CDMA2000 | CDMA2000 1x,CDMA2000 EV-DO Rev 0,CDMA2000 EV-DO Rev A Supports BC0(800MHz band),BC1(1900MHz band) |
Bluetooth | Support Bluetooth 2.0+EDR, transmission distance is 5-10m |
Operating Environment | |
Operating Temperature | —20C to 50C |
Storage Temperature | —25C to 70C |
Environment Humidity | 5%RH--95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP65 |
Development Environment | |
Operating System | Android 7.0 |
SDK | exclusive use software development kit |
Supported Language | JAVA |
Development Tool | Eclipse |
|
1. Samples
Less than 10pcs samples are applied each time for our clients, the price is obviously a little bit higher than the wholesale price.
But If you want more than 100pcs, it'll be much cheaper. However,the more you order,the lower production cost it'll be, so the cheaper price you'll get.
All the price is excluding the freight fee.
2. Quality
Color issues: All the PDA products are 100% absolutely objects photographed,but because of the Camera-technology, Light,Pixels and other factors, there'll be a little bit difference with the real product. Please take the real goods for reference or make sure with our sales in advance.
Qualifications: Our PDAs are produced according to the ISO9001 quality management system, and all the products have passed through IP65,CCC,and ROHS.
3. Delivery
If you want PDAs like S802 which are always in stock,it may needs 4-5 days to delivery.
If you want OEM/ODM products with particular functions, it may needs 15 days more to produce and delivery.
More specific details. please contact our sales.
4. Transportation
We always choose the competitive and safe shipping agent like DHL,UPS and Fedex and any other designated shipping agent by the customers.
If it goes smoothly with the customs clearance, you'll get the goods in 4-7 days.
5. After-Sale Service
We support 13 months warranty,during this period,it's exactly FREE to replace you a quiet new device terminal if your machines have serious irreversible functional damage.
Freight fare is half paid of the round trip by both sides. Customer pay the freight fee when they are sending the machines to china,and we'll pay it when returning them back to the clients.
2SHINE
FAQ
Question 1: Can i put my logo on the device?
Answer: YES, you can but MOQ is 20pcs ..
Question 2: How long is the delivery time ?
Answer: Device leader time is about 3-4 days, Delivery time is about 4 days by DHL.
Question 3: Where can i get SDK?
Answer: Pls leave your email address after your order, we will send SDK to your email box..
.Question 4: How much will wrote on the shipping invoice?
Answer: To help you pay less to your country custom, we will write only 50usd/pc in the Shipping invoice. If you need original price, pls contact me.
Question 5: Can the charger base/cradle Synchronization with the computer?
Answer: No, the cradle/base only can charge the device and a battery together, but can not synchronization with the computer. You can use the USB cable to connect your computer, just like our phone.
1D Bar Code Scanner Android Logitech Barcode Scanner with RFID Contactless Smart Card Reader
1D Bar Code Scanner Android Logitech Barcode Scanner with RFID Contactless Smart Card Reader
Unit Type:
piece
Package Weight:
1.5kg (3.31lb.)
Package Size:
20cm x 10cm x 10cm (7.87in x 3.94in x 3.94in)
